1997 CADILLAC ELDORADO Owners Manual

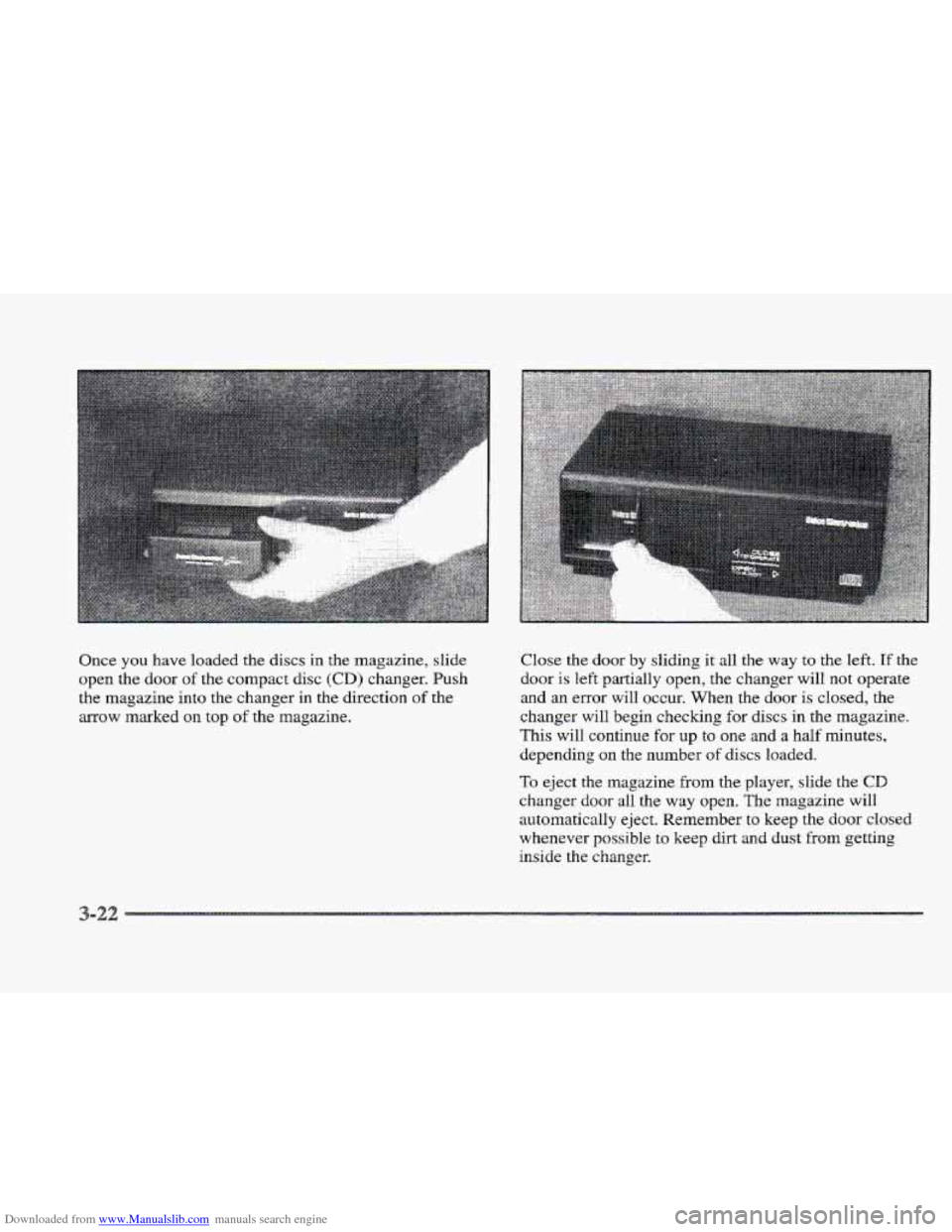

Downloaded from www.Manualslib.com manuals search engine Once you have loaded the discs in the magazine, slide
open the door of the compact disc
(CD) changer. Push
the magazine into the changer
in the direction of the
arrow marked on top of the magazine. Close
the door
by sliding it all the way to the left. If the
door
is left partially open, the changer will not operate
and an error will occur. When the door
is closed, the
changer will begin checking for discs in the magazine.
This will continue for up to one and a half minutes,
depending on the number
of discs loaded.
To eject the magazine from the player, slide the CD
changer door all the way open. The magazine will
automatically eject. Remember to keep the door closed
whenever
possible to keep dirt and dust from getting
inside the changer.

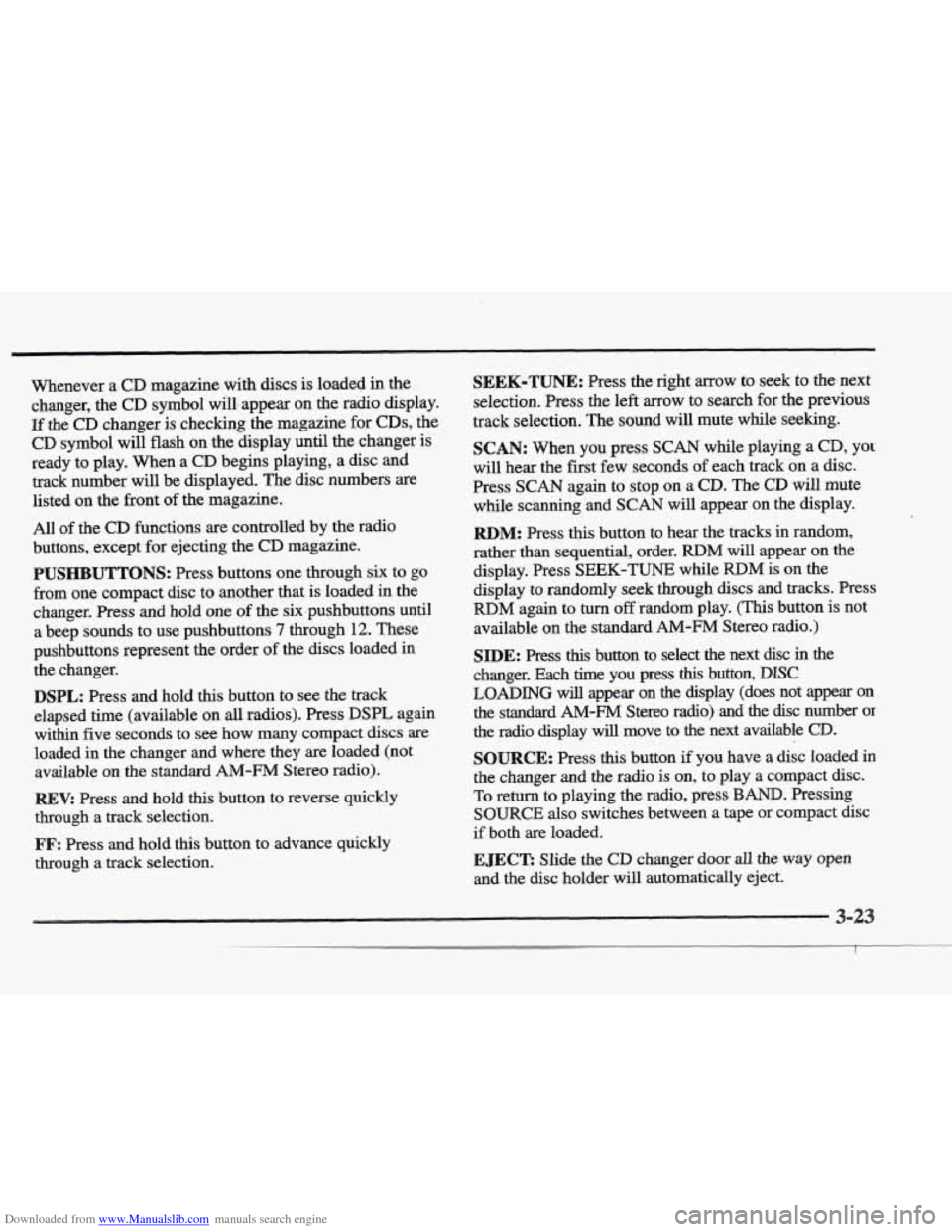

Downloaded from www.Manualslib.com manuals search engine Whenever a-CD magazine.with discs is loaded in the
changer, the
CD symbol will appear on the radio displ.ay.
If the CD changer is checking the magazine for CDs, the
CD symbol will flash on the display until the changer is
ready to play. When a
CD begins playing, a disc and
track number will be displayed. The disc numbers are
listed on the front
of the magazine.
All of the CD functions are controlled by the radio
buttons, except for ejecting the
CD magazine.
PUSHBUTTONS: Press buttons one through six to go
from one compact disc to another that is loaded in the
changer. Press and hold one
of the six,pushbuttons until
a beep sounds to use pushbuttons
7 through 12. These
pushbuttons represent the order
of the discs loaded in
the changer.
DSPL: Press and hold this button to see the track
elapsed time (available on all radios). Press DSPL again
within five seconds to see how many compact
discs are
loaded in the changer and where they are loaded (not
available on
the standard AM-FM Stereo radio).
]REV: Press and hold this button to reverse quickly
through a track selection.
FF: Press and hold this button to advance quickly
through a track selection.
SEEK-TUNE: Press the right arrow to seek to the,next
selection. Press the left arrow to search for the previous
track selection. The sound
will mute while seeking.
SCAN: When you press SCAN while playing a CD, yo[
will hear the first few seconds of each track on a disc.
Press
SCAN again to stop on a CD. The CD will mute
while scanning and
SCAN will appear on the display.
RDM: Press this button to hear the tracks in random,
rather than sequential, order.
RDM will appear on the
display. Press
SEEK-TUNE while RDM is on the
display to randomly seek through discs and tracks. Press
RDM again to turn off random play. (This button is not
available
on the standard AM-FM Stereo radio.)
SIDE: Press this button to select the next disc in the
changer. Each time you press
this button, DISC
LOADING will appear on the display (does not appear on
the standard
AM-FM Stereo radio) and the disc number or
the radio display will move to the next available CD.
SOURCE: Press this button if you have a disc loaded in
the changer and the radio
is on, to play a compact disc.
To return to playing the radio, press BAND. Pressing
SOURCE also switches between a tape or compact disc
if both are loaded.
EJECE Slide the CD changer door all the way open
and the disc holder will automatically eject.
3-23
~ I

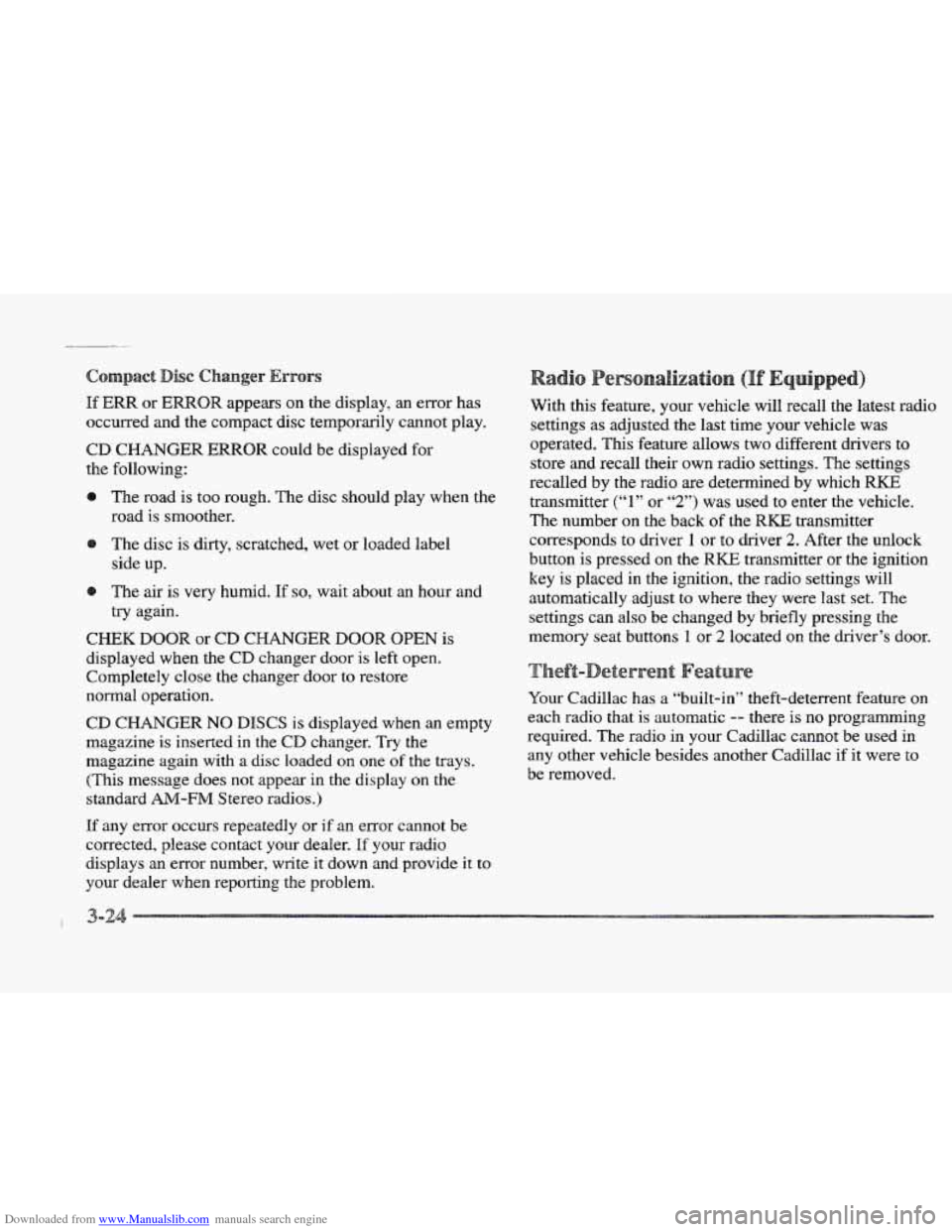

Downloaded from www.Manualslib.com manuals search engine If ERR or ERROR appears on the display, an error has
occurred
and the compact disc temporarily cannot play.
CD CHANGER ERROR could be displayed for
the following:
The road
is too rough. The disc should play when the
road
is smoother.
The disc is dirty, scratched, wet or loaded label
side up.
@ The air is very humid. If so, wait about an hour and
try again.
CHEK DOOR or CD CHANGER DOOR OPEN is
displayed when the CD changer door is left open.
Completely close
the changer door to restore
normal operation.
CD CHANGER NO DISCS is displayed when an empty
magazine is inserted
in the CD changer. Try the
magazine again with a disc loaded
on one of the trays.
(This message does not appear in
the display on the
standard AM-FM Stereo radios.)
If any error occurs repeatedly or if an error cannot be
corrected, please contact your dealer.
If your radio
displays
an error number, write it down and provide it to
your dealer when reporting
the problem. With this
feature, your vehicle will recall the latest radio
settings as adjusted the last time your vehicle was
operated.
This feature allows two different drivers to
store and recall their own radio settings. The settings
recalled
by the radio are determined by which RKE
transmitter (“1” or “2”) was used to enter the vehicle.
The number on the back
of the RICE transmitter
corresponds to driver
1 or to driver 2. After the unlock
button is pressed on the
RKE transmitter or the ignition
key is placed in the ignition, the radio settings
will
automatically adjust to where they were last set. The
settings can also be changed by briefly pressing the
memory seat buttons
1 or 2 located on the driver’s door.
Your Cadillac has a “built-in” theft-deterrent feature on
each radio that is automatic
-- there is no programming
required. The
radio in your Cadillac cannot be used in
any other vehicle besides another Cadillac if it were to
be removed.

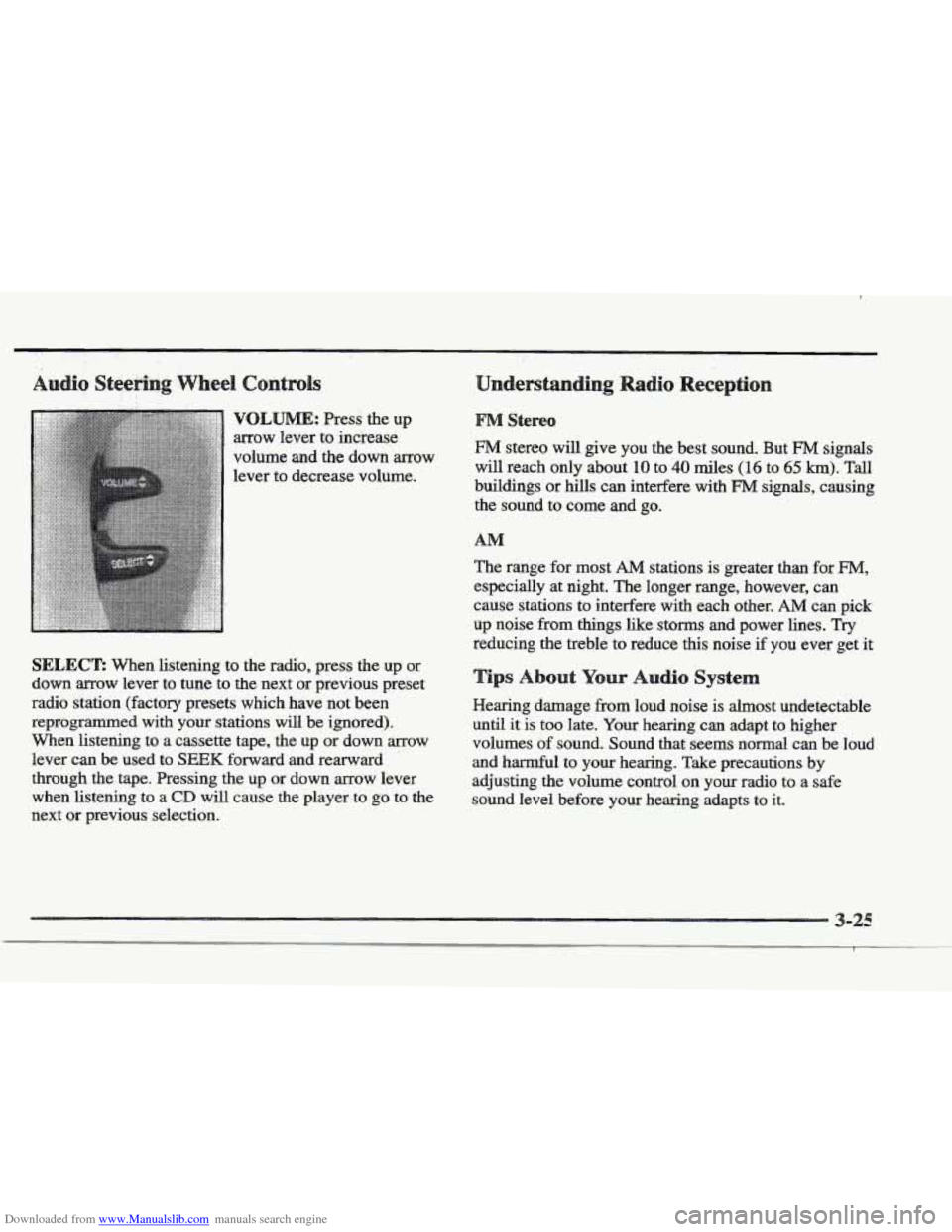

Downloaded from www.Manualslib.com manuals search engine VQLBJME: Press the up
arrow lever to increase
volume and the down arrow
lever to decrease volume.
SELECT: When listening to the radio, press the up or
down arrow lever to tune to the next or previous preset
radio station (factory presets which have not been
reprogrammed with your stations
will be ignored).
When listening to a cassette tape, the
up or down arrow
lever can be used to
SEEK forward and rearward
through the tape. Pressing the up
or down arrow lever
when listening to a
CD will cause the player to go to the
next or previous selection.
§&!reo
FM stereo will give you the best sound. But FM signals
will reach only about 10 to 40 miles (1 6 to 65 km). Tall
buildings or hills can interfere with
FM signals, causing
the sound to come
and go.
The range for most
AM stations is greater than for FM,
especially at night. The longer range, however, can
cause stations
to interfere with each other. AM can pick
up noise from
things like storms and power lines. Try
reducing the treble to reduce this noise if you ever get it
r Audio Syste
Hearing damage from loud noise is almost undetectable
until it
is too late. Your hearing can adapt to higher
volumes
of sound. Sound that seems normal can be loud
and harmful to
your hearing. Take precautions by
adjusting the volume control on your radio to
a safe
sound level before your hearing adapts to it.

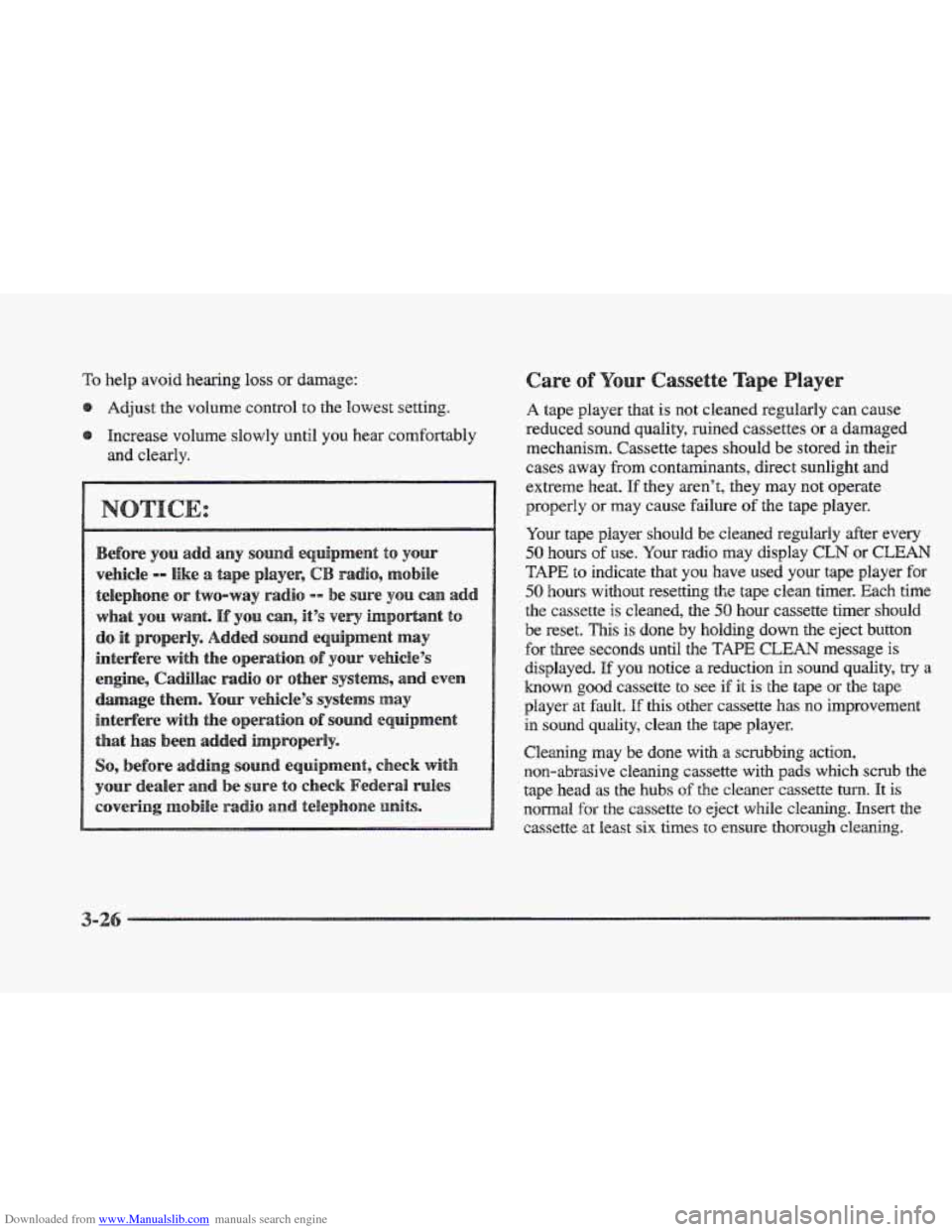

Downloaded from www.Manualslib.com manuals search engine TO help avoid hearing loss or damage:
Adjust the volume control to the
lowest setting.
Increase volume slowly until you hear Comfortably
and clearly. A tape player that is not cleaned regularly can cause
reduced
sound quality, mined cassettes or a damaged
mechanism. Cassette tapes should be stored in their
cases away
from contaminants, direct sunlight and
extreme heat. If they aren’t, they may not operate
properly or
may cause failure of the tape player.
Your tape player should be cleaned regularly after every
50 hours of use. Your radio may display CLN or CLEAN
TAPE to indicate that you have used YOLK tape player for
50 hours without resetting the tape clean timer. Each time
the cassette is cleaned, the 50 hour cassette timer should
be reset.
~s is done by holding down the eject button
for three seconds until the TAPE CLEAN message is
displayed. If you notice a reduction in sound quality, try a
known good cassette to see if it is the tape or the tape
player
at fault. If this other cassette has no improvement
in sound quality, clean the tape player.
Cleaning may
be done with a scrubbing action,
non-abrasive cleaning
cassette with pads which scrub the
tape head
as the hubs sf the cle.aner cassette turn. It is
IKXI~ for the cassette to eject while cleaning. Insert the
cassette at least six times to ensure thorough cleaning.
3-2

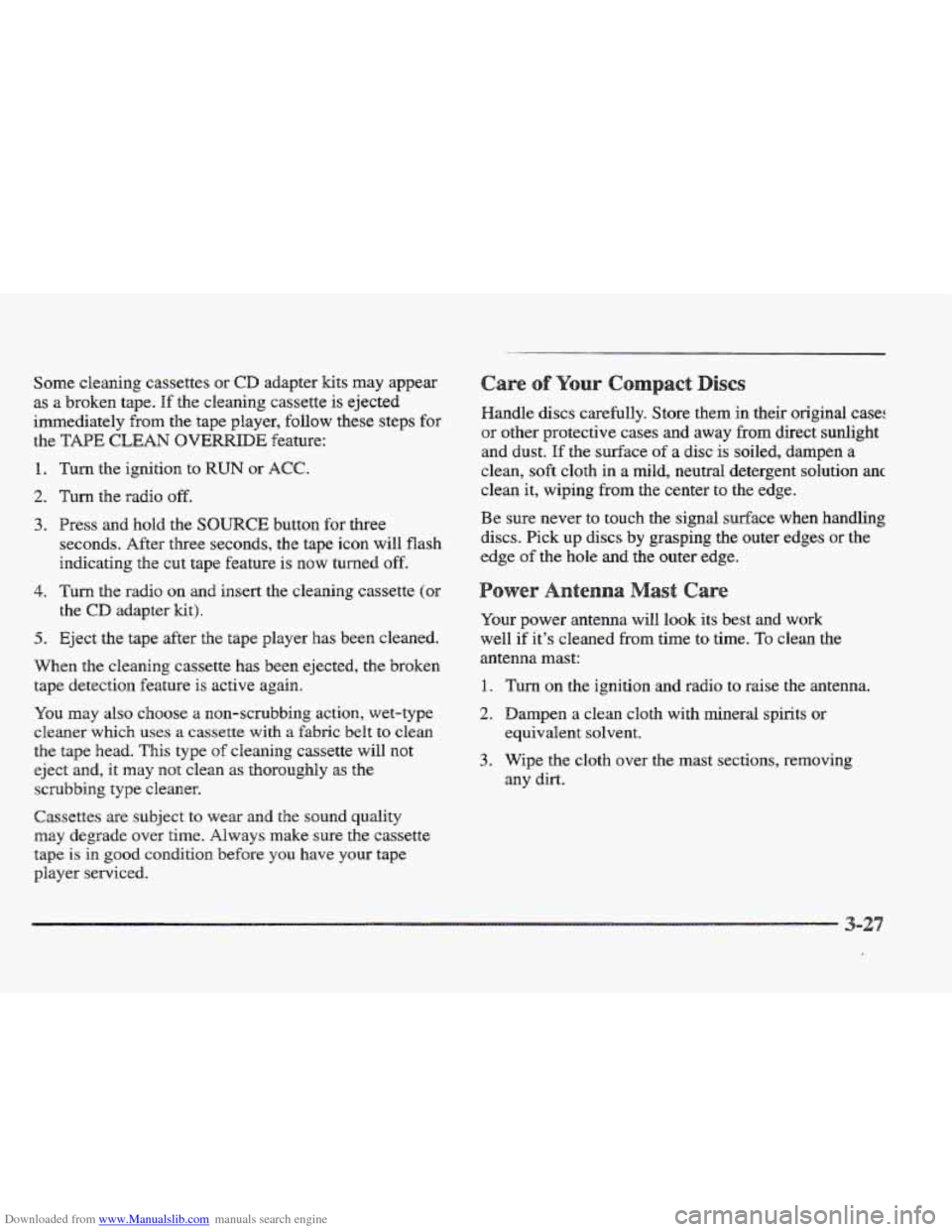

Downloaded from www.Manualslib.com manuals search engine Some cleaning cassettes or CD adapter kits may appear
as
a broken tape. If the cleaning cassette is ejected
immediately from the tape player, follow these steps
for
the TAPE CLEAN OVE
E. Turn the ignition to RUN or ACC.
2. Turn the radio off.
3. Press and hold the SOURCE button for three
seconds. After thee seconds, the tape icon will flash
indicating the cut tape feature
is now turned off.
4. Turn the radio on and insert the cleaning cassette (CX
the CD adapter kit).
5. Eject the tape after the tape player has been cleaned.
When
the cleaning cassette has been ejected, the broken
tape detection feature
is active again.
YOU may also choose a non-scrubbing action, wet-type
cleaner which uses a cassette with
a fabric belt to clean
the
tape head. This type of cleaning cassette will not
eject and, it may
not clean as thoroughly as the
scrubbing
type cleaner.
Cassettes are subject to
wear and the sound quality
may degrade over time. Always make sure the cassette
tape
is in good condition. before YOU have your tape
player serviced. Handle discs carefully. Store
them in their original case:
or other protective cases
and away from direct sunlight
and dust. If the surface
of a disc is soiled, dampen a
clean, soft cloth in a mild, neutral detergent solution anc
clean it, wiping from the center to the edge.
Be sure never to touch the signal surface when handling
discs. Pick up discs by grasping the outer edges or the
edge
of the hole and the outer edge.
Your power antenna will look its best and work
well if it’s cleaned
from time to time. To clean the
antenna mast:
1. Turn on the ignition and radio to raise the antenna.
2. Dampen a clean cloth with mineral spirits or
equivalent solvent.
3. Wipe the cloth over the mast sections, removing
any dirt.
3-27

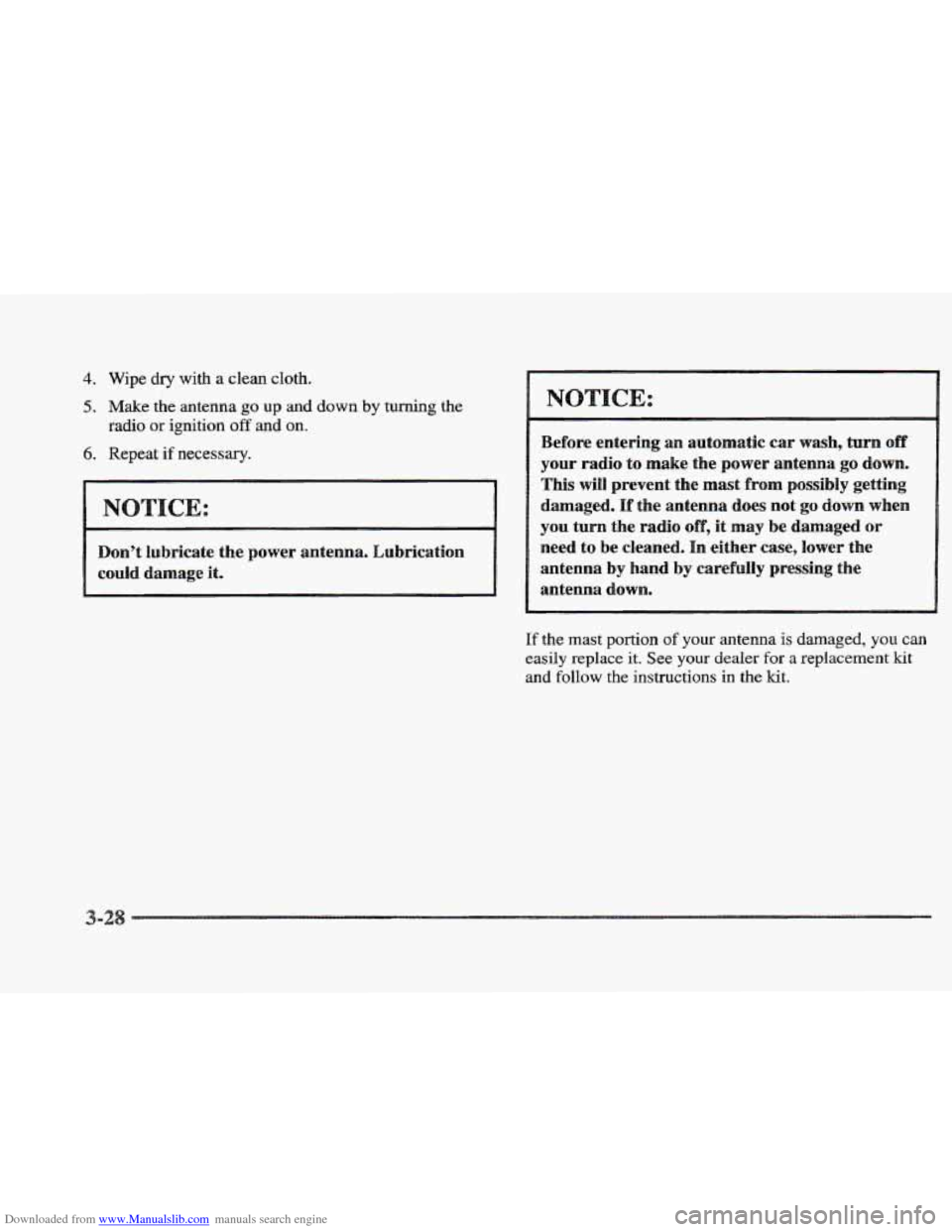

Downloaded from www.Manualslib.com manuals search engine 4. Wipe dry with a clean cloth.
5. Make the antenna go up and
radio or ignition off and on.
6. Repeat if necessary.
down by turning the
Don't lubricate the
power antenna. Lubrication
could damage it. Before
entering
an automatic car wasn, turn off
your radio to make the power antenna go down.
This will prevent the mast from
possibly getting
damaged.
If the antenna does not go down when
you turn the radio off', it may be damaged or
need
to be cleaned. In either case, lower the
antenna
by hand by carefully pressing the
antenna
down.
If the mast portion of your antenna is damaged, you can
easily replace it. See your dealer for a replacement kit
and follow the instructions in the kit.
