1997 CADILLAC ELDORADO Owners Manual

Downloaded from www.Manualslib.com manuals search engine Turn the sunshade down and lift the cover to see the nirror.
Move the slide switch up or down to brighten or
dim the lamp.
Your vehicle has been prewired for dealer installation of
a Cadillac dual-mode (analog/digital) cellular telephone.
A fixed mobile or a portable hand-held system are
available. Either system has steering wheel telephone
controls and infomation output through the DIC. Voice
activation and hands-free operation are standard
features. For more information, contact your Cadillac
dealer.
A user’s guide is provided with the telephone.
nStar System (
This system may be ordered if you have the optional
fixed cellular telephone. The following services
are
available 24 hours a day:
@ Roadside Service with Location
Emergency Services Button
@ Remote Door Unlock
ta Theft Detectioflotification and Stolen-Vehicle Tracking
@ Automatic Notification of Air Bag Deployment
Concierge/Customer Convenience Services
For more information, contact your Cadillac dealer.
A folding handle, located on each side pillar, can be
used when getting out of your vehicle.
For your convenience, a garment hook is attached to the
assist handle.
ts
Your Cadillac is equipped with rubber-backed front and
rear floor mats. Keep them clean by vacuuming and
using a spot cleaner, if necessary.
Do not machine wash.

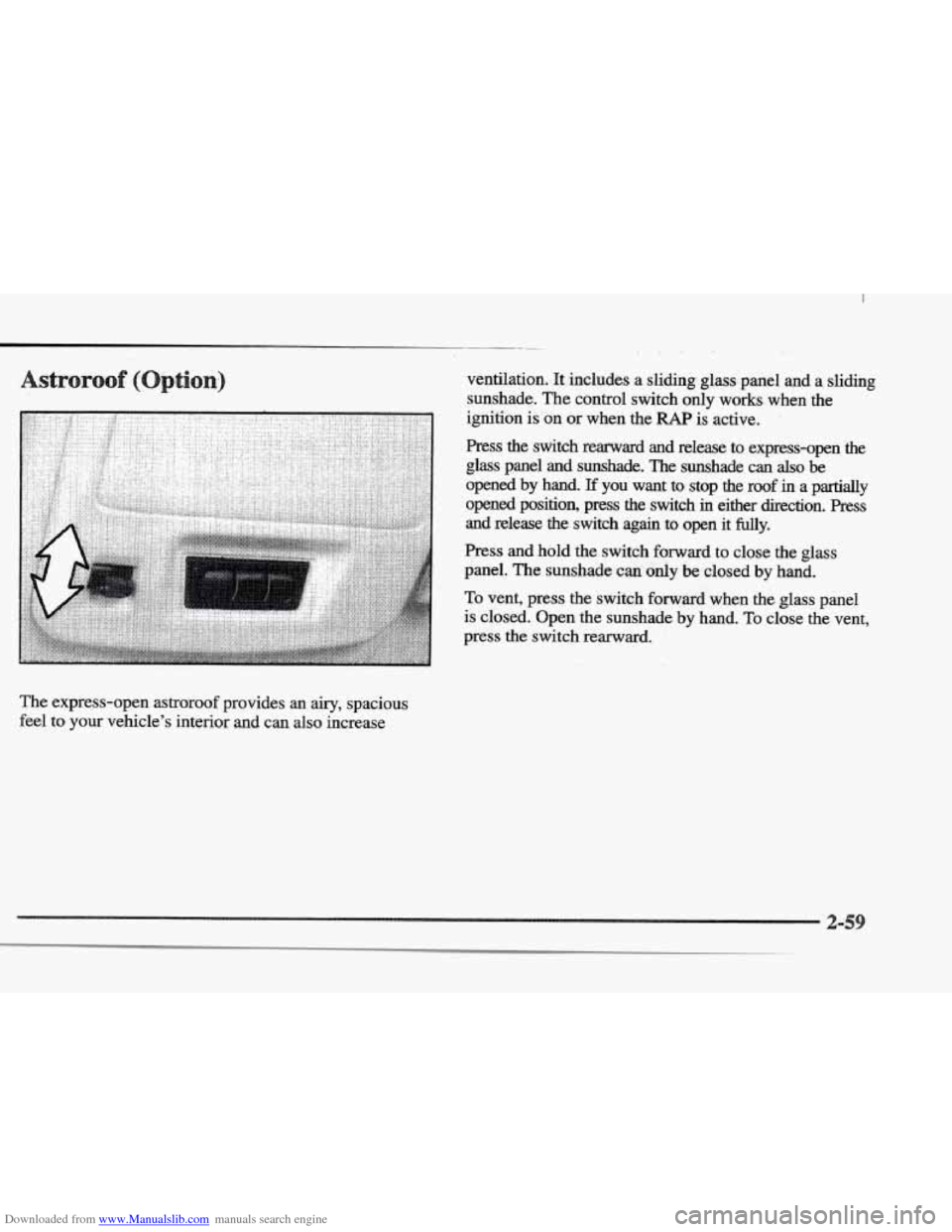

Downloaded from www.Manualslib.com manuals search engine The express-open astroroof provides an airy, spacious
feel to your vehicle's interior and can
also increase
~ ..
ventilation.. It inchdes a sliding glass, panel and a sliding
sunshade. The control switch only works when the
ignition
is on or when the RAP is active.
Press the switch rearward and release to express-open the
glass panel and sunshade. The sunshade can also be
opened by hand. If you want to stop the roof in a partially
opened position, press the switch
in either direction. Press
and release the switch
again to open it My.
Press and hold the switch forward to close the glass
panel. The sunshade can only be closed by hand.
To vent, press the switch forward when the glass panel
is closed. Open the sunshade bv
hand. To close the vent,
press the switch
rearward.

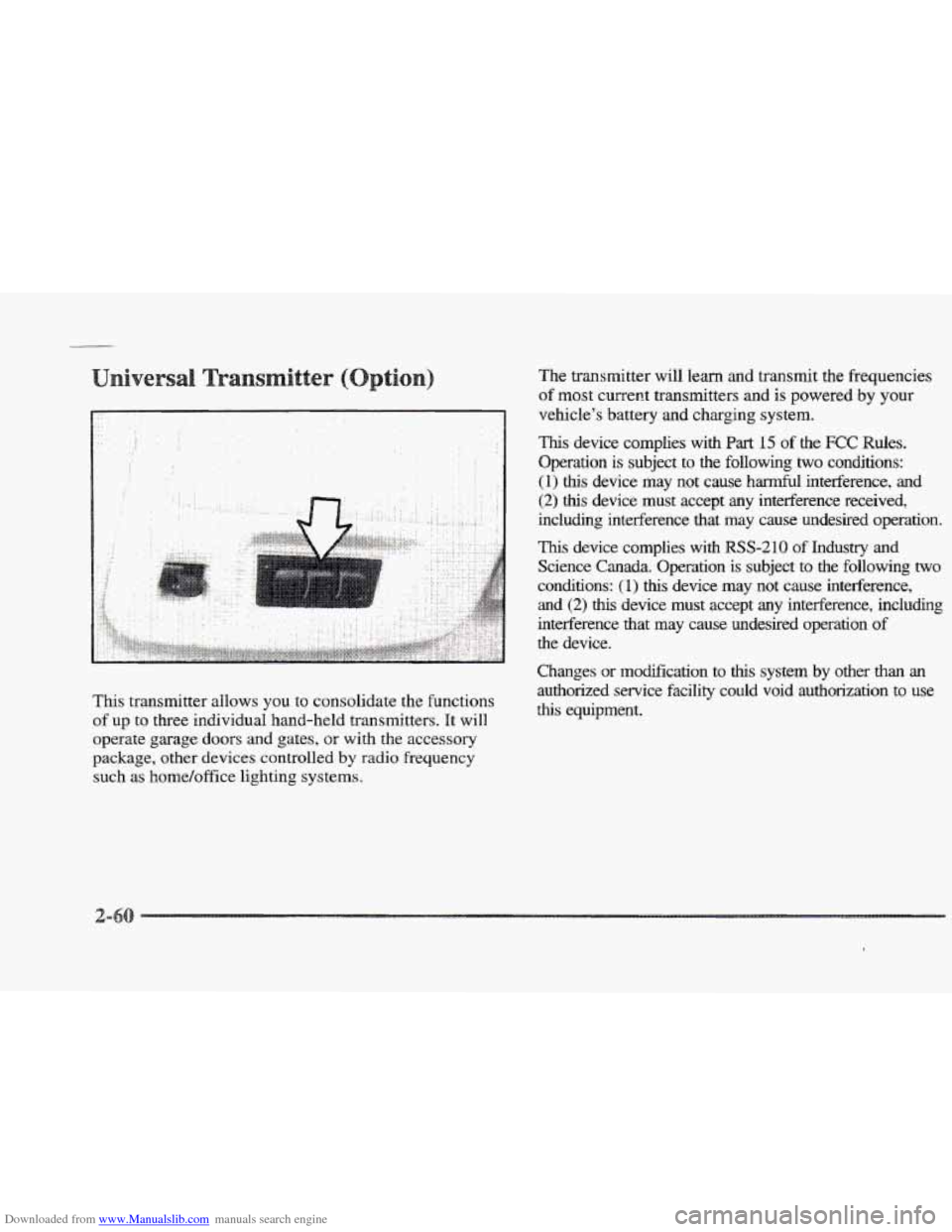

Downloaded from www.Manualslib.com manuals search engine This transmitter allows you to consolidate the functions
of up to three individual hand-held transmitters. It will
operate garage doors and gates, or with the accessory
package, other devices controlled
by radio frequency
such as home/office lighting systems. The transmitter
will learn and transmit the frequencies
of
most current transmitters and is powered by your
vehicle’s battery and charging system.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following
two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired operation.
This device complies with RSS-210 of Industry and
Science
Canada. Operation is subject to the following two
conchtions:
(1) this device may not cause interference,
and (2) this device must accept any interference, including
interference that may cause undesired operation
of
the device.
Changes
or modification to thls system by other than an
authorized service facility could void authorization to use
this equipment.

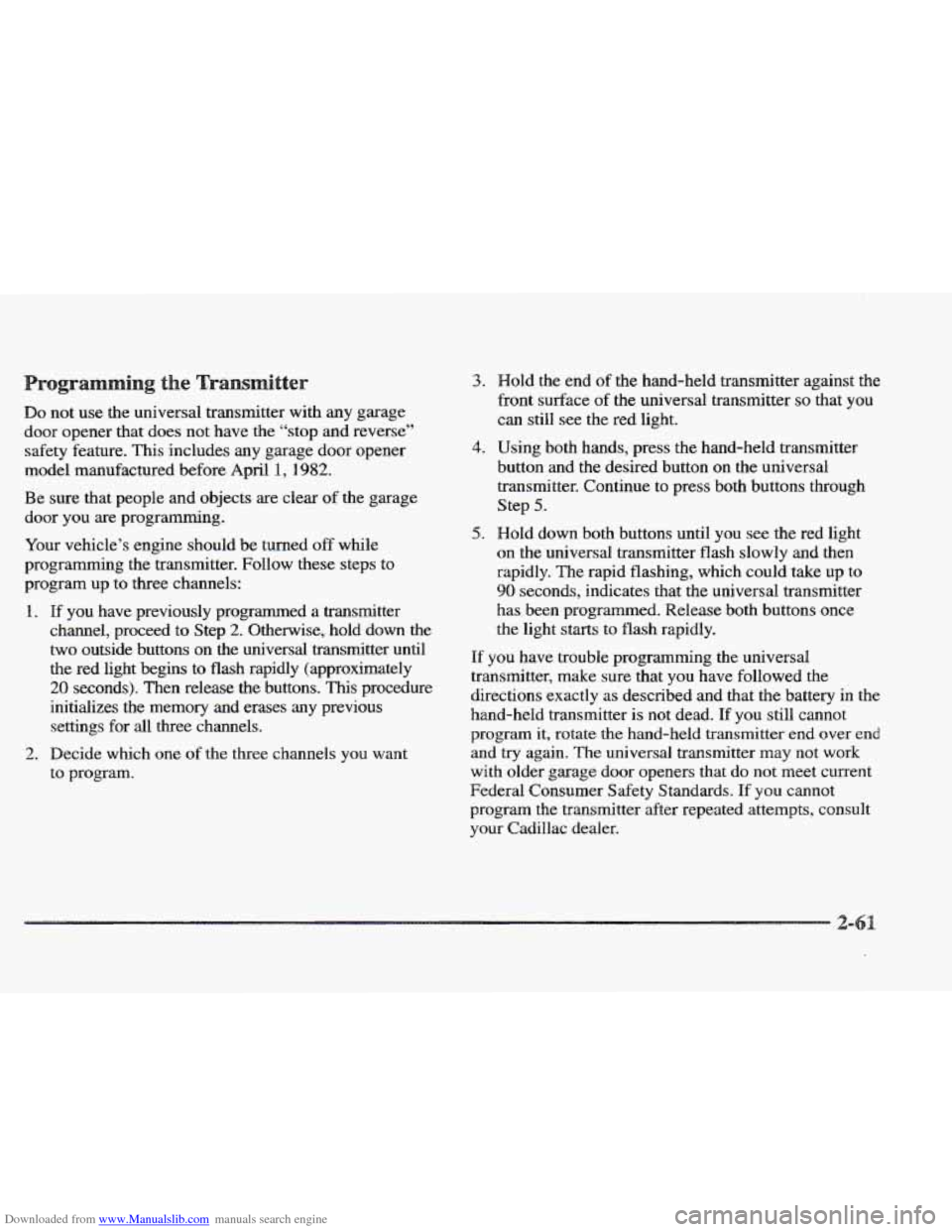

Downloaded from www.Manualslib.com manuals search engine Do not use the universal transmitter with any garage
door opener that does not have the “stop and reverse”
safety feature.
This includes any garage door opener
model manufactured before April
1, 1982.
Be sure that people and objects are clear of the garage
door you are programming.
Your vehicle’s engine should be turned
off while
programming the transmitter. Follow these steps to
program up to three channels:
1. If you have previously programmed a transmitter
channel, proceed
to Step 2. Otherwise, hold down the
two outside buttons on the universal transmitter until
the red light begins to flash rapidly (approximately
20 seconds). Then release the buttons. This procedure
initializes
the memory and erases any previous
settings for all three channels.
2. Decide which one of the three channels you want
to program.
3.
4.
5.
Hold the end of the hand-held transmitter against the
front surface of
the universal transmitter so that you
can still see the red Light.
Using both hands, press the hand-held transmitter
button and
the desired button on the universal
transmitter. Continue to press both buttons through
Step
5.
Hold down both buttons until you see the red light
on the universal transmitter flash slowly and then
rapidly. The rapid flashing, which could take up to
90 seconds, indicates that the universal transmitter
has been programmed. Release both buttons once
the light starts to
flash rapidly.
If you have trouble programming the universal
transmitter, make sure that you have followed the
directions exactly
as described and that the battery in the
hand-held transmitter is not dead. If you still cannot
program it, rotate the hand-held transmitter end over end
and try again. The universal transmitter may not work
with older garage door openers that
do not meet current
Federal Consumer Safety Standards. If
you cannot
program the transmitter after repeated attempts, consult
YOU Cadillac dealer.
2-

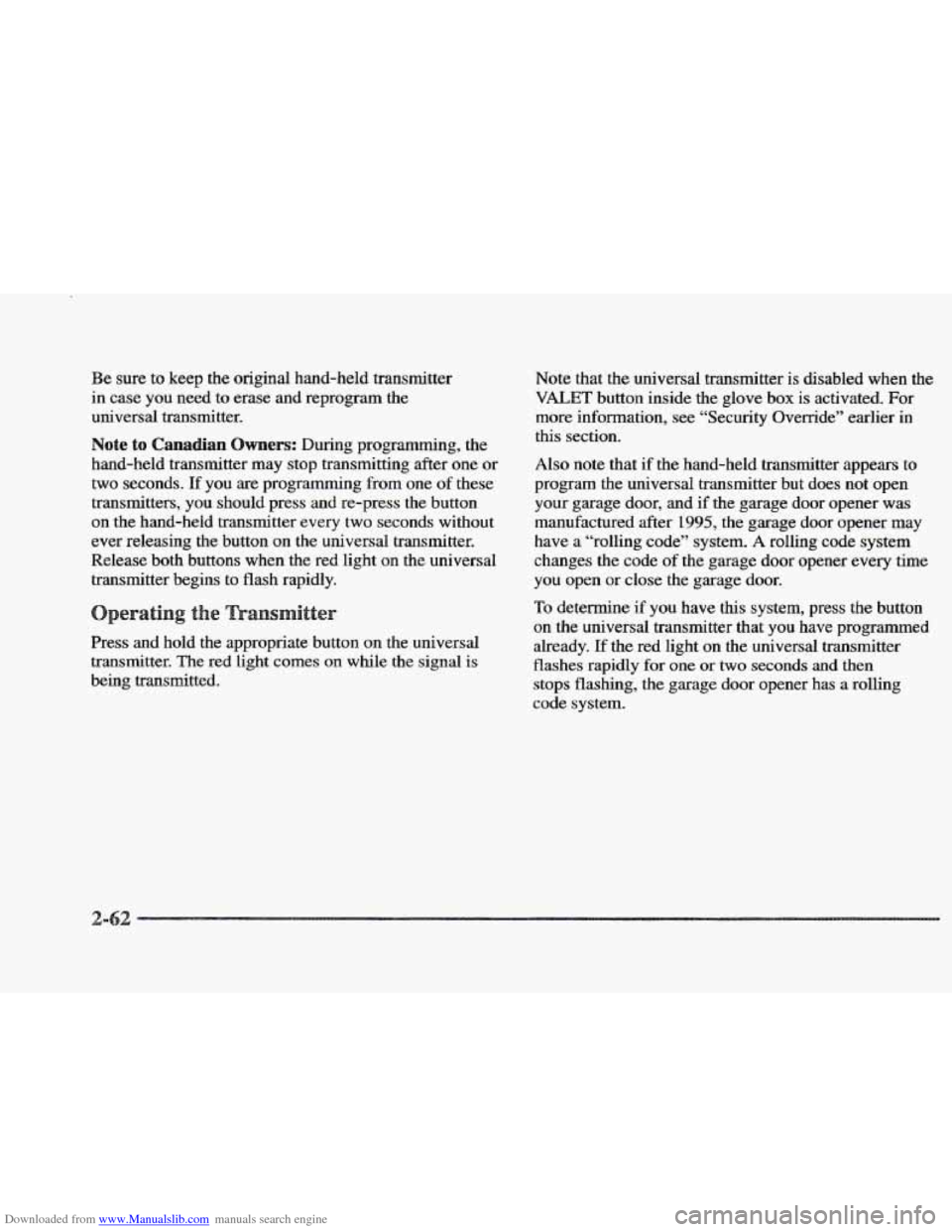

Downloaded from www.Manualslib.com manuals search engine Be sure to keep the original hand-held transmitter
in case you need to erase and reprogram the
universal transmitter.
Note to Canadian Owners: During programming, the
hand-held transmitter may stop transmitting after one or
two seconds. If you are programming from one of these
transmitters, you should press and re-press
the button
on the hand-held transmitter every two seconds without
ever releasing
the button on the universal transmitter.
Release both buttons when the red light
on the universal
transmitter begins to flash rapidly.
Press and hold the appropriate button on the universal
transmitter. The red light
comes on while the signal is
being transmitted. Note that
the universal transmitter is disabled when the
VALET button
inside the glove box is activated. For
more information, see “Security Override” earlier in
this section.
Also note that if the hand-held transmitter appears to
program
the universal transmitter but does not open
your garage door,
and if the garage door opener was
manufactured after 1995, the garage door opener may
have
a “rolling code” system. A rolling code system
changes the code
of the garage door opener every time
you open or close the garage door.
To determine if you have this system, press the button
on the universal transmitter that you have programmed
already.
If the red light on the universal transmitter
flashes rapidly for
one or two seconds and then
stops flashing, the garage door opener has a rolling
code system.

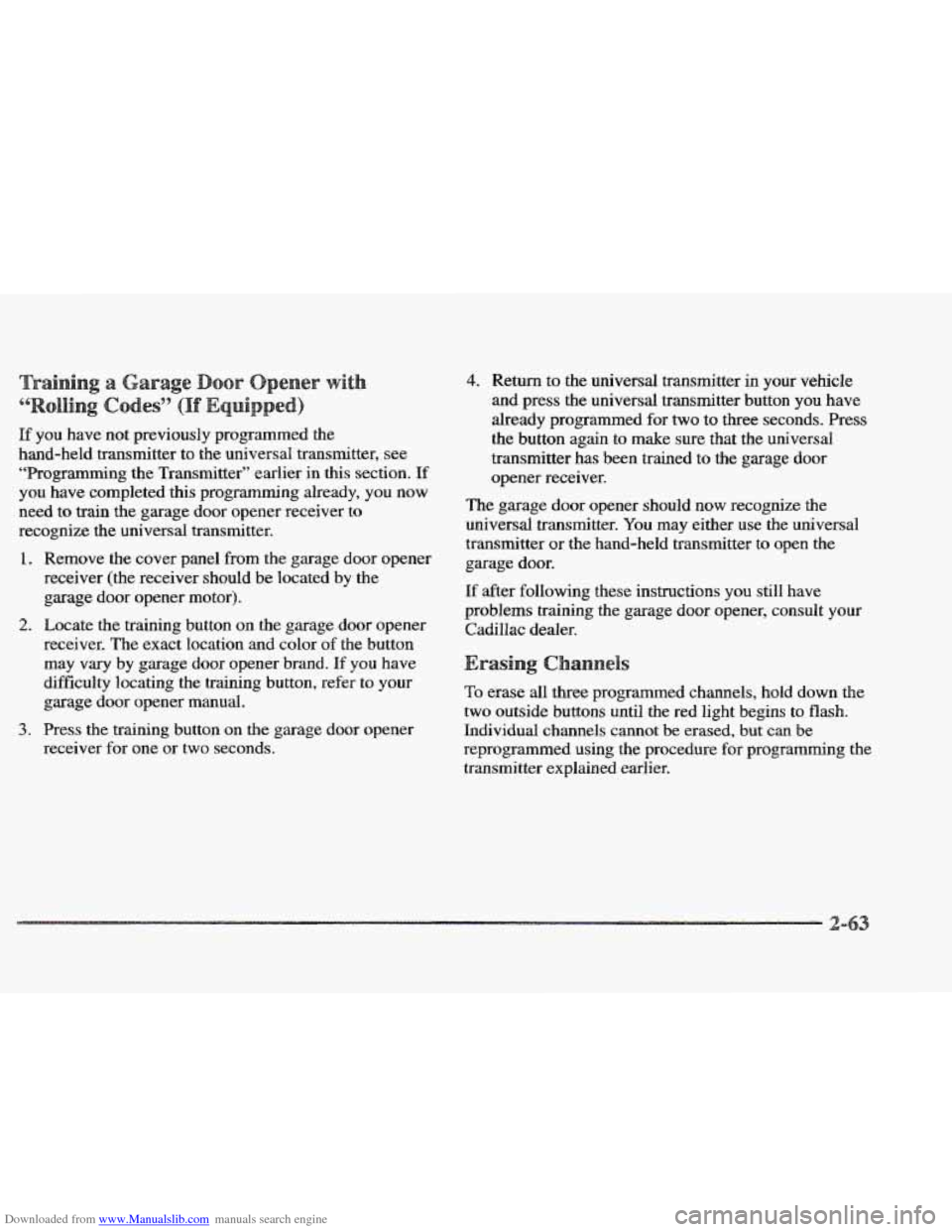

Downloaded from www.Manualslib.com manuals search engine If you have not previously programmed the
hand-held transmitter to the universal transmitter, see
“Programming the Transmitter” earlier in this section.
If
you have completed this programming already, you now
need to train the garage door opener receiver to
recognize the universal transmitter.
1. Remove the cover panel from the garage door opener
receiver (the receiver should be located by the
garage door opener motor).
receiver.
The exact location and color of the button
may
vary by garage door opener brand. If you have
difficulty locating the training button,
refer to your
garage door opener manual.
2. Locate the training button on the garage door opener
3. Press the training button on the garage door opener
receiver for one or two seconds.
4. Return to the universal transmitter in your vehicle
and press the universal transmitter button
you have
already programmed for two
to three seconds. Press
the button again to make sure that the universal
transmitter has been trained
to the garage door
opener receiver.
The garage door opener should now recognize the
universal transmitter.
You may either use the universal
transmitter or the hand-held transmitter to open the
garage door.
If after following these instructions you still have
problems training the
garage door opener, consult your
Cadillac dealer.
To erase all three programmed channels, hold down the
two outside
buttons until the red light begins to flash.
Individual channels cannot
be erased, but can be
reprogrammed using the procedure for programming the
transmitter explained earlier.

Downloaded from www.Manualslib.com manuals search engine

Downloaded from www.Manualslib.com manuals search engine The insbrument.pane1 is designed to let you know at a glance how your Cadillac is running. You’ll, know how fast
you’re going, how
much fuel you’re using and many of the other things you’ll need to know to drive safely and
economically. The main components of the instrument panel are:
1.
2.
3.
4.
5.
6.
7.
8.
9.
Air Outlets
Turn SignaVMultifbnction Lever.
Driver Information Center Control Buttons
Driver’s Side
Air Bag
Cluster Steering Columi Shift Lever
Electronic Climate Controls
Radio
Passenger’s Side
Air Bag
10. Lamp Controls
11. WAC Steering Wheel Controls (or Cellular
Telephone Controls,
If Equipped)
12. Hood Release
13. Horn
.#k. 14. Audio Steering Wheel Controls
F. , LI
- , .r 15. Ashtray and Cigarette Lighter I !i&&
16. Glove Box
