1997 CADILLAC ELDORADO Owners Manual

Downloaded from www.Manualslib.com manuals search engine L

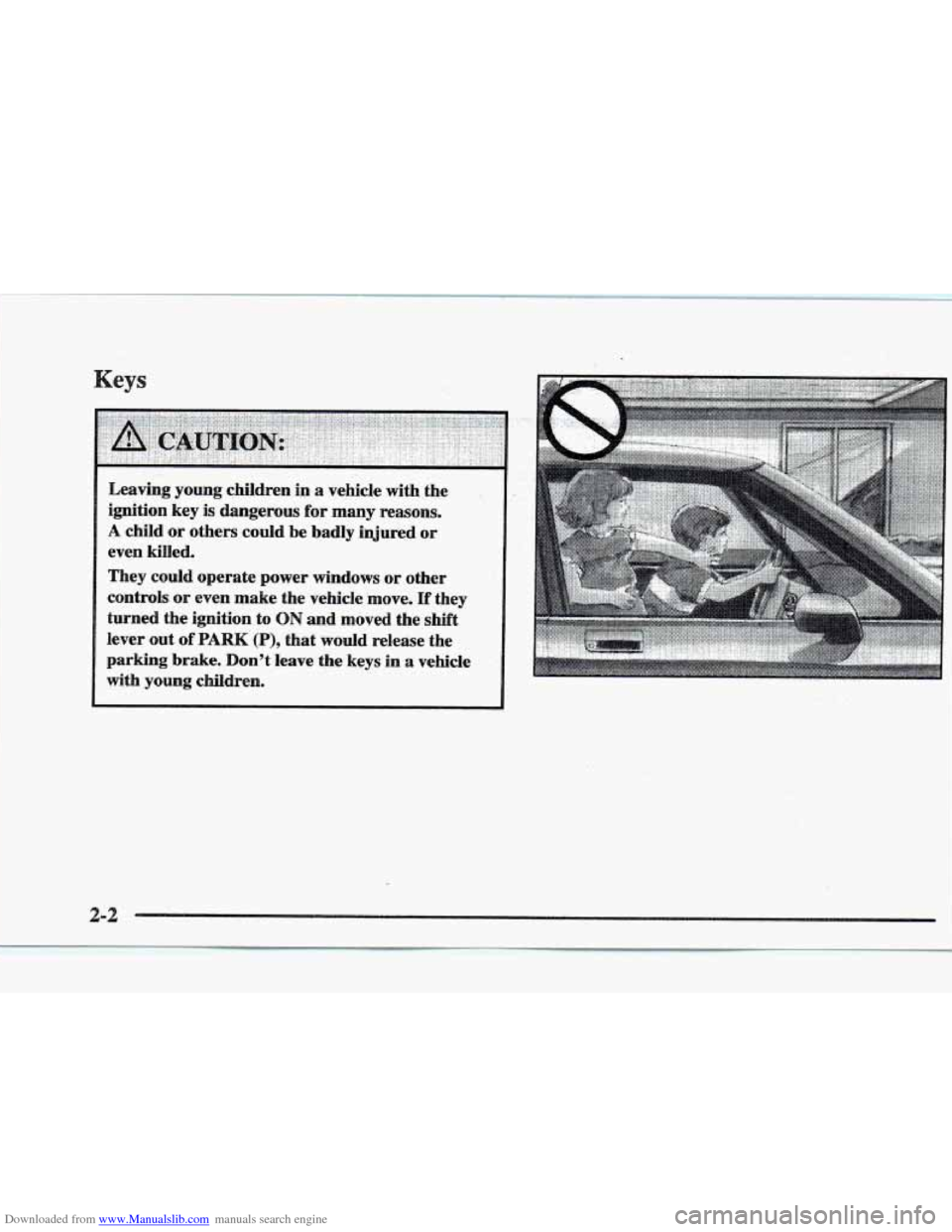

Leaving young children in a vehicle with the
ignition key
is dangerous for many reasons.
A child or others could be badly injured or
even killed.
They could operate power windows or other
controls or even make the vehicle move.
If they
turned the ignition to
ON and moved the shift
lever out
of PARK (P), that would release the
parking brake. Don't leave the-keys in a vehicle
with young children.

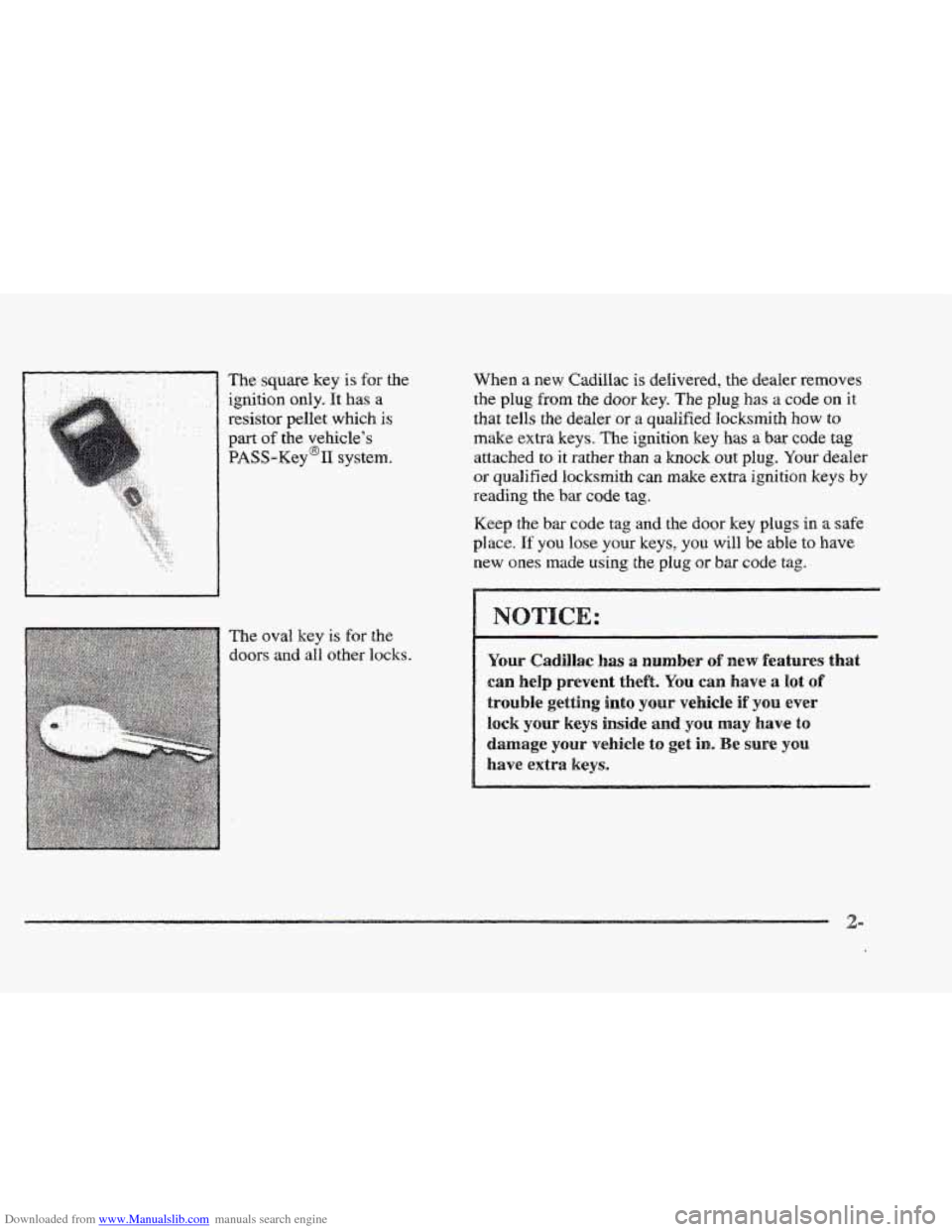

Downloaded from www.Manualslib.com manuals search engine The square key is for the
ignition only. It has a
resistor pellet which is
part of the vehicle’s
PASS-K~Y@IT system.
The oval key is for the
doors
and all other locks.
When a new CadilIac is delivered, the dealer removes
the plug
from the door key. The plug has a code on it
that tells the dealer or a qualified locksmith how to
make extra keys. The ignition key has a bar code tag
attached to it rather than a bock out plug. Your dealer
qualified
locksmith can make extra ignition keys by
reading the bar code tag.
Keep the bar code tag and the door key plugs in a safe
place. If you lose your keys: you will be able to have
new ones
made using the plug or bar code tag.

Downloaded from www.Manualslib.com manuals search engine I. ..
N’:
Unlocked doors can e dangerous.
Passengers
-- especially sc ildren -- can easily
open the doors asld fall out. When a door is
locked, the inside le won’t open it.
Outsiders can easily enter through an unlocked
door when
you sllow down or stop your vehicle.
This may not be so obvious: You increase the
crash if the doors aren’t locked. Wear safety belts
properly, lock your doors and you will be far
better off whenever you drive your vehicle.
chance of being thrown out of the vehicle in a
There are several ways to lock and unlock your vehicle.
From the outside, use either the door key or the Remote
Keyless
Entry (RKE) transmitter.
If your vehicle has the optional theft-deterrent system,
YOU must unlock the doors with the key or RME
transmitter t~ avoid setting off the aIa1-m.
Slide the manual lock lever down to lock the door from
the inside. To unlock the door, slide the lock lever up.
Your vehicle will have this feature if it is equipped with
the optional theft-deterrent system. When unlocking
either
door, you can also unlock the other door by
holding the key in the turned position for a few seconds
or by quickly turning the door key twice in the
lock cylinder.

Downloaded from www.Manualslib.com manuals search engine out of PARK (P), use the manual or power lock button
to
lock the doors.
Press the power door lock switch. to lock or unlock both
doors at once.
Close your doors and turn on the ignition. Every time
you move the shift lever out of PARK (P), both of the
doors will lock. The doors will unlock every time you
stop the vehicle and move the shift lever into PARK (P).
If someone needs to get out while your vehicle is not in
PARK (P), have that person use the manual OF power
lock. When the door
is closed again, it will not lock
automatically. Use
the manual or power lock to lock the
door again.
If YOU need to 'lock the doors before shifting With the ignition
in the
RUN position, the door locks
can
be programed through prompts displayed by the
Driver Information Center (DE). These prompts allow
the driver to choose various lock settings. If your
vehicle
has memory, press the appropriate driver
(1 or 21, prior to programming.
To begin programming, press and hold the
buttons at the same time to display the following prompts.
WomnoN (INFO) and RESET (INFO RESET)
s LOCK IN GI3 ors automatically
lock when shifted out
sf
doors automaticall:
lock when shifted out of PARK (P). All doors
automatically unlock when shifted into PARK (P).
: A11 doors automaticall;
lock when shifted out of PARK (P). Only the driver's
door automatically unlscks when shifted into PARK (E

Downloaded from www.Manualslib.com manuals search engine A “yes” or “no” response must be made after each
prompt is displayed
in order to continue on to the next
prompt or personalization feature. Press the TRIP
SET
(TRIP RESET) button to choose yes, press the RESET
(INFO RESET) button to choose no or press the
INFORMATION
(INFO) button to “skip” to the next
personalization feature.
FEATURE
ON appears when a yes response is made
and FEATURE
OFF appears with a no response.
If a no response is made after the DOQRS LOCK IN
GEAR prompt is displayed, FEATURE OFF will appear.
The automatic door locking system has been disabled
and
no other door lock messages will be displayed.
REMOTE
FLASH LIGHTS, which is the next available
personalization
feature to display, will appear next.
See “Remote Confirmation”
in the Index for
more information.
If a yes response is made after the DQORS LOCK IN
GEAR prompt is displayed, %;EA’ ON appears.
The automatic door locking system is enabled and allows
the DOORS UNLOCK IN PARK prompt to zppear.
Choosing this prompt advances you to REMOTE FLASH
LIGHTS whereas a no response will display the DRIVR
UJYLOCK IN PARK prompt. A yes or no response
here automatically brings up the
REMOTE FLASH
LIGHTS feature.
Leaving your key in any igmtion position
with either door
open will disable
the use of the power door lock switches.
The anti-lockout feature is disabled when the ignition is
on.
If you close the doors, you can lock them using the
RKE system. It is always recommended that you remove
your ignition
key when lockmg your vehicle.
Note that the anti-lockout feature can be overridden by
holding the power door
lock switch for three seconds
or longer.
If you are leaving the vehicle, open the door, set the
locks from the inside, get out and close
the door.

Downloaded from www.Manualslib.com manuals search engine e
With this feature, you
can lock and unlock the
doors, un%ock the trunk,
open the fuel door and turn
on your vehicle’s interior
lamps from about
10 feet
(3 m) away using the RlKE
transmitter supplied with
your vehicle.
Your
RKE system operates on a radio frequency subject
to Federal Communications Commission (FCC) Rules
and with Industry and Science Canada.
This device complies with Part 15 of the FCC Rules.
Operation is subject
to the following two conditions:
(1) this device may not cause hml interference, and
(2) this device must accept any interference received,
including interference that
may cause undesired operation
of the device.
Changes or modifications
to this system by other than
an authorized service facility could void authorization
to use this equipment.
This device complies with RSS-210 of Industry and
Science Canada. Operation is subject to the following
two conditions: (1) this device rnay not cause
interference, and
(2) this device must accept any
interference received, including interference that may
cause undesired operation
of the device.
The range of this system is about 10 feet (3 rn). At times
you may notice a decrease in range. This is
norrnal for
any remote keyless entry system. If the transmitter does
not work 81- if you have to stand closer to your vehicle
for
the transmitter to work, try this:
Check to determine if battery replacement is
necessary. See the instructions that follow.
Check the distance. You may be too far from your
vehicle. YOU may need to stand closer during rainy
or
snowy weather.
Check the location. Other vehicles
81- objects rnay
be blocking the signal.
Fdke a few steps to the left
or right, hold the transmitter higher, and try again.
If you’re still having trouble, see your Cadillac
dealer
QP a qualified technician for service.

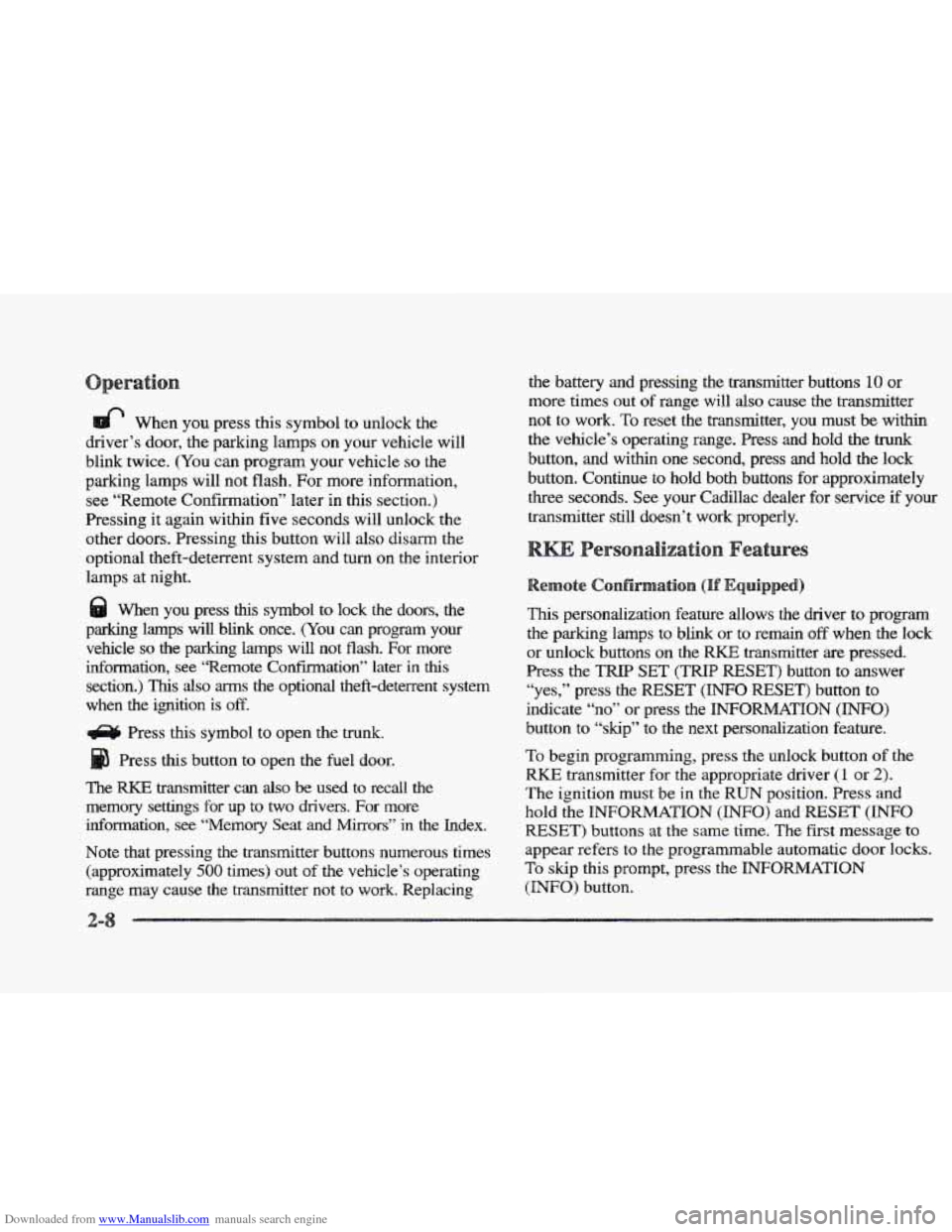

Downloaded from www.Manualslib.com manuals search engine When you press this symbol to unlock the
driver’s door, the parking lamps on your vehicle will
blink twice. (You can program your vehicle
so the
parking lamps will not flash. For more information,
see “Remote Confirmation” later
in this section.)
Pressing it again within five seconds will unlock the
other doors. Pressing this button will also disarm
the
optional theft-deterrent system and turn on the interior
lamps at night.
When you press
this symbol to lock the doors, the
parking
lamps will blink once. (You can program your
vehicle so the parking lamps will not flash. For more
information,
see “Remote Confirmation” later in this
section.)
This also arms the optional theft-deterrent system
when the ignition
is off.
Press this symbol to open the trunk.
Press ths button to open the fuel door.
The
pu(E transmitter can also be used to recall. the
memory settings for up
to two drivers. For more
information, see “Memory Seat
and Mirrors” in the Index.
Note that pressing the transmitter buttons numerous times (approximately
500 times) out of the vehicle‘s operating
range may cause the transmitter not
to work. Replacing
the battery and pressing the transmitter buttons 10 or
more times out
of range will also cause the transmitter
not to work. To reset the transmitter, you must be within
the vehicle’s operating range. Press and hold the trunk
button, and within one second, press and hold the lock
button. Continue
to hold both buttons for approximately
three seconds. See your Cadillac dealer for service if your
transmitter still doesn’t work properly.
This personalization feature allows the driver to program
the parlung lamps to blink or to remain off when the lock
or unlock buttons om the RISE transmitter are pressed.
Press the
SET (TIRIIP RESET) button to answer
“yes,” press the
WESET’ (INFO RESET) button to
indicate “no” or press the INFORMATION (INFO)
button to “skip” to the next personalization feature.
To begin programming, press the unlock button of the
RKE transmitter for the appropriate driver (1 or 2).
The ignition must be in the RUN position. Press and
hold the
INFORMATION (INFO) and RESET (INFO
RESET) buttons at the same time. The first message to
appear refers to
the programmable automatic door locks.
To skip this prompt, press the ‘I[NFQWMATION
(INFO) button.

Downloaded from www.Manualslib.com manuals search engine When REMOTE FLASH LIGHTS appears on the DIC
display, press the yes button to program the parking
lamps to blink once when the lock button on the
RKE
transmitter is pressed and to blink twice when the
unlock button
is pressed. If you don’t want the parking
lamps to blink when using the RKE transmitter, press
the no button.
FEATURE ON will display if REMOTE FLASH
LIGHTS was selected and FEATURE OFF will show if
you answer no.
For a list of the other personalization features available,
see “Memory and Personalization Features” later in
this section.
This personalization feature enables the driver to
program the exterior lamps to
turn on for 20 seconds
or
to remain off when using the RKE transmitter to
unlock your vehicle.
If exterior lighting is selected, the parking lamps,
taillamps, sidemarker lamps, license plate lamps,
low-beam headlamps, etc. will turn on for about
20 seconds or until the ignition key is turned to RUN.
Check the back of the RKE transmitter to verify that the
correct driver is selected before you start programming.
To begin programming, press the INFORMATION
(INFO) and RESET (INFO RESET) buttons at the same
time for about two seconds. Exterior fighting is the third
feature to display. Press the WOWMATION (INFO)
button to “skip” past the first two features -- DOOR
LOCKS IN GEAR and REMOTE FLASH LIGHTS.
When EXT LIGHTS AT UNLOCK appears, a “yes” or
“no” response
is required. Press the TRIP SET (TRIP
RESET) button to answer yes or press the RESET
(INFO RESET) button to indicate a no response.
FEATURE ON displays when a yes response is made
and
FEATURE OFF shows after a no response.
For a list of the other personalization features available,
see
“Memory and Personalization Features” later in
this section.
Your vehicle
may have memory personalization. If it
does, REMOTE RECALL MEMORY will be the fourth
personalization feature to display on the
DIC system.
Memory settings that
have been previously programmed
(HVAC settings, radio preset settings, exterior lighting
choices, remote confirmation choices and programmable
automatic
door 1oc.k choices) can be recalled by using
either the
RICE transmitter or by placing the key in your
vehicle’s ignition.
