1996 FORD TAURUS Owners Manual

219 %
*
[RE01700(ALL)05/95]
Connecting the jumper cables
*
[RE02500(ALL)03/95]
1. Connect one end of the first jumper cable to
the positive (+) terminal of the discharged
battery. (You can connect either jumper cable
to the positive (+) terminal, as long as you
use the same cable for both positive
terminals.) Most jumper cables have a red
cable and a black cable. The red cable is
generally used for the positive terminals and
the black for the negative ones.
*
[RE02600(ALL)04/95]
2. Connect the other end of the first cable to
the positive (+) terminal of the booster
battery.
*
[RE02700(ALL)07/95]
3. Connect one end of the second cable to the
negative (S) terminal of the booster battery
Ð NOT to the discharged battery.
*
[RE02800(ALL)04/95]
4. Connect the other end of the second cable to
a good metallic surface on the engine or
frame of the disabled vehicle.
*
[RE02900(ALL)07/95]
RWARNING
Do not connect the end of the second
cable to the negative (S) terminal of the
battery to be jumped. A spark may cause
an explosion of the gases that surround
the battery.
File:12fcret.ex
Update:Mon Jan 22 16:01:15 1996
ProCarManuals.com

220 [RE03100(ALL)04/95]

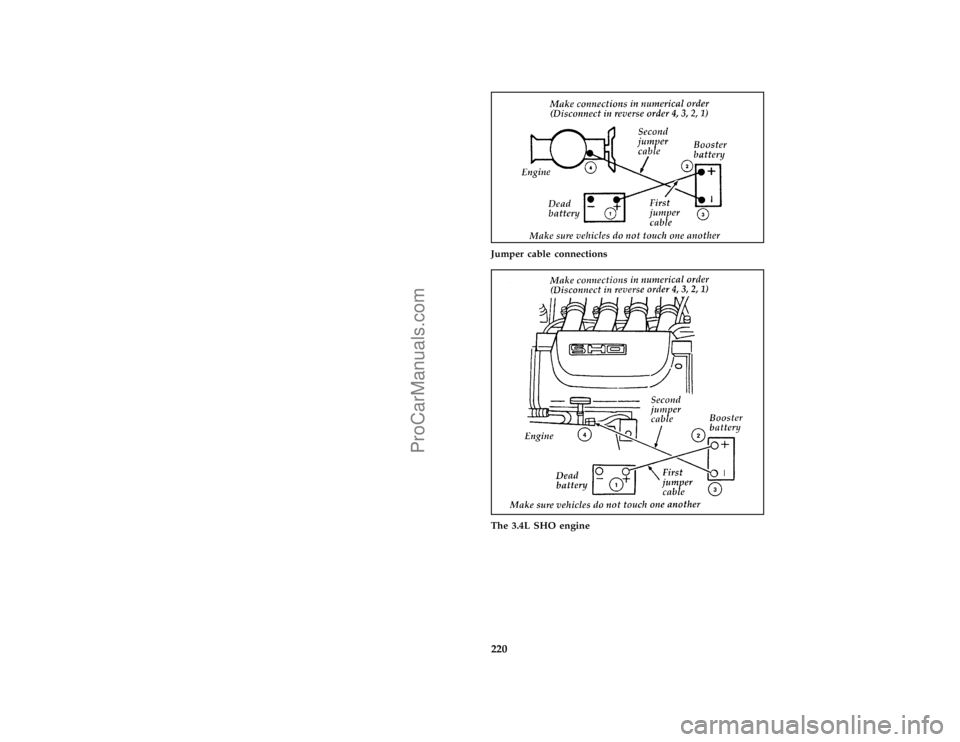

one third page art:0000388-DJumper cable connections
[RE03200( T)02/95]
half page art:0000390-C
The 3.4L SHO engine
File:12fcret.ex
Update:Mon Jan 22 16:01:15 1996
ProCarManuals.com

221
*
[RE03400(ALL)03/95]
Jump-Starting
*
[RE03600(ALL)03/95]
1. Make sure that the jumper cables are not in
the way of moving engine parts, then start
the booster vehicle. Run the engine at a
moderate speed.
*
[RE03700(ALL)03/95]
2. Let the discharged battery charge for a few
minutes and then start the disabled vehicle.
It may take a couple of tries before the
vehicle starts. If the vehicle does not start
after several attempts, there may be a
different problem.
*
[RE03800(ALL)03/95]
3. When both vehicles are running, let them
idle for a few minutes to charge the
discharged battery.
%*
[RE03900(ALL)03/95]
Removing jumper cables
*
[RE04000(ALL)03/95]
1.Always remove the jumper cables in the
reverse order.Remove the negative (S) end
of the jumper cable from the metallic surface
on the engine or frame of the disabled
vehicle.
*
[RE04100(ALL)06/95]
2. Remove the negative (S) cable from the
booster battery.
*
[RE04200(ALL)06/95]
3. Remove the positive (+) cable from the
booster battery.
*
[RE04300(ALL)05/95]
4. Remove the other end of the positive (+)
cable from the discharged battery.
*
[RE04400(ALL)11/95]
After the vehicle is started, let it idle for a while
to let the engine ªrelearnº its idle conditions.
Drive it around for a while with all electrical
accessories turned off to let the battery recharge.
Driveability may be deteriorated slightly until all
drive modes are ªrelearned.ºYou may need to
use a battery charger to fully recharge the
battery.
File:12fcret.ex
Update:Mon Jan 22 16:01:15 1996
ProCarManuals.com

222
*
[RE04450(ALL)03/95]
If you need to replace your battery, seeBattery
in theServicing Your Vehiclechapter.
%
*
[RE04500(ALL)03/95]
Changing a Tire
*
[RE04600(ALL)01/95]
If you get a flat tire while you are driving, do
not apply the brake heavily. Instead, gradually
decrease the speed. Hold the steering wheel
firmly and slowly move to a safe place on the
side of the road. Park on a level spot, turn off
the ignition, set the parking brake, and turn on
the hazard flashers.
[RE04610(ALL)01/95]
NOTE: Tire sealants that are injected through
the valve stem are not to be used to
service punctured tires because they
can produce wheel rust and tire
imbalance.
%*
[RE04700(ALL)03/95]
The Temporary Spare Tire
*
[RE04800(ALL)03/95]
You may have a high pressure temporary spare
tire. This spare tire is smaller than a regular tire
and is designed for emergency use only. Use it
only when you get a flat tire and replace it as
soon as you can. This spare tire is marked with
the words ªTEMPORARY USE ONLYº so that
you can easily identify it.
*
[RE04900(ALL)01/93]
RWARNING
If you use the temporary spare tire
continuously or do not follow these
precautions, the tire could fail, causing
you to lose control of the vehicle, possibly
injuring yourself or others.
File:12fcret.ex
Update:Mon Jan 22 16:01:15 1996
ProCarManuals.com

223
*
[RE05000(ALL)01/95]
When you drive with the temporary spare tire,
DO NOT:
*
[RE05100(ALL)01/95]
q
exceed 50 mph (80 km/h) under any
circumstances.
*
[RE05200(ALL)01/95]
q
load your vehicle so that it is heavier than
the maximum vehicle load rating listed on
the tire decal.
*
[RE05300(ALL)01/95]
q
tow a trailer.
*
[RE05400(ALL)01/95]
q
use tire chains on this tire.
*
[RE05500(ALL)01/95]
q
try to repair the temporary spare tire or
remove it from its wheel.
*
[RE05600(ALL)01/95]
q
use the wheel for any other type of vehicle.
*
[RE05700(ALL)01/95]
q
drive through an automatic car wash with
this tire. Because the temporary spare tire is
smaller than a conventional tire, it reduces
the ground clearance. Your vehicle may get
caught in the rails and it could be damaged.
% [RE05800(ALL)11/94]
The Conventional Spare Tire (If equipped)
*
[RE05900(ALL)01/95]
If you have the conventional spare tire, you can
use it as a spare or as a regular tire. This spare
tire is identical to the other tires that come with
your vehicle, although the wheel may not match.
%*
[RE06000(ALL)03/95]
Spare Tire Location
[RE06100(ALL)04/95]
In a sedan, the spare tire is stored in the trunk
under the floor carpet.
File:12fcret.ex
Update:Mon Jan 22 16:01:15 1996
ProCarManuals.com

224 [RE06200( T)12/95]

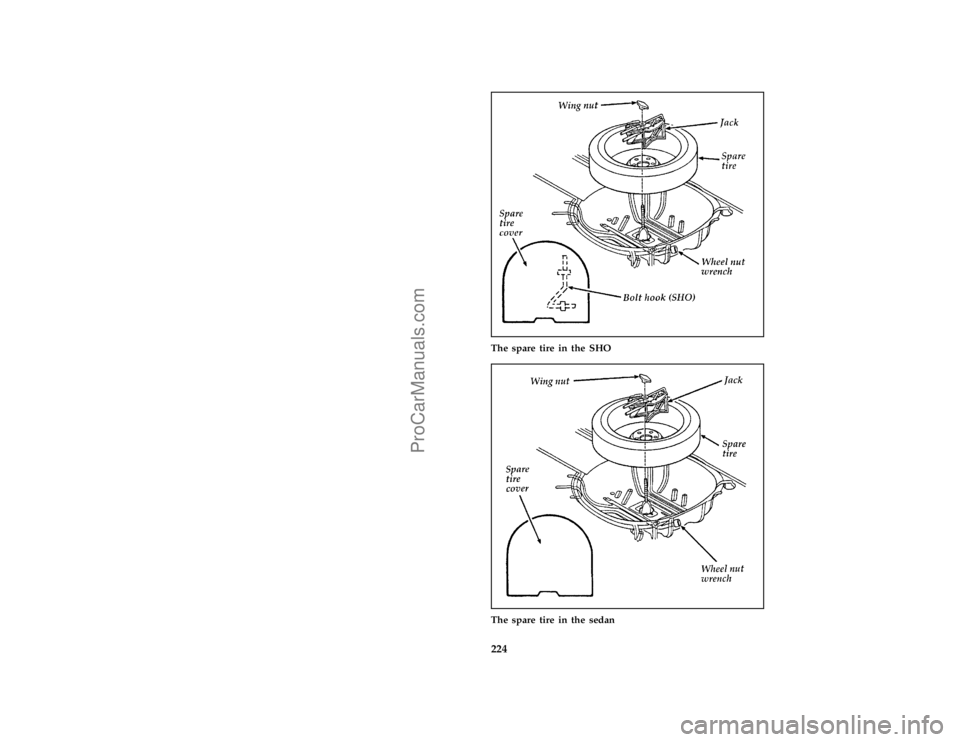

half page art:0000391-BThe spare tire in the SHO
[RE06250(ALL)02/95]
half page art:0001423-B
The spare tire in the sedan
File:12fcret.ex
Update:Mon Jan 22 16:01:15 1996
ProCarManuals.com

225 [RE06300(ALL)11/94]
In the wagon, the temporary spare tire is stored
in the left side rear trim panel.
[RE06400(ALL)02/95]
one third page art:0000392-B
The temporary spare tire in the wagon
[RE06700(ALL)11/94]
To remove the cover for the temporary spare
tire in the wagon:
[RE06800(ALL)04/95]
1. Twist the three fasteners 90 degrees into a
vertical position.
[RE06900(ALL)02/95]
2. Lift the the cover to disengage the three
retainers.
[RE07000(ALL)05/94]
3. Pull the front of the cover out slightly and
remove the cover by sliding it toward the
front of the vehicle.
*
[RE07100(ALL)01/89]
4. Lift out the spare tire, jack, and lug wrench.
%*
[RE07400(ALL)03/95]
Preparing to Change the Tire
*
[RE07500(ALL)05/94]
You should only raise your vehicle with a jack
properly placed at the front or rear jacking
points.
*
[RE07600(ALL)03/95]
1. Make sure that your vehicle will not move
or roll. Put the gearshift in P (Park). Set the
parking brake and block the wheel that is
diagonally opposite the tire that you are
changing.
File:12fcret.ex
Update:Mon Jan 22 16:01:15 1996
ProCarManuals.com

226 [RE07700(ALL)07/95]When one of the front wheels is off the ground,
the transaxle alone will not prevent the vehicle
from moving or slipping off the jack, even if the
vehicle is in P (Park). To prevent the vehicle
from moving when you change a tire, block (in
both directions) the wheel that is diagonally
opposite to the tire being changed.
*
[RE08400(ALL)09/95]
RWARNING
If the vehicle slips off the jack, you or
someone else could be seriously injured.
*
[RE08800(ALL)03/95]
2. Get out the spare tire and jack.
*
[RE08850(ALL)05/95]
RWARNING
To avoid injury, never run the engine
with one wheel off the ground, such as
when changing a tire.
% [RE08900(ALL)02/93]
3. Remove wheel covers or aluminum wheel
ornaments with the tapered end of a wheel
nut wrench. Insert the handle of the wrench
between the wheel and ornament and twist
it against the inner wheel cover flange.
*
[RE09200(ALL)09/95]
4. Loosen each wheel lug nut one-half turn
counterclockwise, but do not remove them
until the tire is raised off the ground. You
should pull up on the handle rather than
push to develop maximum force to loosen
wheel lug nuts. SeeAnti-Theft Wheel Lug
Nutslater in this chapter for information on
removing anti-theft lug nuts.
File:12fcret.ex
Update:Mon Jan 22 16:01:15 1996
ProCarManuals.com
