1996 FORD TAURUS Owners Manual

300 [SV31140(ALL)11/94]
one third page art:0000672-BThe brake fluid reservoir
%*
[SV31200(ALL)03/95]
Power Steering Fluid
*
[SV31300(ALL)01/95]
Check the level of the power steering fluid at
least twice a year (i.e., every Spring and Fall).
%*
[SV31400(ALL)03/95]
Checking and Adding Power Steering
Fluid
*
[SV31500(ALL)02/95]
1. Start the engine and let it run until the
power steering fluid reaches normal
operating temperature. The power steering
fluid will be at the right temperature when
the engine coolant temperature gauge in the
instrument cluster is near the center of the
NORMAL operating temperature range.
*
[SV31600(ALL)01/95]
2. While the engine idles, turn the steering
wheel back and forth several times. Make
sure that the cap assembly is installed at this
time.
*
[SV31700(ALL)05/95]
3. Turn the engine off.
File:15fcsvt.ex
Update:Tue Jan 23 13:58:51 1996
ProCarManuals.com

301 [SV31800(ALL)04/95]
3.0L Vulcan engine:
%*
[SV31900(ALL)03/94]
4. Check the fluid level on the dipstick (which
is highlighted in yellow in your vehicle). The
fluid level should be between the arrows in
the FULL HOT range, which is marked on
the side of the dipstick, opposite the side
marked FULL COLD. Do not add fluid if the
level is within the FULL HOT range.
*
[SV32100(ALL)07/94]
5. If the power steering fluid is low, add fluid
in small amounts, continuously checking the
level, until you reach the FULL HOT range.
Do not overfill.
[SV32150(ALL)02/95]
half page art:0000311-C
Dipstick for power steering fluid (3.0L Vulcan)
*
[SV32175(ALL)03/95]
6. When you are finished, put the dipstick back
in and make sure that it fits snugly.
File:15fcsvt.ex
Update:Tue Jan 23 13:58:51 1996
ProCarManuals.com

302 [SV32200( T)02/95]3.0L Duratec and 3.4L SHO:
*
[SV32250(ALL)11/94]
4. Check the fluid level in the power steering
fluid reservoir. The fluid level should be
between the MIN and MAX lines on the side
of the reservoir.
*
[SV32300(ALL)11/94]
5. If the power steering fluid is below the MIN
mark, add fluid in small amounts until the
level is between the MIN and MAX lines on
the side of the reservoir.
[SV32350( T)02/95]
half page art:0001388-A
Reservoir for power steering fluid (3.0L Duratec and 3.4L
SHO)
[SV32400(ALL)04/95]
Use only MerconHATF power steering fluid.
*
[SV32700(ALL)01/95]
If the power steering fluid is low, do not drive
your vehicle for a long period of time before
adding fluid. This can damage the power
steering pump.
File:15fcsvt.ex
Update:Tue Jan 23 13:58:51 1996
ProCarManuals.com

303 [SV32900( T)02/95]
If you check the power steering fluid when it is
cold, make sure that the fluid reaches the FULL
COLD range on the dipstick (3.0L Vulcan) or
MIN on the reservoir (3.0L Duratec or 3.4L
SHO). The reading will only be accurate if the
fluid temperature is approximately 50 to85ÊF (10
to 30ÊC).
% [SV32910(ALL)02/95]Fuses and Relays
[SV32915(ALL)04/95]
Fuses (conventional and high current) and relays
protect your vehicle's wiring system from
overloading. If electrical parts in your vehicle are
not working, the system may have been
overloaded and blown a fuse. Before you replace
or repair any electrical parts, check the
appropriate circuit protector. High current fuses
should only be repaired or replaced by your
Ford or Lincoln-Mercury dealer.
[SV33400(ALL)02/95]
The following charts tell you which circuit
protector protects each electrical part of your
vehicle. If a fuse blows, all the parts of your
vehicle that use the circuit will not work.
*
[SV33410(ALL)05/95]
Once you have determined which fuses to check,
follow the procedures underChecking and
replacing fuseslater in this chapter.
*
[SV33500(ALL)08/95]
RWARNING
Always remove the key from the ignition
before working on or replacing fuses.
File:15fcsvt.ex
Update:Tue Jan 23 13:58:51 1996
ProCarManuals.com

304 % [SV33600(ALL)11/94]The instrument panel fuses and relays
[SV33935(ALL)11/94]
half page art:0001081-B
The instrument panel fuse panel location
File:15fcsvt.ex
Update:Tue Jan 23 13:58:51 1996
ProCarManuals.com

305 [SV33940(ALL)12/95]
full page art:0001082-E
The instrument panel fuse cover
File:15fcsvt.ex
Update:Tue Jan 23 13:58:51 1996
ProCarManuals.com

306 [SV33950(ALL)12/95]

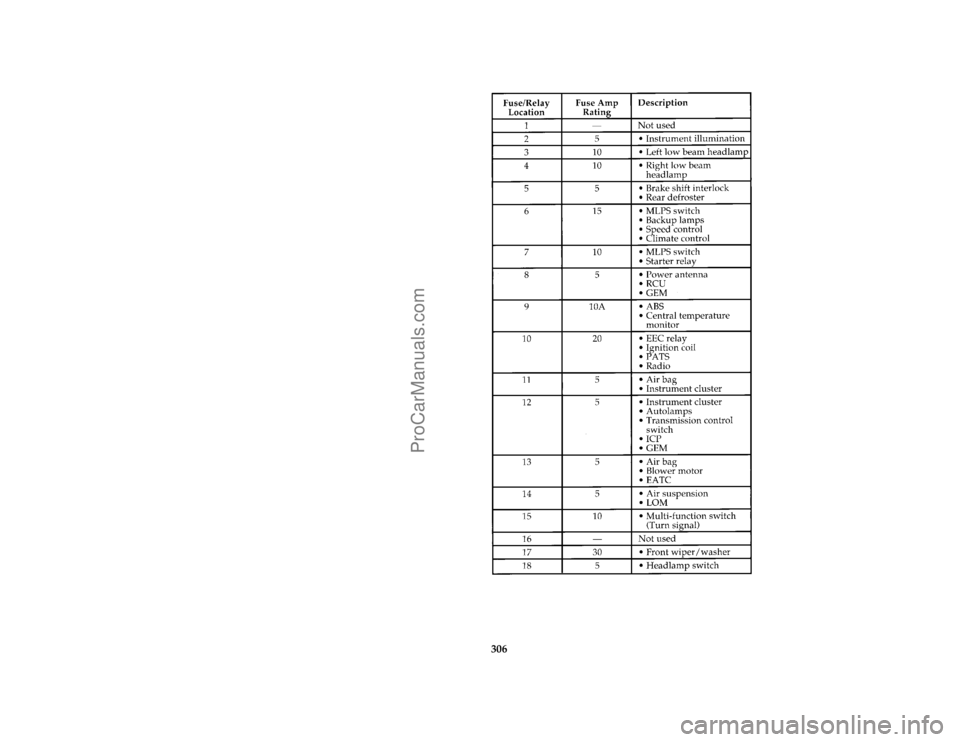

thirty-six pica chart:0001084-F
File:15fcsvt.ex
Update:Tue Jan 23 13:58:51 1996
ProCarManuals.com

307 % [SV33960(ALL)12/95]

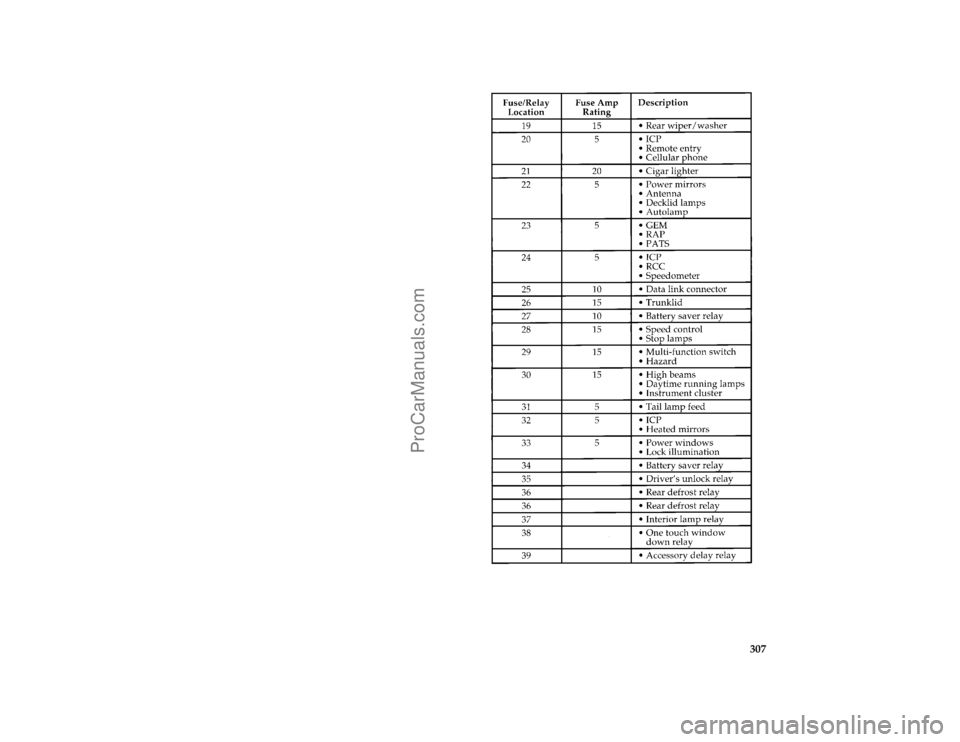

thirty-four pica chart:0001086-E
