1996 FORD TAURUS Owners Manual

80 [LG07925(ALL)03/95]On the fourth engine start up, the Service
Engine Soon Warning Light will turn off as soon
as the engine begins to crank. It is not necessary
to have the engine serviced.
[LG07951(ALL)11/94]
Under certain conditions, the Service Engine
Soon light may come on if the fuel cap is not
properly installed. If the Service Engine Soon
light comes on and you suspect that the fuel cap
is not properly installed, pull off the road as
soon as it is safely possible and turn off the
engine. Remove and replace the fuel cap, making
sure it is properly seated.
[LG08001(ALL)02/95]
After completing the three consecutive warm up
cycles and on the fourth engine start up, the
Service Engine Soon warning light should turn
off. If the light does not go off after the fourth
engine restart, have your vehicle serviced by
your dealer or a qualified technician.
% [LG08010(ALL)12/95]
Low Fuel Light
[LG08015(ALL)12/95]
This light comes on when your fuel gauge
indicates approximately 1/16 of a tank. The
ignition must be turned to the ON position for
this light to come on. This light will glow
steadily.
% [LG08020(ALL)12/95]
one inch art:0000116-C
Low fuel light
File:05fclgt.ex
Update:Tue Jan 23 08:14:15 1996
ProCarManuals.com

81 %
*
[LG08051(ALL)05/95]
Turn Signal Indicator Lights
*
[LG08102(ALL)09/95]
The turn signal arrow will flash to indicate the
direction in which you are going to be turning.
*
[LG08150(ALL)07/95]
one inch art:0010525-A
% [LG08251(ALL)11/94]
Cruise Control Indicator Light
(If equipped)
[LG08301(ALL)02/95]
This light comes on when the cruise control ON
switch is pressed. It turns off when the cruise
control OFF switch is pressed or when the
ignition is turned to the OFF position.
[LG08351(ALL)02/95]
one inch art:0001376-A
Cruise control indicator light
%*
[LG08391(ALL)02/95]
Anti-lock Brake System Warning Light
(If equipped)
*
[LG08392(ALL)01/95]
This light comes on for a few seconds when you
turn the ignition key to the START position. It
should go off shortly after the engine starts. If it
stays on longer than five (5) seconds, it indicates
that your anti-lock brake system may not be
working properly. Normal braking is not
affected unless the BRAKE system warning light
also remains on for longer than six (6) seconds.
File:05fclgt.ex
Update:Tue Jan 23 08:14:15 1996
ProCarManuals.com

82You should have your vehicle serviced
immediately by your dealer or qualified service
technician to restore the benefits of the anti-lock
feature. SeeAnti-lock brakesin the Index for more
information.
[LG08394(ALL)03/95]
one inch art:0000674-D
Anti-lock brake system warning light
*
[LG08396(ALL)10/93]
Gauges
%*
[LG08400(ALL)01/95]
Fuel Gauge
[LG08425(ALL)11/94]
The fuel gauge displays approximately how
much fuel is in the fuel tank only when the
ignition is in the ON position.
[LG08525(ALL)11/94]
For proper fuel gauge indication after adding
fuel, the ignition should be in the OFF position
while the vehicle is being refueled.
*
[LG08625(ALL)06/93]
The fuel gauge indicator may vary slightly when
the vehicle is in motion.
[LG08725(ALL)11/94]
With the ignition in the OFF position, the fuel
gauge indicator may drift from the ignition ON
indication.
%*
[LG08800(ALL)01/95]
Engine Coolant Temperature Gauge
*
[LG08900(ALL)03/95]
This gauge indicates the temperature of the
engine coolant, not the coolant level. If the
coolant is not at its proper level or mixture, the
gauge indication will not be accurate.
*
[LG09000(ALL)08/95]
The pointer moves from the C (cold) mark into
the Normal band as the engine coolant warms
up. It is acceptable for the pointer to fluctuate
within the Normal band under normal driving
File:05fclgt.ex
Update:Tue Jan 23 08:14:15 1996
ProCarManuals.com

83
conditions. Under certain driving conditions,
such as heavy stop and go traffic or driving up
hills in hot weather, the pointer may move to
the top of the Normal band.
[LG09005(ALL)02/95]
one third page art:0001095-B
Engine coolant temperature gauge
[LG09100(ALL)05/95]
If, under any circumstances, the pointer moves
above the Normal band, the engine coolant is
overheating and continued operation may cause
engine damage.
*
[LG09150(ALL)01/95]
If your engine coolant overheats:
*
[LG09200(ALL)03/95]
1. Pull off the road as soon as safely possible.
*
[LG09300(ALL)01/95]
2. Turn off the engine.
*
[LG09400(ALL)05/95]
3. Let the engine cool.
*
[LG09410(ALL)04/95]
4. Check the coolant level following the
instructions on checking and adding coolant
to your engine, seeEngine Coolantin the
Index. If you do not follow these
instructions, you or others could be injured.
[LG09415(ALL)11/94]
If the coolant continues to overheat, have the
cooling system serviced.
File:05fclgt.ex
Update:Tue Jan 23 08:14:15 1996
ProCarManuals.com

84 %
*
[LG09800(ALL)01/95]
Speedometer
*
[LG09900(ALL)01/95]
The speedometer tells you how many miles
(kilometers) per hour your vehicle is moving.
%*
[LG10000(ALL)01/95]
Odometer
*
[LG10100(ALL)01/95]
The odometer tells you the total number of miles
(kilometers) your vehicle has been driven.
%*
[LG10200(ALL)11/94]
Trip Odometer
*
[LG10300(ALL)11/94]
The trip odometer tells you how many miles
(kilometers) your vehicle has been driven since
the last reset. Press the reset button to return the
trip odometer to zero.
%*
[LG10320(ALL)02/95]
Tachometer
[LG10340(ALL)02/95]
The tachometer tells you the approximate engine
revolutions per minute (how fast the engine is
running). You may damage the engine if you
drive with the indicator in the red zone.
% [LG10350(ALL)12/95]The Optional and SHO Clusters
[LG10360( T)02/95]
The optional cluster and the SHO cluster have
indicator lights that are not on the standard
cluster. For details about these lights, read the
information below. To learn about the standard
warning lights and gauges that come on all
clusters, seeThe Standard Clusterearlier in this
chapter.
[LG10365( T)12/95]
The optional cluster has a 120 mph (200 km/h)
speedometer and a 7,000 rpm tachometer.
[LG10370( T)02/95]
The SHO cluster also has a 150 mph (240 km/h)
speedometer and an 8,000 rpm tachometer.
File:05fclgt.ex
Update:Tue Jan 23 08:14:15 1996
ProCarManuals.com

85 [LG10401(ALL)03/95]
full page art:0000644-I

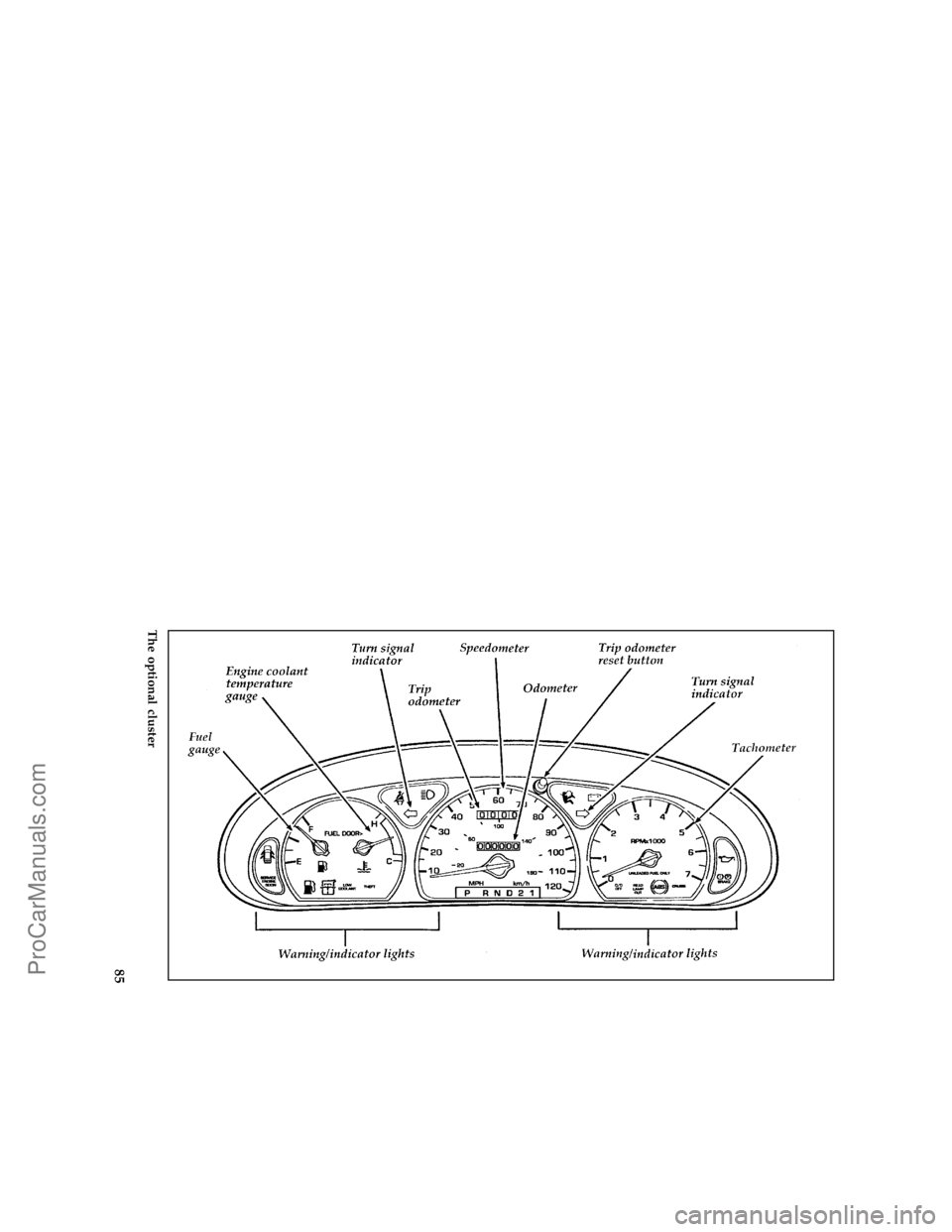

The optional cluster
File:05fclgt.ex
Update:Tue Jan 23 08:14:15 1996
ProCarManuals.com

86 [LG10501( T)02/95]
full page art:0000665-NThe SHO cluster
File:05fclgt.ex
Update:Tue Jan 23 08:14:15 1996
ProCarManuals.com

87 [LG14750(ALL)12/95]
Low Coolant Light and Chime
[LG14850(ALL)04/95]
This light indicates that the level of the engine
coolant is low inside the coolant reservoir.
[LG14950(ALL)04/95]
one inch art:0000114-C
Low coolant light
[LG15000(ALL)12/95]
This light comes on for a few seconds when
your ignition key is turned to the ON position,
but should turn off when the engine starts. If the
coolant is low, the light will come on and a
single chime will sound. If this light stays on,
check the level of coolant inside the coolant
reservoir. For instructions on adding coolant
mixture, seeEngine coolantin the Index.
% [LG15150(ALL)12/95]
Low Washer Fluid Light
*
[LG15250(ALL)02/95]
This light comes on if the reservoir is less than a
quarter full when you turn on the windshield
washers.
[LG15350(ALL)04/95]
one inch art:0000118-B
Low washer fluid light
% [LG16100(ALL)12/95]
Rear Lamp Out Indicator
[LG16200(ALL)12/95]
This light indicates that a rear tail lamp or
brakelamp is not functioning. It comes on
momentarily when the ignition is turned to the
ON position, then goes out.
File:05fclgt.ex
Update:Tue Jan 23 08:14:15 1996
ProCarManuals.com
