1994 JEEP CHEROKEE Service Repair Manual

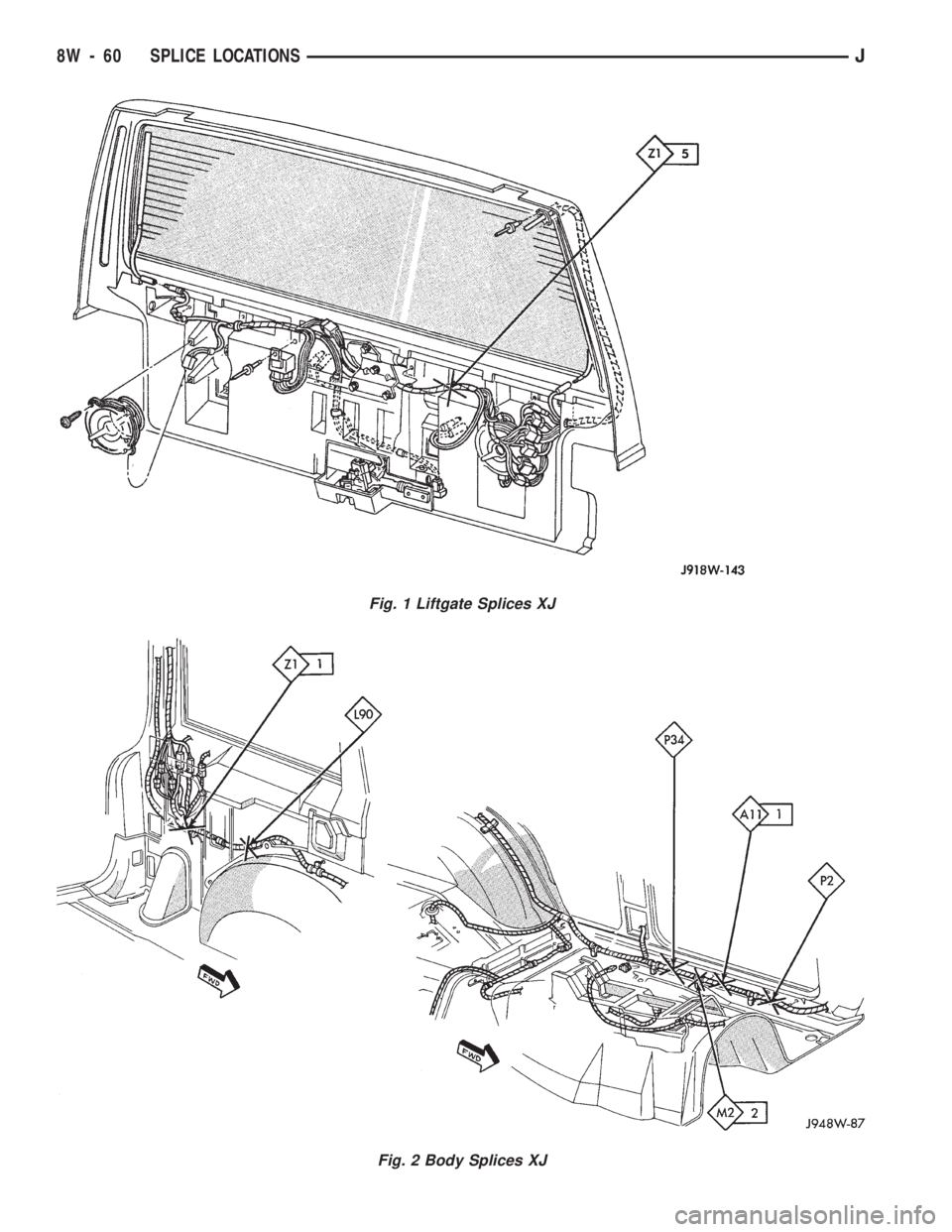

Fig. 1 Liftgate Splices XJ
Fig. 2 Body Splices XJ
8W - 60 SPLICE LOCATIONSJ

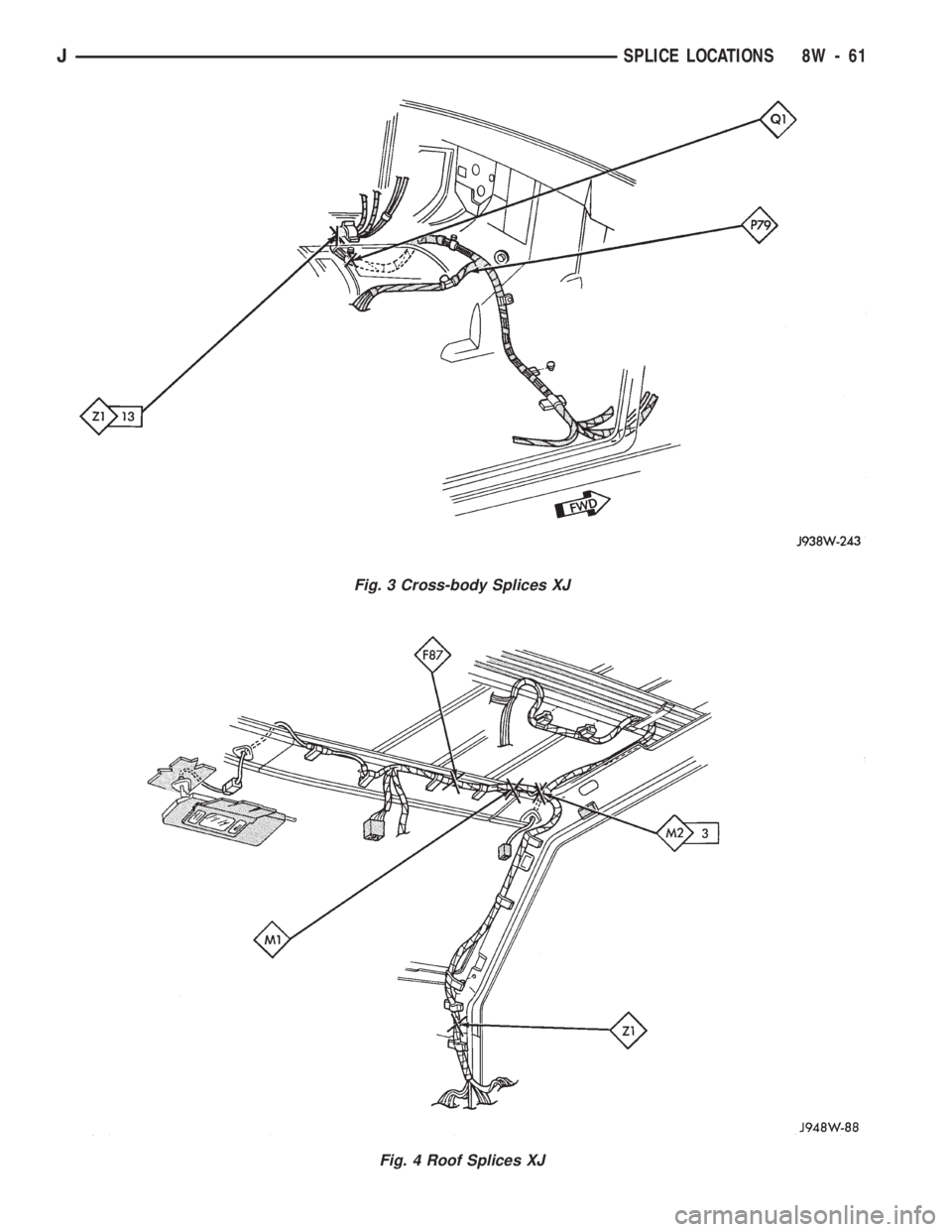

Fig. 3 Cross-body Splices XJ
Fig. 4 Roof Splices XJ
JSPLICE LOCATIONS 8W - 61

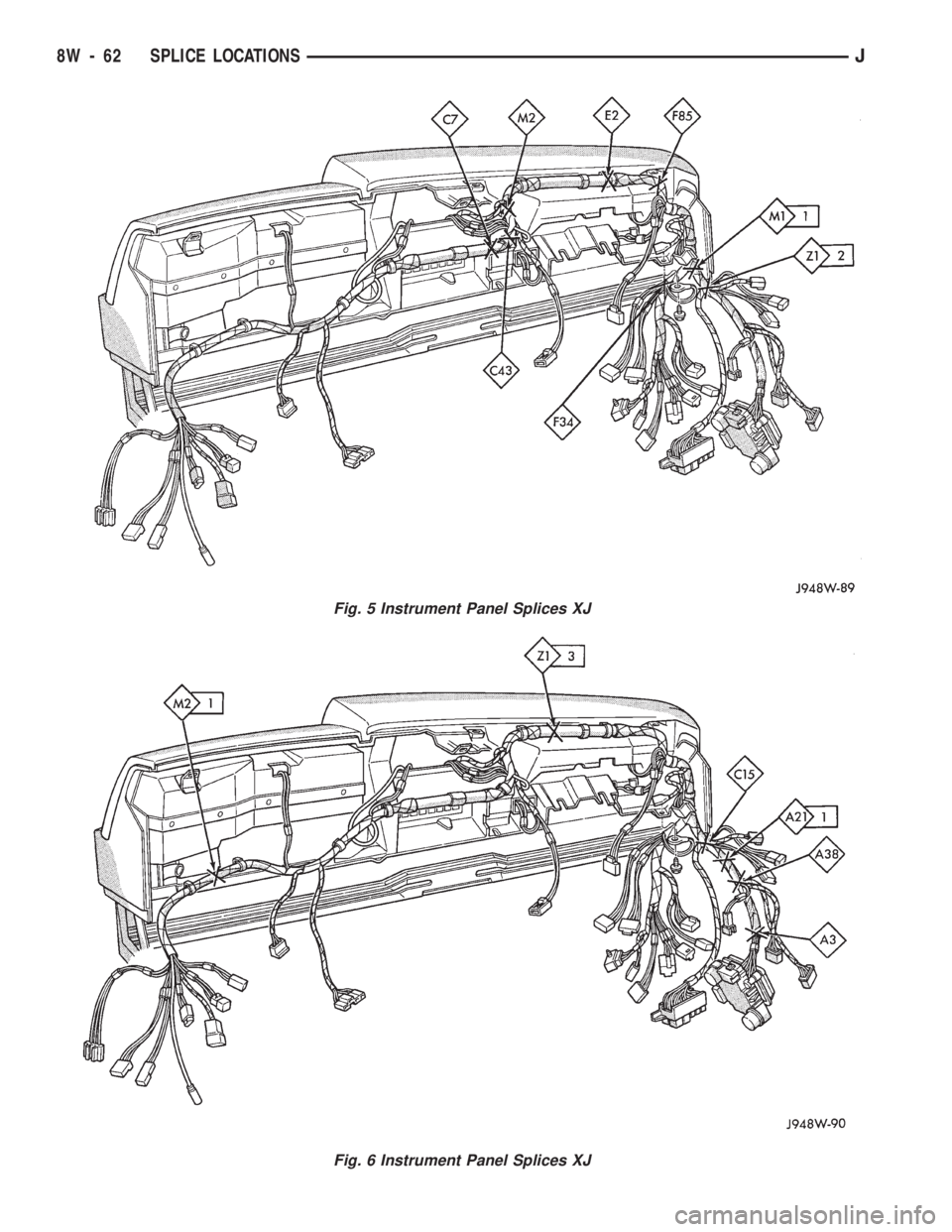

Fig. 5 Instrument Panel Splices XJ
Fig. 6 Instrument Panel Splices XJ
8W - 62 SPLICE LOCATIONSJ

Fig. 7 Front End Splices XJ
Fig. 8 Engine Compartment Splices XJ
JSPLICE LOCATIONS 8W - 63

Fig. 9 Engine Compartment Splices XJ
Fig. 10 Engine Splices 2.5L XJ
8W - 64 SPLICE LOCATIONSJ

Fig. 11 Engine Splices 4.0L XJ
Fig. 12 Engine Splices 4.0L XJ
JSPLICE LOCATIONS 8W - 65

8W - 66 SPLICE LOCATIONSJ

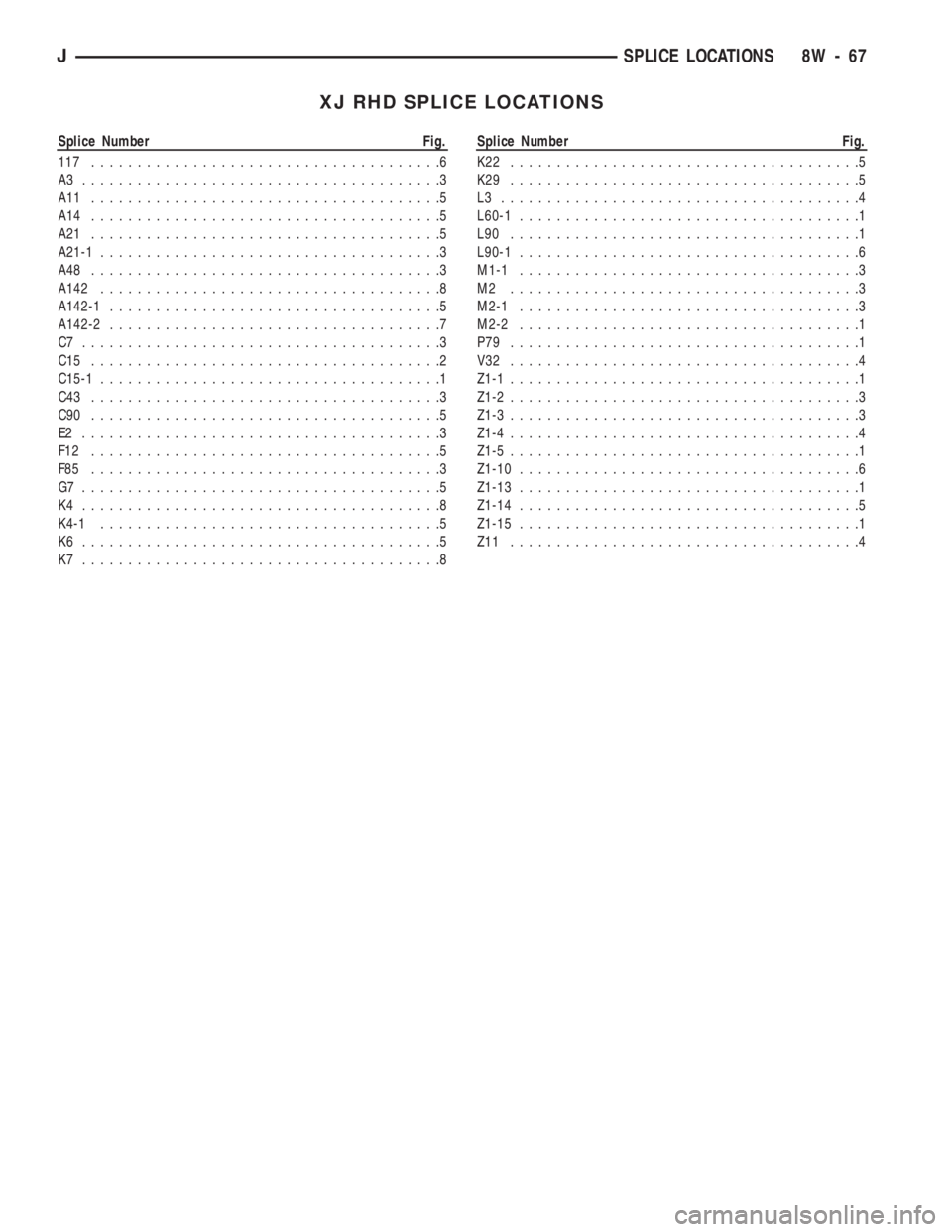

XJ RHD SPLICE LOCATIONS
Splice Number Fig.
117 ......................................6
A3 .......................................3
A11 ......................................5
A14 ......................................5
A21 ......................................5
A21-1.....................................3
A48 ......................................3
A142.....................................8
A142-1....................................5
A142-2....................................7
C7 .......................................3
C15 ......................................2
C15-1.....................................1
C43 ......................................3
C90 ......................................5
E2 .......................................3
F12 ......................................5
F85 ......................................3
G7 .......................................5
K4 .......................................8
K4-1.....................................5
K6 .......................................5
K7 .......................................8Splice Number Fig.
K22 ......................................5
K29 ......................................5
L3 .......................................4
L60-1.....................................1
L90 ......................................1
L90-1.....................................6
M1-1.....................................3
M2 ......................................3
M2-1.....................................3
M2-2.....................................1
P79 ......................................1
V32 ......................................4
Z1-1......................................1
Z1-2......................................3
Z1-3......................................3
Z1-4......................................4
Z1-5......................................1
Z1-10.....................................6
Z1-13.....................................1
Z1-14.....................................5
Z1-15.....................................1
Z11 ......................................4
JSPLICE LOCATIONS 8W - 67
