8W - 12 WIRING DIAGRAMSJ

WIRING AND COMPONENT IDENTIFICATION
CONTENTS
page page
XJ ................................... 25
XJ RHD ............................... 43YJ ................................... 13
The wiring and components shown in this section
are divided into sections by vehicle line. When locat-
ing a specific wire routing or component, first turn to
the appropriate index, then look up thefigure num-
berthat refers to the component.Page numbers at
the top of the page do not refer to figure num-
bers.
YJ
Caption Fig.
Battery and Starter Wiring.......................8
Body Wiring...............................1,2
Chassis Wiring...............................3
Engine Compartment Wiring......................7
Engine Wiring 2.5L...........................10Caption Fig.
Engine Wiring 4.0L...........................11
Front End Wiring.............................12
Instrument Panel Wiring.......................5,6
Steering Column Wiring.........................4
Transmission Wiring...........................9
JWIRING AND COMPONENT IDENTIFICATION 8W - 13

Fig. 1 Body Wiring YJ
8W - 14 WIRING AND COMPONENT IDENTIFICATIONJ

Fig. 2 Body Wiring YJ
JWIRING AND COMPONENT IDENTIFICATION 8W - 15

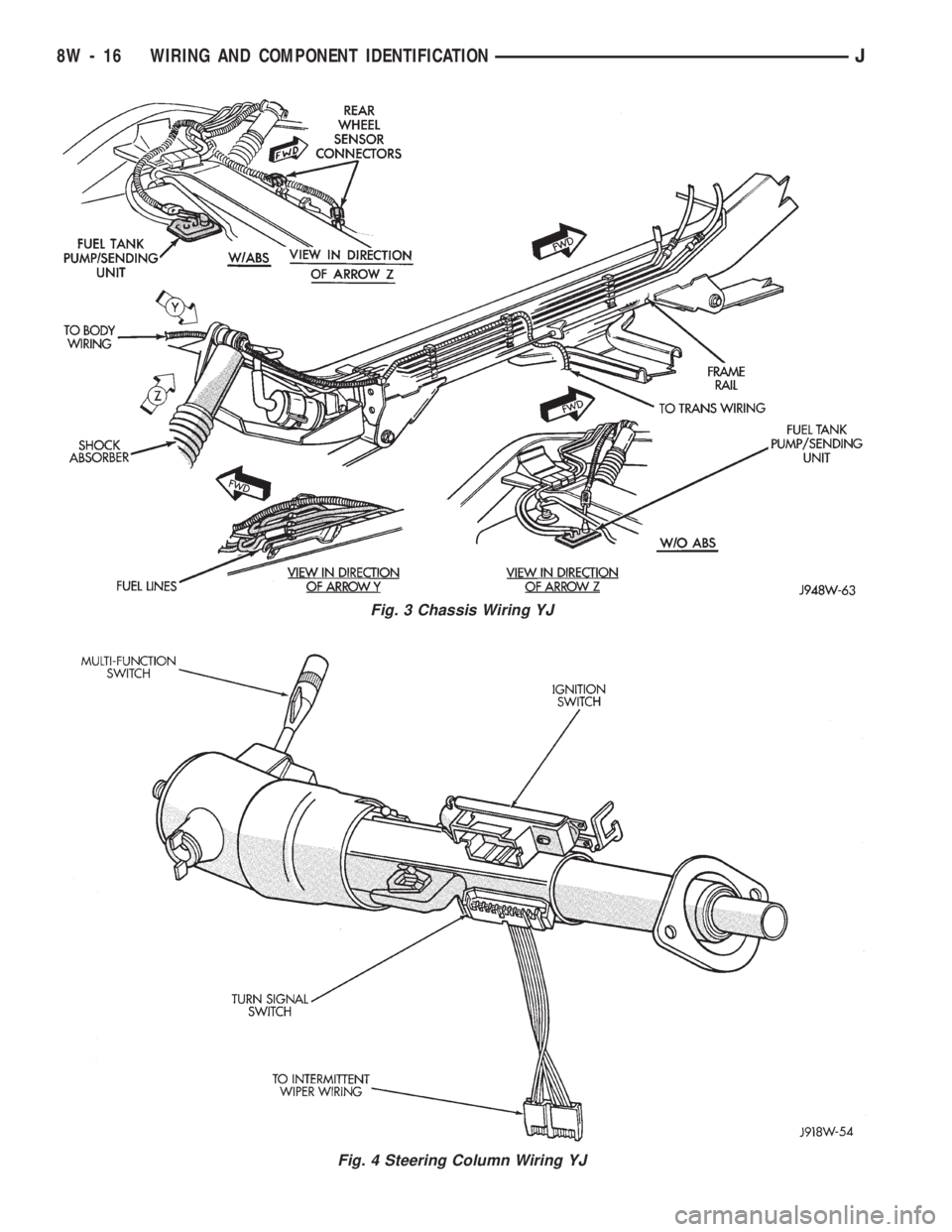

Fig. 3 Chassis Wiring YJ
Fig. 4 Steering Column Wiring YJ
8W - 16 WIRING AND COMPONENT IDENTIFICATIONJ

Fig. 5 Instrument Panel Wiring YJ
JWIRING AND COMPONENT IDENTIFICATION 8W - 17

Fig. 6 Instrument Panel Wiring YJ
8W - 18 WIRING AND COMPONENT IDENTIFICATIONJ

Fig. 7 Engine Compartment Wiring YJ
JWIRING AND COMPONENT IDENTIFICATION 8W - 19
