1994 JEEP CHEROKEE Service Repair Manual

8W - 52 WIRING AND COMPONENT IDENTIFICATIONJ

SPLICE LOCATIONS
CONTENTS
page page
XJ SPLICE LOCATIONS................... 59
XJ RHD SPLICE LOCATIONS.............. 67YJ SPLICE LOCATIONS................... 53
The splice locations shown in this section are di-
vided into sections by vehicle line. When locating a
specific splice first, turn to the appropriate index,
then look up thefigure numberthat refers to the
splice.Page numbers at the top of the page do
not refer to figure numbers.
YJ SPLICE LOCATIONS
Splice Number Fig.
A6 .......................................2
A11 ......................................4
A142.....................................3
A142-1....................................3
B15 ......................................4
E2 .......................................2
F15 ......................................4
F30 ......................................2
G5 .......................................2
G7 .......................................3
G19 ......................................4
G50 ......................................4
K4 .......................................3
K4-1.....................................3
K6 .......................................3
K7 .......................................3
L1 .......................................1
L3 Canada Only..............................5
L4 Canada Only..............................6
L7 .......................................2Splice Number Fig.
L7-1......................................5
L7-2......................................1
L39 ......................................6
L39-1.....................................2
M1 ......................................2
M1-1.....................................4
M2 ......................................2
Z1 .......................................2
Z1-2......................................2
Z1-3......................................2
Z1-4......................................1
Z1-5......................................1
Z1-6......................................1
Z1-7......................................3
Z1-8......................................4
Z1-9......................................5
Z1-10.....................................5
Z2 .......................................3
Z12 ......................................4
JSPLICE LOCATIONS 8W - 53

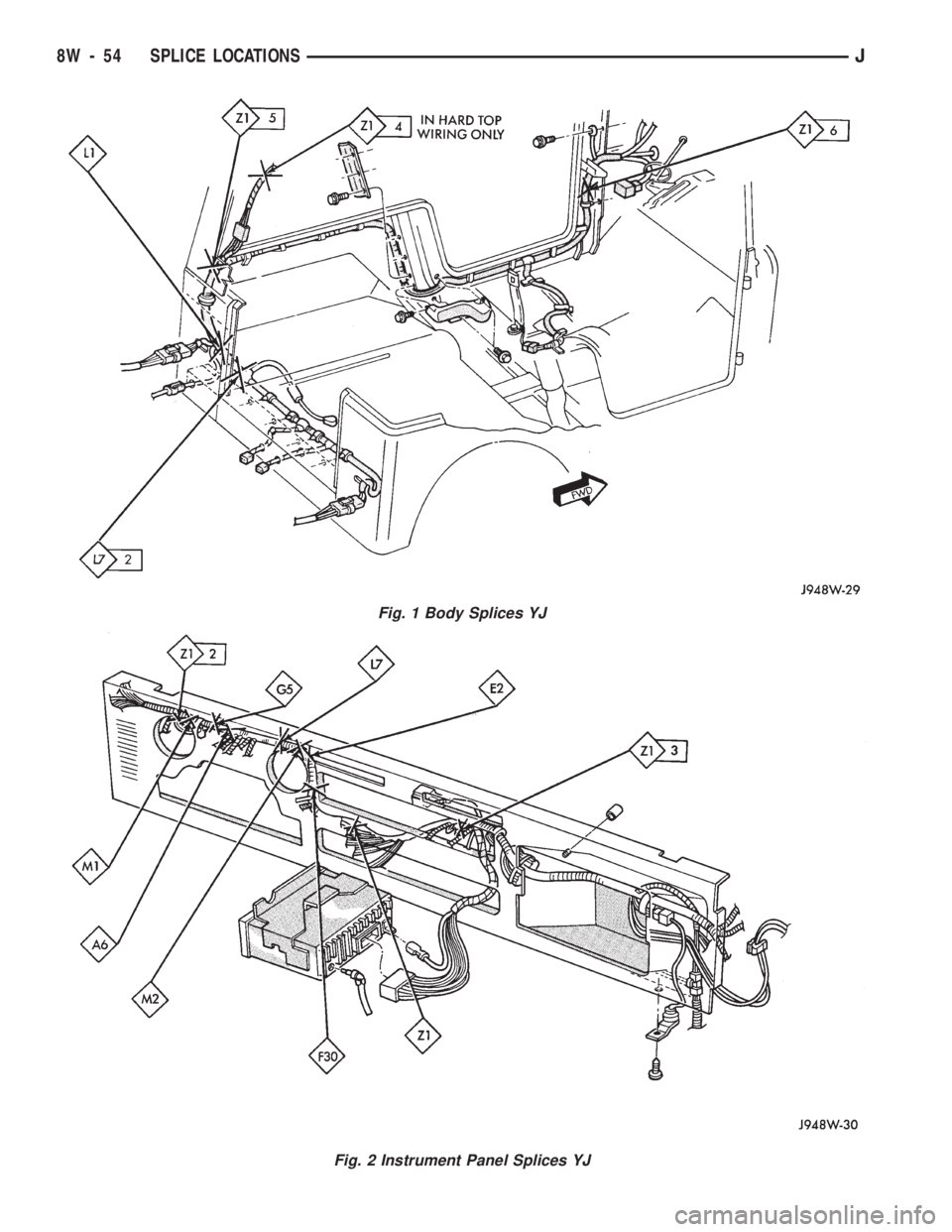

Fig. 1 Body Splices YJ
Fig. 2 Instrument Panel Splices YJ
8W - 54 SPLICE LOCATIONSJ

Fig. 3 Engine Wiring Splices YJ
JSPLICE LOCATIONS 8W - 55

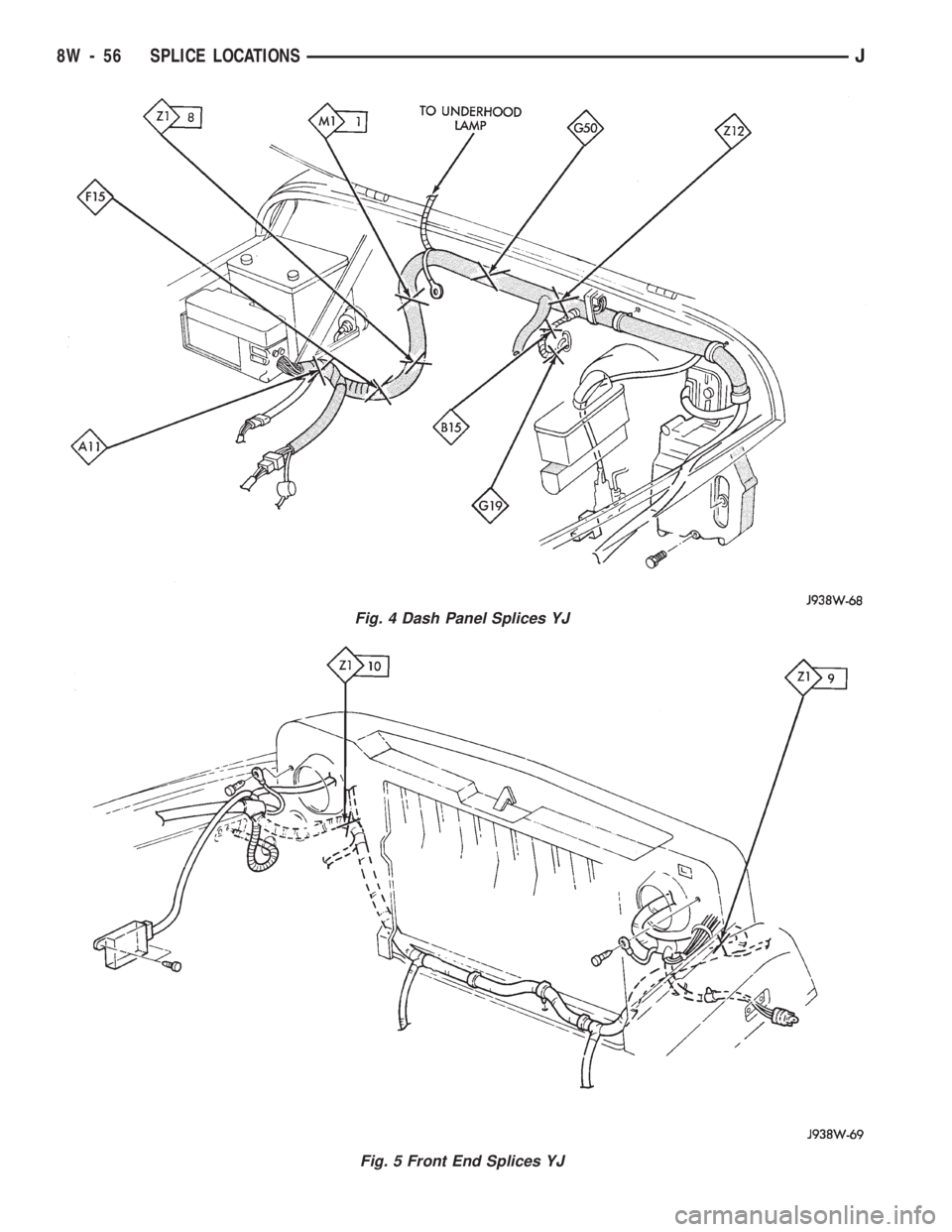

Fig. 4 Dash Panel Splices YJ
Fig. 5 Front End Splices YJ
8W - 56 SPLICE LOCATIONSJ

Fig. 6 Front End Splices YJ
JSPLICE LOCATIONS 8W - 57

8W - 58 SPLICE LOCATIONSJ

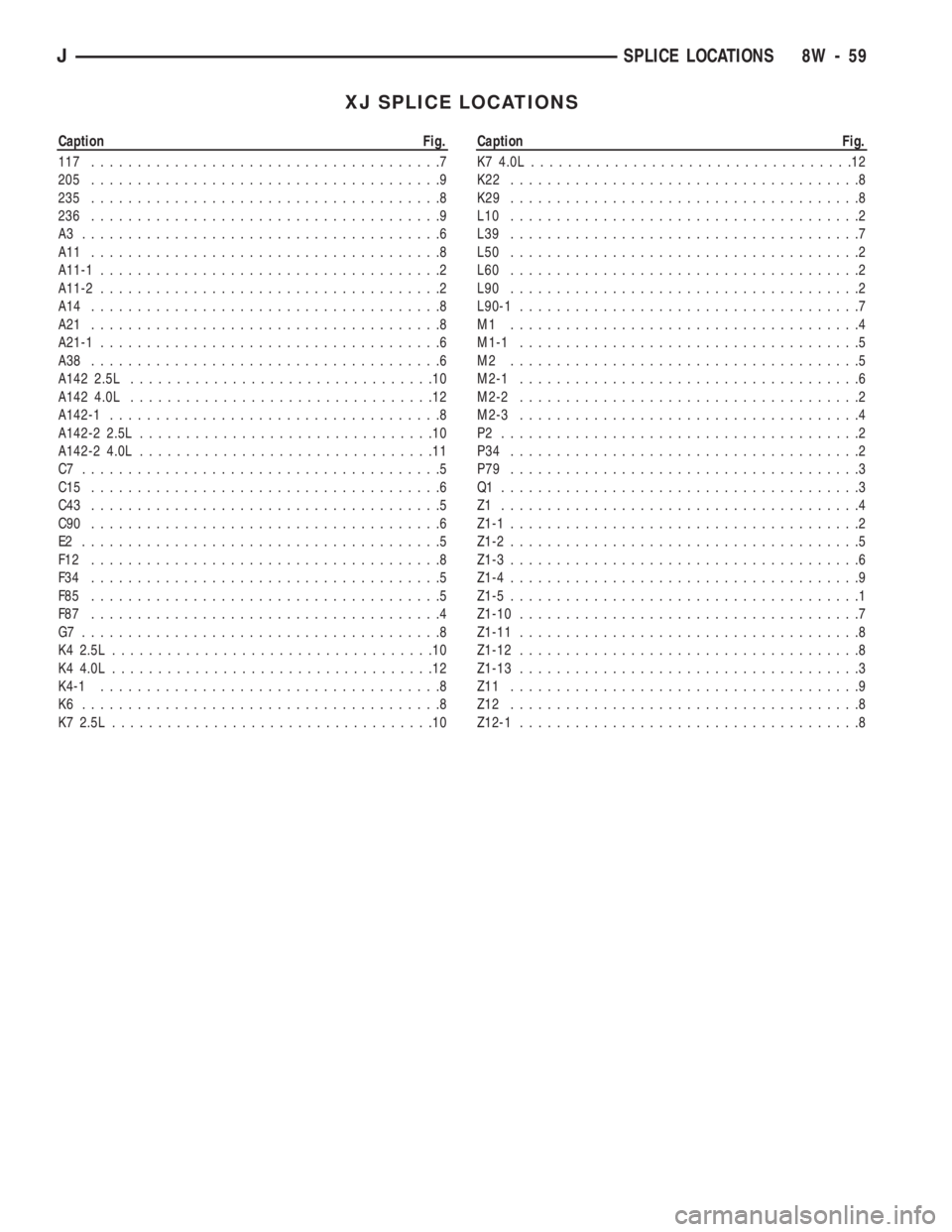

XJ SPLICE LOCATIONS
Caption Fig.
117 ......................................7
205 ......................................9
235 ......................................8
236 ......................................9
A3 .......................................6
A11 ......................................8
A11-1.....................................2
A11-2.....................................2
A14 ......................................8
A21 ......................................8
A21-1.....................................6
A38 ......................................6
A142 2.5L.................................10
A142 4.0L.................................12
A142-1....................................8
A142-2 2.5L................................10
A142-2 4.0L................................11
C7 .......................................5
C15 ......................................6
C43 ......................................5
C90 ......................................6
E2 .......................................5
F12 ......................................8
F34 ......................................5
F85 ......................................5
F87 ......................................4
G7 .......................................8
K4 2.5L...................................10
K4 4.0L...................................12
K4-1.....................................8
K6 .......................................8
K7 2.5L...................................10Caption Fig.
K7 4.0L...................................12
K22 ......................................8
K29 ......................................8
L10 ......................................2
L39 ......................................7
L50 ......................................2
L60 ......................................2
L90 ......................................2
L90-1.....................................7
M1 ......................................4
M1-1.....................................5
M2 ......................................5
M2-1.....................................6
M2-2.....................................2
M2-3.....................................4
P2 .......................................2
P34 ......................................2
P79 ......................................3
Q1 .......................................3
Z1 .......................................4
Z1-1......................................2
Z1-2......................................5
Z1-3......................................6
Z1-4......................................9
Z1-5......................................1
Z1-10.....................................7
Z1-11.....................................8
Z1-12.....................................8
Z1-13.....................................3
Z11 ......................................9
Z12 ......................................8
Z12-1.....................................8
JSPLICE LOCATIONS 8W - 59
