1993 VOLKSWAGEN CORRADO Repair Manual

MAINTENANCE INFORMATION
Article Text (p. 2)
1993 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, March 22, 2000 09:14PM
5 - Engine
B * 1.8L 4-Cyl. G-60 Supercharged Digifant FI, 158 HP (1990-92)
D * 2.8L V6 Motronic M2.9 FI, 172 HP (1992-93)
F * 2.8L V6 Motronic SFI, 172 HP (1994)
6 - Restraint System
4 * Electric Passive With Manual Lap
7-8 - Model
50 * Corrado
9 - VIN Check Digit
2 * Computer Selected Check Number
10 - Vehicle Model Year
L * 1990
M * 1991
N * 1992
P * 1993
R * 1994
11 - Assembly Plant
A * Ingolstadt
B * Brussel
E * Emden
G * Graz
H * Hannover
K * Osnabruk
M * Mexico
N * Neckarsulm
P * Brazil
S * Stuttgart
W * Wolfsburg
12-17 - Serial Number
* Sequential Production Number
MAINTENANCE SERVICE INFORMATION
SEVERE & NORMAL SERVICE DEFINITIONS
NOTE: Use the Severe Service schedule if the vehicle to be serviced
is operated under ANY (one or more) of these conditions:
Service is recommended at mileage intervals based on vehicle
operation. Service schedules are based on the following primary
operating conditions:
Normal Service
* Driven More Than 10 Miles Daily
* No Operating Conditions From Severe Service Schedule

MAINTENANCE INFORMATION
Article Text (p. 3)
1993 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, March 22, 2000 09:14PM
Severe Service (Unique Driving Conditions)
* Short Trips In Freezing Temperatures
* Towing Or Heavily Loaded
* Severe Dust Conditions
* Hot Weather, Stop-And-Go Driving
* Extensive Idling
CAMSHAFT TIMING BELT
CAUTION: Failure to replace a faulty camshaft timing belt may result
in serious engine damage.
The condition of camshaft drive belts should always be
checked on vehicles which have more than 50,000 miles. Although some
manufacturers do not recommend belt replacement at a specified
mileage, others require it at 60,000-100,000 miles. A camshaft drive
belt failure may cause extensive damage to internal engine components
on most engines, although some designs do not allow piston-to-valve
contact. These designs are often called "Free Wheeling".
Many manufacturers changed their maintenance and warranty
schedules in the mid-1980's to reflect timing belt inspection and/or
replacement at 50,000-60,000 miles. Most service interval schedules in
this manual reflect these changes.
Belts or components should be inspected and replaced if any
of the following conditions exist:
* Cracks Or Tears In Belt Surface
* Missing, Damaged, Cracked Or Rounded Teeth
* Oil Contamination
* Damaged Or Faulty Tensioners
* Incorrect Tension Adjustment
Inspect camshaft timing belt condition every 20,000 miles.
Replace belt as necessary.
DRIVE BELT ROUTINGFig. 1: Drive Belt Tensioner Adjustment (VR6)
Courtesy of Volkswagen United States, Inc.

MAINTENANCE INFORMATION
Article Text (p. 4)
1993 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, March 22, 2000 09:14PMFig. 2: Drive Belt Routing (VR6)

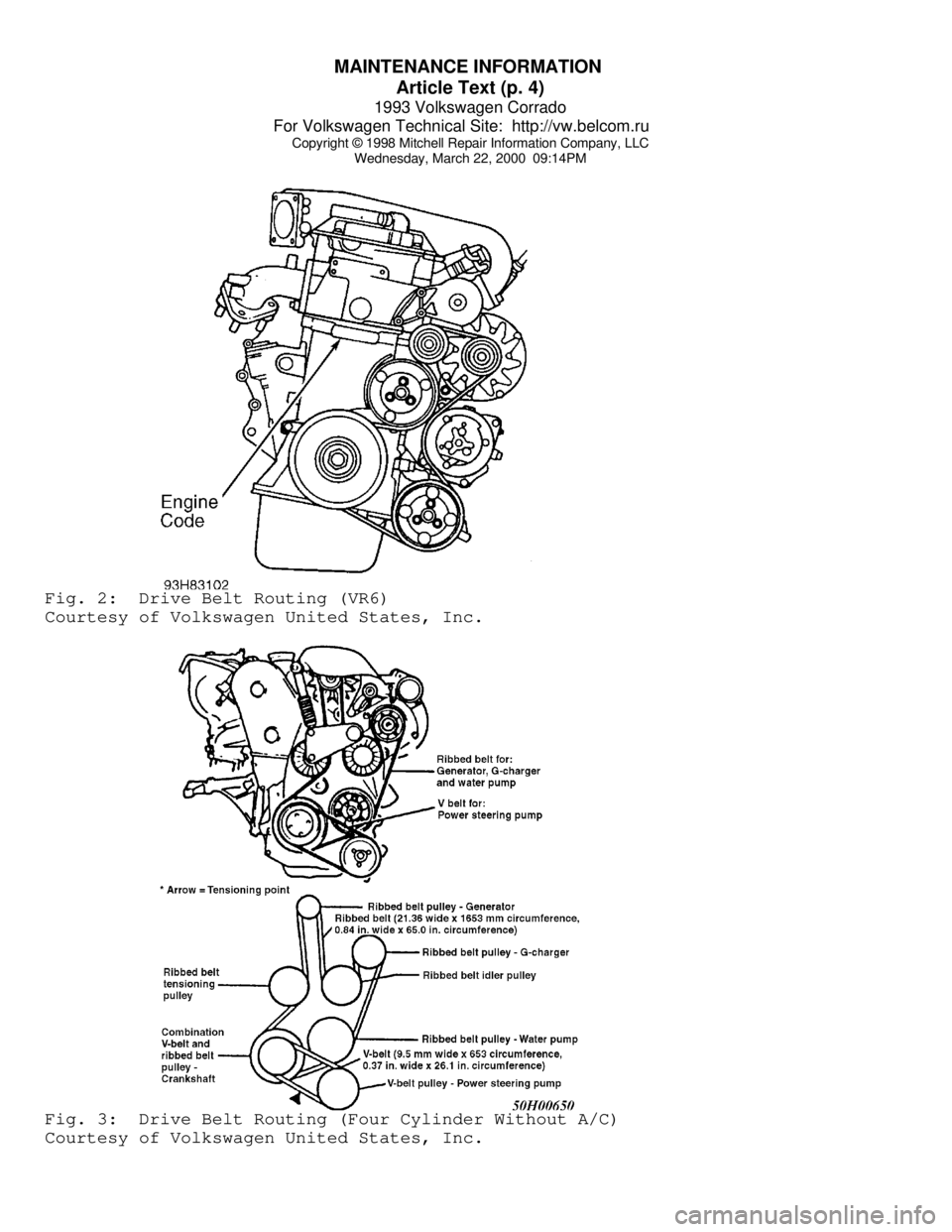

Courtesy of Volkswagen United States, Inc.Fig. 3: Drive Belt Routing (Four Cylinder Without A/C)
Courtesy of Volkswagen United States, Inc.

MAINTENANCE INFORMATION
Article Text (p. 5)
1993 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC

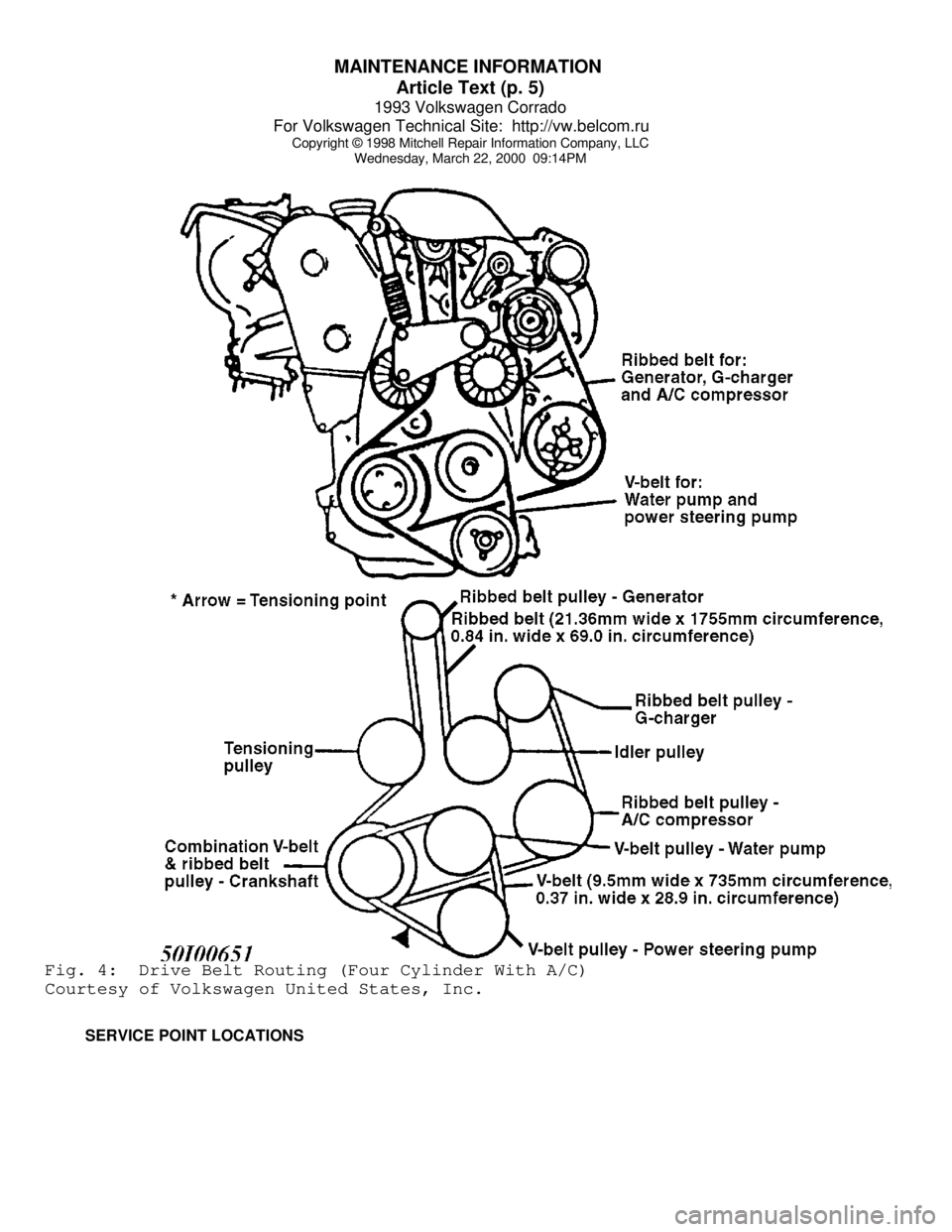

Wednesday, March 22, 2000 09:14PMFig. 4: Drive Belt Routing (Four Cylinder With A/C)
Courtesy of Volkswagen United States, Inc.
SERVICE POINT LOCATIONS

MAINTENANCE INFORMATION
Article Text (p. 6)
1993 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC

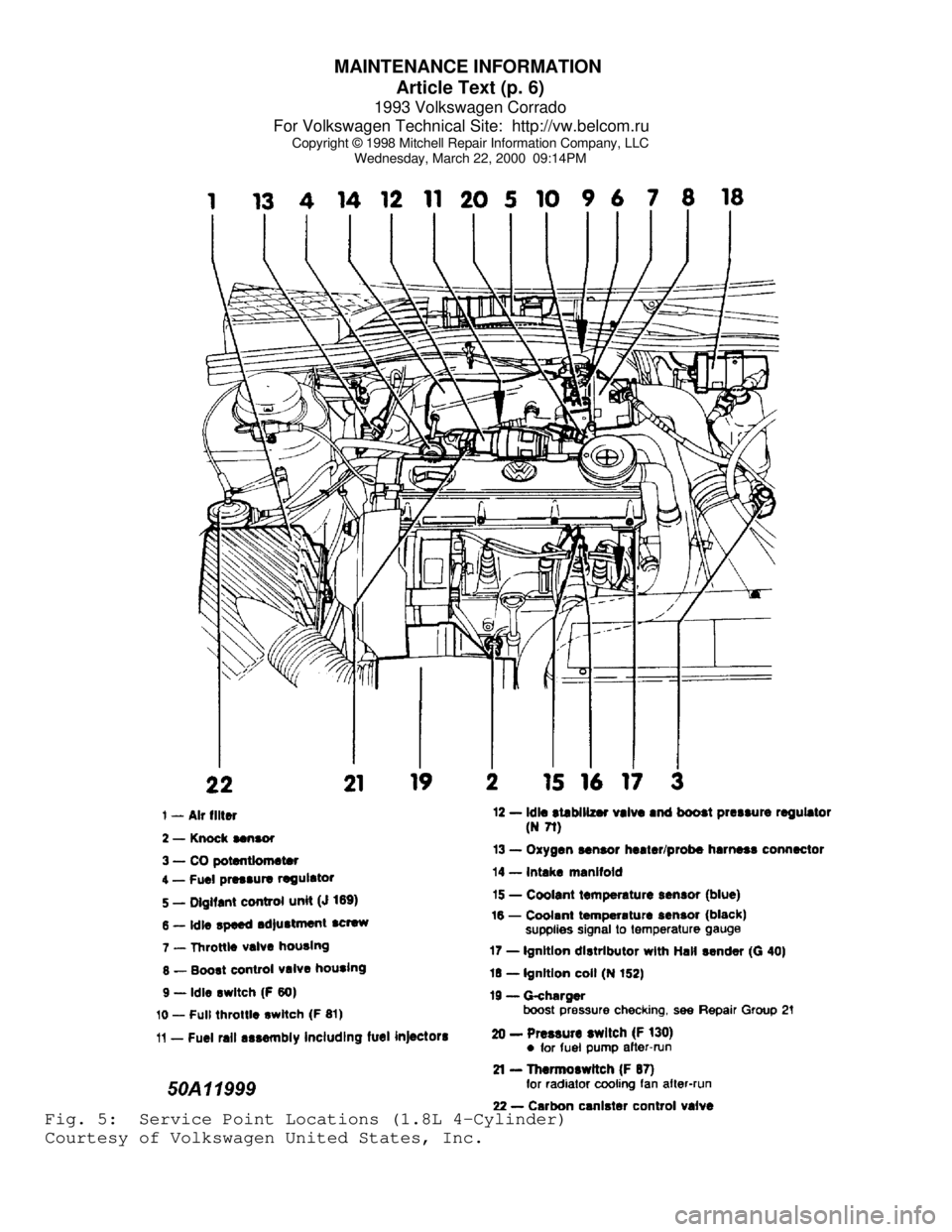

Wednesday, March 22, 2000 09:14PMFig. 5: Service Point Locations (1.8L 4-Cylinder)
Courtesy of Volkswagen United States, Inc.

MAINTENANCE INFORMATION
Article Text (p. 7)
1993 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC

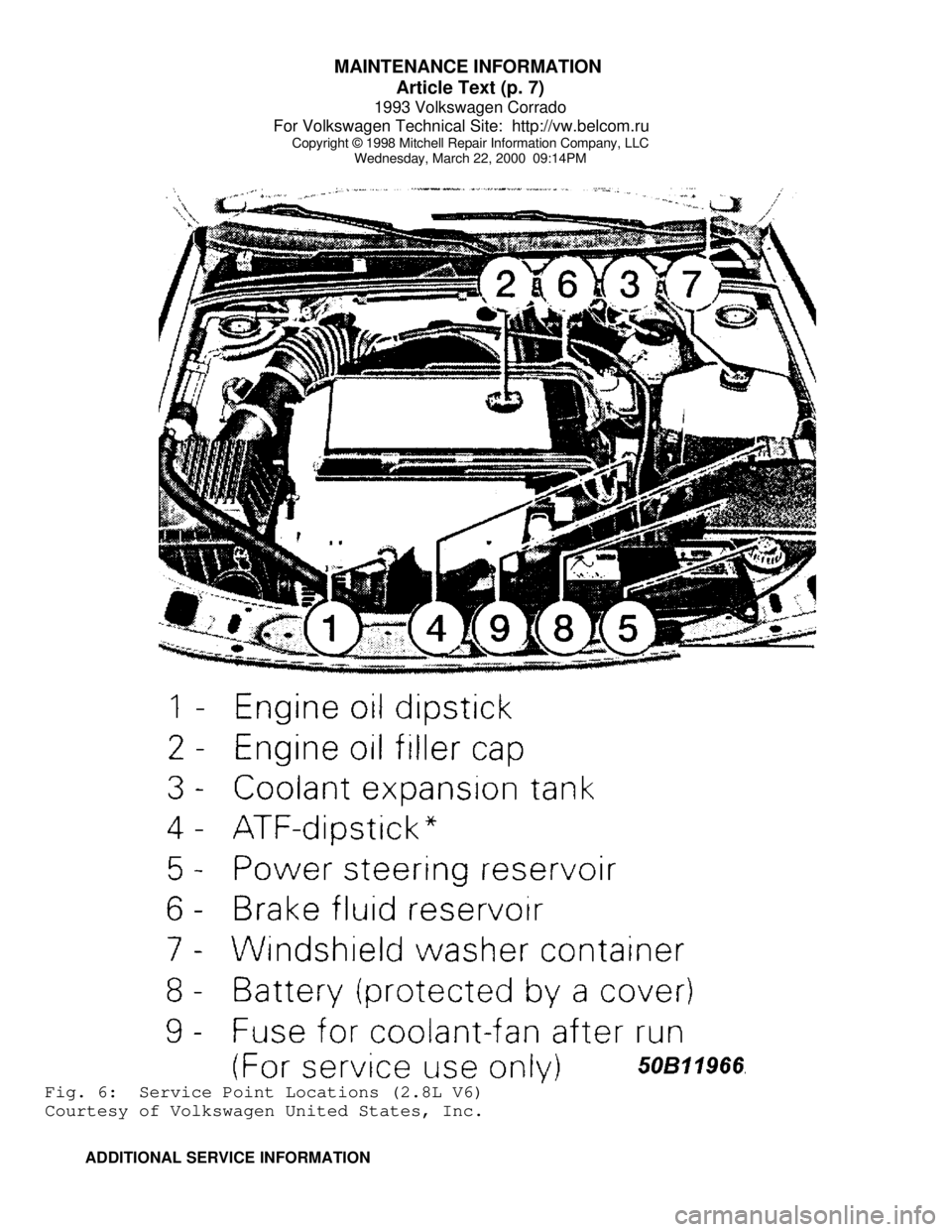

Wednesday, March 22, 2000 09:14PMFig. 6: Service Point Locations (2.8L V6)
Courtesy of Volkswagen United States, Inc.
ADDITIONAL SERVICE INFORMATION

MAINTENANCE INFORMATION
Article Text (p. 8)
1993 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, March 22, 2000 09:14PM
CAMSHAFT TIMING BELT SERVICEFig. 7: Aligning 1.8L Timing Marks (8-Valve)
Courtesy of Volkswagen United States, Inc.
NOTE: For more information on camshaft timing belt service refer to
the 1.8L 4-CYL 8-VALVE & 2.0L 4-CYL 16-VALVE
article in the ENGINE MECHANICAL section.
ATTACHING VAG 1551 SCAN TESTER

MAINTENANCE INFORMATION
Article Text (p. 9)
1993 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, March 22, 2000 09:14PMFig. 8: Connecting Scan Tester to Data Link Connector (Corrado)
Courtesy of Volkswagen United States, Inc.
NOTE: For more information on scan tester connections
refer to the G - TESTS W/CODES article in
the ENGINE PERFORMANCE section.
INFORMATION LABEL LOCATIONSFig. 9: Information Label Locations
Courtesy of Volkswagen United States, Inc.
