1993 VOLKSWAGEN CORRADO Repair Manual

ELECTRICAL COMPONENT LOCATOR
Article Text (p. 23)
1993 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC

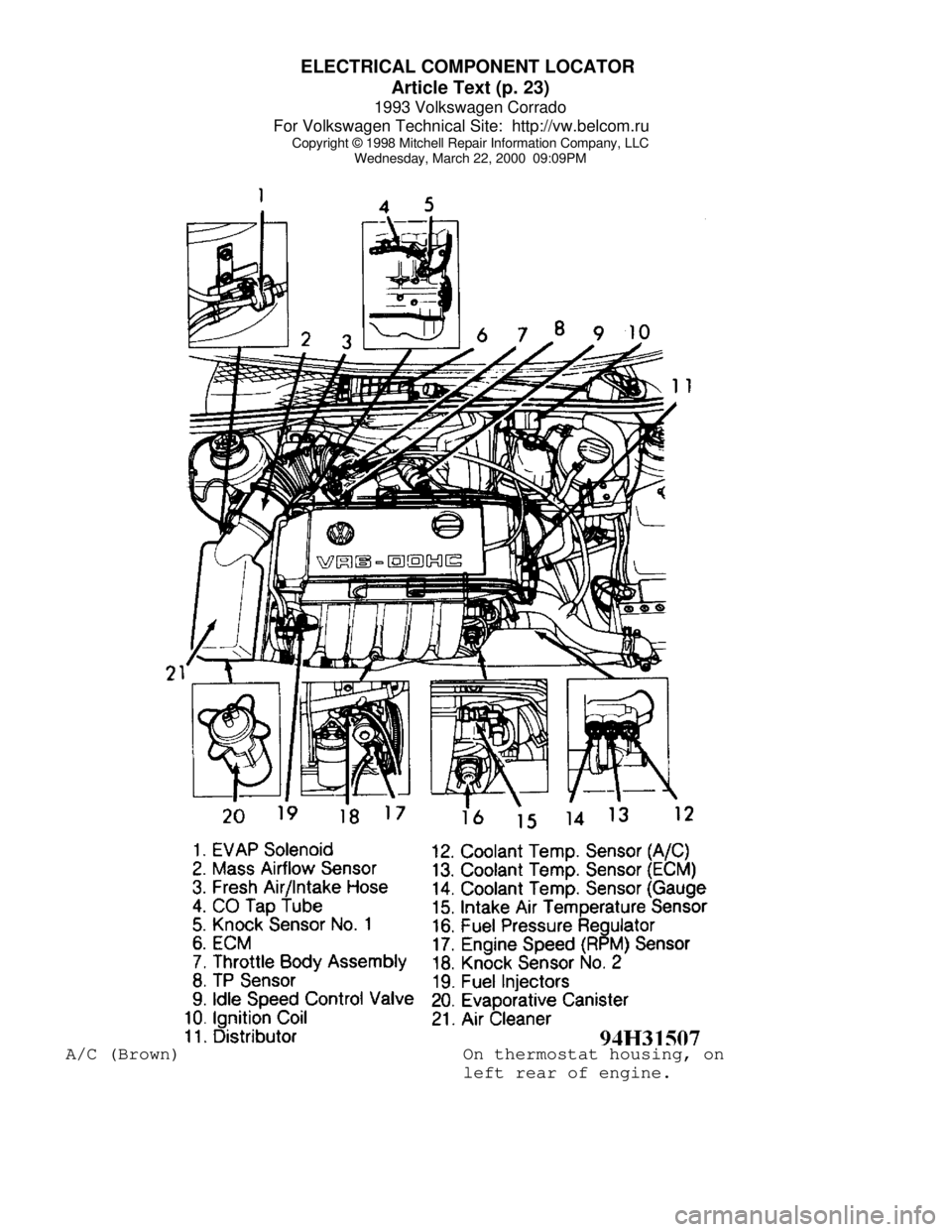

Wednesday, March 22, 2000 09:09PM A/C (Brown) On thermostat housing, on
left rear of engine.

ELECTRICAL COMPONENT LOCATOR
Article Text (p. 24)
1993 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, March 22, 2000 09:09PM ECM (Blue) On thermostat housing, on
left rear of engine.

ELECTRICAL COMPONENT LOCATOR
Article Text (p. 25)
1993 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, March 22, 2000 09:09PM Gauge (Yellow) On thermostat housing, on
left rear of engine.
EGR Temperature Sensor On base of EGR valve, on right
rear of engine.
Engine Coolant Level Sensor Inside coolant

ELECTRICAL COMPONENT LOCATOR
Article Text (p. 26)
1993 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, March 22, 2000 09:09PM
expansion/reservoir tank.Engine Speed (RPM) Sensor On lower left rear of engine,
near flywheel.
Hall Speed Sensor On rear of speedometer
housing.

ELECTRICAL COMPONENT LOCATOR
Article Text (p. 27)
1993 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, March 22, 2000 09:09PM
Heated Seat Temperature Sensor Under lower cushion of each
seat.Intake Air Temperature Sensor On rear of upper intake
manifold.

ELECTRICAL COMPONENT LOCATOR
Article Text (p. 28)
1993 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, March 22, 2000 09:09PMKnock Sensors (2) On right front & left rear of
engine block.

ELECTRICAL COMPONENT LOCATOR
Article Text (p. 29)
1993 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, March 22, 2000 09:09PMMass Airflow Sensor On fresh air intake hose,
near air cleaner.

ELECTRICAL COMPONENT LOCATOR
Article Text (p. 30)
1993 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, March 22, 2000 09:09PMThrottle Position (TP) Sensor On throttle body assembly.
SOLENOIDS & SOLENOID VALVESÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄComponent Component Location
