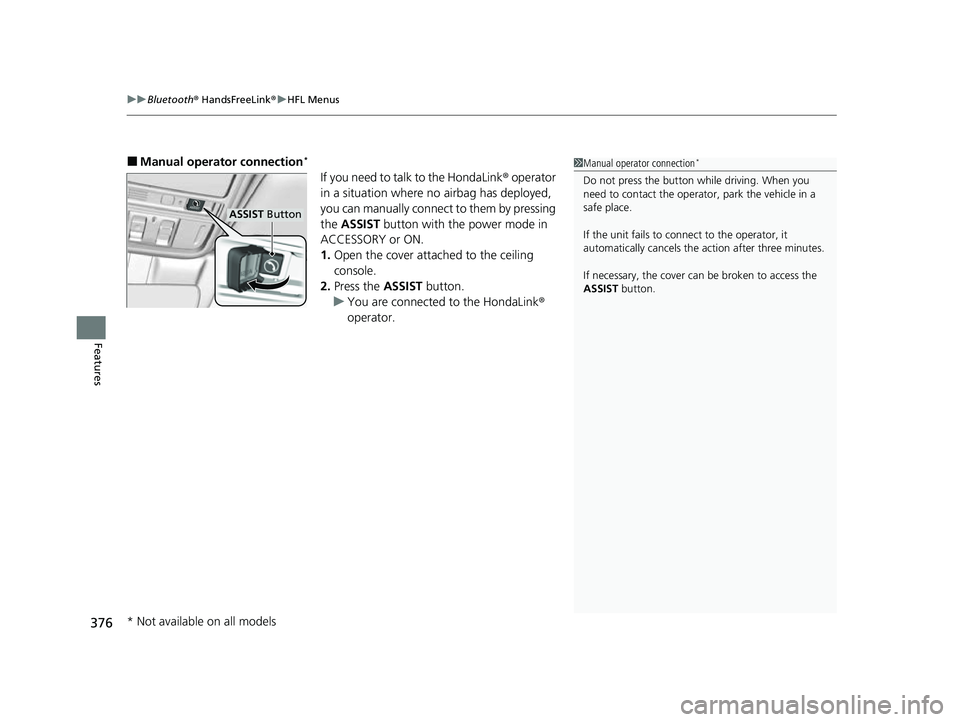

2023 HONDA PASSPORT Owners Manual

uuBluetooth ® HandsFreeLink ®u HFL Menus
376
Features
■Manual operator connection*
If you need to talk to the HondaLink ® operator
in a situation where no airbag has deployed,
you can manually connect to them by pressing
the ASSIST button with the power mode in
ACCESSORY or ON.
1. Open the cover attached to the ceiling
console.
2. Press the ASSIST button.
u You are connected to the HondaLink ®
operator.
1 Manual operator connection*
Do not press the button while driving. When you
need to contact the operato r, park the vehicle in a
safe place.
If the unit fails to connect to the operator, it
automatically cancels the action after three minutes.
If necessary, the cover can be broken to access the
ASSIST button.
ASSIST Button
* Not available on all models
23 PASSPORT-31TGS6400.book 376 ページ ２０２２年８月５日　金曜日　午後９時２分

377
Driving
This chapter discusses driving and refueling.
Before Driving................................... 378
Towing a Trailer ................................ 384
Off-Highway Driving Guidelines ..... 394
When Driving Starting the Engine .......................... 396
Automatic Transmission ................... 404
Shifting ............................................ 405
Auto Idle Stop .................................. 413
ECON Mode .................................... 418
Intelligent Traction Management...... 419
Vehicle Stability AssistTM (VSA®), aka Electronic
Stability Control (ESC), System ............... 421
Agile Handling Assist ....................... 423
Blind spot information System*........ 424 Intelligent Variable To
rque Management (i-
VTM4
TM) AWD System*.................. 427
Tire Pressure Monitoring System (TPMS) with Tire Fill Assist .......................... 428
Tire Pressure Monitoring System (TPMS) -
Required Federal Explanation ......... 430
Honda Sensing ®................................ 432
Collision Mitigati on Braking System
TM
(CMBSTM) ....................................... 435
Adaptive Cruise Control (ACC)......... 447
Lane Keeping Assist System (LKAS) .. 460
Road Departure Mitigation (RDM)
System ....................................... 469
Front Sensor Camera ....................... 474
Radar Sensor.................................... 476 Braking
Brake System ................................... 477
Anti-lock Brake System (ABS) ........... 479
Brake Assist System ......................... 480
Parking Your Vehicle
When Stopped ................................ 481
Parking Sensor System
*................... 483
Cross Traffic Monitor*..................... 488
Multi-View Rear Camera .................. 492
Refueling Fuel Information .............................. 494
How to Refuel ................................. 495
Fuel Economy and CO
2 Emissions
Improving Fuel Economy and Reducing CO
2 Emissions ................................ 497
* Not available on all models
23 PASSPORT-31TGS6400.book 377 ページ ２０２２年８月５日　金曜日　午後９時２分

378
Driving
Before Driving
Driving Preparation
Check the following items before you start driving.
• Make sure there are no obstructions on th e windows, door mirrors, exterior
lights, or other parts of the vehicle.
u Remove any frost, snow, or ice.
u Remove any snow on the roof, as this can slip down and obstruct your field of
vision while driving. If frozen solid , remove ice once it has softened.
u When removing ice from around the wheel s, be sure not to damage the wheel
or wheel components.
• Make sure the hood is securely closed.
u If the hood opens while driving, your front view will be blocked.
• Make sure the tires are in good condition.
u Check air pressures, and check for damage and excessive wear.
2Checking and Maintaining Tires P. 530
•Make sure there are no people or ob jects behind or around the vehicle.
u There are blind spots from the inside.
■Exterior Checks1Exterior Checks
NOTICE
When doors are frozen s hut, use warm water around
the door edges to melt any ice. Do not try to force
them open, as this can damage the rubber trim
around the doors. When done, wipe dry to avoid
further freezing.
Do not pour warm water into the key cylinder.
You will be unable to insert the key if the water
freezes in the hole.
Heat from the engine and exhaust can ignite
flammable material s left under the hood, causing a
fire. If you’ve parked y our vehicle for an extended
period, inspect and remove any debris that may have
collected, such as dried grass and leaves that have
fallen or have been carried in for use as a nest by a
small animal. Also, check under the hood for leftover
flammable materials after you or someone else has
performed maintenance on your vehicle.
23 PASSPORT-31TGS6400.book 378 ページ ２０２２年８月５日　金曜日　午後９時２分

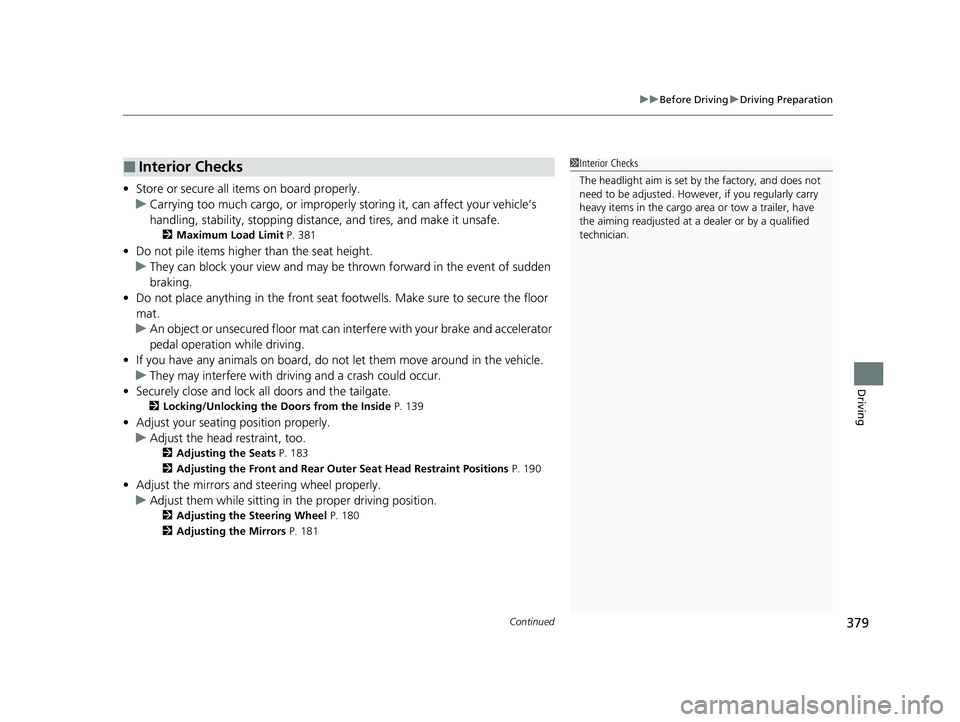

Continued379
uuBefore Driving uDriving Preparation
Driving
• Store or secure all items on board properly.
u Carrying too much cargo, or improperly storing it, can affect your vehicle’s
handling, stability, sto pping distance, and tires, and make it unsafe.
2Maximum Load Limit P. 381
•Do not pile items higher than the seat height.
u They can block your view and may be thrown forward in the event of sudden
braking.
• Do not place anything in the front seat footwells. Make sure to secure the floor
mat.
u An object or unsecured floor mat can in terfere with your brake and accelerator
pedal operation while driving.
• If you have any animals on board, do not let them move around in the vehicle.
u They may interfere with driv ing and a crash could occur.
• Securely close and lock al l doors and the tailgate.
2Locking/Unlocking the Doors from the Inside P. 139
•Adjust your seating position properly.
u Adjust the head restraint, too.
2Adjusting the Seats P. 183
2 Adjusting the Front and Rear Oute r Seat Head Restraint Positions P. 190
•Adjust the mirrors and steering wheel properly.
u Adjust them while sitting in the proper driving position.
2 Adjusting the Steering Wheel P. 180
2 Adjusting the Mirrors P. 181
■Interior Checks1Interior Checks
The headlight aim is set by the factory, and does not
need to be adjusted. Howeve r, if you regularly carry
heavy items in the cargo area or tow a trailer, have
the aiming readjusted at a dealer or by a qualified
technician.
23 PASSPORT-31TGS6400.book 379 ページ ２０２２年８月５日　金曜日　午後９時２分

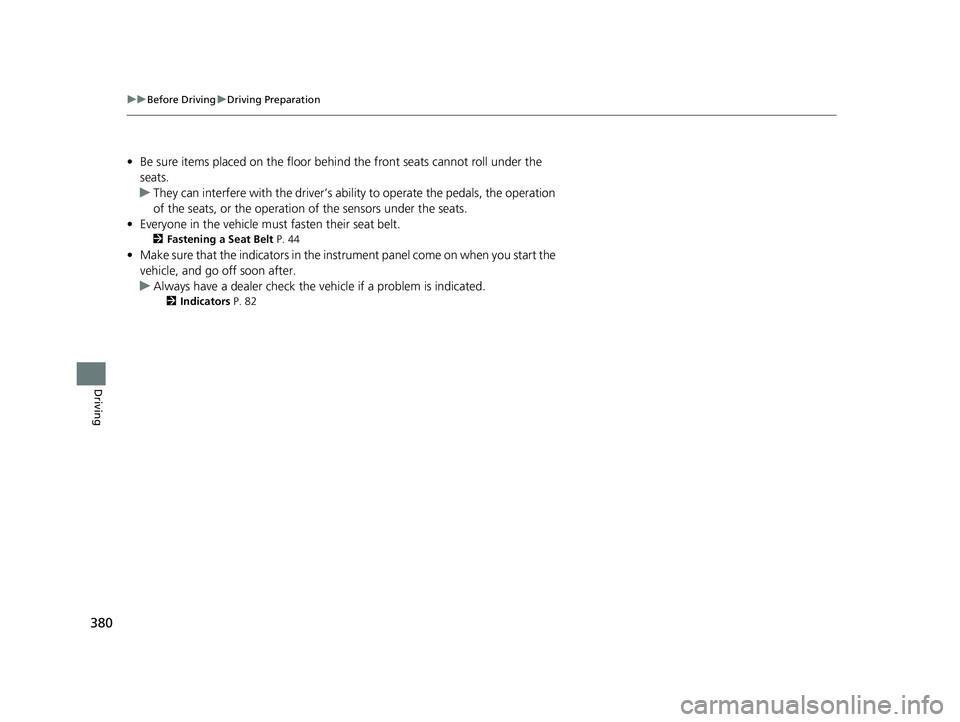

380
uuBefore Driving uDriving Preparation
Driving
• Be sure items placed on the floor behind the front seats cannot roll under the
seats.
u They can interfere with the driver’s ability to operate the pedals, the operation
of the seats, or the operation of the sensors under the seats.
• Everyone in the vehicle must fasten their seat belt.
2Fastening a Seat Belt P. 44
•Make sure that the indicators in the in strument panel come on when you start the
vehicle, and go off soon after.
u Always have a dealer check the vehicle if a problem is indicated.
2 Indicators P. 82
23 PASSPORT-31TGS6400.book 380 ページ ２０２２年８月５日　金曜日　午後９時２分

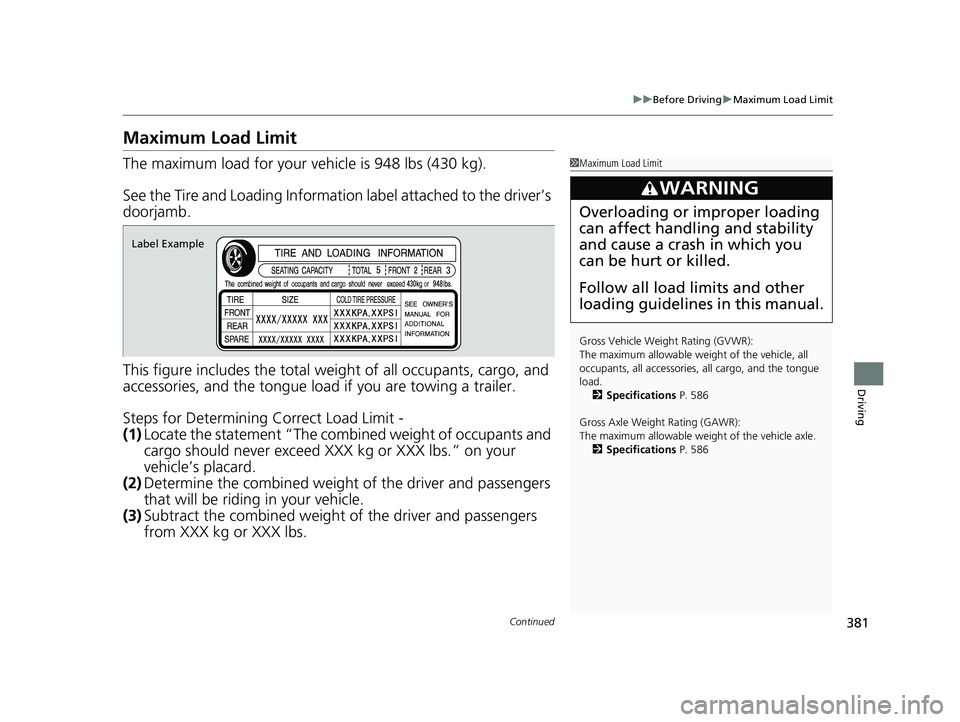

381
uuBefore Driving uMaximum Load Limit
Continued
Driving
Maximum Load Limit
The maximum load for your ve hicle is 948 lbs (430 kg).
See the Tire and Loading Information label attached to the driver’s
doorjamb.
This figure includes the total weig ht of all occupants, cargo, and
accessories, and the tongue load if you are towing a trailer.
Steps for Determining Correct Load Limit -
(1) Locate the statement “The combined weight of occupants and
cargo should never exceed XXX kg or XXX lbs.” on your
vehicle’s placard.
(2) Determine the combined weight of the driver and passengers
that will be riding in your vehicle.
(3) Subtract the combined weight of the driver and passengers
from XXX kg or XXX lbs.1Maximum Load Limit
Gross Vehicle Weight Rating (GVWR):
The maximum allowable weight of the vehicle, all
occupants, all a ccessories, all cargo, and the tongue
load.
2 Specifications P. 586
Gross Axle Weight Rating (GAWR):
The maximum allowable weight of the vehicle axle. 2 Specifications P. 586
3WARNING
Overloading or improper loading
can affect handling and stability
and cause a crash in which you
can be hurt or killed.
Follow all load limits and other
loading guidelines in this manual.
Label Example
23 PASSPORT-31TGS6400.book 381 ページ ２０２２年８月５日　金曜日　午後９時２分

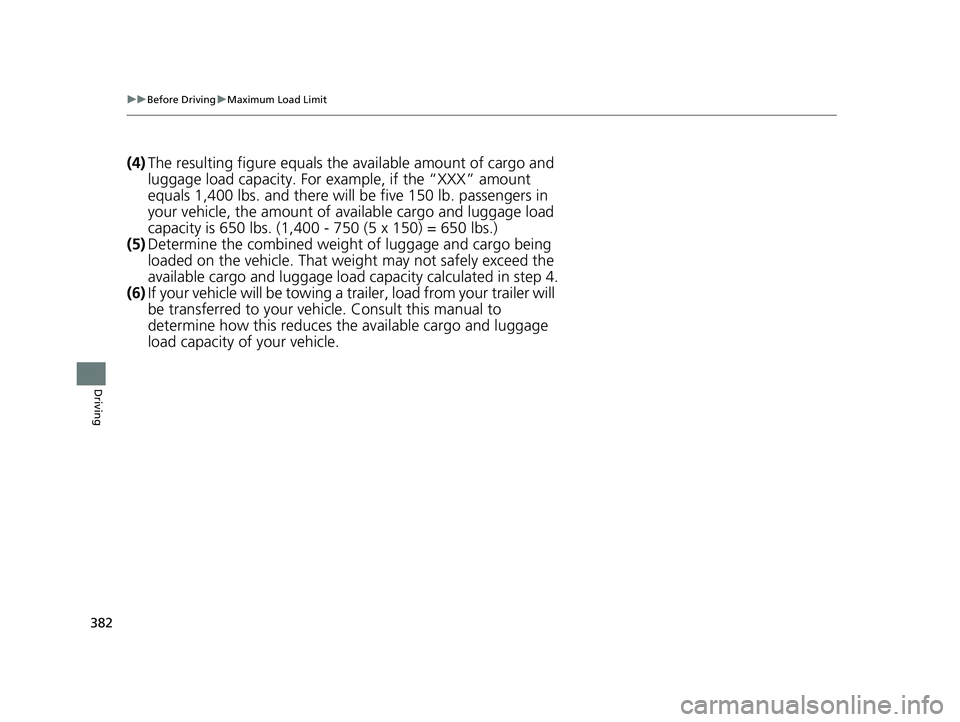

382
uuBefore Driving uMaximum Load Limit
Driving
(4) The resulting figure equals the available amount of cargo and
luggage load capacity. For example, if the “XXX” amount
equals 1,400 lbs. and there will be five 150 lb. passengers in
your vehicle, the amount of av ailable cargo and luggage load
capacity is 650 lbs. (1,400 - 750 (5 x 150) = 650 lbs.)
(5) Determine the combined weight of luggage and cargo being
loaded on the vehicle. That we ight may not safely exceed the
available cargo and luggage load capacity calculated in step 4.
(6) If your vehicle will be towing a trailer, load from your trailer will
be transferred to your vehicl e. Consult this manual to
determine how this reduces the available cargo and luggage
load capacity of your vehicle.
23 PASSPORT-31TGS6400.book 382 ページ ２０２２年８月５日　金曜日　午後９時２分

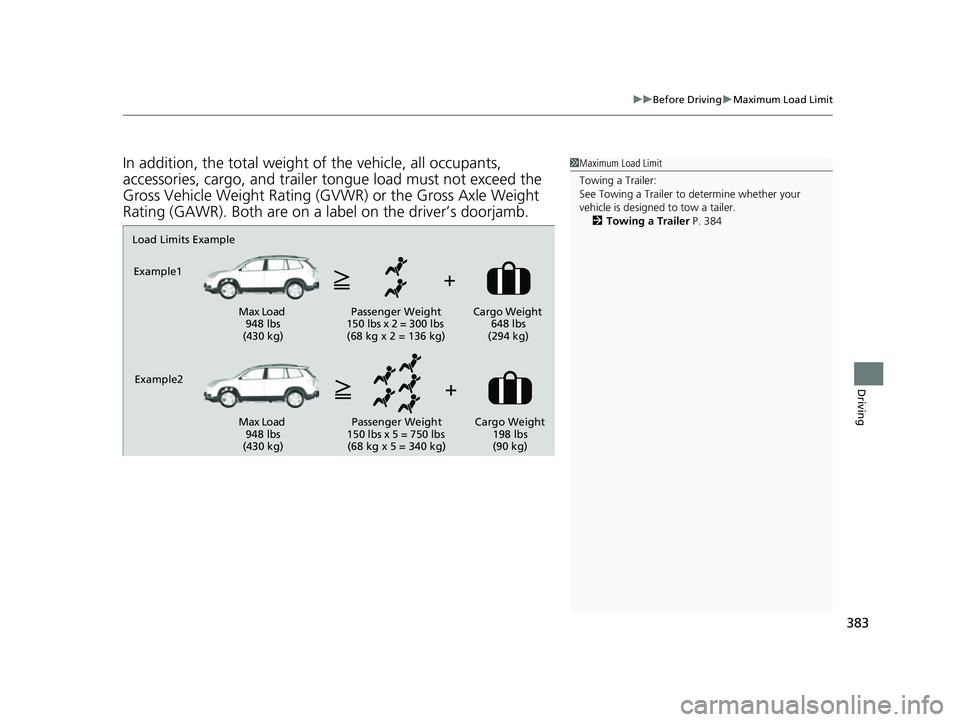

383
uuBefore Driving uMaximum Load Limit
Driving
In addition, the total weight of the vehicle, all occupants,
accessories, cargo, and trailer tongue load must not exceed the
Gross Vehicle Weight Rating (GVWR) or the Gross Axle Weight
Rating (GAWR). Both are on a label on the driver’s doorjamb.1Maximum Load Limit
Towing a Trailer:
See Towing a Trailer to determine whether your
vehicle is designed to tow a tailer.
2 Towing a Trailer P. 384
Load Limits Example
Example1
Max Load 948 lbs
(430 kg) Passenger Weight
150 lbs x 2 = 300 lbs (68 kg x 2 = 136 kg) Cargo Weight
648 lbs
(294 kg)
Example2 Max Load 948 lbs
(430 kg) Passenger Weight
150 lbs x 5 = 750 lbs (68 kg x 5 = 340 kg) Cargo Weight
198 lbs
(90 kg)
