2023 HONDA PASSPORT Owners Manual

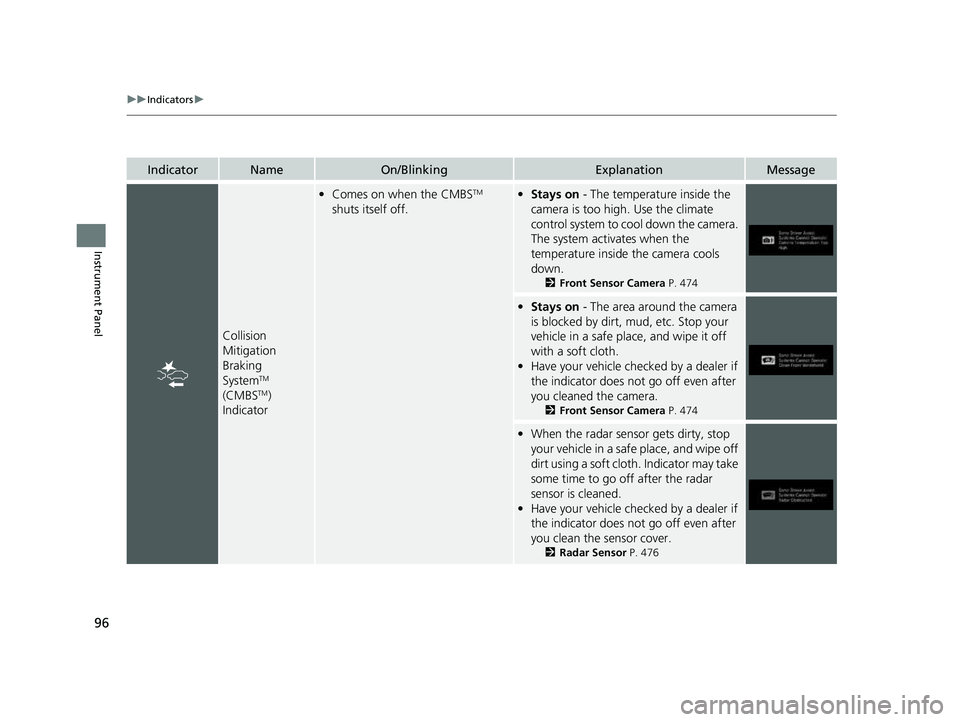

96
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Collision
Mitigation
Braking
System
TM
(CMBSTM)
Indicator
• Comes on when the CMBSTM
shuts itself off.• Stays on - The temperature inside the
camera is too high. Use the climate
control system to cool down the camera.
The system activates when the
temperature inside the camera cools
down.
2 Front Sensor Camera P. 474
•Stays on - The area around the camera
is blocked by dirt, mud, etc. Stop your
vehicle in a safe place, and wipe it off
with a soft cloth.
• Have your vehicle checked by a dealer if
the indicator does not go off even after
you cleaned the camera.
2 Front Sensor Camera P. 474
•When the radar sensor gets dirty, stop
your vehicle in a safe place, and wipe off
dirt using a soft clot h. Indicator may take
some time to go off after the radar
sensor is cleaned.
• Have your vehicle checked by a dealer if
the indicator does not go off even after
you clean the sensor cover.
2 Radar Sensor P. 476
23 PASSPORT-31TGS6400.book 96 ページ ２０２２年８月５日　金曜日　午後９時２分

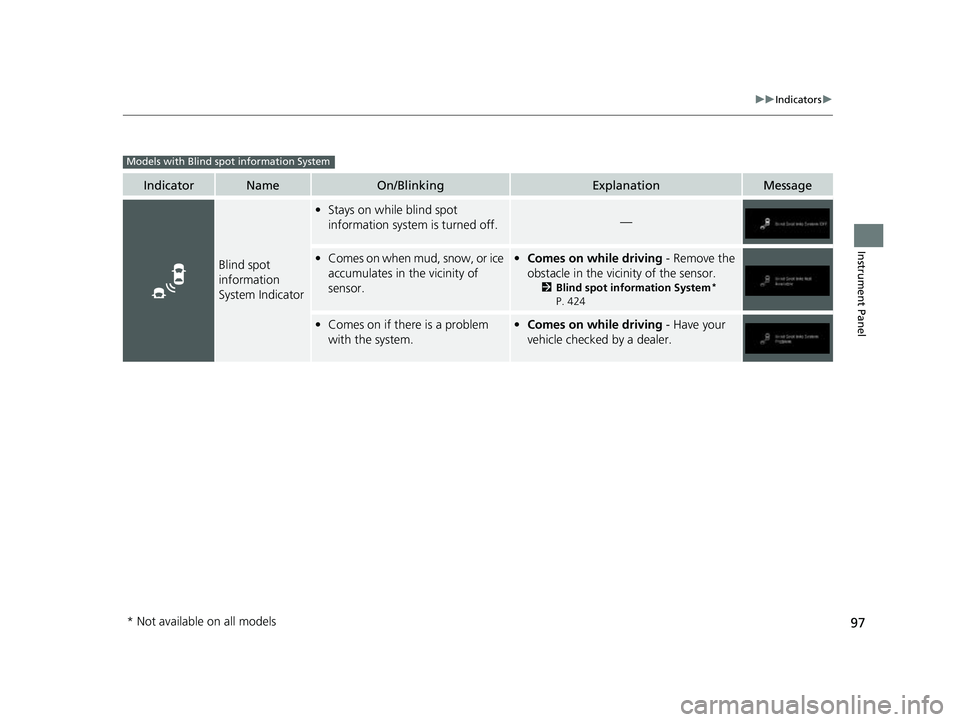

97
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Blind spot
information
System Indicator
•Stays on while blind spot
information system is turned off.—
•Comes on when mud, snow, or ice
accumulates in the vicinity of
sensor.• Comes on while driving - Remove the
obstacle in the vicinity of the sensor.
2 Blind spot information System*
P. 424
• Comes on if there is a problem
with the system.• Comes on while driving - Have your
vehicle checked by a dealer.
Models with Blind spot information System
* Not available on all models
23 PASSPORT-31TGS6400.book 97 ページ ２０２２年８月５日　金曜日　午後９時２分

98
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
Driver Information Interface Warning and Information Messages
The following messages appear only on the driver information inte rface. Press the (home) button, select Warnings, then press the
ENTER button to see the message again with the system message indicator on.
MessageConditionExplanation
•Appears if any door or the tailgate is not completely
closed.•Goes off when all doors and the tailgate are closed.
•Appears when the hood is opened.•Close the hood.
•Appears when the engine oil pressure is low.•Appears while driving - Immediately stop in a safe
place.
2 If the Engine Oil Low Warning Appears P. 570
•Appears when the washer fluid is low*.•Refill the washer fluid.
2 Refilling Window Washer Fluid P. 520
•Appears when the temperat ure of the transmission
is starting to get too hot.
• The performance of the vehicle may be reduced.•Until the message disappears, reduce your speed and
allow the system to cool down.
•Appears if the battery charge becomes low.•Charge the battery.
* Not available on all models
23 PASSPORT-31TGS6400.book 98 ページ ２０２２年８月５日　金曜日　午後９時２分

99
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
•Appears when there is a pr oblem with the sensor on
the battery.• Have your vehicle checked by a dealer.
2 Checking the Battery P. 539
•Appears when the scheduled maintenance is due
soon.
• Consequently, Maintenance Due Now and
Maintenance Past Due follow.
2Maintenance Minder Messages on the Driver
Information Interface P. 505
•Appears when the engine coolant temperature gets
abnormally high.2 Overheating P. 568
•Appears when there is a problem with the power
tailgate system.
• Manually open or close the power tailgate.
• Have your vehicle checked by a dealer.
•Appears when the starter system has a problem.•As a temporary measure, press and hold the ENGINE
START/STOP button for up to 15 seconds while
pressing the brake pedal and manually start the engine.
• Have your vehicle checked by a dealer.
U.S.
Canada
Models with power tailgate
U.S.
Canada
23 PASSPORT-31TGS6400.book 99 ページ ２０２２年８月５日　金曜日　午後９時２分

100
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
•Appears when the steering wheel is locked.•Move the steering wheel left and right while pressing
the ENGINE START/STOP button.
•Appears when the power mode is in ACCESSORY.
—
•Appears after the driver’s door is opened when the
power mode is in ACCESSORY.•Change the power mo de to VEHICLE OFF.
2ENGINE START/STOP Button P. 160
•Appears when you close the door with the power
mode in ON without the remote inside the vehicle.•Disappears when you bring the remote back inside the
vehicle and close the door.
2 Keyless Remote Reminder P. 162
•Appears when the remote battery becomes weak.•Replace the battery as soon as possible.
2 Replacing the Remote Battery P. 541
•Appears if the remote battery is too weak to start the
engine or the key is not within operating range to
start the engine.
A beeper sounds six times.•Bring the remote in front of the ENGINE START/STOP
button to be touched with.
2 If the Keyless Remote Battery is Weak P. 563
●Appears three seconds after the To Start, Hold
Remote Near Start Button , then To Start Engine
messages appeared sequentially.●Unless you bring the keyless remote in front of the
ENGINE START/STOP button, this message does not
appear.
2 If the Keyless Remote Battery is Weak P. 563
Canada
23 PASSPORT-31TGS6400.book 100 ページ ２０２２年８月５日　金曜日　午後９時２分

101
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
•Appears if there is a problem with the cooling
system.•Drive slowly to prevent ov erheating and have your
vehicle checked by a dealer as soon as possible.
• Appears if there is a pr oblem with the headlights.•Appears while driving - The headlights may not be
on. When conditions allow you to drive safety, have
your vehicle checked by a d ealer as soon as possible.
•Appears if there is a proble m with the parking sensor
system.
• Check if the area around the sensor(s) is covered with
mud, ice, snow, etc. If the indicator(s) stays on or the
beeper does not stop even after you clean the area,
have the system checked by a dealer.
• Appears if there are obstacles around the sensors.
•Check for obstacles near your vehicle to make sure it is
safe to park.
• Appears as soon as a prob lem is detected in the
keyless access system.• Appears constantly - Have your vehicle checked by a
dealer.
• Appears as soon as a problem is detected in the push
button starting system.•Appears constantly - Have your vehicle checked by a
dealer.
●Appears if you press the ENGINE START/STOP
button while the vehicle is moving.2 Emergency Engine Stop P. 564
Models with parking sensor system
Models with parking sensor system
23 PASSPORT-31TGS6400.book 101 ページ ２０２２年８月５日　金曜日　午後９時２分

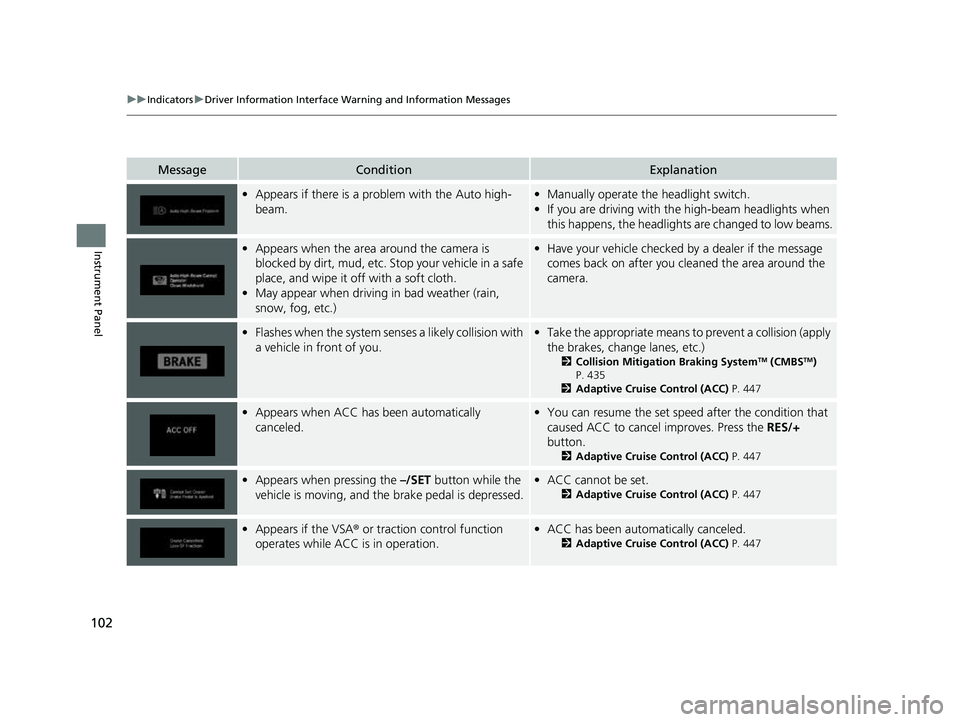

102
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
•Appears if there is a prob lem with the Auto high-
beam.• Manually operate the headlight switch.
• If you are driving with th e high-beam headlights when
this happens, the headlights are changed to low beams.
• Appears when the area around the camera is
blocked by dirt, mud, etc. Stop your vehicle in a safe
place, and wipe it off with a soft cloth.
• May appear when driving in bad weather (rain,
snow, fog, etc.)•Have your vehicle checked by a dealer if the message
comes back on after you cl eaned the area around the
camera.
• Flashes when the system senses a likely collision with
a vehicle in front of you.•Take the appropriate means to prevent a collision (apply
the brakes, change lanes, etc.)
2 Collision Mitigation Braking SystemTM (CMBSTM)
P. 435
2 Adaptive Cruise Control (ACC) P. 447
•Appears when ACC has been automatically
canceled.•You can resume the set speed after the condition that
caused ACC to cancel improves. Press the RES/+
button.
2 Adaptive Cruise Control (ACC) P. 447
•Appears when pressing the –/SET button while the
vehicle is moving, and the brake pedal is depressed.• ACC cannot be set.
2 Adaptive Cruise Control (ACC) P. 447
•Appears if the VSA ® or traction control function
operates while ACC is in operation.• ACC has been automatically canceled.
2 Adaptive Cruise Control (ACC) P. 447
23 PASSPORT-31TGS6400.book 102 ページ ２０２２年８月５日　金曜日　午後９時２分

103
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
•Appears when the speed of the vehicle is too high
for you to set ACC.• Reduce the speed, then set ACC.
2 Adaptive Cruise Control (ACC) P. 447
•Appears when ACC is canc eled due to excessive
vehicle speed.• Reduce the speed, then reset ACC.
2 Adaptive Cruise Control (ACC) P. 447
•Appears when the speed of the vehicle is too low for
you to set ACC.• Raise the speed, then set ACC.
2 Adaptive Cruise Control (ACC) P. 447
•Appears when ACC is canceled due to excessive low
vehicle speed.•Raise the speed, then reset ACC.
2 Adaptive Cruise Control (ACC) P. 447
23 PASSPORT-31TGS6400.book 103 ページ ２０２２年８月５日　金曜日　午後９時２分
