2023 HONDA PASSPORT Owners Manual

uuAudio System Basic Operation uSystem Updates
248
Features

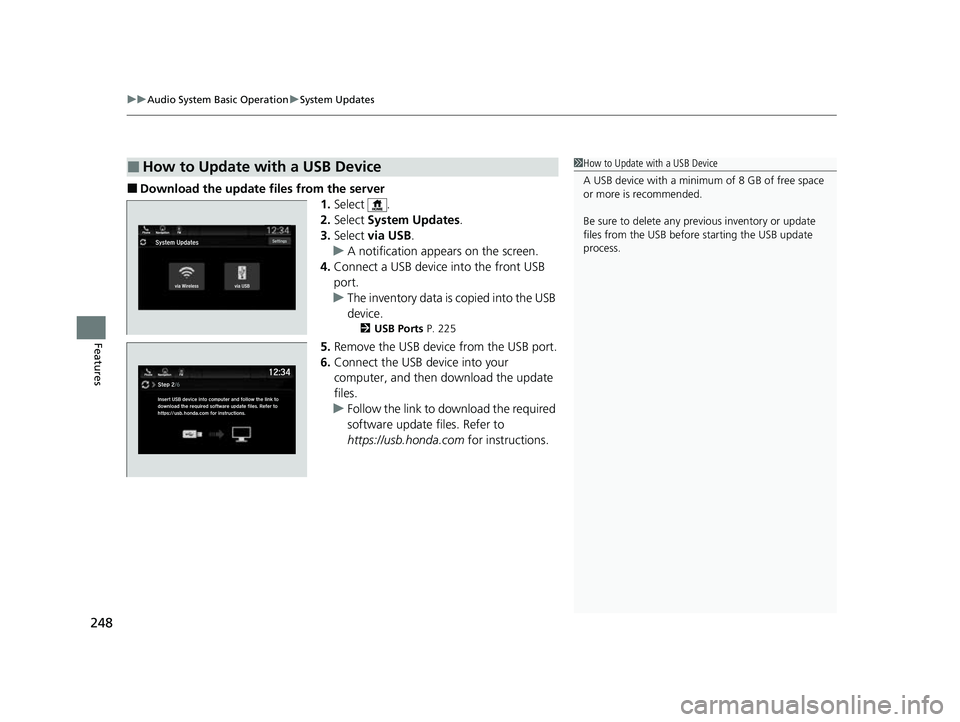

■Download the update files from the server
1.Select .
2. Select System Updates .
3. Select via USB .
u A notification appears on the screen.
4. Connect a USB device into the front USB
port.
u The inventory data is copied into the USB
device.
2 USB Ports P. 225
5.Remove the USB device from the USB port.
6. Connect the USB device into your
computer, and then download the update
files.
u Follow the link to download the required
software update files. Refer to
https://usb.honda.com for instructions.
■How to Update with a USB Device1How to Update with a USB Device
A USB device with a minimum of 8 GB of free space
or more is recommended.
Be sure to delete any pr evious inventory or update
files from the USB before starting the USB update
process.
23 PASSPORT-31TGS6400.book 248 ページ ２０２２年８月５日　金曜日　午後９時２分

249
uuAudio System Basic Operation uSystem Updates
Features

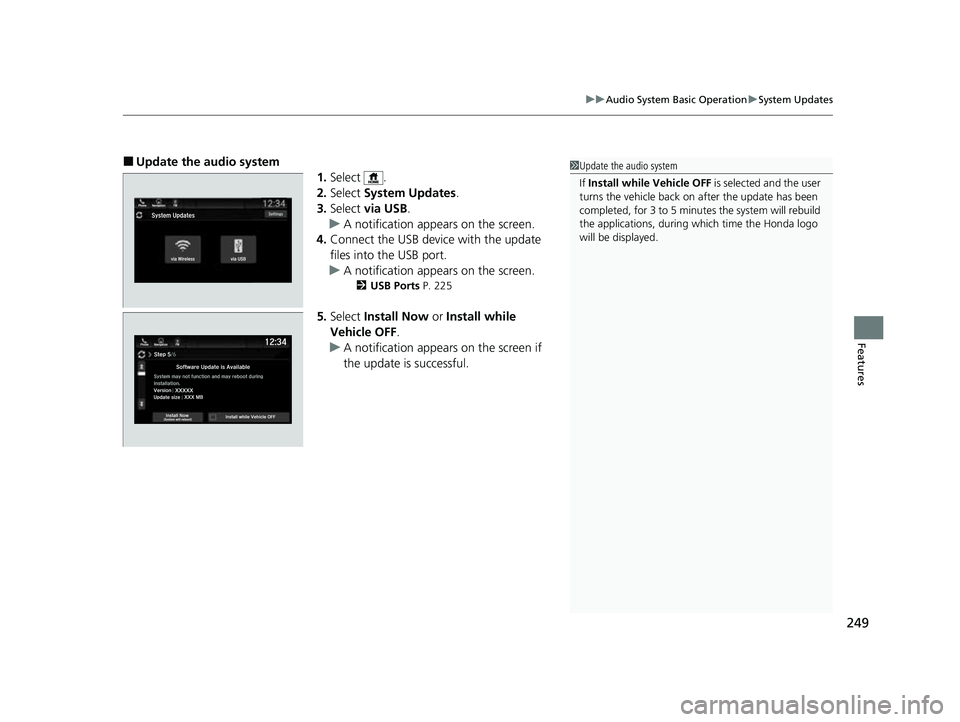

■Update the audio system
1.Select .
2. Select System Updates .
3. Select via USB .
u A notification appears on the screen.
4. Connect the USB device with the update
files into the USB port.
u A notification appears on the screen.
2 USB Ports P. 225
5.Select Install Now or Install while
Vehicle OFF .
u A notification appears on the screen if
the update is successful.
1Update the audio system
If Install while Vehicle OFF is selected and the user
turns the vehicle back on after the update has been
completed, for 3 to 5 minutes the system will rebuild
the applications, during which time the Honda logo
will be displayed.
23 PASSPORT-31TGS6400.book 249 ページ ２０２２年８月５日　金曜日　午後９時２分

250
uuAudio System Basic Operation uFile Manager
Features
File Manager
Allows you to transfer imag e or audio files to the audio system with a USB device.
1.Connect a USB device into the USB port.
2 USB Ports P. 225
2.Select , then select All Apps.
3. Select File Manager .
4. Select Transfer Content .
To transfer a selected file:
5. Select Select Files to Transfer .
■How to Transfer a File
23 PASSPORT-31TGS6400.book 250 ページ ２０２２年８月５日　金曜日　午後９時２分

Continued251
uuAudio System Basic Operation uFile Manager
Features

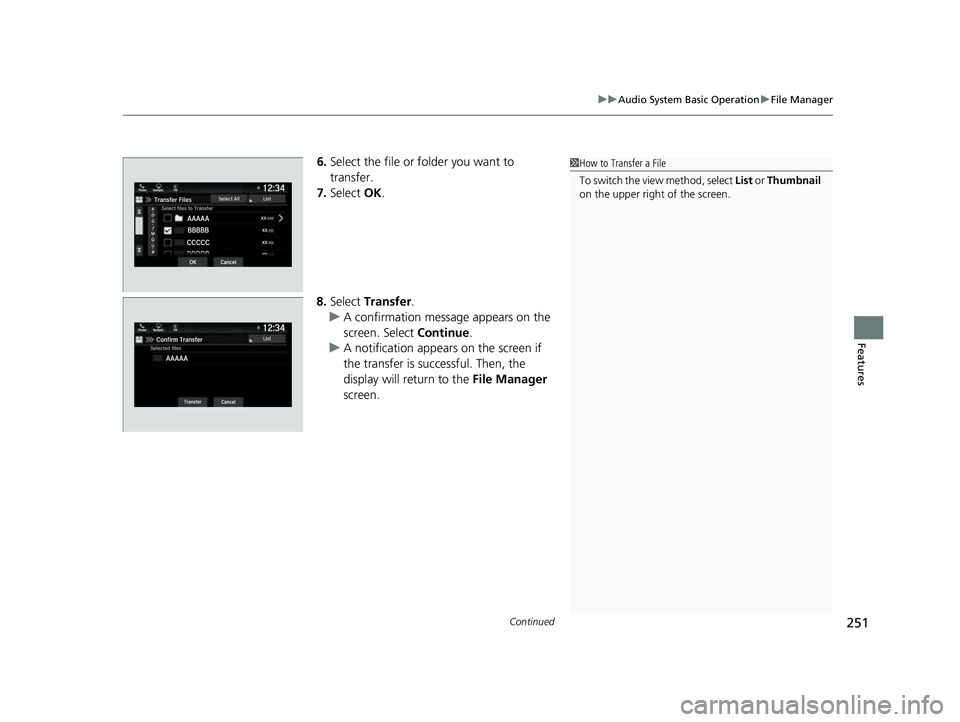

6. Select the file or folder you want to
transfer.
7. Select OK.
8. Select Transfer .
u A confirmation message appears on the
screen. Select Continue.
u A notification appears on the screen if
the transfer is successful. Then, the
display will return to the File Manager
screen.1 How to Transfer a File
To switch the view method, select List or Thumbnail
on the upper right of the screen.
23 PASSPORT-31TGS6400.book 251 ページ ２０２２年８月５日　金曜日　午後９時２分

uuAudio System Basic Operation uFile Manager
252
Features

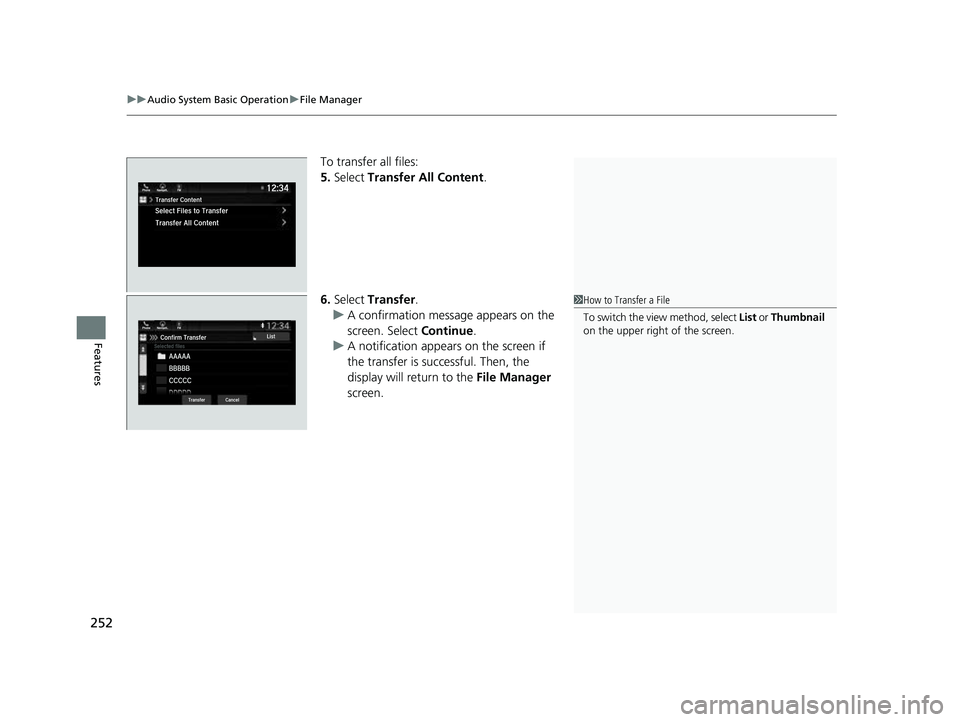

To transfer all files:
5. Select Transfer All Content .
6. Select Transfer .
u A confirmation message appears on the
screen. Select Continue.
u A notification appears on the screen if
the transfer is successful. Then, the
display will return to the File Manager
screen.
1 How to Transfer a File
To switch the view method, select List or Thumbnail
on the upper right of the screen.
23 PASSPORT-31TGS6400.book 252 ページ ２０２２年８月５日　金曜日　午後９時２分

253
uuAudio System Basic Operation uFile Manager
Continued
Features

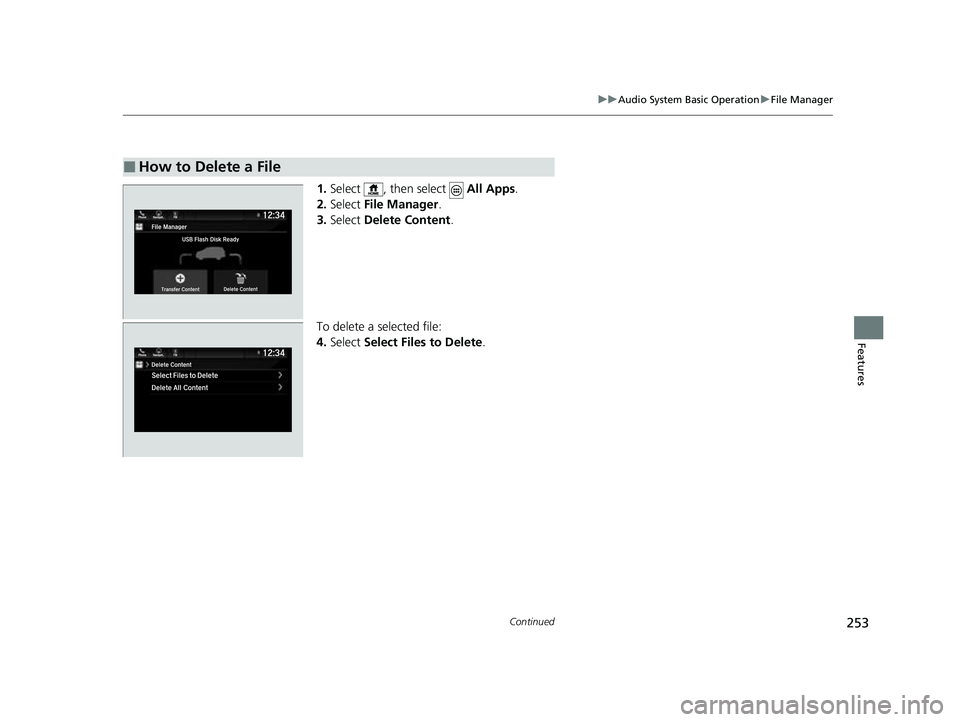

1. Select , then select All Apps.
2. Select File Manager .
3. Select Delete Content .
To delete a selected file:
4. Select Select Files to Delete .
■How to Delete a File
23 PASSPORT-31TGS6400.book 253 ページ ２０２２年８月５日　金曜日　午後９時２分

uuAudio System Basic Operation uFile Manager
254
Features

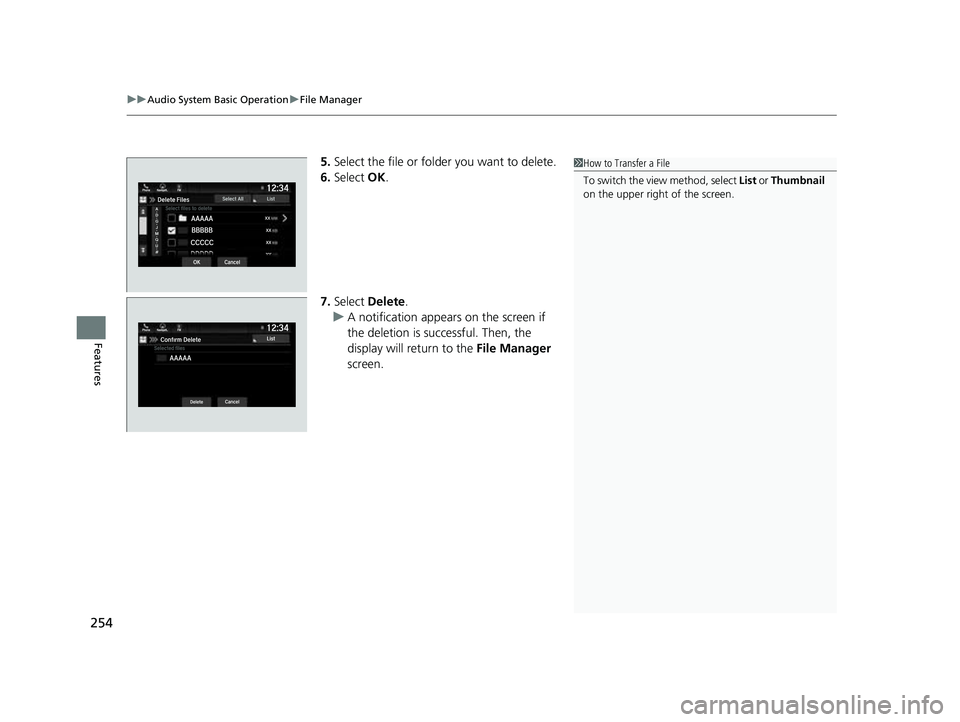

5. Select the file or folder you want to delete.
6. Select OK.
7. Select Delete.
u A notification appears on the screen if
the deletion is successful. Then, the
display will return to the File Manager
screen.1 How to Transfer a File
To switch the view method, select List or Thumbnail
on the upper right of the screen.
23 PASSPORT-31TGS6400.book 254 ページ ２０２２年８月５日　金曜日　午後９時２分

255
uuAudio System Basic Operation uFile Manager
Features

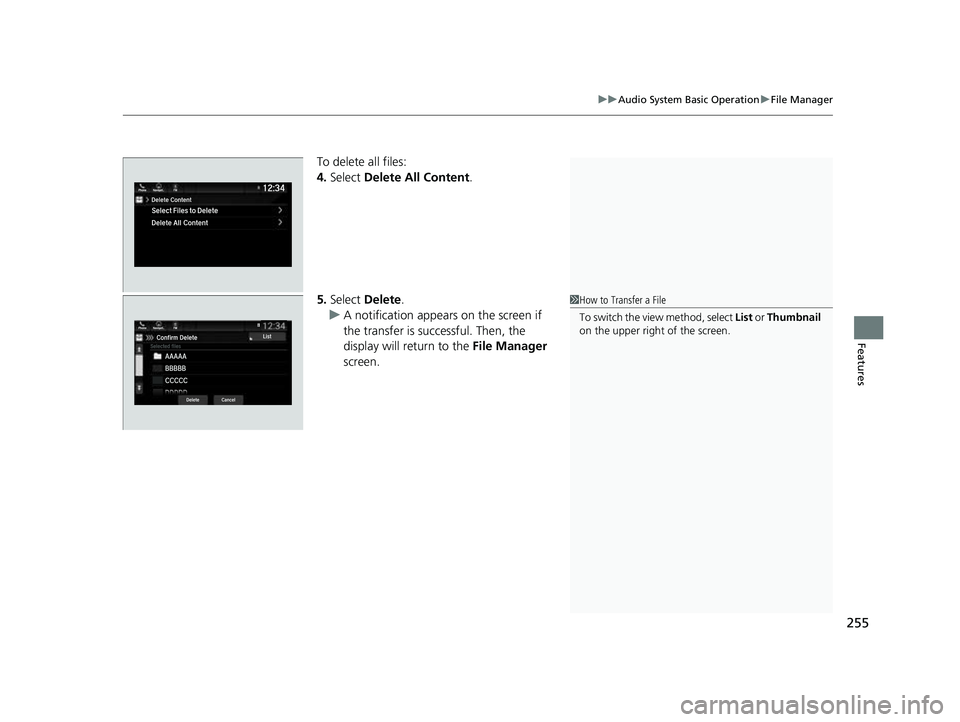

To delete all files:
4. Select Delete All Content .
5. Select Delete .
u A notification appears on the screen if
the transfer is successful. Then, the
display will return to the File Manager
screen.
1 How to Transfer a File
To switch the view method, select List or Thumbnail
on the upper right of the screen.
23 PASSPORT-31TGS6400.book 255 ページ ２０２２年８月５日　金曜日　午後９時２分
