2023 HONDA PASSPORT Owners Manual

uuOpening and Closing the Tailgate uPrecautions for Openi ng/Closing the Tailgate
144
Controls

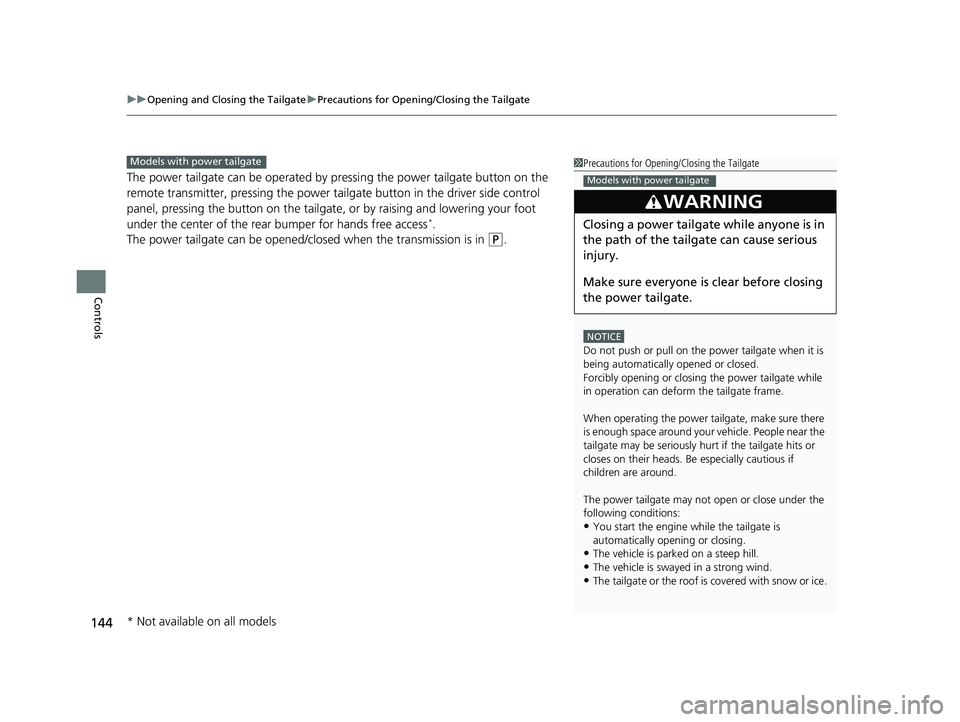

The power tailgate can be operated by pressing the power tailgate button on the
remote transmitter, pressing the power tail gate button in the driver side control
panel, pressing the button on the tailgate, or by raising and lowering your foot
under the center of the rear bumper for hands free access
*.
The power tailgate can be opened/c losed when the transmission is in
(P.
1Precautions for Opening/Closing the Tailgate
NOTICE
Do not push or pull on the power tailgate when it is
being automatically opened or closed.
Forcibly opening or closing the power tailgate while
in operation can deform the tailgate frame.
When operating the power tailgate, make sure there
is enough space around your ve hicle. People near the
tailgate may be se riously hurt if the tailgate hits or
closes on their heads. Be especially cautious if
children are around.
The power tailgate may not open or close under the
following conditions:
•You start the engine while the tailgate is
automatically openi ng or closing.
•The vehicle is parked on a steep hill.•The vehicle is swayed in a strong wind.
•The tailgate or the roof is covered with snow or ice.
3WARNING
Closing a power tailgate while anyone is in
the path of the tailgate can cause serious
injury.
Make sure everyone is clear before closing
the power tailgate.
Models with power tailgate
Models with power tailgate
* Not available on all models
23 PASSPORT-31TGS6400.book 144 ページ ２０２２年８月５日　金曜日　午後９時２分

145
uuOpening and Closing the Tailgate uOpening/Closing the Power Tailgate*
Continued
Controls
Opening/Closing the Power Tailgate*
Use a forward and back kicking motion for
about 1 second under the center of the rear
bumper to open or close the power tailgate
while carrying the keyless remote. u Some exterior lights flash twice and a
beeper sounds once, then the tailgate
begins to move.
■Using the Hands Free Access*1Using the Hands Free Access*
During rain or in other instances when the vehicle
becomes wet, the sensor may not properly detect
your foot motion.
When performing work on or around the rear section
of the vehicle, you may in advertently open or close
the tailgate.
To prevent this from happe ning, select Customized
Features on the audio/information screen and then
select OFF for the feature. 2 Customized Features P. 329
If you hold your foot under the bumper for too long
or sweep your foot from side to side, the power
tailgate does not open or close.
This function will not opera te if you don't have the
keyless remote on you. Please make sure you have
the keyless remote on you.
1 sec.
* Not available on all models
23 PASSPORT-31TGS6400.book 145 ページ ２０２２年８月５日　金曜日　午後９時２分

uuOpening and Closing the Tailgate uOpening/Closing the Power Tailgate*
146
Controls

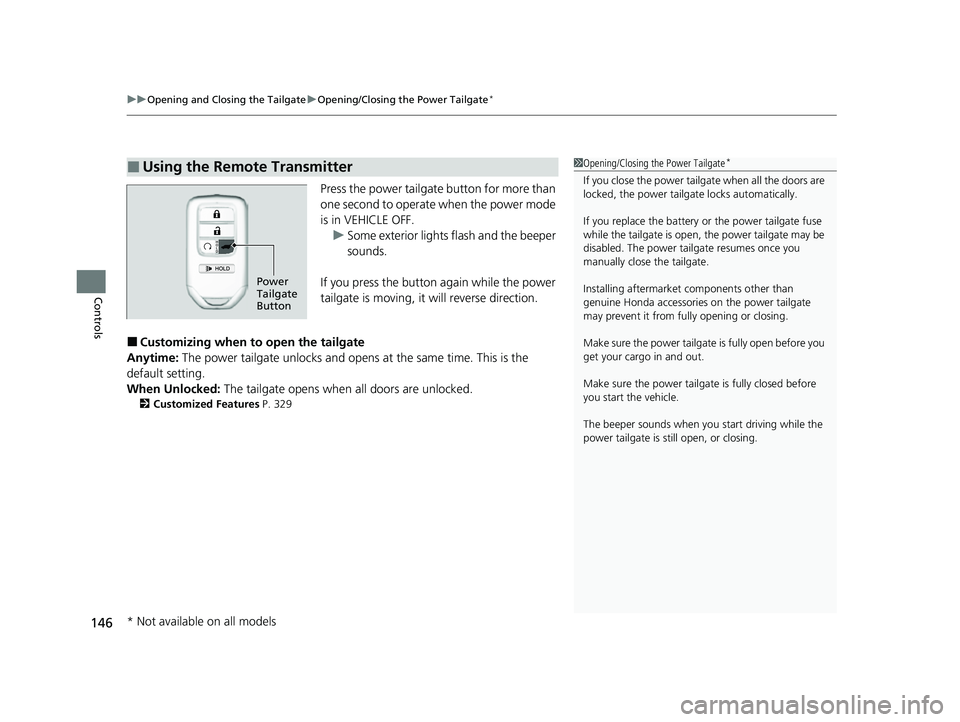

Press the power tailgate button for more than
one second to operate when the power mode
is in VEHICLE OFF.
u Some exterior lights flash and the beeper
sounds.
If you press the button again while the power
tailgate is moving, it will reverse direction.
■Customizing when to open the tailgate
Anytime: The power tailgate unlocks and opens at the same time. This is the
default setting.
When Unlocked: The tailgate opens when all doors are unlocked.
2Customized Features P. 329
■Using the Remote Transmitter1Opening/Closing the Power Tailgate*
If you close the power tail gate when all the doors are
locked, the power tailgate locks automatically.
If you replace the battery or the power tailgate fuse
while the tailgate is open, the power tailgate may be
disabled. The power tail gate resumes once you
manually close the tailgate.
Installing aftermarket components other than
genuine Honda a ccessories on the power tailgate
may prevent it from fully opening or closing.
Make sure the power tailgate is fully open before you
get your cargo in and out.
Make sure the power tailgat e is fully closed before
you start the vehicle.
The beeper sounds when you start driving while the
power tailgate is still open, or closing.
Power
Tailgate
Button
* Not available on all models
23 PASSPORT-31TGS6400.book 146 ページ ２０２２年８月５日　金曜日　午後９時２分

Continued147
uuOpening and Closing the Tailgate uOpening/Closing the Power Tailgate*
Controls

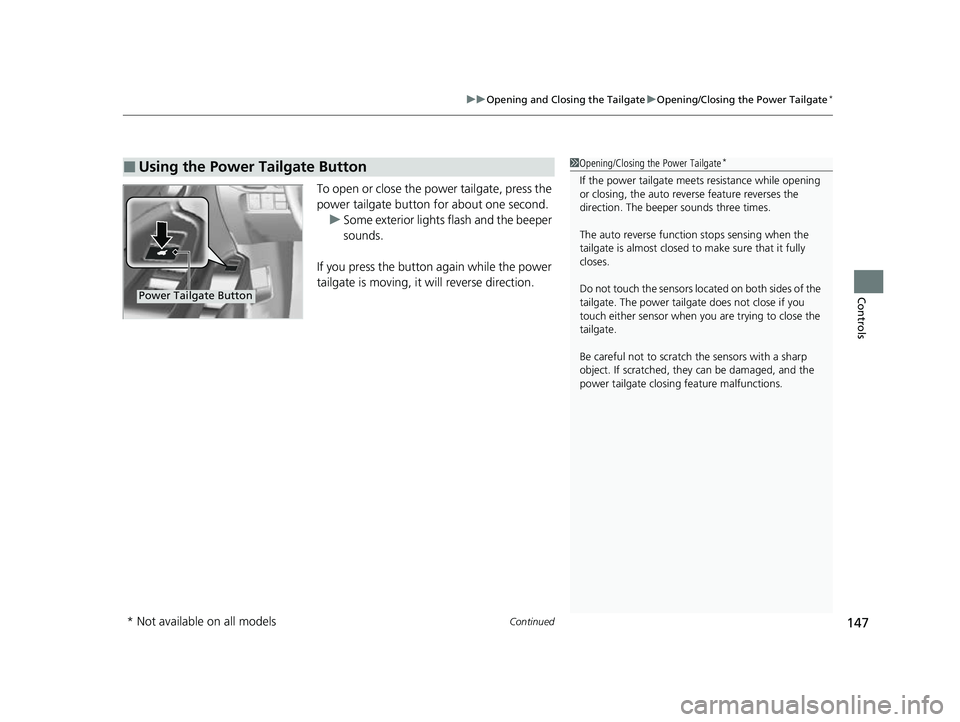

To open or close the power tailgate, press the
power tailgate button for about one second.
u Some exterior lights flash and the beeper
sounds.
If you press the button again while the power
tailgate is moving, it will reverse direction.
■Using the Power Tailgate Button1 Opening/Closing the Power Tailgate*
If the power tailgate meet s resistance while opening
or closing, the auto reverse feature reverses the
direction. The beeper sounds three times.
The auto reverse function stops sensing when the
tailgate is almost closed to make sure that it fully
closes.
Do not touch the sensors located on both sides of the
tailgate. The power tailga te does not close if you
touch either sensor when you are trying to close the
tailgate.
Be careful not to scratch the sensors with a sharp
object. If scratched, they can be damaged, and the
power tailgate closing feature malfunctions.
Power Tailgate Button
* Not available on all models
23 PASSPORT-31TGS6400.book 147 ページ ２０２２年８月５日　金曜日　午後９時２分

uuOpening and Closing the Tailgate uOpening/Closing the Power Tailgate*
148
Controls
If you press the outer handle of the tailgate for
no longer than one second, the tailgate opens
automatically.
u The beeper sounds.
u If you want to open the tailgate
manually, press the button for more than
one second.
2 Opening and Closing the Tailgate
P. 143
If you are carrying the keyless remote, you do
not have to unlock the tailgate before
opening it.
If you press the outer handle again while the
power tailgate is moving, it will reverse
direction.
■Using the Tailgate Outer Handle1 Opening/Closing the Power Tailgate*
Do not leave the key, remote transmitter, or keyless
remote in the cargo area be fore closing the tailgate.
Even if you are not carryi ng the keyless remote, you
can lock/unlock the tailgate while someone else with
the remote is within range.
You can change the power tailgate operation setting
on and off. 2 Customized Features P. 329
Outer
Handle
* Not available on all models
23 PASSPORT-31TGS6400.book 148 ページ ２０２２年８月５日　金曜日　午後９時２分

149
uuOpening and Closing the Tailgate uOpening/Closing the Power Tailgate*
Continued
Controls

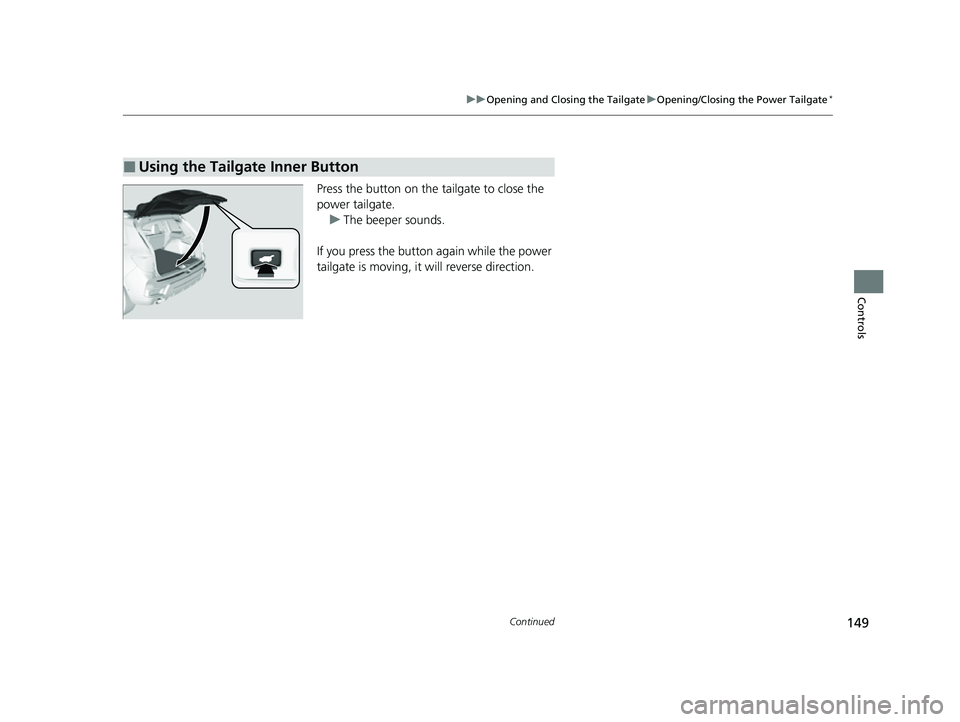

Press the button on the tailgate to close the
power tailgate.
u The beeper sounds.
If you press the button again while the power
tailgate is moving, it will reverse direction.
■Using the Tailgate Inner Button
23 PASSPORT-31TGS6400.book 149 ページ ２０２２年８月５日　金曜日　午後９時２分

uuOpening and Closing the Tailgate uOpening/Closing the Power Tailgate*
150
Controls
If you manually close the power ta ilgate, it latches automatically.
Automatically lowers the power tailgate when there is a possibility that the fully
opened power tailgate can fall down by it s own weight (for example, by snow on
the tailgate). The beeper sounds while the power tailgate lowers.
■Auto-Closer
■Power Tailgate Fall Detection
1 Auto-Closer
The auto-closer feature does not activate if you press
the tailgate outer handle while the power tailgate is
closing.
Do not put any force on the tailgate while the power
tailgate is latching.
Keep your hands away from the tailgate when you
manually close the tailga te and let it latch
automatically. It is dange rous to put your hands
around the tailgate as it st arts to latch itself.
1Power Tailgate Fall Detection
If you try to manually close the power tailgate
immediately after it full y opens, the power tailgate
fall detection ma y be activated.
Once the power tailgate fall detection activates, wait
until the power tailgate full y closes. Keep away from
the power tailgate when it is in motion.
If the power tailgate fa ll detection constantly
activates, consult at a dealer.
23 PASSPORT-31TGS6400.book 150 ページ ２０２２年８月５日　金曜日　午後９時２分

151
uuOpening and Closing the Tailgate uOpening/Closing the Tailgate
Continued
Controls
Opening/Closing the Tailgate
When all the doors are unlocked or you press
the tailgate unlock button on the remote
transmitter, the tailgate is unlocked.
Press the tailgate outer handle and lift open
the tailgate.
If you are carrying the keyless remote, you do
not have to unlock the tailgate before
opening it.
To close the tailgate, grab the inner handle,
pull the tailgate down, and push it closed
from outside.
■Using the Tailgate Outer Handle1 Using the Tailgate Outer Handle
Do not leave the key, remote transmitter, or keyless
remote in the cargo area be fore closing the tailgate.
Even if you are not carryi ng the keyless remote, you
can lock/unlock the tailgate while someone else with
the remote is within range.
Outer
Handle
Inner Handle
23 PASSPORT-31TGS6400.book 151 ページ ２０２２年８月５日　金曜日　午後９時２分
