2023 HONDA PASSPORT Owners Manual

uuClimate Control System uUsing Automatic Climate Control
216
Controls
■Switching between the recirc ulation and fresh air modes
Press the button and switch the mode depending on environmental conditions.
Recirculation Mode (indicator on): Recirculates air from the vehicle’s interior through
the system.
Fresh Air Mode (indicator off): Maintains outside ventilation. Keep the system in
fresh air mode in normal situations.
Pressing the button turns the air
conditioner system on and automatically
switches the system to fresh air mode.
Press the button again to turn off, the
system returns to the previous settings.
■Defrosting the Windshield and Windows
1 Using Automatic Climate Control
Pressing the ON/OFF button switches the
climate control system be tween on and off. When
turned on, the system returns to your last selection.
1 Defrosting the Windshield and Windows
For your safety, make sure you have a clear view
through all the windows before driving.
Do not set the temperatur e near the upper or lower
limit.
When cold air hits the windshield, the outside of the
windshield may fog up.
If you press the button during Auto Idle Stop, the
engine restarts automatically.
If the side windows fog up, adjust the vents so that
the air hits th e side windows.
23 PASSPORT-31TGS6400.book 216 ページ ２０２２年８月５日　金曜日　午後９時２分

217
uuClimate Control System uUsing Automatic Climate Control
Controls

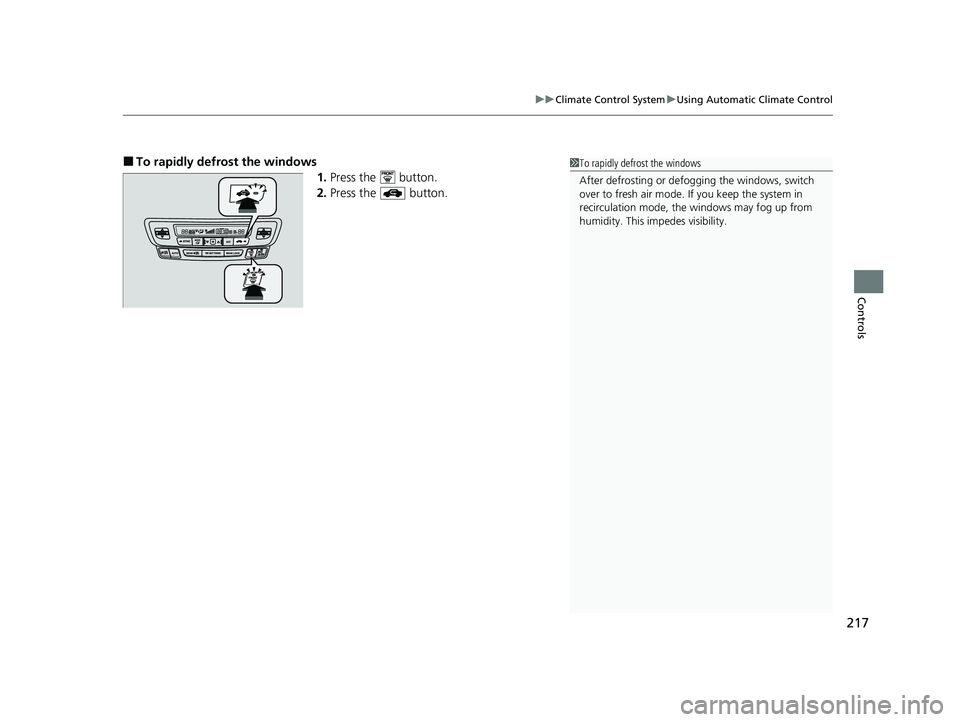

■To rapidly defrost the windows
1.Press the button.
2. Press the button.1To rapidly defrost the windows
After defrosting or defogging the windows, switch
over to fresh air mode. If you keep the system in
recirculation mode, the windows may fog up from
humidity. This impedes visibility.
23 PASSPORT-31TGS6400.book 217 ページ ２０２２年８月５日　金曜日　午後９時２分

218
uuClimate Control System uSynchronization Mode
Controls

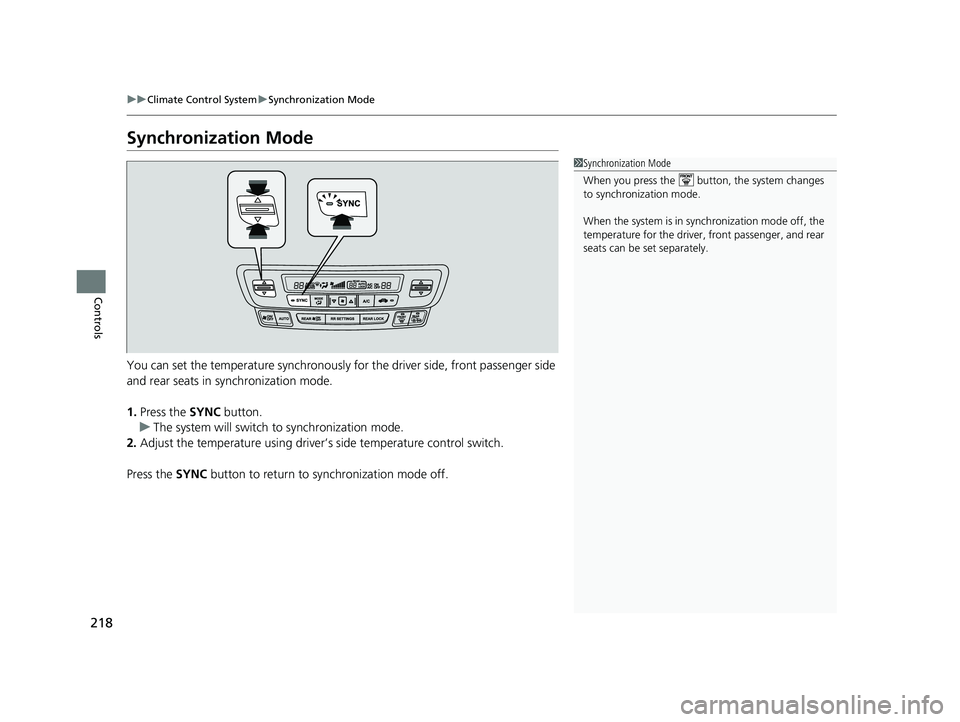

Synchronization Mode
You can set the temperature synchronously for the driver side, front passenger side
and rear seats in synchronization mode.
1. Press the SYNC button.
u The system will switch to synchronization mode.
2. Adjust the temperature using driver’s side temperature control switch.
Press the SYNC button to return to synchronization mode off.
1Synchronization Mode
When you press the button, the system changes
to synchronization mode.
When the system is in synchronization mode off, the
temperature for the driver, front passenger, and rear
seats can be set separately.
23 PASSPORT-31TGS6400.book 218 ページ ２０２２年８月５日　金曜日　午後９時２分

219
uuClimate Control System uRear Climate Control System
Continued
Controls

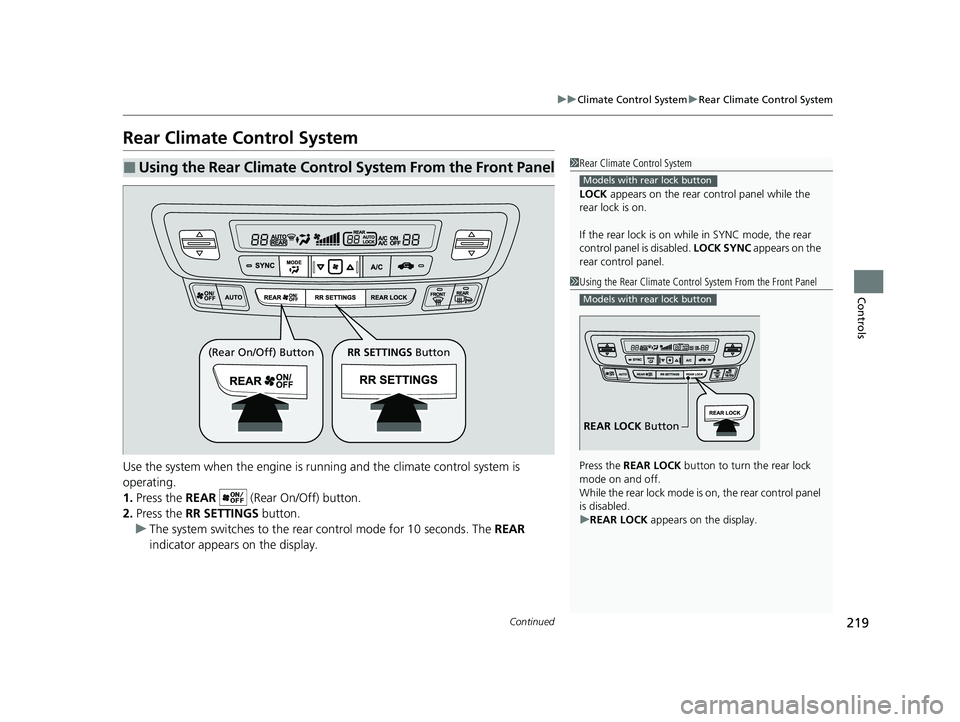

Rear Climate Control System
Use the system when the engine is runni ng and the climate control system is
operating.
1. Press the REAR (Rear On/Off) button.
2. Press the RR SETTINGS button.
u The system switches to the rear control mode for 10 seconds. The REAR
indicator appears on the display.
■Using the Rear Climate Control System From the Front Panel1 Rear Climate Control System
LOCK appears on the rear control panel while the
rear lock is on.
If the rear lock is on while in SYNC mode, the rear
control panel is disabled. LOCK SYNC appears on the
rear control panel.
Models with rear lock button
1 Using the Rear Climate Control System From the Front Panel
Press the REAR LOCK button to turn the rear lock
mode on and off.
While the rear lock mode is on, the rear control panel
is disabled.
u REAR LOCK appears on the display.
Models with rear lock button
REAR LOCK Button
(Rear On/Off) Button RR SETTINGS Button
23 PASSPORT-31TGS6400.book 219 ページ ２０２２年８月５日　金曜日　午後９時２分

uuClimate Control System uRear Climate Control System
220
Controls

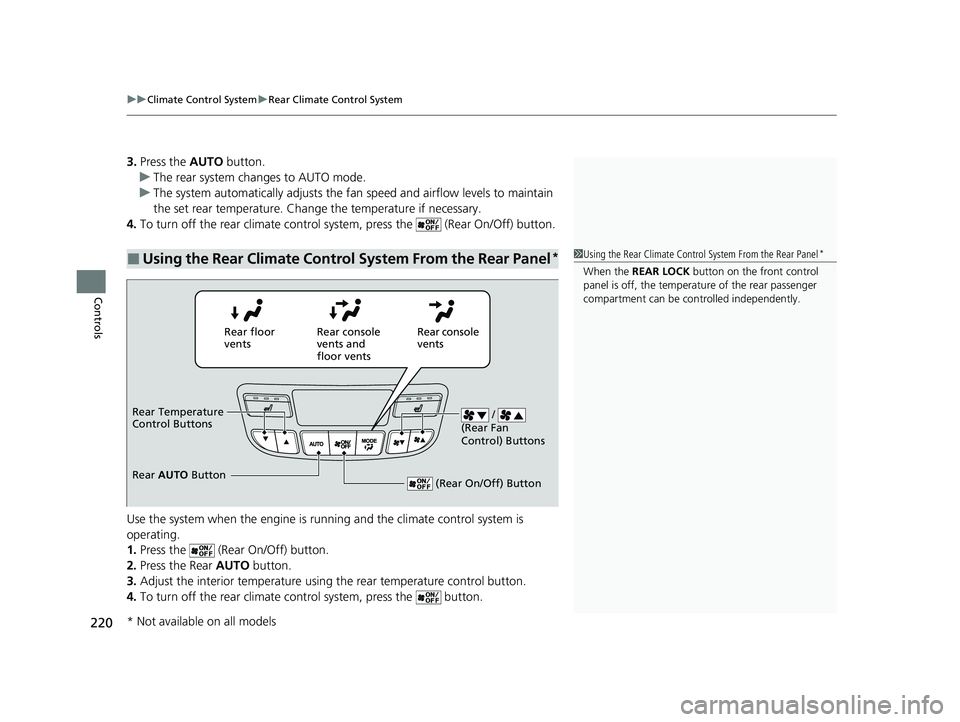

3. Press the AUTO button.
u The rear system changes to AUTO mode.
u The system automatically adjusts the fan speed and airflow levels to maintain
the set rear temperature. Change the temperature if necessary.
4. To turn off the rear climate control system, press the (Rear On/Off) button.
Use the system when the engine is running and the climate control system is
operating.
1. Press the (Rear On/Off) button.
2. Press the Rear AUTO button.
3. Adjust the interior temperature using the rear temperature control button.
4. To turn off the rear climate co ntrol system, press the button.
■Using the Rear Climate Control System From the Rear Panel*1Using the Rear Climate Control System From the Rear Panel*
When the REAR LOCK button on the front control
panel is off, the temperat ure of the rear passenger
compartment can be cont rolled independently.
Rear floor
ventsRear console
vents and
floor vents Rear console
vents
/
(Rear Fan
Control) Buttons
(Rear On/Off) Button
Rear Temperature
Control Buttons
Rear AUTO Button
* Not available on all models
23 PASSPORT-31TGS6400.book 220 ページ ２０２２年８月５日　金曜日　午後９時２分

221
uuClimate Control System uAutomatic Climate Control Sensors
Controls

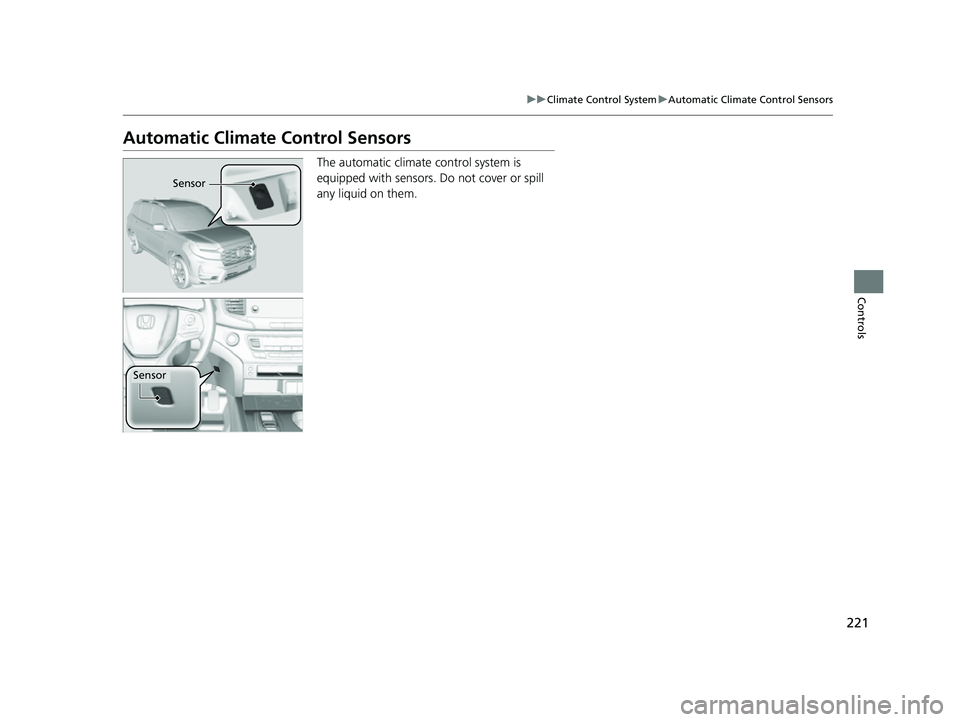

Automatic Climate Control Sensors
The automatic climate control system is
equipped with sensors. Do not cover or spill
any liquid on them.
Sensor
Sensor
23 PASSPORT-31TGS6400.book 221 ページ ２０２２年８月５日　金曜日　午後９時２分

222
23 PASSPORT-31TGS6400.book 222 ページ ２０２２年８月５日　金曜日　午後９時２分This page intentionally left blank.

223

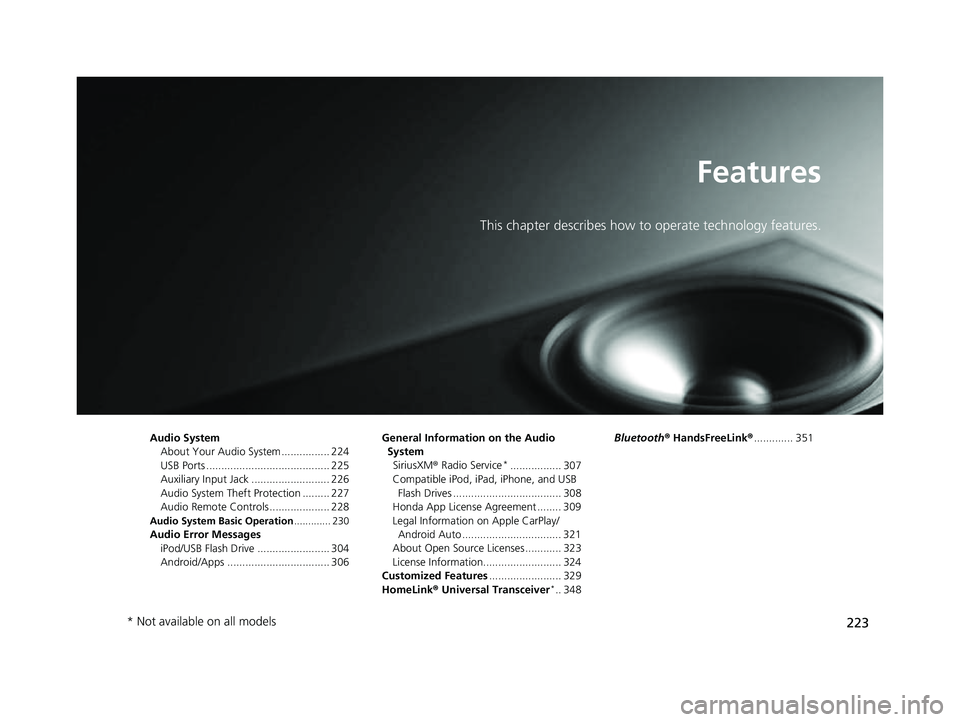

Features
This chapter describes how to operate technology features.
Audio System
About Your Audio System ................ 224
USB Ports ......................................... 225
Auxiliary Input Jack .......................... 226
Audio System Theft Protection ......... 227
Audio Remote Controls .................... 228
Audio System Basic Operation ............. 230
Audio Error Messages
iPod/USB Flash Drive ........................ 304
Android/Apps .................................. 306 General Information on the Audio
System SiriusXM ® Radio Service
*................. 307
Compatible iPod, iPad, iPhone, and USB Flash Drives .................................... 308
Honda App License Agreement ........ 309
Legal Information on Apple CarPlay/ Android Auto ................................. 321
About Open Source Licenses ............ 323
License Information.......................... 324
Customized Features ........................ 329
HomeLink ® Universal Transceiver
*.. 348 Bluetooth
® HandsFreeLink® ............. 351
* Not available on all models
23 PASSPORT-31TGS6400.book 223 ページ ２０２２年８月５日　金曜日　午後９時２分
