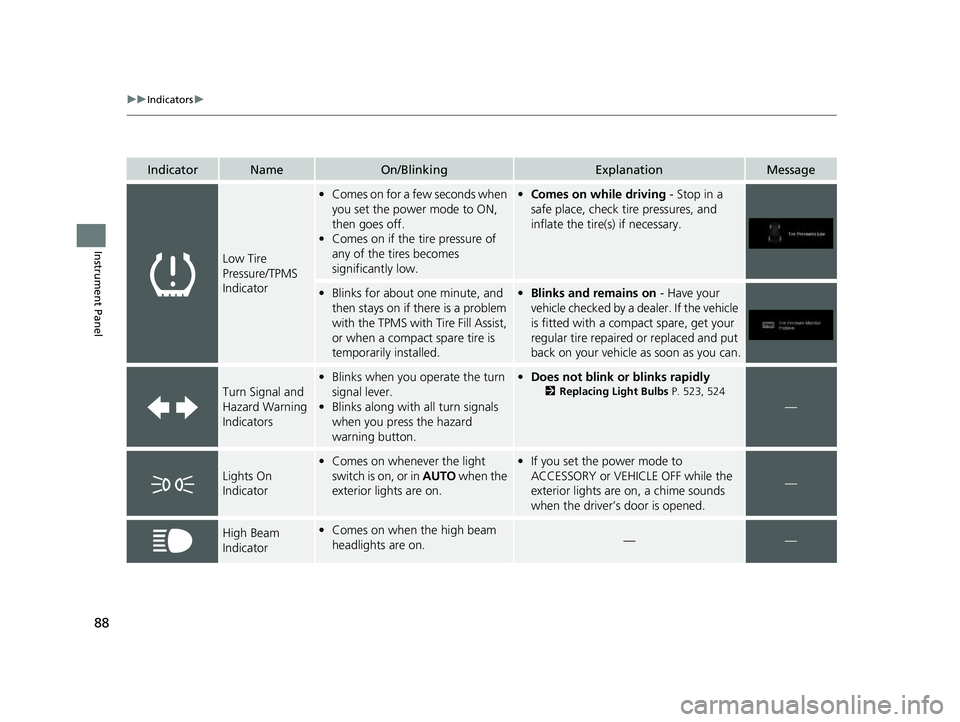

2023 HONDA PASSPORT Owners Manual

88
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Low Tire
Pressure/TPMS
Indicator
•Comes on for a few seconds when
you set the power mode to ON,
then goes off.
• Comes on if the tire pressure of
any of the tires becomes
significantly low.•Comes on while driving - Stop in a
safe place, check tire pressures, and
inflate the tire(s) if necessary.
• Blinks for about one minute, and
then stays on if there is a problem
with the TPMS with Tire Fill Assist,
or when a compact spare tire is
temporarily installed.•Blinks and remains on - Have your
vehicle checked by a dealer. If the vehicle
is fitted with a compact spare, get your
regular tire repaired or replaced and put
back on your vehicle as soon as you can.
Turn Signal and
Hazard Warning
Indicators
• Blinks when you operate the turn
signal lever.
• Blinks along with all turn signals
when you press the hazard
warning button.•Does not blink or blinks rapidly
2 Replacing Light Bulbs P. 523, 524
—
Lights On
Indicator
•Comes on whenever the light
switch is on, or in AUTO when the
exterior lights are on.• If you set the power mode to
ACCESSORY or VEHICLE OFF while the
exterior lights are on, a chime sounds
when the driver’s door is opened.
—
High Beam
Indicator•Comes on when the high beam
headlights are on.——
23 PASSPORT-31TGS6400.book 88 ページ ２０２２年８月５日　金曜日　午後９時２分

89
uuIndicators u
Continued
Instrument Panel
*1:Canadian models only: Apply and hold th e brake pedal before selecting the ON mode.
IndicatorNameOn/BlinkingExplanationMessage
Auto High-Beam
Indicator
•Comes on for a few seconds when
you set the power mode to ON,
then goes off.
• Comes on when all the operating
conditions of the auto high-beam
are met.
2 Auto High-Beam P. 169—
Fog Light
Indicator*
•Comes on when the fog lights are
on.——
Immobilizer
System Indicator
•Comes on briefly when you set the
power mode to ON, then goes off.
• Blinks if the immobilizer system
cannot recognize the key
information.•Blinks - You cannot start the engine. Set
the power mode to VEHICLE OFF*1, then
select the ON mode again.
• Repeatedly blinks - The system may be
malfunctioning. Have your vehicle
checked by a dealer.
• Do not attempt to alter this system or
add other devices to it. Electrical
problems can occur.
—
Security System
Alarm Indicator
•Comes on briefly when you set the
power mode to ON, then goes off.
• Blinks when the security system
alarm has been set.
2 Security System Alarm P. 153—
Indicator
Indicator
* Not available on all models
23 PASSPORT-31TGS6400.book 89 ページ ２０２２年８月５日　金曜日　午後９時２分

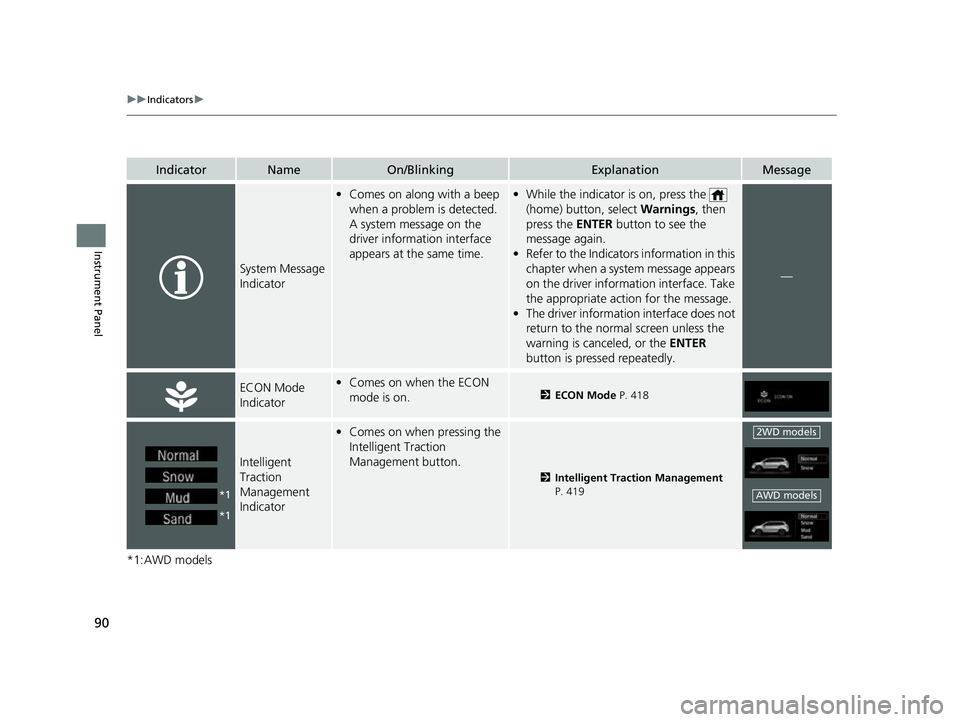

90
uuIndicators u
Instrument Panel
*1:AWD models
IndicatorNameOn/BlinkingExplanationMessage
System Message
Indicator
•Comes on along with a beep
when a problem is detected.
A system message on the
driver information interface
appears at the same time.•While the indicator is on, press the
(home) button, select Warnings, then
press the ENTER button to see the
message again.
• Refer to the Indicators information in this
chapter when a system message appears
on the driver information interface. Take
the appropriate action for the message.
• The driver information interface does not
return to the normal screen unless the
warning is canceled, or the ENTER
button is pressed repeatedly.
—
ECON Mode
Indicator• Comes on when the ECON
mode is on.2 ECON Mode P. 418
Intelligent
Traction
Management
Indicator
•Comes on when pressing the
Intelligent Traction
Management button.
2 Intelligent Traction Management
P. 419
*1
*1
2WD models
AWD models
23 PASSPORT-31TGS6400.book 90 ページ ２０２２年８月５日　金曜日　午後９時２分

91
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Auto Idle Stop
Indicator (Green)•Comes on when Auto Idle Stop is
in operation. The engine
automatically shuts off.
2 Auto Idle Stop P. 413—
Auto Idle Stop
OFF Indicator
●Comes on when the Auto Idle Stop
system has been turned off by the
Auto Idle Stop system OFF button.
2Auto Idle Stop System ON/OFF
P. 414
Auto Idle Stop
System Indicator
(Amber)
●Comes on for a few seconds when
you set the power mode to ON,
then goes off.
——
• Blinks if there is a problem with
the Auto Idle Stop system.•Blinks - Have your vehicle checked by a
dealer.
Auto Idle Stop
Suspend
Indicator
• Comes on while Auto Idle Stop is
temporarily suspended in the
following situations.
——
-Brake pedal is not fully pressed.• Depress the brake pedal firmly.
23 PASSPORT-31TGS6400.book 91 ページ ２０２２年８月５日　金曜日　午後９時２分

92
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Auto Idle Stop
Suspend
Indicator
-The transmission is in a position
other than
(D.
2 Auto Idle Stop P. 413
-System charging is prioritized.
-Climate control system is
prioritized.
-Engine coolant temperature is
not in operating range.
-The Intelligent Traction
Management is set to Snow,
Mud
*, or Sand*.
-The battery temperature is too
low.
- Auto Idle Stop does not activate
for some reason.
—
• If you press and hold the Auto Idle Stop
OFF button, you can select whether to
display the status messages or not.
* Not available on all models
23 PASSPORT-31TGS6400.book 92 ページ ２０２２年８月５日　金曜日　午後９時２分

93
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
All-wheel drive
(AWD )
Indicator
*
●Comes on for a few seconds when
you set the power mode to ON,
then goes off.
●Comes on if there is a problem
with the AWD system.
●Blinks when the differential
temperature is too high.
●Stays on constantly - The engine drives
the front wheels only in this state. Have
your vehicle checked by a dealer.
●Blinks while driving - Stop in a safe
place, change to
(P, and idle the engine
until the indicator goes off. If the
indicator does not stop blinking, take
your vehicle to a dealer.
2 Intelligent Variable Torque
Management (i-VTM4TM) AWD
System* P. 427
Lane Keeping
Assist System
( LKAS ) Indicator
(Amber)• Comes on for a few seconds when
you set the power mode to ON,
then goes off.
• Comes on if there is a problem
with the LKAS.• Stays on constantly - Have your vehicle
checked by a dealer.
Lane Keeping
Assist System
(LKAS ) Indicator
(Green)• Comes on when you press the
MAIN button.
2Lane Keeping Assist System (LKAS)
P. 460—
* Not available on all models
23 PASSPORT-31TGS6400.book 93 ページ ２０２２年８月５日　金曜日　午後９時２分

94
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Road Departure
Mitigation
(RDM) Indicator
•Comes on for a few seconds when
you change the power mode to
ON, then goes off.
• Comes on if there is a problem
with the RDM system.•Stays on constantly - Have your
vehicle checked by a dealer.
• Comes on when the RDM system
shuts itself off.•Stays on - The temperature inside the
camera is too high.
Use the climate contro l system to cool
down the camera.
The system activates when the
temperature inside the camera cools
down.
2 Front Sensor Camera P. 474
•Stays on - The area around the camera
is blocked by dirt, mud, etc. Stop your
vehicle in a safe place, and wipe it off
with a soft cloth.
• Have your vehicle checked by a dealer if
the indicator and message come back on
after you cleaned the area around the
camera.
2 Front Sensor Camera P. 474
23 PASSPORT-31TGS6400.book 94 ページ ２０２２年８月５日　金曜日　午後９時２分

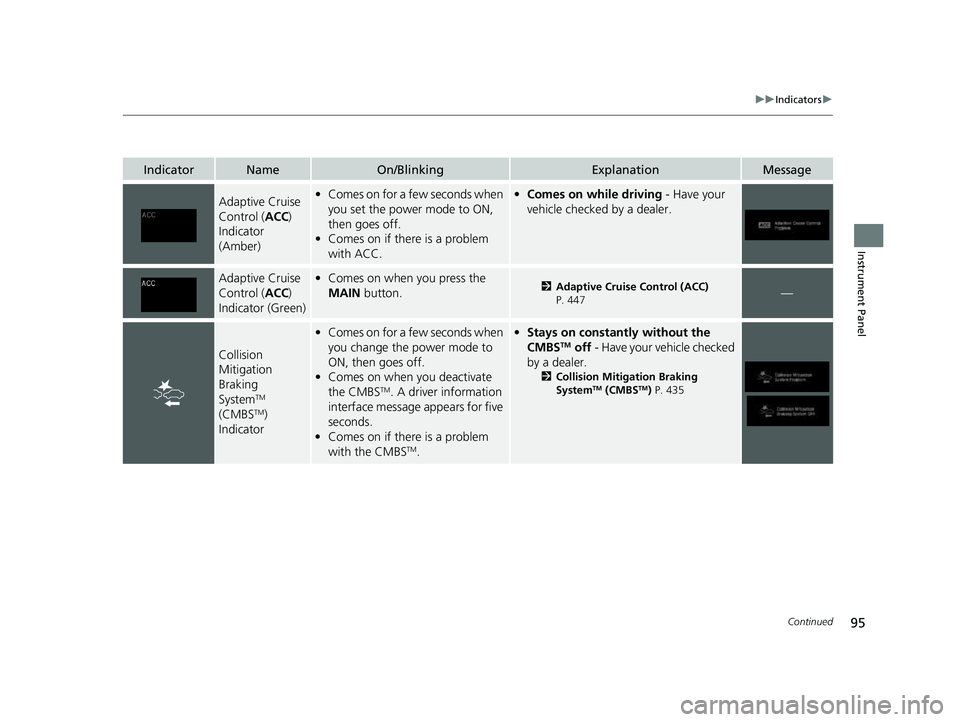

95
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Adaptive Cruise
Control (ACC)
Indicator
(Amber)• Comes on for a few seconds when
you set the power mode to ON,
then goes off.
• Comes on if there is a problem
with ACC.•Comes on while driving - Have your
vehicle checked by a dealer.
Adaptive Cruise
Control ( ACC)
Indicator (Green)• Comes on when you press the
MAIN button.2Adaptive Cruise Control (ACC)
P. 447—
Collision
Mitigation
Braking
System
TM
(CMBSTM)
Indicator
• Comes on for a few seconds when
you change the power mode to
ON, then goes off.
• Comes on when you deactivate
the CMBS
TM. A driver information
interface message appears for five
seconds.
• Comes on if there is a problem
with the CMBS
TM.
•Stays on constant ly without the
CMBSTM off - Have your vehicle checked
by a dealer.
2 Collision Mitigation Braking
SystemTM (CMBSTM) P. 435
23 PASSPORT-31TGS6400.book 95 ページ ２０２２年８月５日　金曜日　午後９時２分
