2023 HONDA PASSPORT Owners Manual

24
Quick Reference Guide

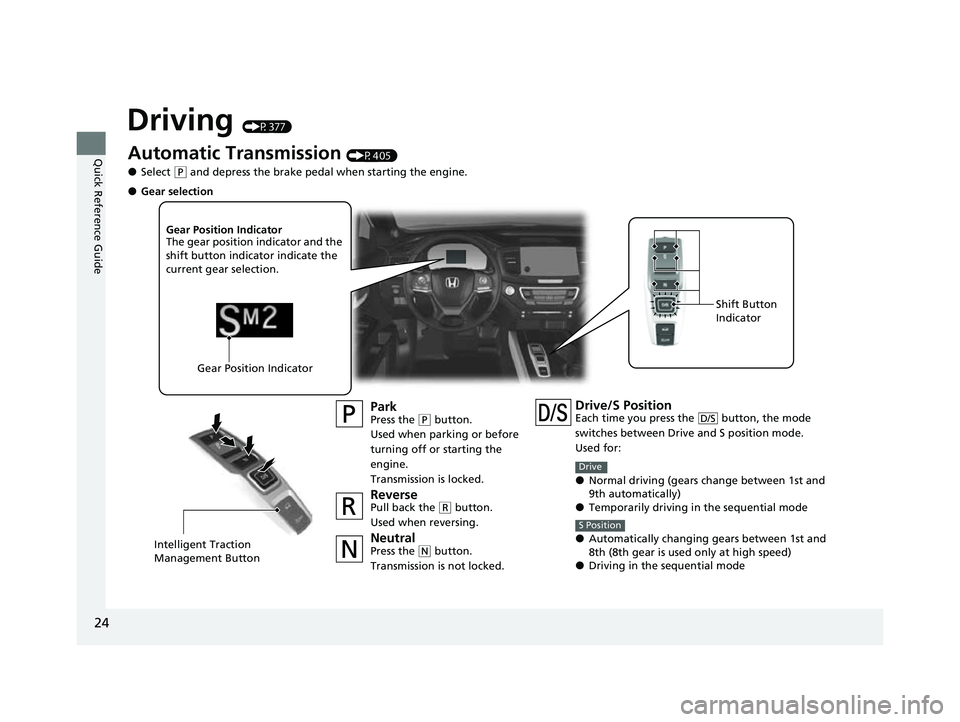

Driving (P377)
Automatic Transmission (P405)
●Select (P and depress the brake pedal when starting the engine.
ParkPress the (P button.
Used when parking or before
turning off or starting the
engine.
Transmission is locked.
ReversePull back the ( R button.
Used when reversing.
NeutralPress the ( N button.
Transmission is not locked.
Gear Position Indicator
The gear position indicator and the
shift button indicator indicate the
current gear selection.
Gear Position Indicator Shift Button
Indicator
●Gear selection
Intelligent Traction
Management Button
Drive/S PositionEach time you press th
e button, the mode
switches between Drive and S position mode.
Used for:
●Normal driving (gears change between 1st and
9th automatically)
●Temporarily driving in the sequential mode
●Automatically changing gears between 1st and
8th (8th gear is used only at high speed)
●Driving in the sequential mode
D/S
Drive
S Position
23 PASSPORT-31TGS6400.book 24 ページ ２０２２年８月５日　金曜日　午後９時２分

25
Quick Reference Guide

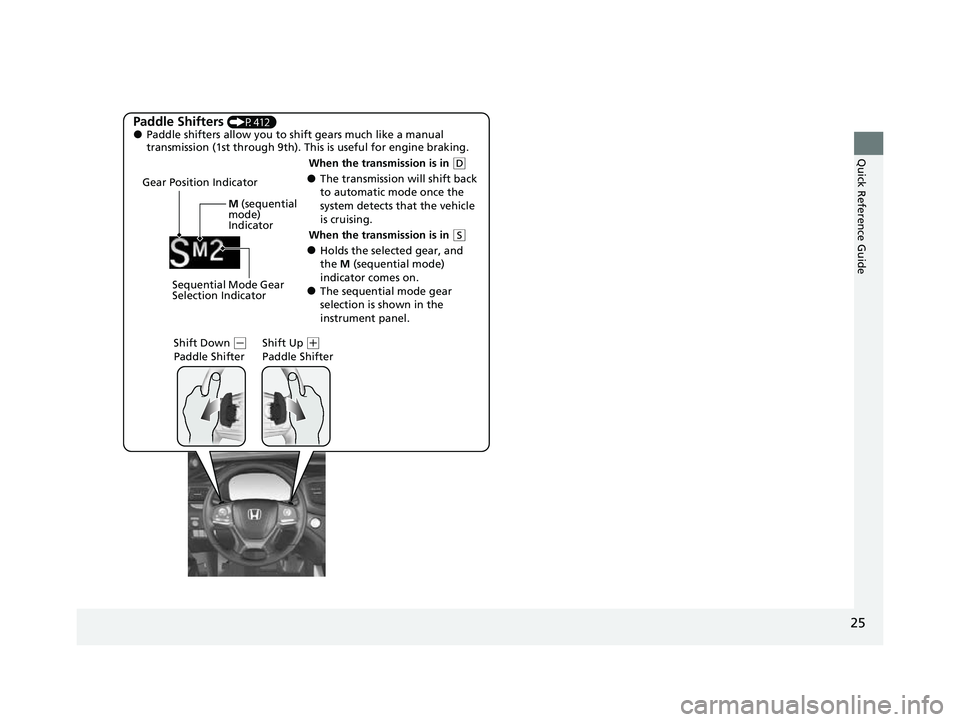

Paddle Shifters (P412)●Paddle shifters allow you to shift gears much like a manual
transmission (1st through 9th). This is useful for engine braking.
●The transmission will shift back
to automatic mode once the
system detects that the vehicle
is cruising.
Gear Position Indicator
Shift Down
(-
Paddle Shifter Shift Up (
+
Paddle Shifter
Sequential Mode Gear
Selection Indicator M
(sequential
mode)
Indicator
When the transmission is in ( D
●Holds the selected gear, and
the M (sequential mode)
indicator comes on.
●The sequential mode gear
selection is shown in the
instrument panel.
When the transmission is in
(
S
23 PASSPORT-31TGS6400.book 25 ページ ２０２２年８月５日　金曜日　午後９時２分

26
Quick Reference Guide

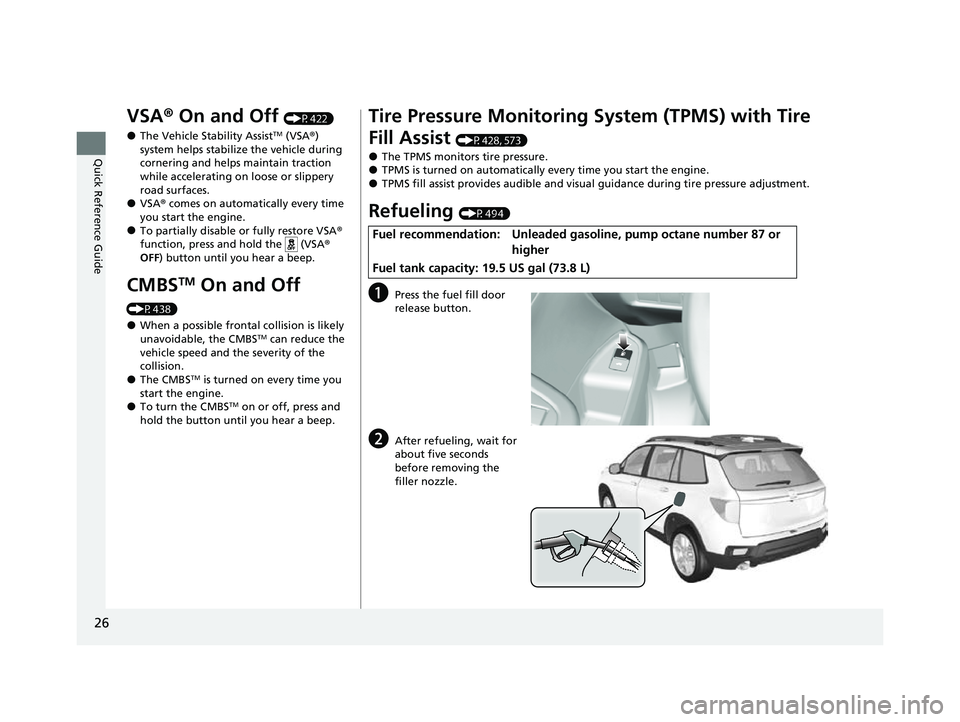

VSA® On and Off (P422)
●The Vehicle Stability AssistTM (VSA® )
system helps stabilize the vehicle during
cornering and helps maintain traction
while accelerating on loose or slippery
road surfaces.
●VSA ® comes on automatically every time
you start the engine.
●To partially disable or fully restore VSA ®
function, press and hold the (VSA ®
OFF ) button until you hear a beep.
CMBSTM On and Off
(P438)
●When a possible frontal collision is likely
unavoidable, the CMBSTM can reduce the
vehicle speed and the severity of the
collision.
●The CMBSTM is turned on every time you
start the engine.
●To turn the CMBSTM on or off, press and
hold the button until you hear a beep.
Tire Pressure Monitoring System (TPMS) with Tire
Fill Assist
(P428, 573)
●The TPMS monitors tire pressure.●TPMS is turned on automatically every time you start the engine.●TPMS fill assist provides audible and visual guidance during tire pressure adjustment.
Refueling (P494)
aPress the fuel fill door
release button.
bAfter refueling, wait for
about five seconds
before removing the
filler nozzle.
Fuel recommendation: Unleaded gaso line, pump octane number 87 or
higher
Fuel tank capacity: 19.5 US gal (73.8 L)
23 PASSPORT-31TGS6400.book 26 ページ ２０２２年８月５日　金曜日　午後９時２分

27
Quick Reference Guide

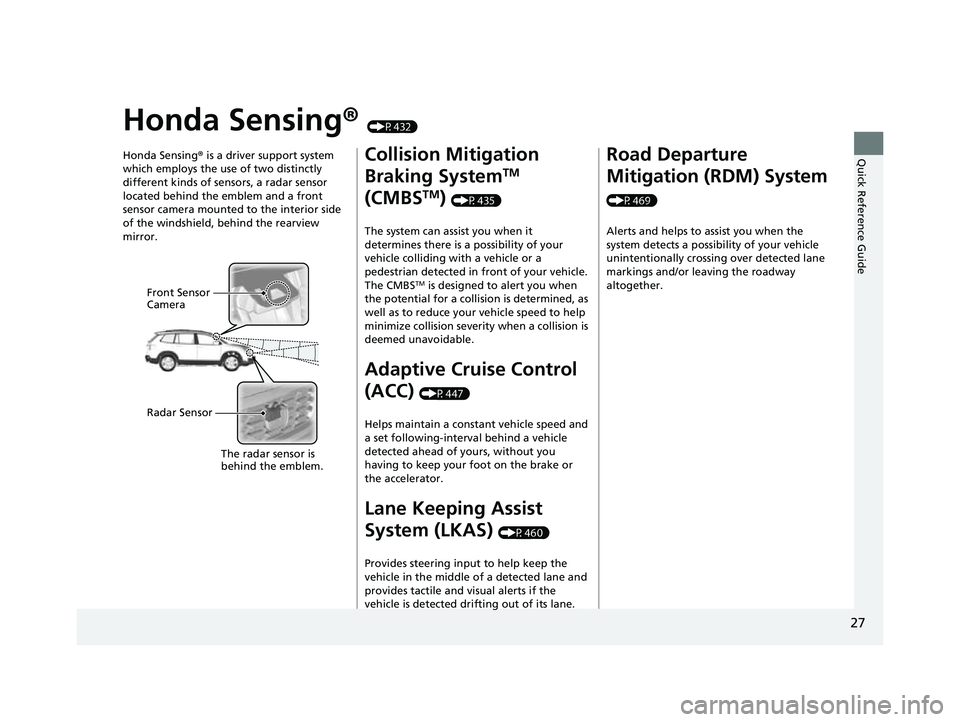

Honda Sensing® (P432)
Honda Sensing ® is a driver support system
which employs the use of two distinctly
different kinds of sensors, a radar sensor
located behind the emblem and a front
sensor camera mounted to the interior side
of the windshield, behind the rearview
mirror.
Front Sensor
Camera
Radar Sensor
The radar sensor is
behi

nd the emblem.
Collision Mitigation
Braking System
TM
(CMBS
TM) (P435)
The system can assist you when it
determines there is a possibility of your
vehicle colliding with a vehicle or a
pedestrian detected in front of your vehicle.
The CMBS
TM is designed to alert you when
the potential for a collision is determined, as
well as to reduce your vehicle speed to help
minimize collision severity when a collision is
deemed unavoidable.
Adaptive Cruise Control
(ACC)
(P447)
Helps maintain a constant vehicle speed and
a set following-interval behind a vehicle
detected ahead of yours, without you
having to keep your foot on the brake or
the accelerator.
Lane Keeping Assist
System (LKAS)
(P460)
Provides steering input to help keep the
vehicle in the middle of a detected lane and
provides tactile and visual alerts if the
vehicle is detected drifting out of its lane.
Road Departure
Mitigation (RDM) System
(P469) Alerts and helps to assist you when the
system detects a possibility of your vehicle
unintentionally crossing over detected lane
markings and/or leaving the roadway
altogether.
23 PASSPORT-31TGS6400.book 27 ページ ２０２２年８月５日　金曜日　午後９時２分

28
Quick Reference Guide
Maintenance (P499)
Under the Hood (P509)
●Check engine oil, engine coolant, and windshield washer
fluid. Add when necessary.
●Check brake fluid.●Check the battery condition monthly.
aPull the hood release handle under the corner of the
dashboard.
bLocate the hood latch lever, pull it up, and then raise the hood.
Once you have raised the hood slightly, you can release the lever.
cWhen finished, close the hood and make sure it is firmly
locked in place.
Lights (P521)
●Inspect all lights regularly.
Wiper Blades (P526)
●Replace blades if they leave streaks
across the windshield or become noisy.
Tires (P530)
●Inspect tires and wheels regularly.●Check tire pressures regularly.●Install snow tires for winter
driving.
23 PASSPORT-31TGS6400.book 28 ページ ２０２２年８月５日　金曜日　午後９時２分

Quick Reference Guide
29
Handling the Unexpected (P551)
Flat Tire (P553)
●Park in a safe location and replace the
flat tire with the compact spare tire
located in the cargo area.
Indicators Come On (P570)
●Identify the indicator and consult the
owner’s manual.
Engine Won’t Start (P561)
●If the battery is dead, jump start using a
booster battery.
Blown Fuse (P575)
●Check for a blown fuse if an electrical
device does not operate.
Overheating (P568)
●Park in a safe location. If you do not see
steam under the hood, open the hood,
and let the engine cool down.
Emergency Towing (P580)
●Call a professional towing service if you
need to tow your vehicle.
23 PASSPORT-31TGS6400.book 29 ページ ２０２２年８月５日　金曜日　午後９時２分

30
Quick Reference Guide
What to Do If
The power mode does not
change from VEHICLE OFF
(LOCK) to ACCESSORY.
Why?
●The steering wheel may be locked.
●Move the steering wheel left and right
after pressing the ENGINE START/STOP
button.
Why does the brake pedal
pulsate slightly when
applying the brakes?This can occur when the ABS activates and does not indicate a
problem. Apply firm, steady pressure on the brake pedal. Never
pump the brake pedal. u Anti-lock Brake System (ABS)
(P479)
The rear door cannot be
opened from inside the
vehicle. Why?Check if the childproof lock is in
the lock position. If so, open the
rear door with the outside door
handle.
To cancel this function, slide the
lever up to the unlock position.
Canadian models
23 PASSPORT-31TGS6400.book 30 ページ ２０２２年８月５日　金曜日　午後９時２分

31
Quick Reference Guide
Why do the doors lock
after I unlocked the doors?If you do not open the doors within 30 seconds, the doors are
relocked automatically for security.
Why does the beeper
sound when I open the
driver’s door?The beeper sounds when:
●The power mode is in ACCESSORY.
●The exterior lights are left on.
●The Auto Idle Stop is in operation.
Why does a beeper sound
when I walk away from the
vehicle after I close the
door?The beeper sounds if you move outside the walk away auto lock
operating range before the door completely closes.
u Locking the doors and tailgate (Walk away auto lock® )
(P134)
Why does the beeper
sound when I start driving?The beeper sounds when:
●Driver and/or front passenger are not wearing their seat belts.
●The parking brake pedal is not fully released.
Why do I hear a screeching
sound when I apply the
brake pedal?The brake pads may need to be replaced. Have your vehicle
inspected by a dealer.
