2023 HONDA PASSPORT check engine light

Contents
Child Safety P. 64Exhaust Gas Hazard P. 79Safety Labels P. 80
Opening and Closing the Tailgate P. 143 Security System P. 153
Operating the Switches Around the Steering Wheel P. 160 Adjusting the Mirrors P. 181
Interior Lights/Interior Convenience It ems P. 194 Climate Control System P. 215
Audio System Basic Operation P. 230 Audio Error Messages P. 304
Customized Features P. 329 HomeLink ® Universal Transceiver* P. 348
Off-Highway Driving Guidelines P. 394 When Driving P. 396 Honda Sensing ® P. 432 Braking P. 477
Refueling P. 494 Fuel Economy and CO
2 Emissions P. 497
Maintenance Under the Hood P. 509 Replacing Light Bulbs P. 521
Checking and Maintaining Tires P. 530 Battery P. 539
Climate Control System Maintenance P. 542 Cleaning P. 544
Engine Does Not Start P. 561If the Battery Is Dead P. 565Overheating P. 568
Emergency Towing P. 580 If You Cannot Unlock the Fuel Fill Door P. 581
Devices that Emit Radio Waves P. 589 Reporting Safety Defects P. 590
Authorized Manuals P. 596 Customer Service Information P. 597
Quick Reference GuideP. 8
Safe DrivingP. 33
Instrument PanelP. 81
ControlsP. 125
FeaturesP. 223
DrivingP. 377
MaintenanceP. 499
Handling the UnexpectedP. 551
InformationP. 585
IndexP. 599
23 PASSPORT-31TGS6400.book 7 ページ ２０２２年８月５日　金曜日　午後９時２分

28
Quick Reference Guide
Maintenance (P499)
Under the Hood (P509)
●Check engine oil, engine coolant, and windshield washer
fluid. Add when necessary.
●Check brake fluid.●Check the battery condition monthly.
aPull the hood release handle under the corner of the
dashboard.
bLocate the hood latch lever, pull it up, and then raise the hood.
Once you have raised the hood slightly, you can release the lever.
cWhen finished, close the hood and make sure it is firmly
locked in place.
Lights (P521)
●Inspect all lights regularly.
Wiper Blades (P526)
●Replace blades if they leave streaks
across the windshield or become noisy.
Tires (P530)
●Inspect tires and wheels regularly.●Check tire pressures regularly.●Install snow tires for winter
driving.
23 PASSPORT-31TGS6400.book 28 ページ ２０２２年８月５日　金曜日　午後９時２分

30
Quick Reference Guide
What to Do If
The power mode does not
change from VEHICLE OFF
(LOCK) to ACCESSORY.
Why?
●The steering wheel may be locked.
●Move the steering wheel left and right
after pressing the ENGINE START/STOP
button.
Why does the brake pedal
pulsate slightly when
applying the brakes?This can occur when the ABS activates and does not indicate a
problem. Apply firm, steady pressure on the brake pedal. Never
pump the brake pedal. u Anti-lock Brake System (ABS)
(P479)
The rear door cannot be
opened from inside the
vehicle. Why?Check if the childproof lock is in
the lock position. If so, open the
rear door with the outside door
handle.
To cancel this function, slide the
lever up to the unlock position.
Canadian models
23 PASSPORT-31TGS6400.book 30 ページ ２０２２年８月５日　金曜日　午後９時２分

84
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Transmission
System
Indicator
●The indicated current gear selection
blinks if there is a problem with the
transmission system.●Avoid sudden starts and acceleration,
and stop in a safe place immediately.
Have your vehicle checked by a dealer.
●All the gear positions may light for
several seconds, and go off.●When all the gear positions light,
immediately stop your vehicle in a safe
place.
●Indicators go off if there is no problem.
However, even if they go off, take your
vehicle to a dealer for inspection.
●The indicated current gear selection
or all the gear po sitions blink if
there is a problem with the
transmission system, and the
vehicle no longer moves.●Immediately stop in a safe place.
2 Emergency Towing P. 580●Have your vehicle checked by a dealer.
●The indicated current gear selection
or all the gear positions blink if you
cannot select
(P due to the
transmission system failure.
●The engine can be activated as a
temporary measure.
2 If the Transmission Indicator Blinks
along with the Warning Message
P. 574
●Set the parking brake when parking.●Have your vehicle checked by a dealer
immediately.
23 PASSPORT-31TGS6400.book 84 ページ ２０２２年８月５日　金曜日　午後９時２分

89
uuIndicators u
Continued
Instrument Panel
*1:Canadian models only: Apply and hold th e brake pedal before selecting the ON mode.
IndicatorNameOn/BlinkingExplanationMessage
Auto High-Beam
Indicator
•Comes on for a few seconds when
you set the power mode to ON,
then goes off.
• Comes on when all the operating
conditions of the auto high-beam
are met.
2 Auto High-Beam P. 169—
Fog Light
Indicator*
•Comes on when the fog lights are
on.——
Immobilizer
System Indicator
•Comes on briefly when you set the
power mode to ON, then goes off.
• Blinks if the immobilizer system
cannot recognize the key
information.•Blinks - You cannot start the engine. Set
the power mode to VEHICLE OFF*1, then
select the ON mode again.
• Repeatedly blinks - The system may be
malfunctioning. Have your vehicle
checked by a dealer.
• Do not attempt to alter this system or
add other devices to it. Electrical
problems can occur.
—
Security System
Alarm Indicator
•Comes on briefly when you set the
power mode to ON, then goes off.
• Blinks when the security system
alarm has been set.
2 Security System Alarm P. 153—
Indicator
Indicator
* Not available on all models
23 PASSPORT-31TGS6400.book 89 ページ ２０２２年８月５日　金曜日　午後９時２分

101
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
•Appears if there is a problem with the cooling
system.•Drive slowly to prevent ov erheating and have your
vehicle checked by a dealer as soon as possible.
• Appears if there is a pr oblem with the headlights.•Appears while driving - The headlights may not be
on. When conditions allow you to drive safety, have
your vehicle checked by a d ealer as soon as possible.
•Appears if there is a proble m with the parking sensor
system.
• Check if the area around the sensor(s) is covered with
mud, ice, snow, etc. If the indicator(s) stays on or the
beeper does not stop even after you clean the area,
have the system checked by a dealer.
• Appears if there are obstacles around the sensors.
•Check for obstacles near your vehicle to make sure it is
safe to park.
• Appears as soon as a prob lem is detected in the
keyless access system.• Appears constantly - Have your vehicle checked by a
dealer.
• Appears as soon as a problem is detected in the push
button starting system.•Appears constantly - Have your vehicle checked by a
dealer.
●Appears if you press the ENGINE START/STOP
button while the vehicle is moving.2 Emergency Engine Stop P. 564
Models with parking sensor system
Models with parking sensor system
23 PASSPORT-31TGS6400.book 101 ページ ２０２２年８月５日　金曜日　午後９時２分

Continued205
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls
1Wireless Charger*
This system consumes a lot of power. Do not use the
system for a long time when the engine is not
running. This may weaken the battery, making it
difficult to start the engine.
When using the wireless charger, check the user’s
manual that came with th e compatible device you
want to charge.
NOTICE
Do not place any magneti c recording media or
precision machines within the charging area while
charging.
The data on your cards such as credit cards can be
lost because of the magneti c effect. Also precision
machines such as watc hes can be affected.
“Qi” and marks are the registered trademarks
owned by Wire less Power Consortium (WPC).
In the following cases, ch arging may stop or not start:
•The device is already fully charged.
•The temperature of the device is extremely high
while charging.
•You are at a place that emits strong
electromagnetic waves or noises, such as a TV
station, electric power plant, or gas station.
A device may not charge if the size or shape of its
chargeable side is not a ppropriate for use with the
charging area.
* Not available on all models
23 PASSPORT-31TGS6400.book 205 ページ ２０２２年８月５日　金曜日　午後９時２分

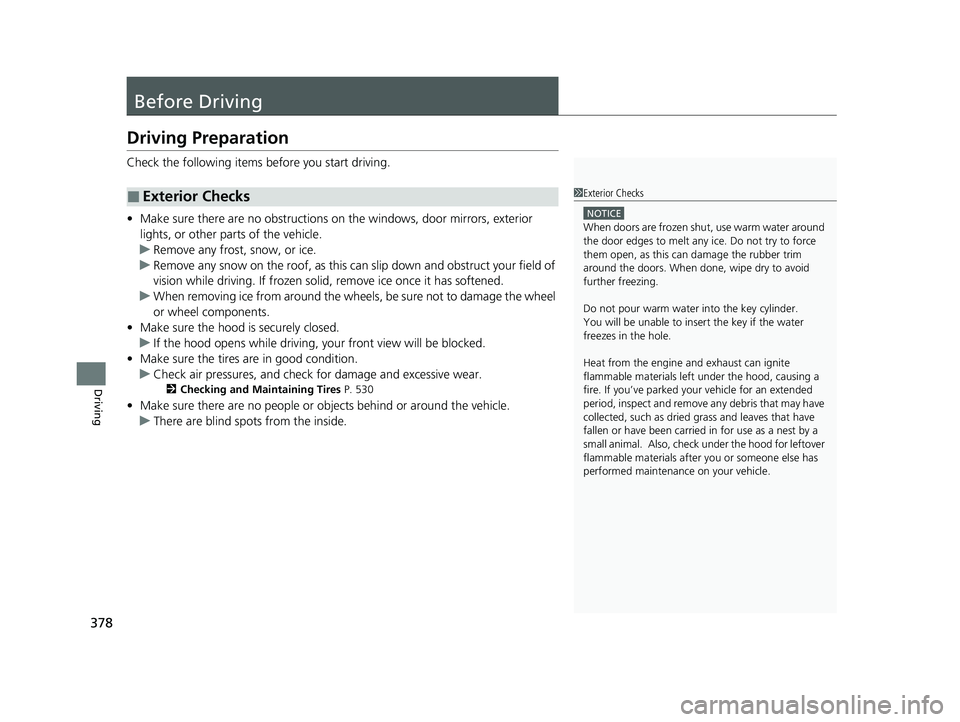

378
Driving
Before Driving
Driving Preparation
Check the following items before you start driving.
• Make sure there are no obstructions on th e windows, door mirrors, exterior
lights, or other parts of the vehicle.
u Remove any frost, snow, or ice.
u Remove any snow on the roof, as this can slip down and obstruct your field of
vision while driving. If frozen solid , remove ice once it has softened.
u When removing ice from around the wheel s, be sure not to damage the wheel
or wheel components.
• Make sure the hood is securely closed.
u If the hood opens while driving, your front view will be blocked.
• Make sure the tires are in good condition.
u Check air pressures, and check for damage and excessive wear.
2Checking and Maintaining Tires P. 530
•Make sure there are no people or ob jects behind or around the vehicle.
u There are blind spots from the inside.
■Exterior Checks1Exterior Checks
NOTICE
When doors are frozen s hut, use warm water around
the door edges to melt any ice. Do not try to force
them open, as this can damage the rubber trim
around the doors. When done, wipe dry to avoid
further freezing.
Do not pour warm water into the key cylinder.
You will be unable to insert the key if the water
freezes in the hole.
Heat from the engine and exhaust can ignite
flammable material s left under the hood, causing a
fire. If you’ve parked y our vehicle for an extended
period, inspect and remove any debris that may have
collected, such as dried grass and leaves that have
fallen or have been carried in for use as a nest by a
small animal. Also, check under the hood for leftover
flammable materials after you or someone else has
performed maintenance on your vehicle.
23 PASSPORT-31TGS6400.book 378 ページ ２０２２年８月５日　金曜日　午後９時２分
