2023 HONDA PASSPORT Owners Manual

232
uuAudio System Basic Operation uAudio/Information Screen
Features

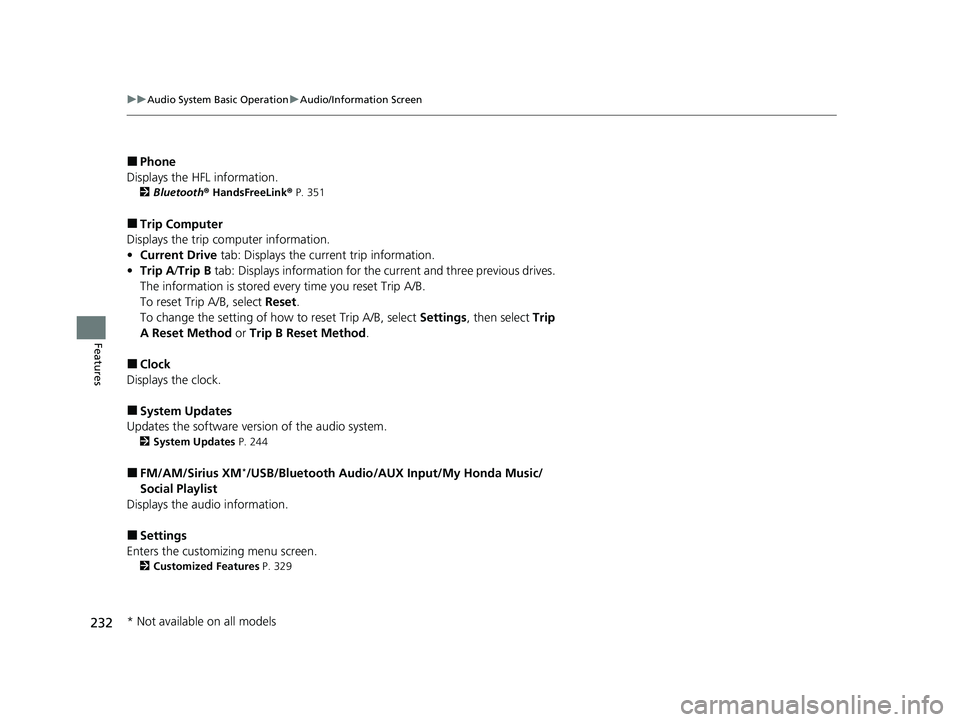

■Phone
Displays the HFL information.
2 Bluetooth ® HandsFreeLink ® P. 351
■Trip Computer
Displays the trip co mputer information.
• Current Drive tab: Displays the current trip information.
• Trip A /Trip B tab: Displays information for the current and three previous drives.
The information is stored every time you reset Trip A/B.
To reset Trip A/B, select Reset.
To change the setting of how to reset Trip A/B, select Settings, then select Trip
A Reset Method or Trip B Reset Method .
■Clock
Displays the clock.
■System Updates
Updates the software version of the audio system.
2 System Updates P. 244
■FM/AM/Sirius XM*/USB/Bluetooth Audio/AUX Input/My Honda Music/
Social Playlist
Displays the audio information.
■Settings
Enters the customiz ing menu screen.
2Customized Features P. 329
* Not available on all models
23 PASSPORT-31TGS6400.book 232 ページ ２０２２年８月５日　金曜日　午後９時２分

233
uuAudio System Basic Operation uAudio/Information Screen
Continued
Features

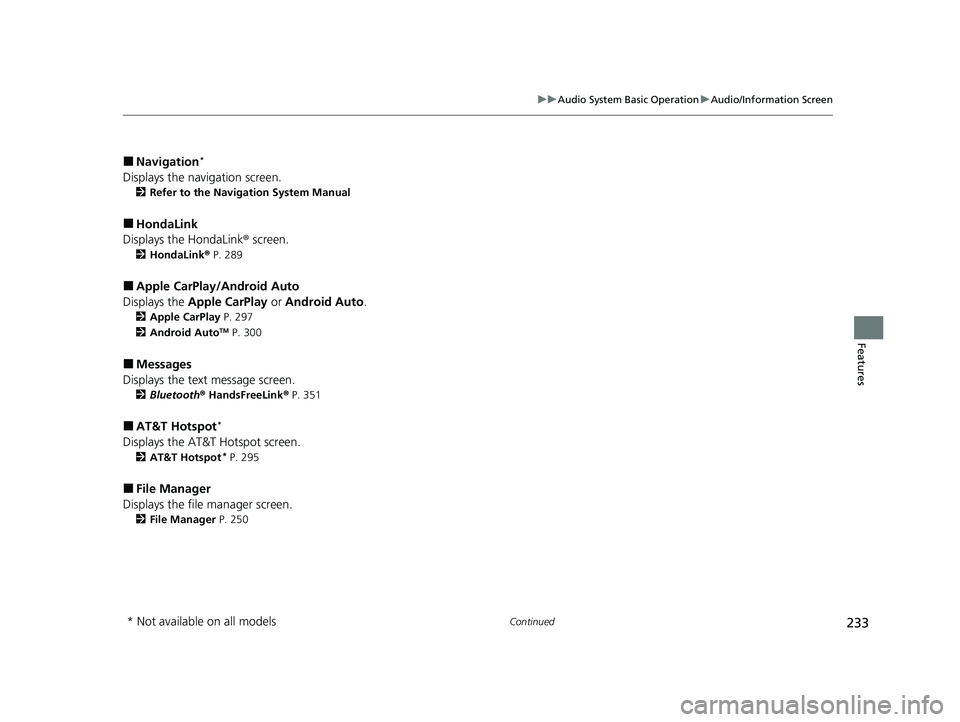

■Navigation*
Displays the navigation screen.
2 Refer to the Navigation System Manual
■HondaLink
Displays the HondaLink ® screen.
2HondaLink ® P. 289
■Apple CarPlay/Android Auto
Displays the Apple CarPlay or Android Auto.
2Apple CarPlay P. 297
2 Android AutoTM P. 300
■Messages
Displays the text message screen.
2 Bluetooth ® HandsFreeLink ® P. 351
■AT&T Hotspot*
Displays the AT&T Hotspot screen.
2AT&T Hotspot* P. 295
■File Manager
Displays the file manager screen.
2 File Manager P. 250
* Not available on all models
23 PASSPORT-31TGS6400.book 233 ページ ２０２２年８月５日　金曜日　午後９時２分

uuAudio System Basic Operation uAudio/Information Screen
234
Features

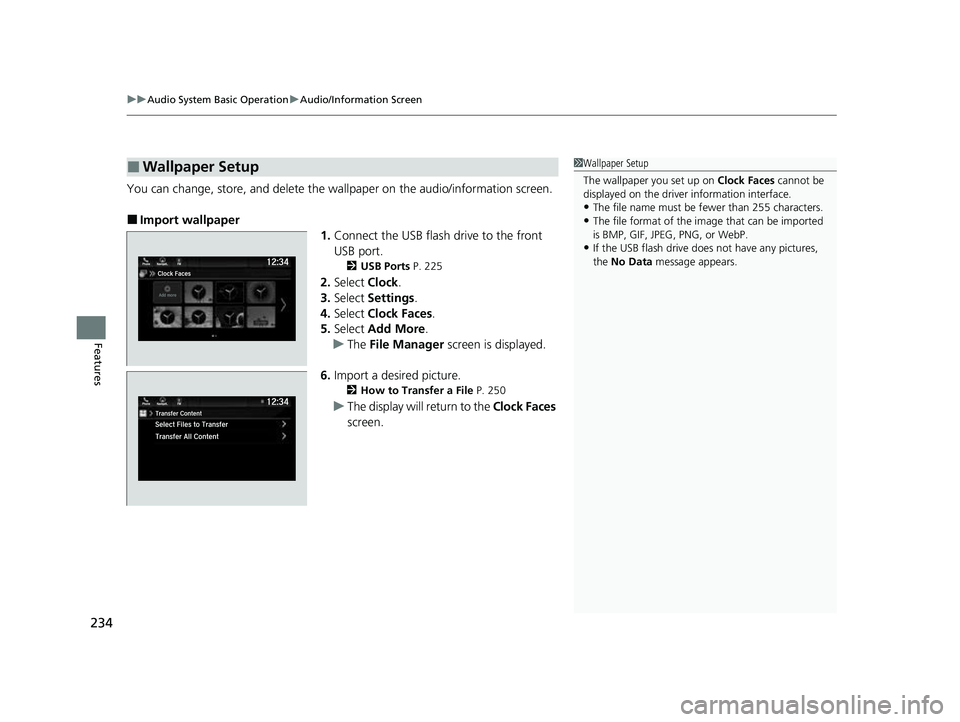

You can change, store, and delete the wa llpaper on the audio/information screen.
■Import wallpaper
1.Connect the USB flash drive to the front
USB port.
2 USB Ports P. 225
2.Select Clock.
3. Select Settings .
4. Select Clock Faces.
5. Select Add More .
u The File Manager screen is displayed.
6. Import a desired picture.
2 How to Transfer a File P. 250
uThe display will return to the Clock Faces
screen.
■Wallpaper Setup1 Wallpaper Setup
The wallpaper you set up on Clock Faces cannot be
displayed on the driver information interface.
•The file name must be fewer than 255 characters.
•The file format of the im age that can be imported
is BMP, GIF, JPEG, PNG, or WebP.
•If the USB flash drive doe s not have any pictures,
the No Data message appears.
23 PASSPORT-31TGS6400.book 234 ページ ２０２２年８月５日　金曜日　午後９時２分

235
uuAudio System Basic Operation uAudio/Information Screen
Continued
Features

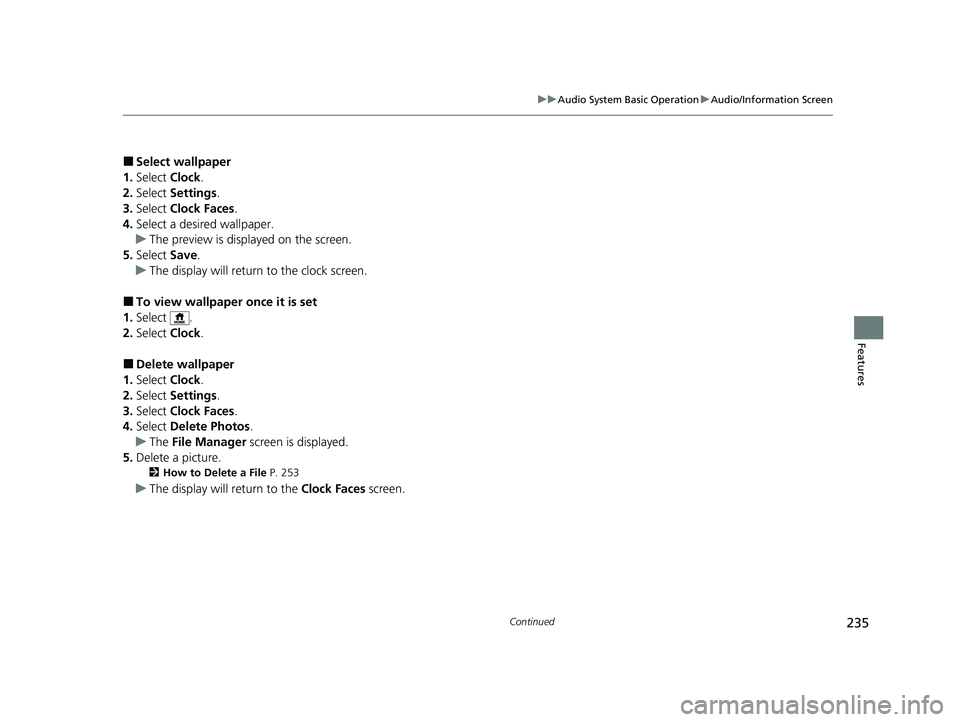

■Select wallpaper
1. Select Clock.
2. Select Settings .
3. Select Clock Faces.
4. Select a desired wallpaper.
u The preview is displayed on the screen.
5. Select Save.
u The display will return to the clock screen.
■To view wallpaper once it is set
1. Select .
2. Select Clock.
■Delete wallpaper
1. Select Clock.
2. Select Settings .
3. Select Clock Faces.
4. Select Delete Photos .
u The File Manager screen is displayed.
5. Delete a picture.
2 How to Delete a File P. 253
uThe display will return to the Clock Faces screen.
23 PASSPORT-31TGS6400.book 235 ページ ２０２２年８月５日　金曜日　午後９時２分

uuAudio System Basic Operation uAudio/Information Screen
236
Features

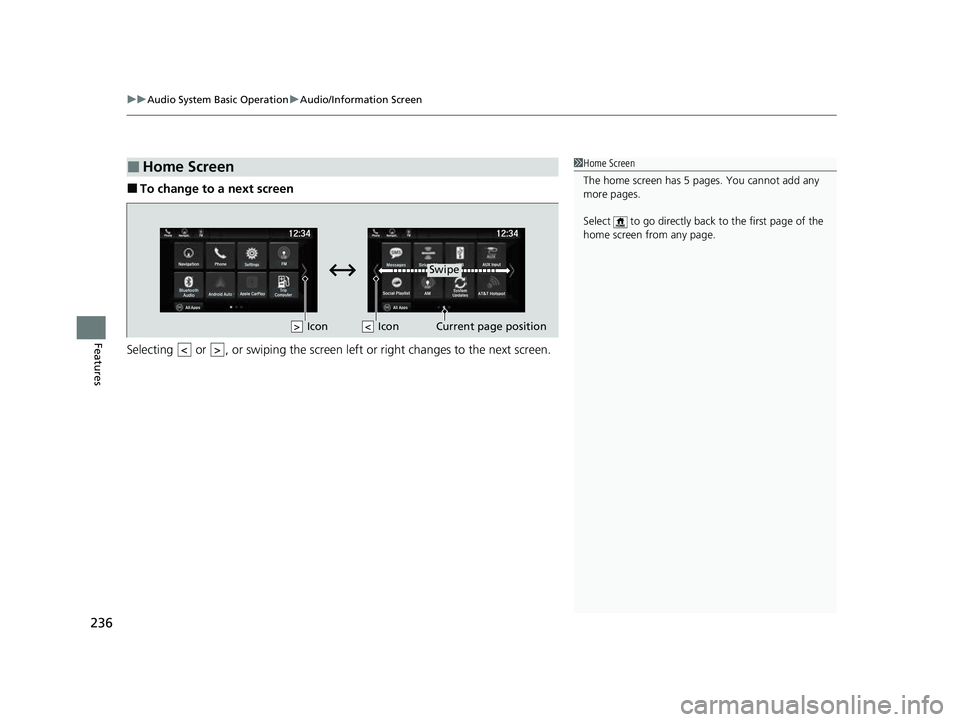

■To change to a next screen
Selecting or , or swiping the screen le ft or right changes to the next screen.
■Home Screen1Home Screen
The home screen has 5 pages. You cannot add any
more pages.
Select to go directly back to the first page of the
home screen from any page.
Swipe
Icon
> Icon <>
23 PASSPORT-31TGS6400.book 236 ページ ２０２２年８月５日　金曜日　午後９時２分

Continued237
uuAudio System Basic Operation uAudio/Information Screen
Features

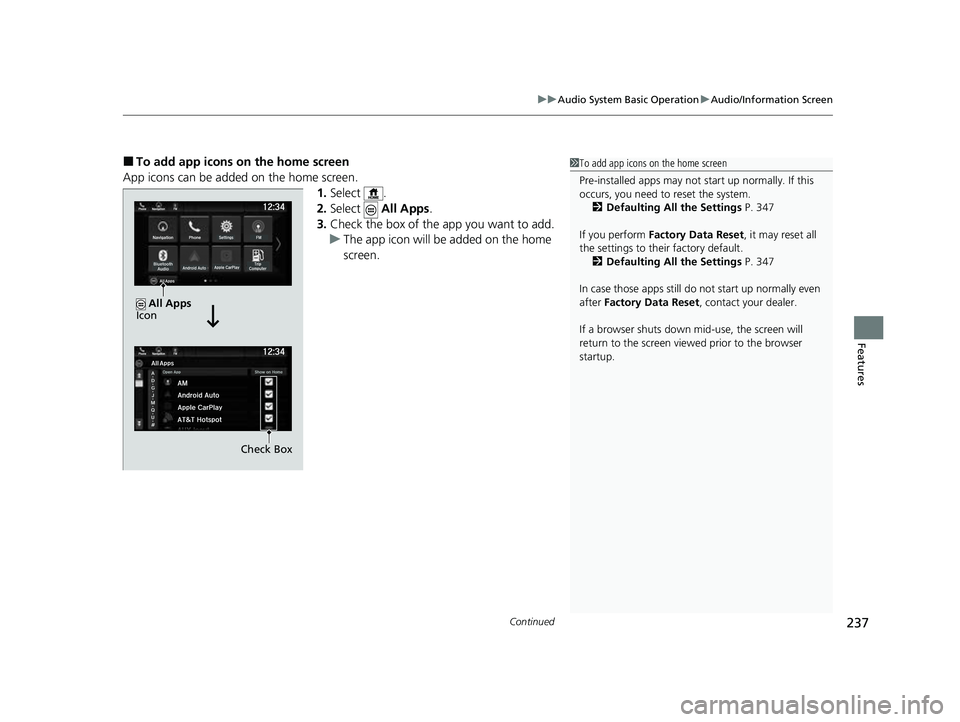

■To add app icons on the home screen
App icons can be added on the home screen. 1.Select .
2. Select All Apps.
3. Check the box of the app you want to add.
u The app icon will be added on the home
screen.1To add app icons on the home screen
Pre-installed apps may not start up normally. If this
occurs, you need to reset the system.
2 Defaulting All the Settings P. 347
If you perform Factory Data Reset , it may reset all
the settings to their factory default. 2 Defaulting All the Settings P. 347
In case those apps still do not start up normally even
after Factory Data Reset , contact your dealer.
If a browser shuts down mi d-use, the screen will
return to the screen viewed prior to the browser
startup.
Check Box
All Apps

Icon
23 PASSPORT-31TGS6400.book 237 ページ ２０２２年８月５日　金曜日　午後９時２分

uuAudio System Basic Operation uAudio/Information Screen
238
Features

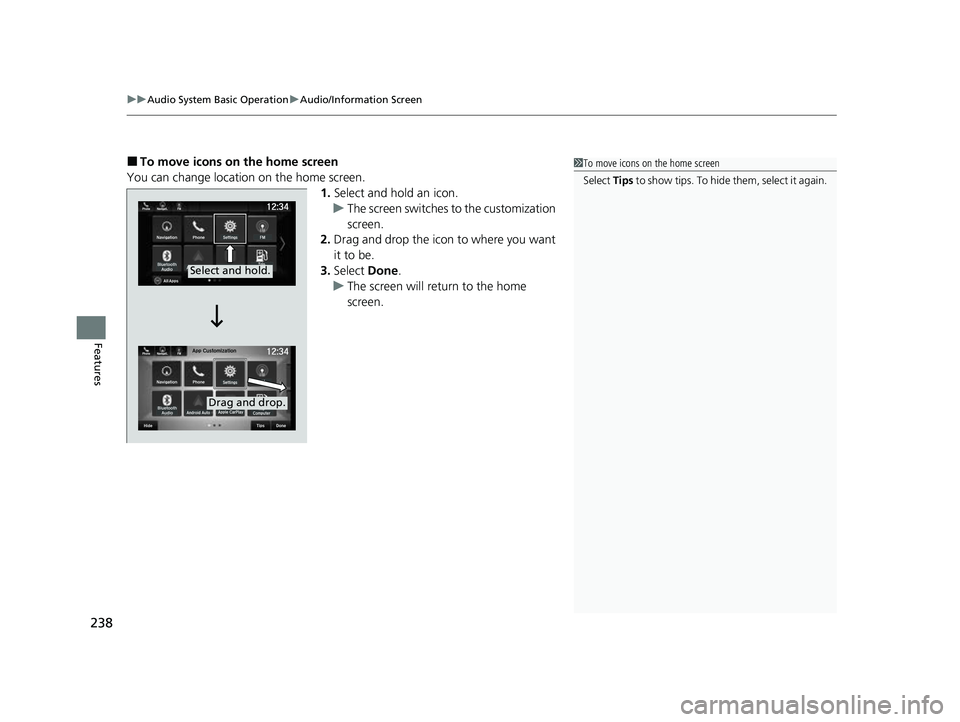

■To move icons on the home screen
You can change location on the home screen. 1.Select and hold an icon.
u The screen switches to the customization
screen.
2. Drag and drop the icon to where you want
it to be.
3. Select Done.
u The screen will return to the home
screen.1To move icons on the home screen
Select Tips to show tips. To hide t h em , s e le c t i t a g ai n .
Select and hold.
Drag and drop.
23 PASSPORT-31TGS6400.book 238 ページ ２０２２年８月５日　金曜日　午後９時２分

Continued239
uuAudio System Basic Operation uAudio/Information Screen
Features

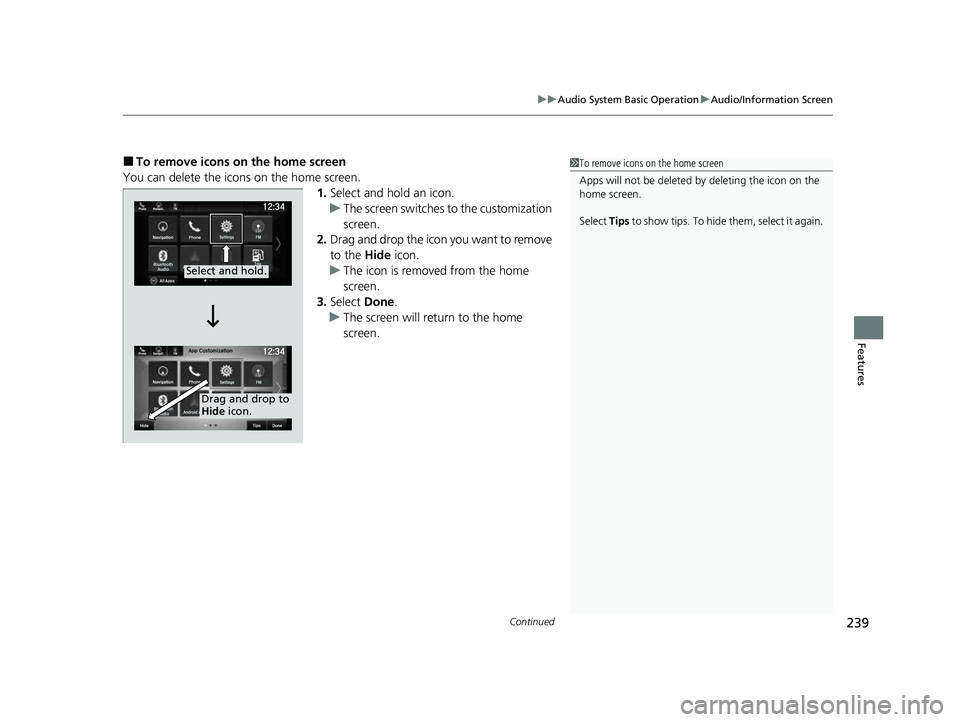

■To remove icons on the home screen
You can delete the icons on the home screen. 1.Select and hold an icon.
u The screen switches to the customization
screen.
2. Drag and drop the icon you want to remove
to the Hide icon.
u The icon is removed from the home
screen.
3. Select Done.
u The screen will return to the home
screen.1To remove icons on the home screen
Apps will not be deleted by deleting the icon on the
home screen.
Select Tips to show tips. To hide them, select it again.
Select and hold.
Drag and drop to
Hide icon.
23 PASSPORT-31TGS6400.book 239 ページ ２０２２年８月５日　金曜日　午後９時２分
