2023 HONDA PASSPORT Owners Manual

184
uuAdjusting the Seats uFront Seats
Controls

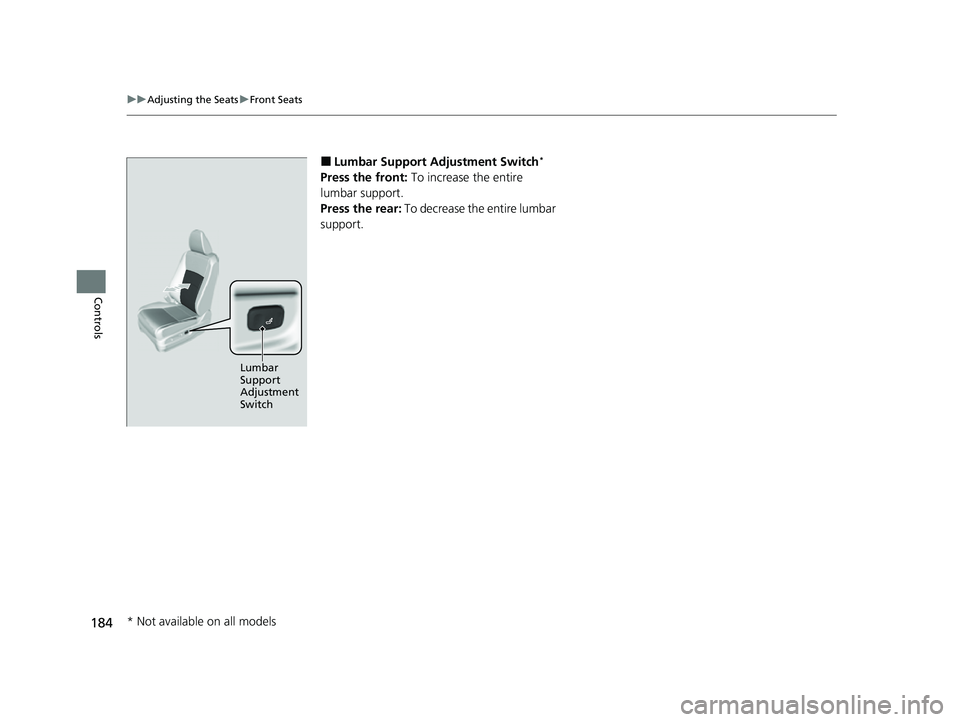

■Lumbar Support Adjustment Switch*
Press the front: To increase the entire
lumbar support.
Press the rear: To decrease the entire lumbar
support.
Lumbar
Support
Adjustment
Switch
* Not available on all models
23 PASSPORT-31TGS6400.book 184 ページ ２０２２年８月５日　金曜日　午後９時２分

Continued185
uuAdjusting the Seats uFront Seats
Controls
■Adjusting the front manual seats*1Adjusting the front manual seats*
Once a seat is adjusted co rrectly, rock it back and
forth to make sure it is locked in position.
Horizontal Position
Adjustment
Pull up on the bar to move the
seat, then release the bar.
Height Adjustment(Driver side only)
Pull up or push down the lever
to raise or lower the seat.
Seat-back Angle
Adjustment
Pull up the lever to
change the angle.
* Not available on all models
23 PASSPORT-31TGS6400.book 185 ページ ２０２２年８月５日　金曜日　午後９時２分

uuAdjusting the Seats uFront Seats
186
Controls

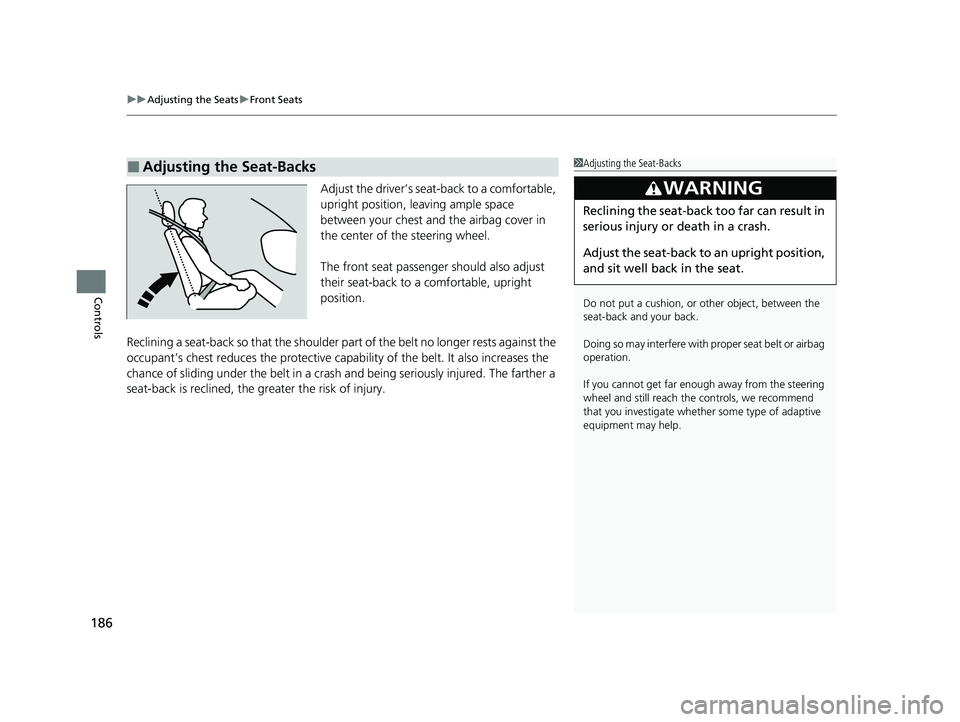

Adjust the driver’s seat-back to a comfortable,
upright position, leaving ample space
between your chest and the airbag cover in
the center of the steering wheel.
The front seat passenger should also adjust
their seat-back to a comfortable, upright
position.
Reclining a seat-back so that the shoulder part of the belt no longer rests against the
occupant’s chest reduces the protective capa bility of the belt. It also increases the
chance of sliding under the belt in a crash and being seriously injured. The farther a
seat-back is reclined, the greater the risk of injury.
■Adjusting the Seat-Backs1 Adjusting the Seat-Backs
Do not put a cushion, or other object, between the
seat-back and your back.
Doing so may interfere with proper seat belt or airbag
operation.
If you cannot get far e nough away from the steering
wheel and still reach th e controls, we recommend
that you investigate whether some type of adaptive
equipment may help.
3WARNING
Reclining the seat-back too far can result in
serious injury or death in a crash.
Adjust the seat-back to an upright position,
and sit well back in the seat.
23 PASSPORT-31TGS6400.book 186 ページ ２０２２年８月５日　金曜日　午後９時２分

187
uuAdjusting the Seats uRear Seats
Continued
Controls

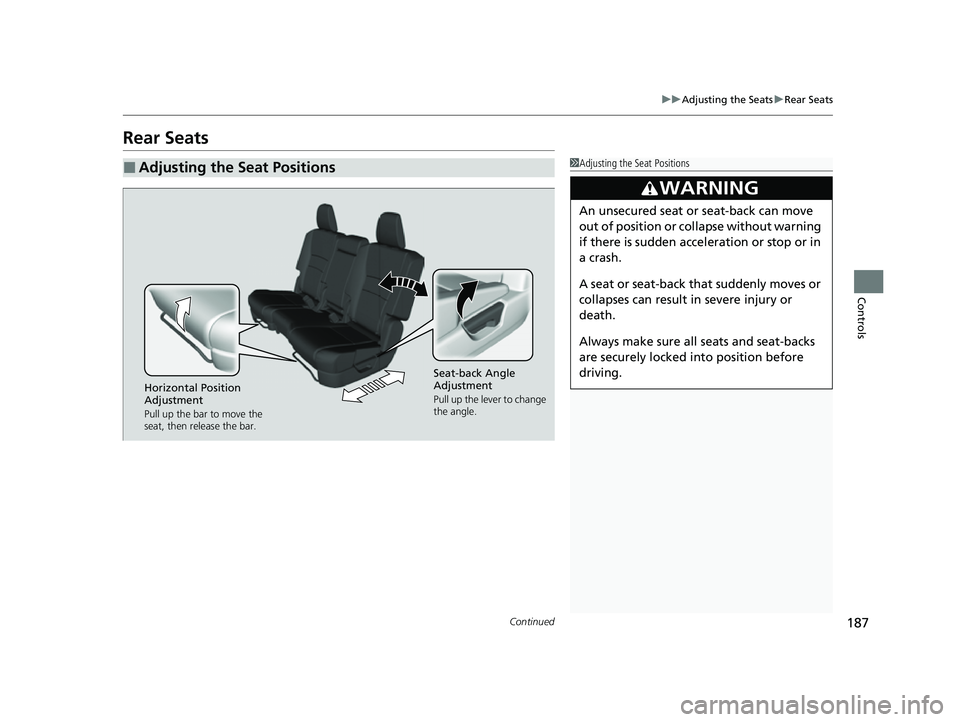

Rear Seats
■Adjusting the Seat Positions1Adjusting the Seat Positions
3WARNING
An unsecured seat or seat-back can move
out of position or collapse without warning
if there is sudden acce leration or stop or in
a crash.
A seat or seat-back that suddenly moves or
collapses can result in severe injury or
death.
Always make sure all seats and seat-backs
are securely locked in to position before
driving.
Seat-back Angle
Adjustment
Pull up the lever to change
the angle.Horizontal Position
Adjustment
Pull up the bar to move the
seat, then release the bar.
23 PASSPORT-31TGS6400.book 187 ページ ２０２２年８月５日　金曜日　午後９時２分

uuAdjusting the Seats uRear Seats
188
Controls

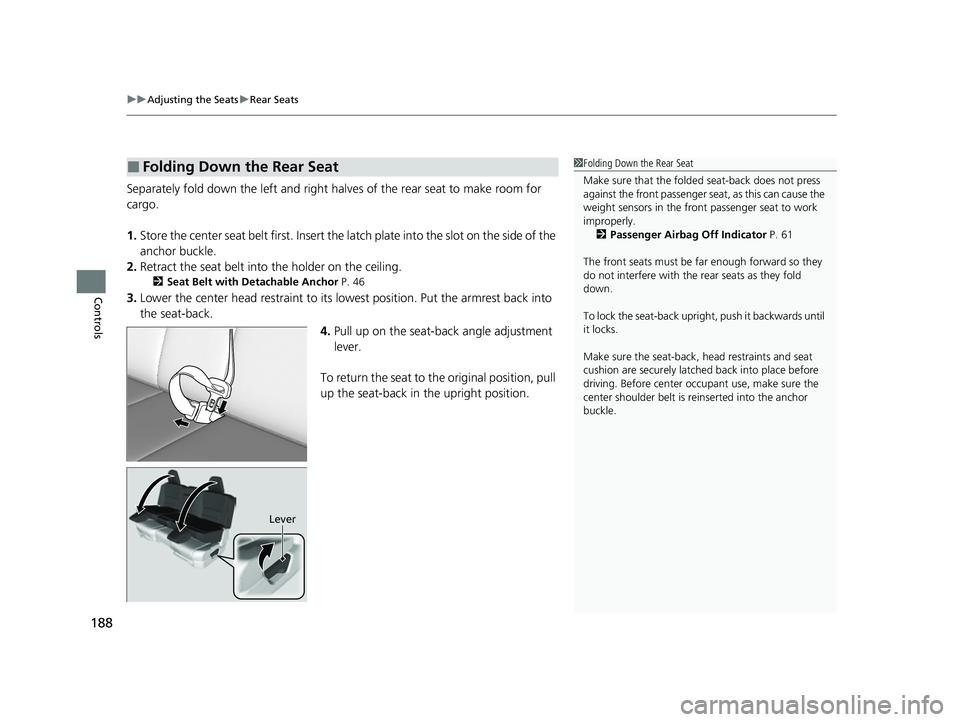

Separately fold down the left and right halv es of the rear seat to make room for
cargo.
1. Store the center seat belt first. Insert the la tch plate into the slot on the side of the
anchor buckle.
2. Retract the seat belt into the holder on the ceiling.
2 Seat Belt with Detachable Anchor P. 46
3.Lower the center head restraint to its lo west position. Put the armrest back into
the seat-back.
4.Pull up on the seat-back angle adjustment
lever.
To return the seat to th e original position, pull
up the seat-back in the upright position.
■Folding Down the Rear Seat1Folding Down the Rear Seat
Make sure that the folded seat-back does not press
against the front passenger seat, as this can cause the
weight sensors in the front passenger seat to work
improperly. 2 Passenger Airbag Off Indicator P. 61
The front seats must be far enough forward so they
do not interfere with the rear seats as they fold
down.
To lock the seat-back upri ght, push it backwards until
it locks.
Make sure the seat-back, head restraints and seat
cushion are securely latche d back into place before
driving. Before center occ upant use, make sure the
center shoulder belt is re inserted into the anchor
buckle.
Lever
23 PASSPORT-31TGS6400.book 188 ページ ２０２２年８月５日　金曜日　午後９時２分

189
uuAdjusting the Seats uRear Seats
Controls

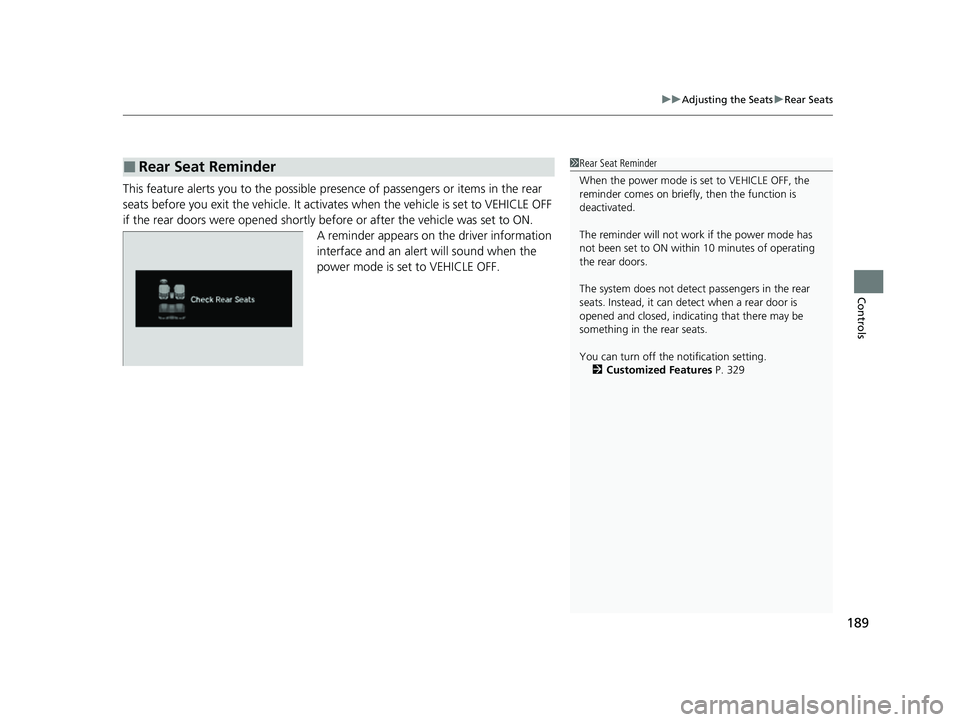

This feature alerts you to the possible pres ence of passengers or items in the rear
seats before you exit the vehicle. It activates when the vehicle is set to VEHICLE OFF
if the rear doors were opened shortly before or after the vehicle was set to ON. A reminder appears on the driver information
interface and an alert will sound when the
power mode is set to VEHICLE OFF.
■Rear Seat Reminder1Rear Seat Reminder
When the power mode is set to VEHICLE OFF, the
reminder comes on briefly, then the function is
deactivated.
The reminder will not work if the power mode has
not been set to ON within 10 minutes of operating
the rear doors.
The system does not detect passengers in the rear
seats. Instead, it can detect when a rear door is
opened and closed, indica ting that there may be
something in the rear seats.
You can turn off the notification setting. 2 Customized Features P. 329
23 PASSPORT-31TGS6400.book 189 ページ ２０２２年８月５日　金曜日　午後９時２分

190
uuAdjusting the Seats uHead Restraints
Controls

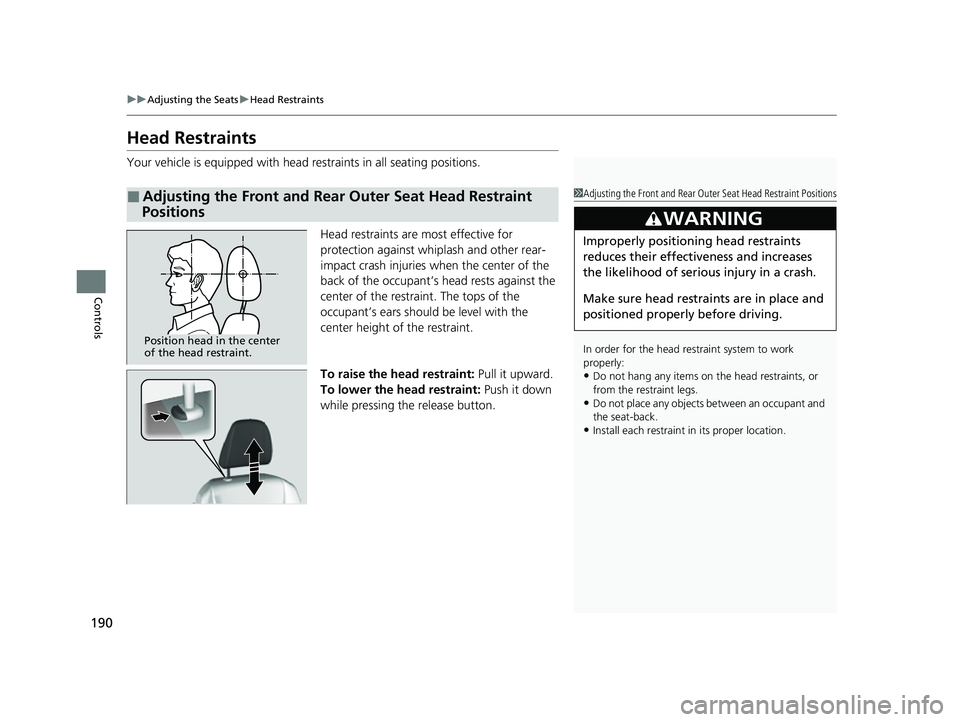

Head Restraints
Your vehicle is equipped with head restraints in all seating positions.
Head restraints are most effective for
protection against whiplash and other rear-
impact crash injuries when the center of the
back of the occupant’s head rests against the
center of the restraint. The tops of the
occupant’s ears should be level with the
center height of the restraint.
To raise the head restraint: Pull it upward.
To lower the head restraint: Push it down
while pressing the release button.
■Adjusting the Front and Rear Outer Seat Head Restraint
Positions1 Adjusting the Front and Rear Outer Seat Head Restraint Positions
In order for the head restraint system to work
properly:
•Do not hang any items on the head restraints, or
from the restraint legs.
•Do not place any objects between an occupant and
the seat-back.
•Install each restraint in its proper location.
3WARNING
Improperly positioning head restraints
reduces their effectiveness and increases
the likelihood of serious injury in a crash.
Make sure head restraints are in place and
positioned properly before driving.
Position head in the center
of the head restraint.
23 PASSPORT-31TGS6400.book 190 ページ ２０２２年８月５日　金曜日　午後９時２分

191
uuAdjusting the Seats uHead Restraints
Controls

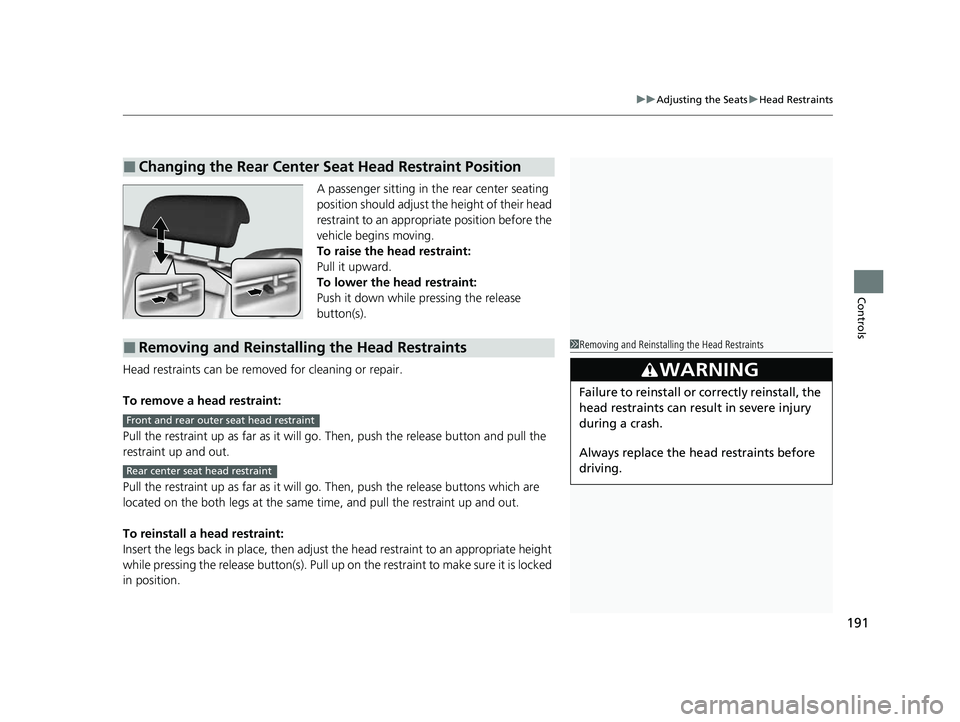

A passenger sitting in the rear center seating
position should adjust the height of their head
restraint to an appropriate position before the
vehicle begins moving.
To raise the head restraint:
Pull it upward.
To lower the head restraint:
Push it down while pressing the release
button(s).
Head restraints can be removed for cleaning or repair.
To remove a head restraint:
Pull the restraint up as far as it will go. Then, push the release button and pull the
restraint up and out.
Pull the restraint up as far as it will go . Then, push the release buttons which are
located on the both legs at the same time, and pull the restraint up and out.
To reinstall a head restraint:
Insert the legs back in place, then adjust the head restraint to an appropriate height
while pressing the release button (s). Pull up on the restraint to make sure it is locked
in position.
■Changing the Rear Center Seat Head Restraint Position
■Removing and Reinstalling the Head Restraints1 Removing and Reinstalling the Head Restraints
3WARNING
Failure to reinstall or correctly reinstall, the
head restraints can result in severe injury
during a crash.
Always replace the he ad restraints before
driving.
Front and rear outer seat head restraint
Rear center seat head restraint
23 PASSPORT-31TGS6400.book 191 ページ ２０２２年８月５日　金曜日　午後９時２分
