2023 HONDA PASSPORT Owners Manual

120
uuGauges and Displays uDriver Information Interface
Instrument Panel

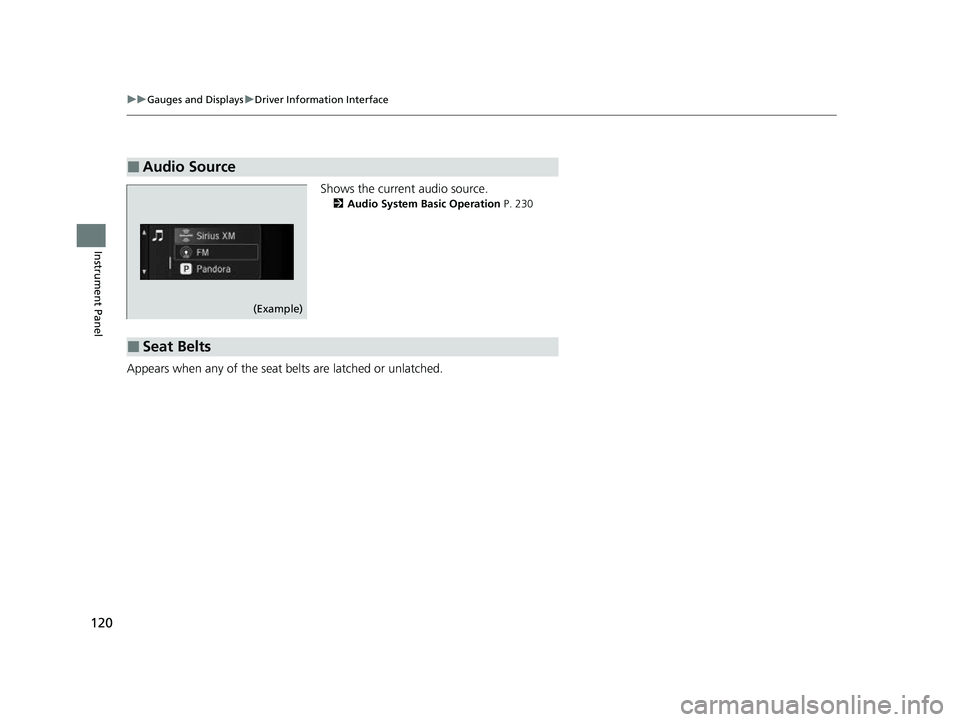

Shows the current audio source.
2 Audio System Basic Operation P. 230
Appears when any of the seat belts are latched or unlatched.
■Audio Source
(Example)
■Seat Belts
23 PASSPORT-31TGS6400.book 120 ページ ２０２２年８月５日　金曜日　午後９時２分

Continued121
uuGauges and Displays uDriver Information Interface
Instrument Panel

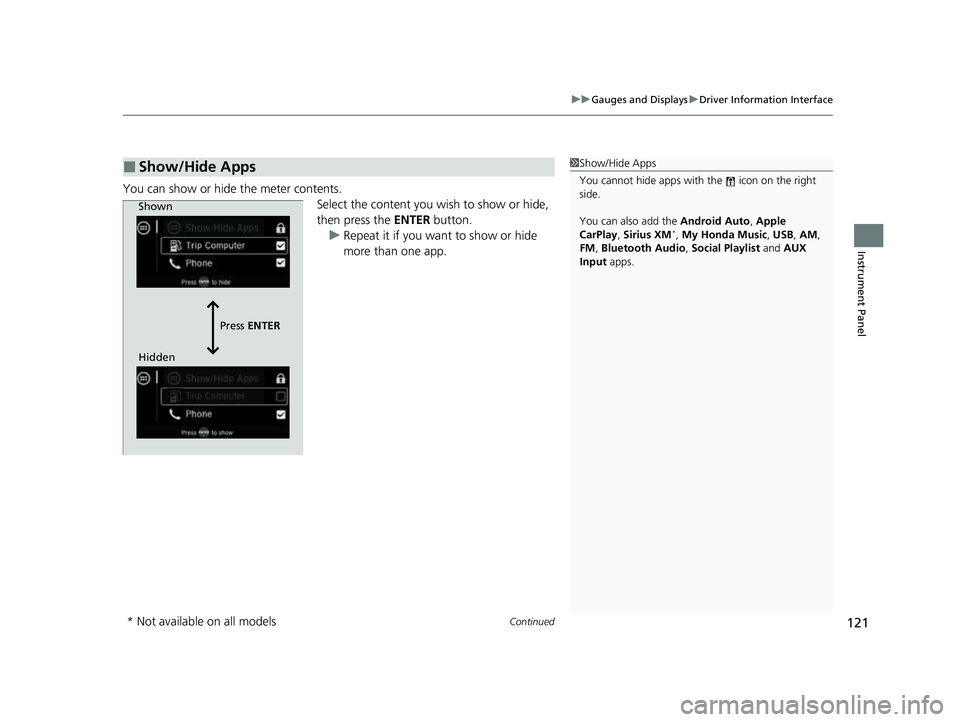

You can show or hide the meter contents.
Select the content you wish to show or hide,
then press the ENTER button.
u Repeat it if you want to show or hide
more than one app.
■Show/Hide Apps1Show/Hide Apps
You cannot hide apps with the icon on the right
side.
You can also add the Android Auto, Apple
CarPlay , Sirius XM
*, My Honda Music , USB , AM ,
FM , Bluetooth Audio , Social Playlist and AUX
Input apps.
Shown
Press ENTER
Hidden
* Not available on all models
23 PASSPORT-31TGS6400.book 121 ページ ２０２２年８月５日　金曜日　午後９時２分

122
uuGauges and Displays uDriver Information Interface
Instrument Panel

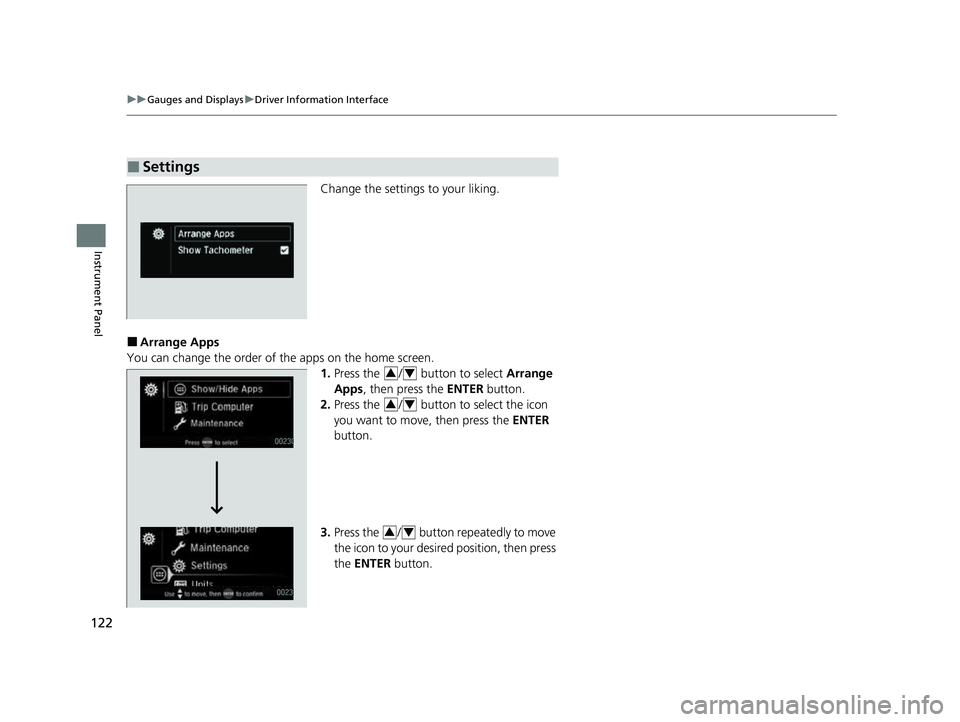

Change the settings to your liking.
■Arrange Apps
You can change the order of the apps on the home screen. 1.Press the / button to select Arrange
Apps , then press the ENTER button.
2. Press the / button to select the icon
you want to move, then press the ENTER
button.
3. Press the / button repeatedly to move
the icon to your desired position, then press
the ENTER button.
■Settings
34
34
34
23 PASSPORT-31TGS6400.book 122 ページ ２０２２年８月５日　金曜日　午後９時２分

123
uuGauges and Displays uDriver Information Interface
Instrument Panel

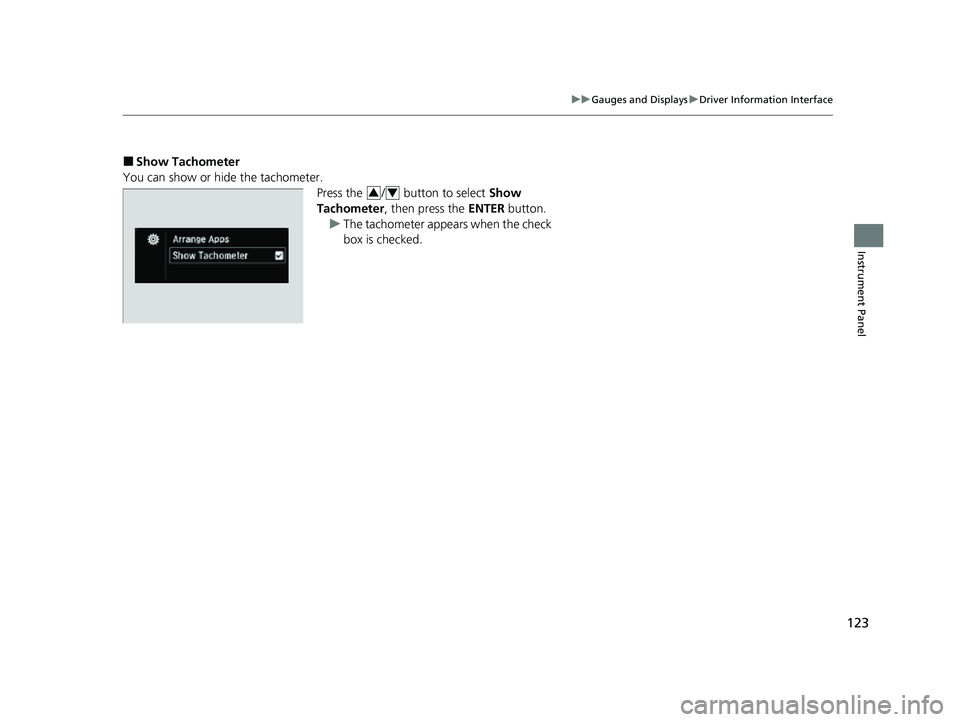

■Show Tachometer
You can show or hide the tachometer. Press the / button to select Show
Tachometer, then press the ENTER button.
u The tachometer appears when the check
box is checked.
34
23 PASSPORT-31TGS6400.book 123 ページ ２０２２年８月５日　金曜日　午後９時２分

124

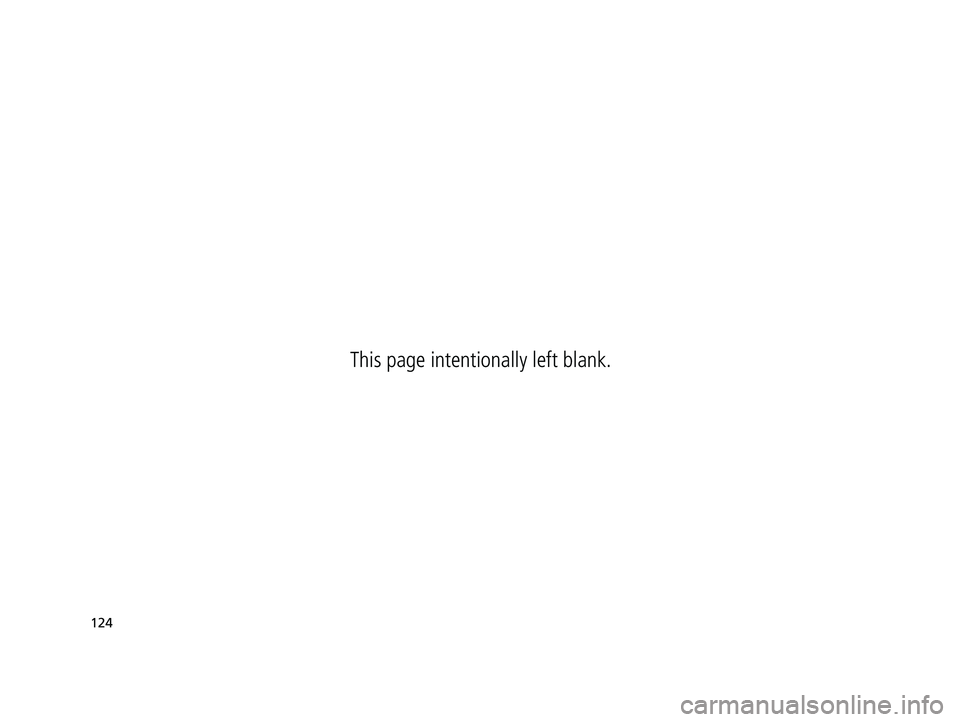

23 PASSPORT-31TGS6400.book 124 ページ ２０２２年８月５日　金曜日　午後９時２分This page intentionally left blank.

125
Controls
This chapter explains how to operate the various controls necessary for driving.
Clock.................................................. 126
Locking and Unlocking the Doors Key Types and Functions .................. 128
Low Keyless Remote Signal Strength .... 130Locking/Unlocking the Doors from the Outside .......................................... 131
Locking/Unlocking the Doors from the Inside ............................................. 139
Childproof Door Locks ..................... 141
Auto Door Locking/Unlocking .......... 142
Opening and Closing the Tailgate ... 143
Security System ................................ 153
Opening and Closing the Windows ..... 156
Moonroof*........................................ 159
Operating the Switches Around the Steering Wheel ENGINE START/STOP Button............. 160
Turn Signals ..................................... 163
Light Switches.................................. 164
Fog Lights
*...................................... 167
Daytime Running Lights ................... 168
Auto High-Beam .............................. 169
Wipers and Washers ........................ 172
Rear Defogger/Heat ed Door Mirror
*
Button ........................................... 175
Brightness Control ........................... 177
Driving Position Memory System
*.... 178 Adjusting the Steering Wheel .......... 180
Adjusting the Mirrors Interior Rearview Mirror ................... 181
Power Door Mirrors ......................... 182
Adjusting the Seats
Front Seats ...................................... 183
Rear Seats........................................ 187
Armrest ........................................... 193
Interior Lights/Interior Convenience
ItemsInterior Lights .................................. 194
Interior Convenience Items .............. 197
Climate Control System ................... 215
* Not available on all models
23 PASSPORT-31TGS6400.book 125 ページ ２０２２年８月５日　金曜日　午後９時２分

126
Controls

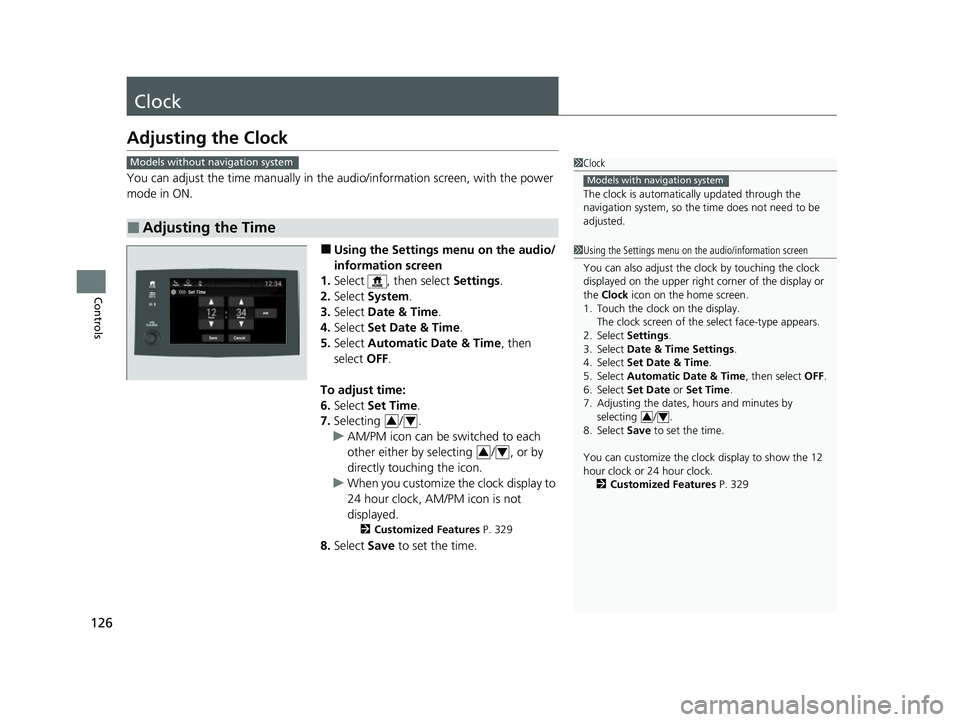

Clock
Adjusting the Clock
You can adjust the time manually in the audio/information screen, with the power
mode in ON.
■Using the Settings menu on the audio/
information screen
1. Select , then select Settings.
2. Select System .
3. Select Date & Time .
4. Select Set Date & Time .
5. Select Automatic Date & Time , then
select OFF.
To adjust time:
6. Select Set Time.
7. Selecting / .
u AM/PM icon can be switched to each
other either by selecting / , or by
directly touching the icon.
u When you customize the clock display to
24 hour clock, AM/PM icon is not
displayed.
2 Customized Features P. 329
8.Select Save to set the time.
■Adjusting the Time
1Clock
The clock is automatica lly updated through the
navigation system, so the ti me does not need to be
adjusted.
Models with navigation system
Models without navigation system
1 Using the Settings menu on the audio/information screen
You can also adjust the clock by touching the clock
displayed on the upper right corner of the display or
the Clock icon on the home screen.
1. Touch the clock on the display. The clock screen of the select face-type appears.
2. Select Settings .
3. Select Date & Time Settings .
4. Select Set Date & Time .
5. Select Automatic Date & Time , then select OFF.
6. Select Set Date or Set Time.
7. Adjusting the dates, hours and minutes by
selecting / .
8. Select Save to set the time.
You can customize the clock display to show the 12
hour clock or 24 hour clock. 2 Customized Features P. 329
3434
34
23 PASSPORT-31TGS6400.book 126 ページ ２０２２年８月５日　金曜日　午後９時２分

127
uuClock uAdjusting the Clock
Controls

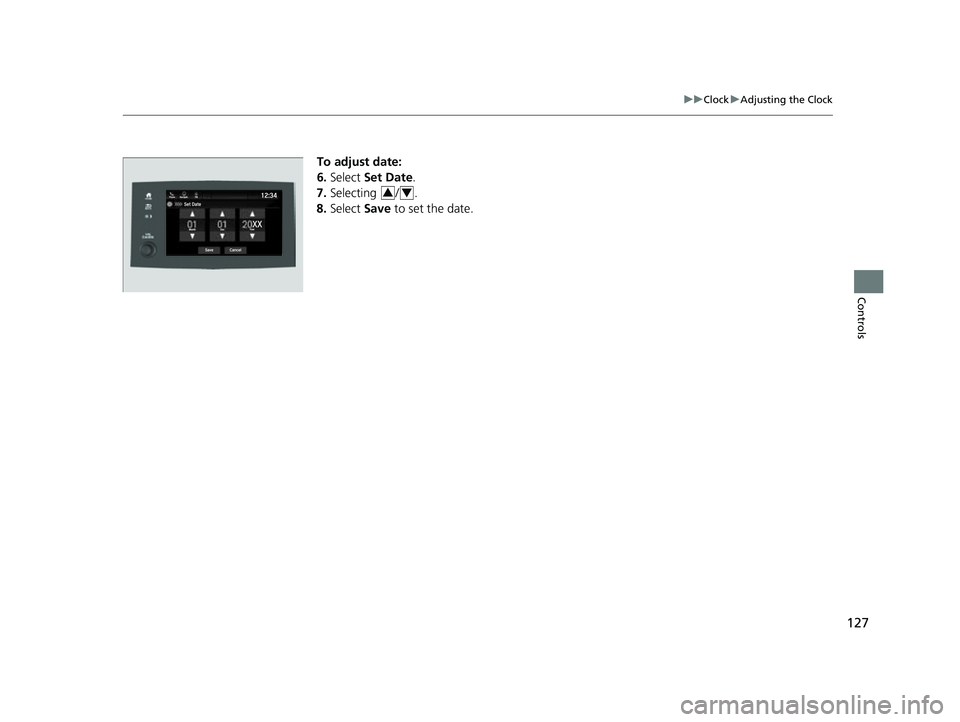

To adjust date:
6. Select Set Date.
7. Selecting / .
8. Select Save to set the date.
34
23 PASSPORT-31TGS6400.book 127 ページ ２０２２年８月５日　金曜日　午後９時２分
