2023 FORD MUSTANG MACH E Owners Manual

ACTIONMODEREDBLUEAMBER
power cord.Ensure the plugis not severelydegraded. If theerror persists,contact us.
No actionrequired.CHARGING;The mobilepower cord ischarging.
OFFPULSINGOFF
If you expect themobile powercord to be char-ging the vehicle,make sure thevehicle coupler
STANDBY;The mobilepower cord ispowered andready to charge.At the currenttime the mobilepower cord isnot charging thevehicle.
OFFONOFF
is properlyinserted into thevehicle. Checkand adjust yourcharging timepreferences inthe on screendisplay. If yourvehicle is stillnot charging,contact us.
Wait for themobile powercord to return tostandby. If themobile powercord cycles for
REBOOTING;The mobilepower cord isrecovering afterencountering anerror.
ONONON
more than 2-3minutes, unplugthe vehiclecoupler. Unplugand replug inthe connector. Ifthe issuepersists, contactus.
173
2023 Mustang Mach-E (CGW) Canada/United States of America, enUSA, Edition date: 202209, DOMCharging Your Vehicle

ACTIONMODEREDBLUEAMBER
Make sure theconnector andthe control boxare properlyconnected.Unplug and
CHARGINGREDUCED;The mobilepower cord ischarging at areduced ratedue to over-heating.
OFFPULSINGON
replug in theconnector. If themobile powercord is warm orin a hot environ-ment, try char-ging in a coolerarea. Try adifferent outlet.Try a differentconnector if youhave one avail-able. If the errorpersists, contactus.
Make sure theconnector andcontrol box areproperlyconnected.Unplug and
CHARGINGREDUCED, ACPLUG OR WALLOUTLET;The mobilepower cord ischarging at areduced ratedue to over-heating of theconnector or thewall outlet.
OFFPULSING1 FLASH
replug in theconnector. If themobile powercord is warm orin a hot environ-ment, try char-ging in a coolerarea. Try adifferent outlet.Try a differentconnector if youhave one avail-able. If the errorpersists, contactus.
174
2023 Mustang Mach-E (CGW) Canada/United States of America, enUSA, Edition date: 202209, DOMCharging Your Vehicle

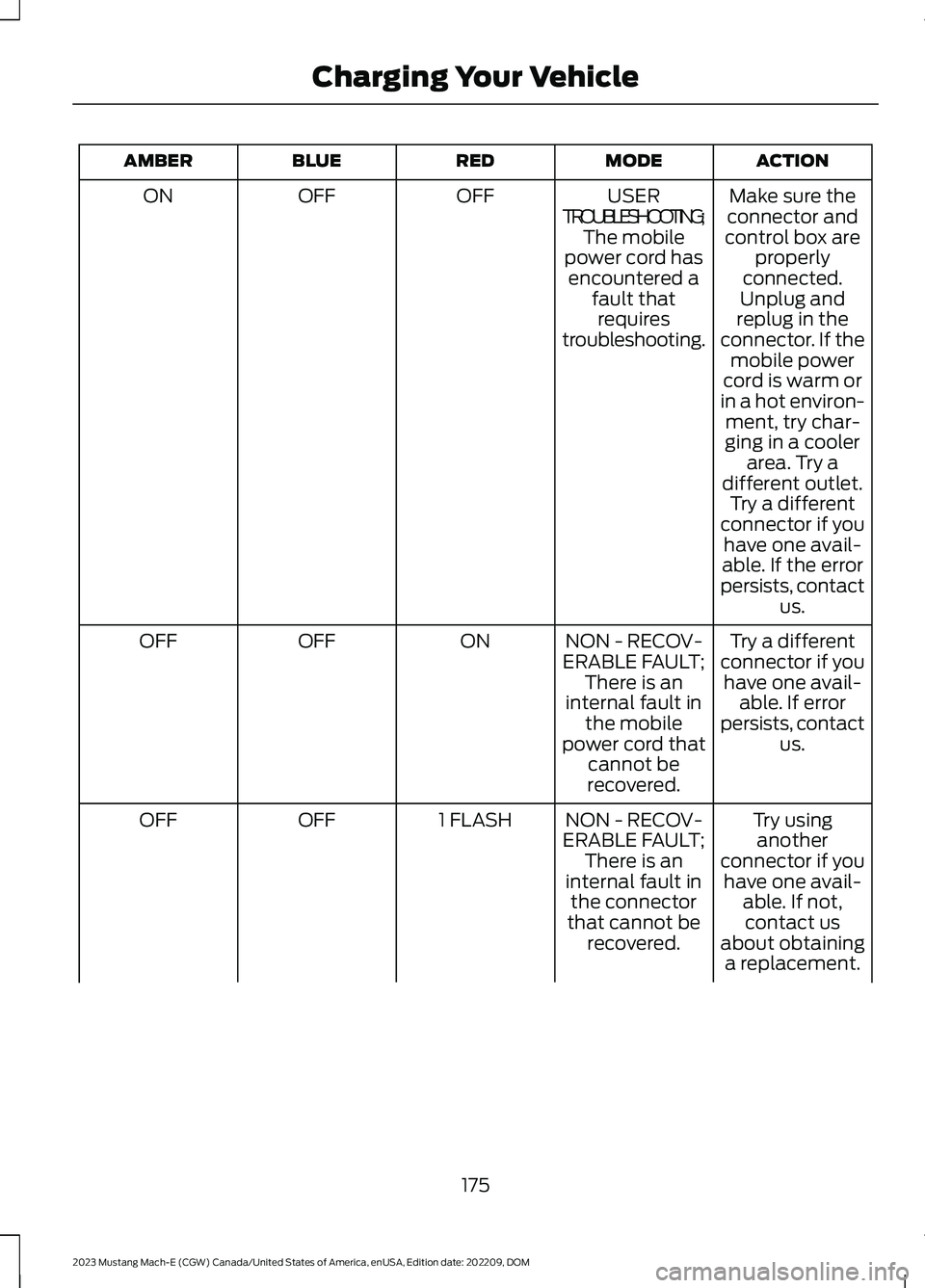

ACTIONMODEREDBLUEAMBER
Make sure theconnector andcontrol box areproperlyconnected.Unplug and
USERTROUBLESHOOTING;The mobilepower cord hasencountered afault thatrequirestroubleshooting.
OFFOFFON
replug in theconnector. If themobile powercord is warm orin a hot environ-ment, try char-ging in a coolerarea. Try adifferent outlet.Try a differentconnector if youhave one avail-able. If the errorpersists, contactus.
Try a differentconnector if youhave one avail-able. If errorpersists, contactus.
NON - RECOV-ERABLE FAULT;There is aninternal fault inthe mobilepower cord thatcannot berecovered.
ONOFFOFF
Try usinganotherconnector if youhave one avail-able. If not,contact us
NON - RECOV-ERABLE FAULT;There is aninternal fault inthe connectorthat cannot berecovered.
1 FLASHOFFOFF
about obtaininga replacement.
175
2023 Mustang Mach-E (CGW) Canada/United States of America, enUSA, Edition date: 202209, DOMCharging Your Vehicle

ACTIONMODEREDBLUEAMBER
If your warrantyhas expired, youcan order areplacementfrom your Forddealer.
Potential shockhazard - immedi-ately turn offcircuit breakerfor the outletwithin home.Discontinue use.Contact usabout obtaininga replacement.
GROUNDLEAKAGEFAULT;Electricalcurrent isleaking througha potentiallyunsafe path.
PULSINGOFFOFF
Note:When plugging into an unfamiliarwall outlet, let the vehicle charge for severalminutes before leaving it unattended. Thered indicator will illuminate if not charging.The unit will turn off if breaker orinfrastructure ground fault circuit interrupter(GFCI) is tripped. You can view vehiclecharging status remotely via the Ford PassApp.
Mobile Power Cord Auto-Restart
Auto-restart helps to make sure that yourvehicle will be charged and ready for usewhen needed. A charge could beinterrupted if errors are detected. Chargingresumes once the error is no longerdetected. The red indicator illuminatesduring an error condition.
The exception to the immediateauto-restart is when the interruption is dueto a charger ground fault circuit interrupter(GFCI) event. The charger attempts torestart 15 minutes after a ground faultcircuit interrupter (GFCI) event. After thefourth attempt to restart, the charger shutsdown and the red indicator stays on.
If the fault persists, do not continue to tryto charge your vehicle. Contact yourauthorized dealer.
MOVING AND STORAGEINSTRUCTIONS
Make sure you wrap the mobile power cordafter charging. Store the mobile powercord in the storage bag supplied with themobile power cord.
When charging is complete, replace themobile power cord in the rear luggagecompartment, under the load floor.
Note:Do not hold the mobile power cordby the power cable. Hold the complete unitand carefully place back in the storage bag.
Note:To remove the connector, firmlygrasp the connector by the cable or plugand pull away from the control box.
176
2023 Mustang Mach-E (CGW) Canada/United States of America, enUSA, Edition date: 202209, DOMCharging Your Vehicle

CARE INSTRUCTIONS
Do not use cleaners or solvents as thiscould damage your mobile power cord. Donot place stress on the charger cables. Ifunit overheats, remove the mobile powercord from direct sunlight.
SAFETY FEATURES
The charger includes the following safetyfeatures to protect against the risk ofelectric shock:
•Service Ground Check: The chargerconstantly checks for the presence ofa service ground connection. If theservice ground ever fails, the chargerred indicator turns ON and shuts downpower to the vehicle.
•Thermal Event Sensor: Charger modulesenses out-of-ordinary thermal eventsand decreases the charging current orshuts the unit down if required.
•Ground fault circuit interrupter (GFCI)Protection: The charger has a groundfault circuit interrupter (GFCI) reactionsystem to protect against electricshock. If the charger module detectsan output ground fault, it shuts downpower to the output cable andilluminates the red indicator.
•Insulation: The charger module,connector, cable assembly, and chargecoupler are completely insulated.There are no exposed live parts, toprotect against electric shock.
•Unintentional Disconnection: Thecharge coupler is designed to minimizeunintentional disconnection. A pilotsignal wire in the cable and chargecoupler eliminates the possibility ofelectric shock when not connected toa vehicle or if an unintended disconnectoccurs during a charge. Disconnectionduring charging is safe.
LOCATING THE CHARGE PORT
The charge port is between the frontleft-hand side door and front left-handwheel well. To open, press the centerright-hand edge of the charge port doorand then release.
Note: Do not apply excessive force. Forcingthe door open or closed damages the chargeport.
CHARGE PORT INDICATORS
The charge status indicator is next to thecharging port behind the charge port door.It indicates the charge status of the highvoltage battery in your vehicle.
Divided into five zones, the charge statusindicator displays the state of charge in 20percent increments.
The charge status indicator displays howfar along the charge is:
•When zone A is pulsing, the charge isbetween 0-20 percent.
•When zone A illuminates, and zone Bis pulsing, the charge is between 20-40percent.
•When zones A and B illuminate andzone C is pulsing, the charge is between40-60 percent.
177
2023 Mustang Mach-E (CGW) Canada/United States of America, enUSA, Edition date: 202209, DOMCharging Your VehicleE317346

•When zones A, B, and C illuminate, andzone D is pulsing, the charge is between60-80 percent.
•When zones A, B, C, and D illuminate,and zone E is pulsing, the charge isbetween 80-100 percent.
•When all zones illuminate, the chargeis 100 percent.
Note:When charging stops, the chargestatus indicator shows all the completedzones solidly illuminated in a blue color for30 seconds before turning off. For example,if charging stops at 70 percent, then A, B,and C light up solidly to indicate a batterycharge level of at least 60 percent but lessthan 80 percent. Charging stops whencomplete or when paused due to chargesettings or charge station actions.
Note:If the charge status indicator doesnot light up or pulse after plugging in, pleaseverify that the charge port light setting is On.If you do not wish to have the charge statusindicator light up at all while charging, thenyou can turn it Off. Locate the charge portlight under the vehicle settings on yourin-vehicle touchscreen.
There are three charge port indicator lightcolors, which indicate a specific action:
White is used as a courtesy light to helpwith plugging in and to acknowledgeactions such as plugging in and unplugging.
Blue is used when the vehicle is plugged inand either charging or waiting to charge.
Amber is used to indicate charge faults.
Note:Charging faults are identified by thecolor amber on the charge status indicator.Faults can occur within the vehicle chargingsystem or outside the vehicle, such as withthe mobile power cord, charge station orelectrical supply.
Note:If the system detects a fault in thevehicle charging system at any point in acharge cycle, the entire charge statusindicator illuminates solidly in an ambercolor for 30 seconds and then turns off. Ifthis happens, unplug the charge coupler andthen plug it back into the charge portreceptacle. If the problem persists, haveyour vehicle serviced as soon as possible.
Note:If the system detects a fault outsidethe vehicle, such as with the charge stationor mobile power cord, the entire chargestatus indicator flashes amber continuouslyfor 30 seconds and then turns off. If thishappens check the mobile power cord,charge station or electrical supply.
178
2023 Mustang Mach-E (CGW) Canada/United States of America, enUSA, Edition date: 202209, DOMCharging Your VehicleEDCABE317499 E306677

AC CHARGING
CONNECTING THE CHARGER
Charging Using the Mobile PowerCord
CAUTION: TO REDUCE THE RISK OFFIRE- The plug must be properlygrounded. Use a dedicated circuit. If youdo not use a dedicated circuit, the circuitbreaker could trip or open. If you do nothave a dedicated circuit, contact a licensedprofessional electrician for properinstallation.
To charge the high voltage battery:
You must unwrap the mobile power cordcompletely before charging.
1.Put the vehicle in park (P).
Note:Your vehicle must be in park (P) tocharge and for the charge status indicatorto illuminate.
2.Press the center right edge of thecharge port door and then release toopen the door.
3.Plug the connector into the control box.
Note:To insert the connector, firmly graspthe connector by the cable or plug and pushinto the control box until an audible click isheard. Make sure the connector is fullyinserted and flush with the control boxbefore inserting it into the outlet. Improperinsertion will cause a longer charge sessionor faults.
4.Plug the connector into the wall outlet.
5.Confirm that the mobile power cord'sindicators illuminate.
6.Plug the charge coupler into the chargeport receptacle on your vehicle.
Note:Make sure the button clicksconfirming that you have completelyengaged the coupler. When you plug in yourvehicle, it starts charging to 100% by defaultunless scheduled charging has been set upfor this location. See Setting the ChargingSchedule and Preferences (page 184).
Note:Plug the connector into the walloutlet before connecting the charge couplerto your vehicle's charge port.
Note:When the handle is properly engagedthe light ring illuminates. This indicates thebeginning of a normal charge cycle.
Note:There could be a delay in light ringillumination due to vehicle internalcommunications.
179
2023 Mustang Mach-E (CGW) Canada/United States of America, enUSA, Edition date: 202209, DOMCharging Your VehicleE306676 E335725 E329078

Note:If charging for your vehicle fails,please contact the Customer RelationshipCenter, or click on Live chat. To ensuresuperior service, please take note of yourserial number when contacting customersupport.
For more information, visitwww.owner.ford.com.
Charging At a Charge Station
1.Put your vehicle in park (P).
Note:Your vehicle must be in park (P) tocharge.
2.Press the center right hand edge of thecharge port door and then release toopen the door.
3.Select the appropriate charge stationcoupler.
4.Plug the charge coupler into the chargeport receptacle on your vehicle.
Note:Make sure the button clicksconfirming that you have completelyengaged the coupler. When you plug in yourvehicle, it starts charging to 100% by defaultunless scheduled charging has been set upfor this location. See Setting the ChargingSchedule and Preferences (page 184).
Note:When the handle is properly engagedthe light ring illuminates. This indicates thebeginning of a normal charge cycle.
Note:There could be a delay in light ringillumination due to vehicle internalcommunications.
Information about public charge stationsis available through the in-vehicle screenas well as the FordPass app with pricing,power levels, and real time availability.Rates for charging varies by power level,provider, location, and time of day.
When charging your vehicle at a BlueOvalCharging Network station, use theFordPass App to activate and pay forcharging. You can also just plug in toactivate charging at Plug & Charge capablestations. If the charging station is not in theBlueOval Charging Network, use thedirections on the charge station to activatethe charger.
For more information, visitwww.owner.ford.com.
180
2023 Mustang Mach-E (CGW) Canada/United States of America, enUSA, Edition date: 202209, DOMCharging Your VehicleE335725 E329078
