2023 FORD MUSTANG MACH E Owners Manual

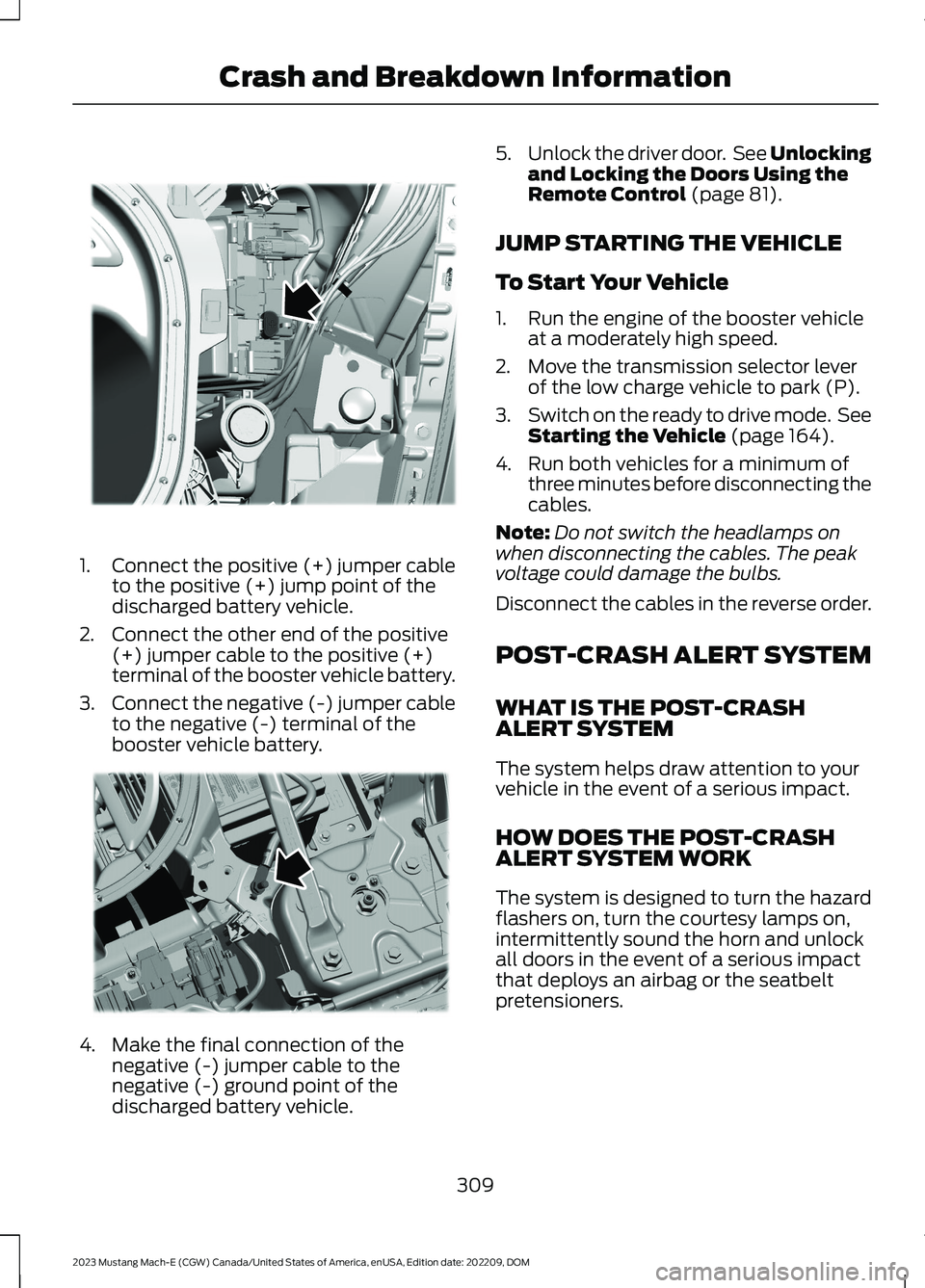

1.Connect the positive (+) jumper cableto the positive (+) jump point of thedischarged battery vehicle.
2.Connect the other end of the positive(+) jumper cable to the positive (+)terminal of the booster vehicle battery.
3.Connect the negative (-) jumper cableto the negative (-) terminal of thebooster vehicle battery.
4.Make the final connection of thenegative (-) jumper cable to thenegative (-) ground point of thedischarged battery vehicle.
5.Unlock the driver door. See Unlockingand Locking the Doors Using theRemote Control (page 81).
JUMP STARTING THE VEHICLE
To Start Your Vehicle
1.Run the engine of the booster vehicleat a moderately high speed.
2.Move the transmission selector leverof the low charge vehicle to park (P).
3.Switch on the ready to drive mode. SeeStarting the Vehicle (page 164).
4.Run both vehicles for a minimum ofthree minutes before disconnecting thecables.
Note:Do not switch the headlamps onwhen disconnecting the cables. The peakvoltage could damage the bulbs.
Disconnect the cables in the reverse order.
POST-CRASH ALERT SYSTEM
WHAT IS THE POST-CRASHALERT SYSTEM
The system helps draw attention to yourvehicle in the event of a serious impact.
HOW DOES THE POST-CRASHALERT SYSTEM WORK
The system is designed to turn the hazardflashers on, turn the courtesy lamps on,intermittently sound the horn and unlockall doors in the event of a serious impactthat deploys an airbag or the seatbeltpretensioners.
309
2023 Mustang Mach-E (CGW) Canada/United States of America, enUSA, Edition date: 202209, DOMCrash and Breakdown InformationE338767 E338540

POST-CRASH ALERT SYSTEMLIMITATIONS
Depending on applicable laws in thecountry your vehicle was built for, the horndoes not sound in the event of a seriousimpact.
SWITCHING THE POST-CRASHALERT SYSTEM OFF
Press the hazard flasher switch, the unlockbutton on the remote control, the panicbutton on the remote control or cycle theignition to switch the system off.
Note:The alert turns off when the vehiclebattery runs out of charge.
POST-COLLISION BRAKING
How Does Post-Collision BrakingWork
In the event of a moderate to severe crash,the braking system reduces the vehicle’sspeed to prevent or reduce the impact ofa potential secondary crash.
Post-Collision Braking Limitations
Post-collision braking does not activate ifany of the following occur:
•The anti-lock braking system isdamaged during the collision.
•Electronic stability control is disabled.
Overriding Post-Collision Braking
You can override post-collision braking bypressing the brake or accelerator pedal.
Post-Collision Braking Indicators
It flashes when a post-collisionbraking event is occurring.
AUTOMATIC CRASH SHUTOFF
WHAT IS AUTOMATIC CRASHSHUTOFF
The system deactivates the high voltagesystem if it is a battery or hybrid-electricvehicle, in the event of a moderate orsevere crash.
RE-ENABLING YOUR VEHICLE
1.Switch your vehicle off.
2.Attempt to start your vehicle.
3.Switch your vehicle off.
4.Attempt to start your vehicle.
Note:If your vehicle does not start after thethird attempt, have your vehicle checked assoon as possible.
310
2023 Mustang Mach-E (CGW) Canada/United States of America, enUSA, Edition date: 202209, DOMCrash and Breakdown InformationE138639

TRANSPORTING THE VEHICLE
If you need to have your vehicle towed,contact a professional towing service oryour roadside assistance service provider.
We recommend the use of a wheel lift anddollies or flatbed equipment to tow yourvehicle. Do not tow with a slingbelt. We donot approve a slingbelt towing procedure.Vehicle damage may occur if towedincorrectly, or by any other means.
Your manufacturer produces a towingmanual for all authorized tow truckoperators. Have your tow truck operatorrefer to this manual for proper hook-upand towing procedures.
Towing your vehicle requires that allwheels be off the ground. This preventsdamage to the mechanical systems andvehicle.
When using wheel lift equipment to towthe vehicle from the front, place the rearwheels on a tow dolly.
When using wheel lift equipment to towthe vehicle from the rear, place the frontwheels on a tow dolly.
311
2023 Mustang Mach-E (CGW) Canada/United States of America, enUSA, Edition date: 202209, DOMCrash and Breakdown InformationE143886

TOWING YOUR VEHICLE
PRECAUTIONS
Use the following guidelines when towingyour vehicle. Failure to follow thisinstruction could result in vehicle damagenot covered by the vehicle warranty.
Note:Make sure you properly secure yourvehicle to the tow vehicle.
Note:If you are unsure of the vehicle’sconfiguration, contact an authorized dealer.
RECREATIONALLY TOWING
YOUR VEHICLE
You cannot recreational tow your vehiclewith all wheels on the ground becausevehicle or electric drive motor damagecould occur. You must recreational towyour vehicle with all four wheels off theground, such as when using a car-haulingtrailer. Otherwise, you cannot recreationaltow your vehicle.
EMERGENCY TOWING
If your vehicle becomes inoperable withoutaccess to wheel dollies or a vehicletransport trailer, it can be flat-towed withall wheels on the ground, regardless of thedrivetrain, under the following conditions:
•Your vehicle is facing forward fortowing in a forward direction.
•You switch Emergency Tow on.
•Maximum speed is 35 mph (55 km/h).
•Maximum distance is 50 mi (80 km).
Switching Emergency Tow On
1.Properly secure your vehicle to the towvehicle.
2.Switch your vehicle on to accessorymode. See Starting and PoweringOff (page 164).
3.Apply the parking brake.
4.
Press the button on thetouchscreen.
5.Press Vehicle.
6.Press and hold Emergency Tow until aconfirmation message appears on thetouchscreen.
7.Press and hold the brake pedal.
8.Shift into neutral (N).
Note:A confirmation message appears inthe instrument cluster display.
9.Release the parking brake.
10.Switch your vehicle off.
Switching Emergency Tow Off
1.Switch your vehicle on.
2.Press and hold the brake pedal.
3.Shift into park (P). A message displaysin the instrument cluster display andpark (P) displays in the instrumentcluster display and on the shifter.
312
2023 Mustang Mach-E (CGW) Canada/United States of America, enUSA, Edition date: 202209, DOMTowing Your VehicleE386797

TOWING YOUR VEHICLE – TROUBLESHOOTING
TOWING YOUR VEHICLE – INFORMATION MESSAGES
DescriptionMessage
Displays to remind you to release the parking brake to emer-gency tow your vehicle.Neutral Tow RemovePark Brake for Towing
Displays when emergency tow is off.Neutral Tow Disengaged
Displays to remind you to switch off the vehicle to emergencytow your vehicle.Neutral Tow EngagedTurn Ignition Off forTowing
Displays to remind you that emergency towing is active. Toexit emergency towing, shift to park (P).Neutral tow engagedDepress Brake and SelectPark to Exit Neutral Tow
Note:You cannot recreationally tow your vehicle. You can only emergency tow your vehicle.
313
2023 Mustang Mach-E (CGW) Canada/United States of America, enUSA, Edition date: 202209, DOMTowing Your Vehicle

FUSE PRECAUTIONS
WARNING: Always disconnect thebattery before servicing high currentfuses.
WARNING: To reduce risk ofelectrical shock, always replace thecover to the power distribution boxbefore reconnecting the battery orrefilling fluid reservoirs.
WARNING: Always replace a fusewith one that has the specifiedamperage rating. Using a fuse with ahigher amperage rating can cause severewire damage and could start a fire.
UNDER HOOD FUSE BOX
LOCATING THE UNDER HOODFUSE BOX
ACCESSING THE UNDER HOODFUSE BOX
1.Remove the luggage compartmentcover. See Installing and Removingthe Luggage Compartment Cover(page 297).
2.Pull the latch toward you and removethe top cover.
3.Pull the connector lever upward.
4.Pull the connector upward to removeit.
5.Pull both latches toward you andremove the fuse box.
314
2023 Mustang Mach-E (CGW) Canada/United States of America, enUSA, Edition date: 202209, DOMFusesE329073 E253688 E329079 E253693

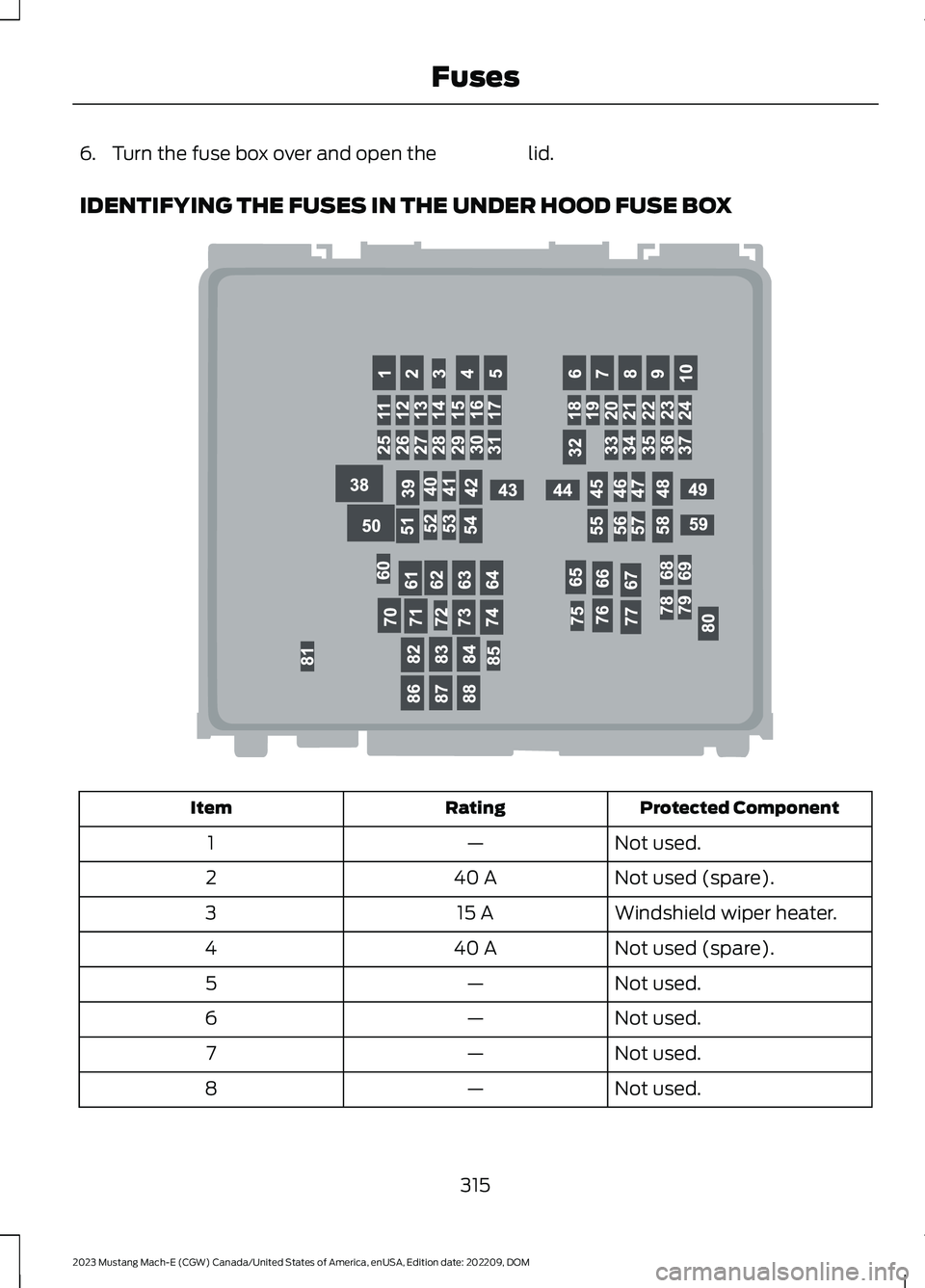

6.Turn the fuse box over and open thelid.
IDENTIFYING THE FUSES IN THE UNDER HOOD FUSE BOX
Protected ComponentRatingItem
Not used.—1
Not used (spare).40 A2
Windshield wiper heater.15 A3
Not used (spare).40 A4
Not used.—5
Not used.—6
Not used.—7
Not used.—8
315
2023 Mustang Mach-E (CGW) Canada/United States of America, enUSA, Edition date: 202209, DOMFuses E292669

Protected ComponentRatingItem
Not used.—9
Not used.—10
Powertrain control module.15 A11
Not used.—12
A/C electric compressor.15 A13Active grille shutter.Powertrain control moduleheater cooling pump.Powertrain control moduleheater shut off valve.
Secondary drive unit trans-mission oil pump (GT).15 A14
Not used.—15
Battery charge controlmodule.10 A16
Not used.—17
Powertrain control module.10 A18
Brake system controlmodule.10 A19
Charge port status indicator.5 A20
Frunk actuator relay coil.5 A21
Amplifier.20 A22
Rear driver side electronicdoor.20 A23
Not used.—24
Left-hand enhanced head-lamps.25 A25
Right-hand enhanced head-lamps.25 A26
Keep alive power.5 A27
Frunk actuator relay coil.5 A28
316
