2022 TOYOTA GR86 Owners Manual (in English)

311
6
6-3. Do-it-yourself maintenance
Maintenance and care
come into contact with the disc wheel.
Tapered portion
Disc wheel
3 Lower the vehicle.
4 Firmly tighten each wheel nut
two or three times in the order
shown in the illustration.
Tightening torque:
120 N•m (12.2 kgf•m, 89 ft•lbf)
5 Stow the jack and all tools.
A
WA R N I N G
■When installing the tire
Failure to follow these precautions
could cause the wheel nuts to loosen and the tire to fall off, resulting in
death or serious injury.
●Never use oil or grease on the
wheel bolts or wheel nuts.
Oil and grease may cause the wheel
nuts to be excessively tightened, leading to bolt or disc wheel damage.
In addition, the oil or grease can
cause the wheel nuts to loosen and the wheel may fall off, causing a seri-
ous accident. Remove any oil or
grease from the wheel bolts or wheel nuts.
●Have the wheel nuts tightened with a torque wrench to 120 N•m (12.2
kgf•m, 89 ft•lbf) as soon as possible
after changing wheels.
●Do not attach a heavily damaged
wheel ornament, as it may fly off the wheel while the vehicle is moving.
●When installing a tire, only use wheel nuts that have been specifi-
cally designed for that wheel.
●If there are any cracks or deforma-
tions in the bolt screws, nut threads
or bolt holes of the wheel, have the vehicle inspected by any authorized
Toyota retailer or Toyota authorized
repairer, or any reliable repairer.

3126-3. Do-it-yourself maintenance
■Effects of incorrect tire inflation
pressure
Driving with incorrect tire inflation pres-
sure may result in the following:
●Reduced fuel economy
●Reduced driving comfort and poor handling
●Reduced tire life due to wear
●Reduced safety
●Damage to the drivetrain
If a tire needs frequent inflating, have it
checked by any authorized Toyota retailer or Toyota authorized repairer, or
any reliable repairer.
■Instructions for checking tire infla-
tion pressure
When checking tire inflation pressure, observe the following:
●Check only when the tires are cold.If your vehicle has been parked for at
least 3 hours or has not been driven
for more than 1.5 km or 1 mile, you will get an accurate cold tire inflation
pressure reading.
●Always use a tire pressure gauge.
It is difficult to judge if a tire is properly
inflated based only on its appearance.
●It is normal for the tire inflation pres-
sure to be higher after driving as heat is generated in the tire. Do not reduce
tire inflation pressure after driving.
●Passengers and luggage weight
should be placed so that the vehicle is
balanced.Tire inflation pressure
Make sure to maintain proper
tire inflation pressure. Tire
inflation pressure should be
checked at least once per
month. However, Toyota rec-
ommends that tire inflation
pressure be checked once
every two weeks.
WA R N I N G
■Proper inflation is critical to save
tire performance
Keep your tires properly inflated. If the tires are not properly inflated,
the following conditions may occur
which could lead to an accident
resulting in death or serious injury:
●Excessive wear
●Uneven wear
●Poor handling
●Possibility of blowouts resulting
from overheated tires
●Air leaking from between tire and
wheel
●Wheel deformation and/or tire dam-
age
●Greater possibility of tire damage
while driving (due to road hazards, expansion joints, sharp edges in the
road, etc.)
NOTICE
■When inspecting and adjusting tire inflation pressure
Be sure to put the tire valve caps back
on. If a valve cap is not installed, dirt or
moisture may get into the valve and
cause an air leak, resulting in decreased tire inflation pressure.

313
6
6-3. Do-it-yourself maintenance
Maintenance and care
When replacing wheels, care
should be taken to ensure that they
are equivalent to those removed in
load capacity, diameter, rim width
and inset*.
Replacement wheels are available
at any authorized Toyota retailer or
Toyota authorized repairer, or any
reliable repairer.
*: Conventionally referred to as offset.
Toyota does not recommend using
the following:
 Wheels of different sizes or types
 Used wheels
 Bent wheels that have been
straightened
■When replacing wheels
The wheels of your vehicle are equipped with tire pressure warning valves and
transmitters that allow the tire pressure
warning system to provide advance warning in the event of a loss in tire
inflation pressure. Whenever wheels are
replaced, tire pressure warning valves and transmitters mu st be installed.
( P.304)
Wheels
If a wheel is bent, cracked or
heavily corroded, it should be
replaced. Otherwise, the tire
may separate from the wheel
or cause a loss of handling
control.
Wheel selection
WA R N I N G
■When replacing wheels
●Do not use wheels that are a differ-
ent size from those recommended in the Owner’s Manual, as this may
result in a loss of handling control.
●Never use an inner tube in a leak-
ing wheel which is designed for a
tubeless tire. Doing so may result in
an accident, causing death or seri- ous injury.
■When installing the wheel nuts
Never use oil or grease on the wheel
bolts or wheel nuts. Oil and grease
may cause the wheel nuts to be excessively tightened, leading to bolt
or disc wheel damage. In addition, the
oil or grease can cause the wheel nuts to loosen and the wheel may fall
off, causing an accident and resulting
in death or serious injury. Remove any oil or grease from the wheel bolts
or wheel nuts.
■Use of defective wheels prohib-
ited
Do not use cracked or deformed wheels. Doing so could cause the tire
to leak air during driving, possibly
causing an accident.
NOTICE
■Replacing tire pressure warning
valves and transmitters
●Because tire repair or replacement may affect the tire pressure warning
valves and transmitters, make sure
to have tires serviced by any authorized Toyota retailer or Toyota
authorized repairer, or any reliable
repairer or other qualified service shop. In addition, make sure to pur-
chase your tire pressure warning
valves and transmitters at any authorized Toyota retailer or Toyota
authorized repairer, or any reliable
repairer.

3146-3. Do-it-yourself maintenance
Use only Toyota wheel nuts and
wrenches designed for use with
your aluminum wheels.
 When rotating, repairing or
changing your tires, check that
the wheel nuts ar e still tight after
driving 1600 km (1000 miles).
 Be careful not to damage the
aluminum wheels when using
tire chains.
 Use only Toyota genuine balance
weights or equivalent and a plas-
tic or rubber hammer when bal-
ancing your wheels.
1 Turn the engine switch off.
2 Open the glove box. Slide off
the damper.
Left-hand drive vehicles
Right-hand drive vehicles
3 Push in each side of the glove
box and pull the glove box
toward you to disconnect the
claws.
NOTICE
●Ensure that only genuine Toyota
wheels are used on your vehicle.
Tire pressure warning valves and transmitters may not work properly
with non-genuine wheels.
Aluminum wheel precau-
tions
Air conditioning filter
The air conditioning filter must
be changed regularly to main-
tain air conditioning efficiency.
Removing the air condition-
ing filter

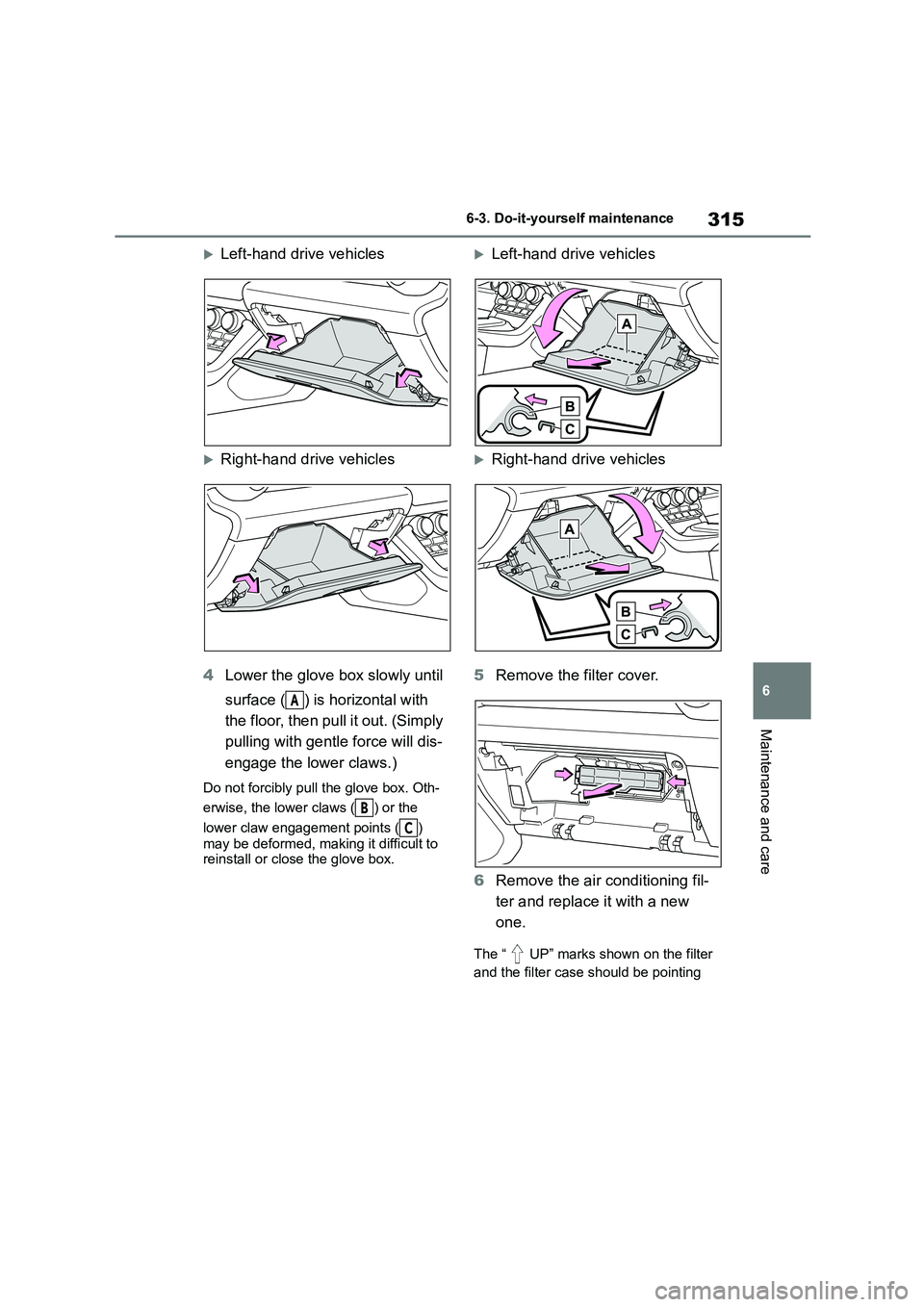

315
6
6-3. Do-it-yourself maintenance
Maintenance and care
Left-hand drive vehicles
Right-hand drive vehicles
4 Lower the glove box slowly until
surface ( ) is horizontal with
the floor, then pull it out. (Simply
pulling with gentle force will dis-
engage the lower claws.)
Do not forcibly pull the glove box. Oth-
erwise, the lower claws ( ) or the
lower claw engagement points ( )
may be deformed, making it difficult to
reinstall or close the glove box.
Left-hand drive vehicles
Right-hand drive vehicles
5 Remove the filter cover.
6 Remove the air conditioning fil-
ter and replace it with a new
one.
The “ UP” marks shown on the filter
and the filter case should be pointing
A
B
C

3166-3. Do-it-yourself maintenance
up.
7 When installing, reverse the
steps listed.
■Checking interval
Inspect and replace the air conditioning
filter according to the maintenance schedule. In dusty areas or areas with
heavy traffic flow, early replacement
may be required. (For scheduled main- tenance information, please refer to the
“Toyota Service Booklet” or “Toyota War-
ranty Booklet”.)
■If air flow from the vents decreases dramatically
The filter may be clogged. Check the fil-
ter and replace if necessary.
■If the electronic key battery is
depleted
The following symptoms may occur:
●The smart entry & start system and wireless remote control will not func-
tion properly.
●The operational range will be reduced.
 Flathead screwdriver
 Lithium battery CR2032
■Use a CR2032 lithium battery
●Batteries can be purchased at any
authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer, local electrical appliance
shops or camera stores.
●Replace only with the same or equiva-
lent type recommended by the manu- facturer.
●Dispose of used batteries according to local laws.
NOTICE
■When removing the glove box
Do not forcibly pull the glove box.
Otherwise, the lower claws or the
lower claw engagement points may be deformed, making it difficult to
reinstall or close the glove box.
■When using the air conditioning
system
Make sure that a filter is always installed.
Using the air conditioning system
without a filter may cause damage to the system.
Electronic key batter y
Replace the battery with a new
one if it is depleted.
As the key may be damaged if
the following procedure is not
performed properly, it is rec-
ommended that key battery
replacement be performed by
any authorized Toyota retailer
or Toyota authorized repairer,
or any reliable repairer.
Items to prepare

317
6
6-3. Do-it-yourself maintenance
Maintenance and care
1 Take out the mechanical key.
2 Insert the tip of a flathead
screwdriver into the groove ( )
and remove the cover.
To prevent damage to the key, cover
the tip of the flathead screwdriver with a rag.
3 Remove the depleted battery.
To prevent damage to the key, cover the tip of the flathead screwdriver with a
rag.
4 Install a new battery with the “+”
terminal facing up, as shown in
the illustration.
5 Align the protruding part with the
slot and install the cover.
Replacing the battery
A
WA R N I N G
■Battery precautions
Observe the following precautions. Failure to do so may result in death or
serious injury.
●Do not swallow the battery. Doing
so may cause chemical burns.
●A coin battery or button battery is
used in the electronic key. If a bat-
tery is swallowed, it may cause severe chemical burns in as little as
2 hours and may result in death or
serious injury.
●Keep away new and removed bat-
teries from children.

3186-3. Do-it-yourself maintenance
WA R N I N G
●If the cover cannot be firmly closed,
stop using the electronic key and
stow the key in the place where children cannot reach, and then
contact any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repairer.
●If you accidentally swallow a battery
or put a battery into a part of your body, get emergency medical atten-
tion immediately.
■To prevent battery explosion or
leakage of flammable liquid or
gas
●Replace the battery with a new bat-
tery of the same type. If a wrong
type of battery is used, it may explode.
●Do not expose batteries to extremely low pressure due to high
altitude or extremely high tempera-
tures.
●Do not burn, break or cut a battery.
■Lithium battery precautions
●CAUTION
RISK OF EXPLOSION IF BAT- TERY IS REPLACED BY AN
INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUC-
TIONS
●Batteries shall not be exposed to
excessive heat such as sunshine,
fire or the like.
NOTICE
■For normal operation after replacing the battery
Observe the following precautions to
prevent accidents:
●Always work with dry hands. Moisture may cause the battery to
rust.
●Do not touch or move any other
component inside the remote con-
trol.
●Do not bend either of the battery
terminals.
