2020 MITSUBISHI ASX Owner's Manual (in English)

“Child-protection” reardoors
1- Lock
2- Unlock
Child protection helps prevent the rear doors
from being opened accidentally from the in- side.
If the lever is set to the locked position, the
rear door cannot be opened using the inside handle, but only with the outside handle.
If the lever is set to the “Unlock” position,
the child protection mechanism does not
function.
CAUT,ONz When driving with a child in the rear seat,
please use the child protection to prevent ac-
cidental door opening which may cause an accident.Tailgate:ARN,NGz The luggage compartment was not de-
signed for people to ride in it. Do not let passengers ride in or let children play in
the luggage compartment. Riding or play- ing in the luggage compartment could re-
sult in a serious accident.
z It is dangerous to drive with the tailgate
open, since carbon monoxide (CO) gas
contained in engine exhaust gases can en-
ter the cabin.
You cannot see or smell CO. It can cause
unconsciousness and even death.
In addition, if the tailgate opens when driving, luggage could fall onto the road
and cause an accident.
z When opening and closing the tailgate,
make sure that there are no people nearby and that there is sufficient space behind
and above the vehicle. In addition, be
careful not to hit your head or pinch your hands, neck, etc.
z When there is a build up of snow or ice, it
should be removed before opening the tailgate. If you open the tailgate without removing it, there is a possibility that the
tailgate may close suddenly due to the weight of that snow or ice.:ARN,NGz When you open the tailgate make sure
that the tailgate is opened fully and re- mains fully open. If you only open the tail-
gate halfway there is a risk that the tail- gate may drop and slam shut. If you open
the tailgate while your vehicle is parked on an incline it is more difficult to do so
than on the flat and also it may drop and slam shut.CAUT,ONz Do not stand behind the exhaust pipe when
loading and unloading luggage. The heat
from the exhaust could lead to burns.
z To avoid damage to the tailgate, make sure
the area above and behind the tailgate is
clear before opening it.NOTEz Locking/unlocking with the central door
lock switch, the keyless entry system, or the
keyless operation function also locks/ unlocks the tailgate.
“Child-protection” rear doors
3-312*$(20(1Locking and unlocking3

To open
After unlocking, press the tailgate OPENswitch (A) and lift the tailgate.
NOTEz If you do not open the tailgate immediately
after pressing the tailgate OPEN switch, thetailgate can not be lifted. If this happens, press the tailgate OPEN switch again and lift
the tailgate.
z The tailgate cannot be opened when the bat-
tery is flat or disconnected.To close
Pull the tailgate grip (A) downward as illus-
trated. Gently push the upper gate from the
outside with enough force so that it is com-
pletely closed. Always ensure the tailgate is securely closed.
CAUT,ONz Do not close the tailgate completely by hold-
ing the tailgate grip (A). Your hand or arm
could be pinched and personal injury could result.NOTEz Gas struts (B) are installed to support the
tailgate.NOTE
To prevent damage or faulty operation.

The tailgate release lever (see illustration) ismounted on the tailgate.
You and your family should familiarize your-
selves with the location and operation of the tailgate release lever.
To open
1. Insert a straight blade (or minus) screw-
driver into the notch of the lid (A) and
pry gently to open the lid.
2. Move the lever (B) to open the tailgate.
3. Push out on the tailgate to open it.
:ARN,NGz Always keep the lid (A) on the tailgate
closed when driving so that your luggage
cannot accidentally bump the lever (B)
and open the tailgate.Security alarm system*
The security alarm system is for alerting the
surrounding area of suspicious behaviour to
prevent unlawful entry into the vehicle by op-
erating an alarm if a door, the tailgate or the bonnet is opened when the vehicle has not
been unlocked using the keyless entry system or the keyless operation function.
Also, the alarm will be activated if any of the
following occur.
z Attempt to an unlawful moving of the
vehicle (the vehicle inclination detection
function)
z Detection of a motion in the vehicle (the
interior intrusion detection function)
z Disconnect the battery terminal.
The security alarm system is set to “active”.
When making changes to the settings, please follow the procedure listed in the section ti-
tled “Changing the security alarm settings”
on page 3-35.CAUT,ONz Do not modify or add parts to the security
alarm system.
Doing so could cause the security alarm to malfunction.NOTEz The alarm system will not be activated if the
doors and the tailgate have been locked us-ing a key, the inside lock knob or the central
door lock switch (instead of the keyless en- try system or the keyless operation func-
tion).
Security alarm system*
3-332*$(20(1Locking and unlocking3

NOTEzIf the turn-signal lamps do not blink after the
locking and unlocking operation using thekeyless entry system or the keyless operation
function, the security alarm system may be malfunctioning.
Have the vehicle inspected at a
MITSUBISHI MOTORS Authorized Serv-
ice Point.
If the confirmation function (blinking of the
turn-signal lamps by locking and unlocking
the doors and the tailgate) is deactivated, the turn-signal lamps do not blink after the lock- ing and unlocking operation.
For information on the confirmation func- tion, refer to “Keyless entry system” on pa-
ges 3-04, 3-22 and “To operate using the
keyless operation function” on page 3-11.
z The security alarm system could be activated
in the following situations.

Alarm activation
The turn-signal lamps blink and the siren
sounds for approximately 30 seconds.
Refer to “Alarm activation” on page 3-39.
NOTEz The alarm will resume if unlawful actions
are taken again, even if the alarm has stop-
ped.
System cancellation
It is possible to cancel the system activation
during the system preparation mode or the
system armed mode.
In addition, it is possible to cancel the alarm once it has been activated.
Refer to “Cancelling the system” on page
3-38, “Cancelling the alarm” on page 3-40.
NOTEz When lending the vehicle to another person
or allowing the vehicle to be driven bysomeone who is unfamiliar with the securityalarm system, be sure to give the person a
proper explanation of the security alarm sys- tem.
If a person who is unfamiliar with the securi-
ty alarm system accidentally unlocked the vehicle, causing the alarm to sound, the
alarm would be a nuisance to people nearby.Changing the security alarm
settings
It is possible to set the security alarm to the “active” mode or “inactive” mode.
Follow the procedure below.
1. Except for vehicles equipped with the
keyless operation system, remove the key from the ignition switch. For vehi-
cles equipped with the keyless operation
system, put the operation mode in OFF.
2. Place the lamp switch in the “AUTO”
position, and leave the driver

4.After approximately 10 seconds, the
buzzer will make a sound. Keep the windscreen wiper and washer switch
pulled towards you. (If the windscreen
wiper and washer switch was released,
the setting change mode would be can-
celled. To start over, perform the proce- dure again from step 3.)
5. When the buzzer stops, with the wind-
screen wiper and washer switch stillpulled towards you, press the UNLOCK
switch (A) on the remote control switch to select the security alarm settings
mode.Vehicles equipped with the keyless operation system
The settings mode can be toggled by
pressing the UNLOCK switch. The mode can be confirmed from the numberof times the buzzer sounds.
Number of
times the buzzer
sounds
Security alarm settings mode
1Alarm inactive2Alarm active
6.Any of the following operations can be
used to terminate the system settings change mode.

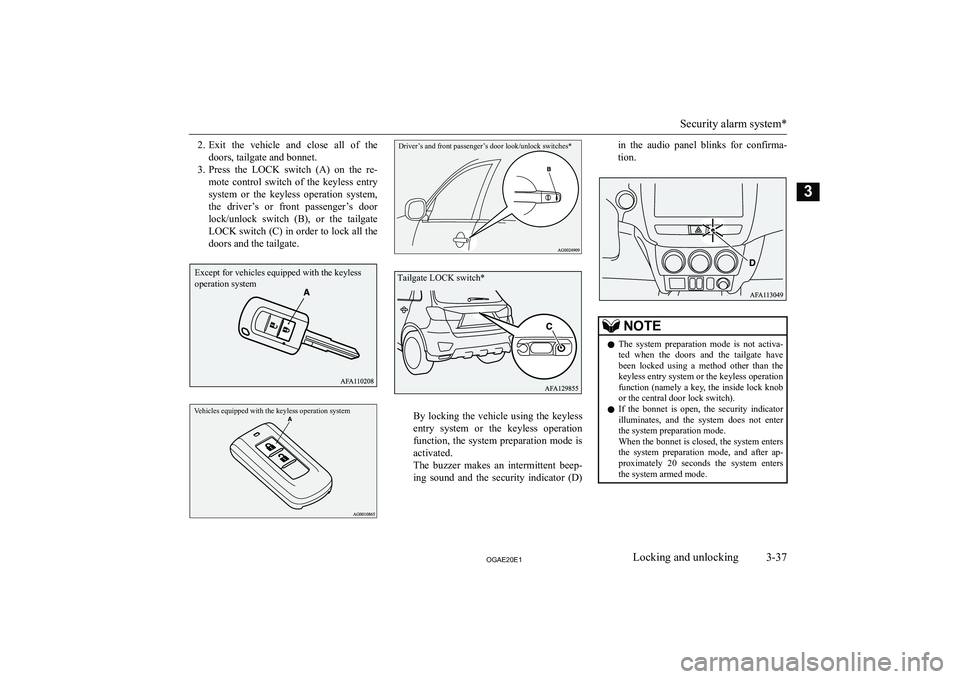

2.Exit the vehicle and close all of the
doors, tailgate and bonnet.
3. Press the LOCK switch (A) on the re-
mote control switch of the keyless entry
system or the keyless operation system, the driver

4.After approximately 20 seconds, the
buzzer stops, and when the blinking of the security indicator starts to slow
down, the system armed mode goes into effect.
The security indicator continues to blink
during the system armed mode.NOTEz The security alarm system can be activated
when people are riding inside the vehicle or when the windows are open. To prevent ac-cidental activation of the alarm, do not set
the system to the system armed mode while people are riding in the vehicle.
z Avoid leaving valuable items inside the ve-
hicle even when the security alarm system
has been set to the “active” mode.To deactivate the vehicle incli-
nation detection function and the interior intrusion detectionfunction
The vehicle inclination detection function
and the interior intrusion detection function can be deactivated when parking in automa-
ted car parks, when leaving pets in the vehi-
cle or when leaving the vehicle with the win- dows slightly open.
1. Except for vehicles equipped with the
keyless operation system, remove the key from the ignition switch. For vehi-
cles equipped with the keyless operation
system, put the operation mode in OFF.
2. Raise and hold the wiper and washer
switch to the “MIST” position for ap- proximately 3 seconds. The buzzer will
sound twice and the function will be de-
activated.
To activate the function again, raise and hold the wiper and washer switch to the “MIST”
position for approximately 3 seconds. The buzzer will sound once and the function will be activated.
NOTEz The function will be activated again if the
following operation is performed.
