2020 MITSUBISHI ASX Owner's Manual (in English)

Fuses
Fuse block location
To prevent damage to the electrical system
due to short-circuiting or overloading, each individual circuit is provided with a fuse.There are fuse blocks in the passenger com-
partment and in the engine compartment.
Passenger compartment (LHD
vehicles)
The fuse blocks in the passenger compart-
ment are located behind the fuse lid in front of the driver

Main fuse block
1. Open the glove box.
2.Move the rod (A) on the left side of the
glove box to the left side of the box.
3. While pressing the side of the glove box,
unhook the left and right hooks (B) and lower the glove box.
4. Remove the glove box fastener, and then
remove the glove box.
Sub fuse block
1. Remove the cover from the bottom of
the glove box.Fuses
10-182*$(20(1Maintenance10

Engine compartment
In the engine compartment, the fuse blocksare located as shown in the illustration. While
pressing the tab (C), pull up the cover.
A- Main fuse block B- Sub fuse block*
Fuse load capacity
The fuse capacity and the names of electricalsystems protected by the fuses are indicated
on the inside of the fuse lid (LHD vehicles), the inside of the glove box (RHD vehicles)
and inside of the fuse block cover (inside of the engine compartment).
Passenger compartment fuse lo-
cation tableNOTEz Spare fuses are provided on the lid of the
fuse block in the engine compartment. Al-
ways use a fuse of the same capacity for re- placement.Passenger compartment fuse location (LHD)Main fuse blockSub fuse blockPassenger compartment fuse location (RHD)Sub fuse blockMain fuse block
No.Sym-
bolElectrical sys- temCa-
pacity1Heater30 A *12Stop lamps
(Brake lamps)15 A3Rear fog lamp10 A *2*1
: Fusible link
*2 : Even if your vehicle is equipped with the
rear fog lamp, the fuse of the rear fog lamp
may not be installed on your vehicle.
Fuses
10-192*$(20(1Maintenance10

No.Sym-bolElectrical sys- temCa-
pacity4Windscreen wip-
ers30 A5Option10 A6Door locks20 A7Radio15 A8Control unit re-
lay7.5 A9Interior lamps
(Room lamps)15 A10Hazard warning
flasher15 A11Rear window
wiper15 A12Instruments7.5 A13
Cigarette lighter/
Accessory sock-
et
15 A14Ignition switch10 A15Sunroof20 A*1 : Fusible link
*2 : Even if your vehicle is equipped with the
rear fog lamp, the fuse of the rear fog lamp
may not be installed on your vehicle.No.Sym- bolElectrical sys- temCa-
pacity16Outside rear-
view mirrors10 A174-wheel drive
system10 A18Reversing lamps
(Backup lamps)7.5 A19Accessory sock-
et15 A20Electric window
control30 A *121Rear window
demister30 A *122Heated door
mirror7.5 A23Passenger

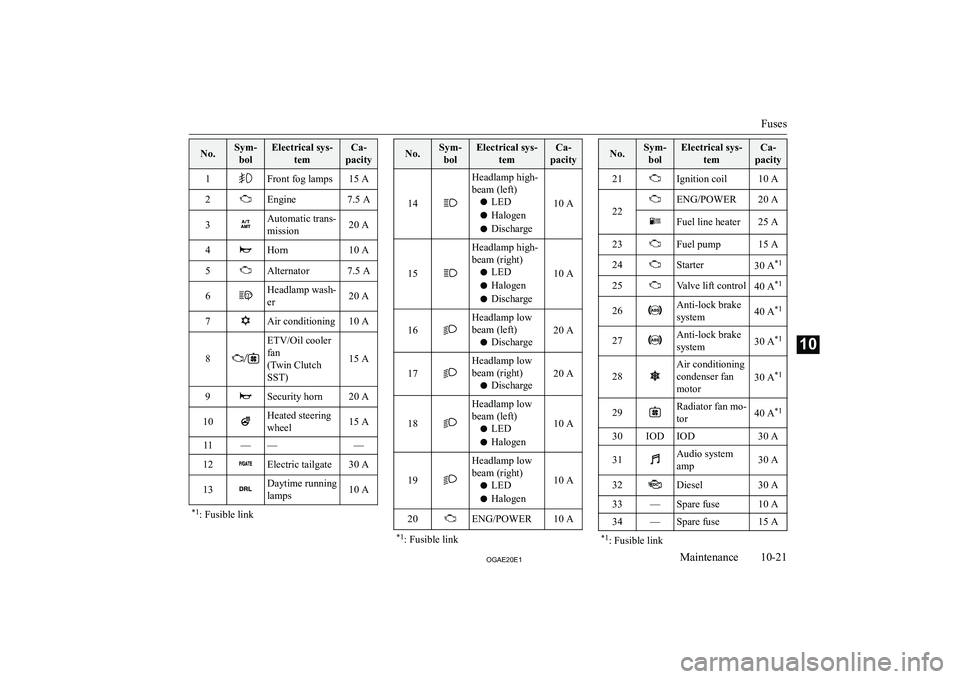

No.Sym-bolElectrical sys- temCa-
pacity1Front fog lamps15 A2Engine7.5 A3Automatic trans-
mission20 A4Horn10 A5Alternator7.5 A6Headlamp wash-
er20 A7Air conditioning10 A
8
ETV/Oil cooler
fan
(Twin Clutch
SST)
15 A
9Security horn20 A10Heated steering
wheel15 A11———12Electric tailgate30 A13Daytime running
lamps10 A*1 : Fusible linkNo.Sym-
bolElectrical sys- temCa-
pacity
14
Headlamp high-
beam (left)
z LED
z Halogen
z Discharge
10 A15
Headlamp high-
beam (right)
z LED
z Halogen
z Discharge
10 A
16
Headlamp low
beam (left)
z Discharge
20 A17
Headlamp low
beam (right)
z Discharge
20 A18
Headlamp low
beam (left)
z LED
z Halogen
10 A19
Headlamp low
beam (right)
z LED
z Halogen
10 A
20ENG/POWER10 A*1
: Fusible linkNo.Sym-
bolElectrical sys- temCa-
pacity21Ignition coil10 A
22
ENG/POWER20 AFuel line heater25 A23Fuel pump15 A24Starter30 A *125Valve lift control40 A*126Anti-lock brake
system40 A *127Anti-lock brake
system30 A *128
Air conditioning
condenser fan
motor
30 A *129Radiator fan mo-
tor40 A *130IODIOD30 A31Audio system
amp30 A32Diesel30 A33—Spare fuse10 A34—Spare fuse15 A*1 : Fusible link
Fuses
10-212*$(20(1Maintenance10

No.Sym-bolElectrical sys- temCa-
pacity35—Spare fuse20 A*1 : Fusible linkNo.Sym-
bolElectrical sys- temCa-
pacity1Battery current
sensor7.5 A
z Some fuses may not be installed on your
vehicle, depending on the vehicle model
or specifications.
z The table above shows the main equip-
ment corresponding to each fuse.
The fuse box does not contain spare 7.5 A ,
25 A or 30 A fuses. If one of these fuses burns out, substitute with the following fuse.7.5 A: 10 A spare fuse
25 A: 20 A spare fuse
30 A: 30 A audio system amp fuse
When using a substitute fuse, replace with a
fuse of the correct capacity as soon as possi- ble.
Identification of fuseCapacityColour7.5 ABrown10 ARed15 ABlue20 AYellow25 ANatural (White)30 AGreen (fuse type)/Pink (fusible link type)40 AGreen (fusible link type)Fuse replacement
1. Before replacing a fuse, always turn off
the electrical circuit concerned and turn
the ignition switch to the “LOCK” posi-
tion or put the operation mode in OFF.
2. Remove the fuse puller (A) from the in-
side of the fuse box in the engine com-
partment.
3. Referring to the fuse load capacity table,
check the fuse pertaining to the problem.
B- Fuse is OK
C- Blown fuse
Fuses
10-222*$(20(1Maintenance10Sub fuse block*

NOTEzIf any system does not function but the fuse
corresponding to that system is normal, theremay be a fault in the system elsewhere. We
recommend you to have your vehicle checked.
4. Use the fuse puller to insert a new fuse
with the same capacity. Make sure you
insert the fuse into the same location in
the fuse block.
CAUT,ONz If the newly inserted fuse blows again after a
short time, we recommend you to have the electrical system checked to find the causeand rectify it.
z Never use a fuse with a larger capacity than
specified or a substitute (such as a cable or foil). Doing so could cause the circuit wires
to overheat and create a fire.Replacement of lamp bulbs
Before replacing a bulb, ensure the lamp is off. Do not touch the glass part of the newbulb with your bare fingers; the skin oil left
on the glass will evaporate when the bulb gets hot and the vapour will condense on the
reflector and dim the surface.CAUT,ONz Bulbs are extremely hot immediately after
being turned off. When replacing a bulb, wait for it to cool sufficiently before touching it. You couldotherwise be burnt.
z Do not install commercially available LED-
type bulbs.
Commercially available LED-type bulbs
could adversely affect the operation of the
vehicle, such as by preventing the lamps and other vehicle equipment from operating
properly.NOTEz If you are unsure of how to carry out the
work as required, we recommend you to consult a specialist.
z Be careful not to scratch the vehicle body
when removing a lamp or lens.NOTEz When it rains or when the vehicle has been
washed, the inside of the lens sometimes be-
comes foggy. This is the same phenomenon as when window glass mists up on a humid
day, and does not indicate a functional prob- lem.
When the lamp is switched on, the heat will remove the fog. However, if water gathers
inside the lamp, we recommend you to have the lamp checked.Bulb location and capacityCAUT,ONz When replacing a bulb, be sure to use a new
bulb of the same type, wattage and colour. If you install a different bulb, the bulb could malfunction or fail to come on and could
lead to a vehicle fire.
Replacement of lamp bulbs
10-232*$(20(1Maintenance10

Outside
1- Daytime running lampsPosition lamps
2- Headlamps, high-beam
3- Front turn-signal lamps: 21W (PY21W)
4- Front fog lamps *1
5- Headlamps, low beam
6- Side turn-signal lamps (on fender) *1
,*2
:
5 W
7- Side turn-signal lamps (on outside rear-
view mirror) *1
Codes in parentheses indicate bulb types.
*1 If so equipped
*2 Have the lamps bulbs replaced at a
MITSUBISHI MOTORS Authorized
Service Point.NOTEz The following lamps use an LED instead of
a bulb. If you need to repair or replace these
lamps, contact a MITSUBISHI MOTORS
Authorized Service Point.
