NOTEzIt is possible to modify functions as follows:
For further information, please contact your MITSUBISHI MOTORS Authorized Serv-
ice Point.

NOTE

Procedure for replacing the re-mote control switch battery
1. Before replacing the battery, remove
static electricity from your body bytouching a metal part such as doorknob
of the room.
:ARN,NGz Do not swallow a coin type battery.

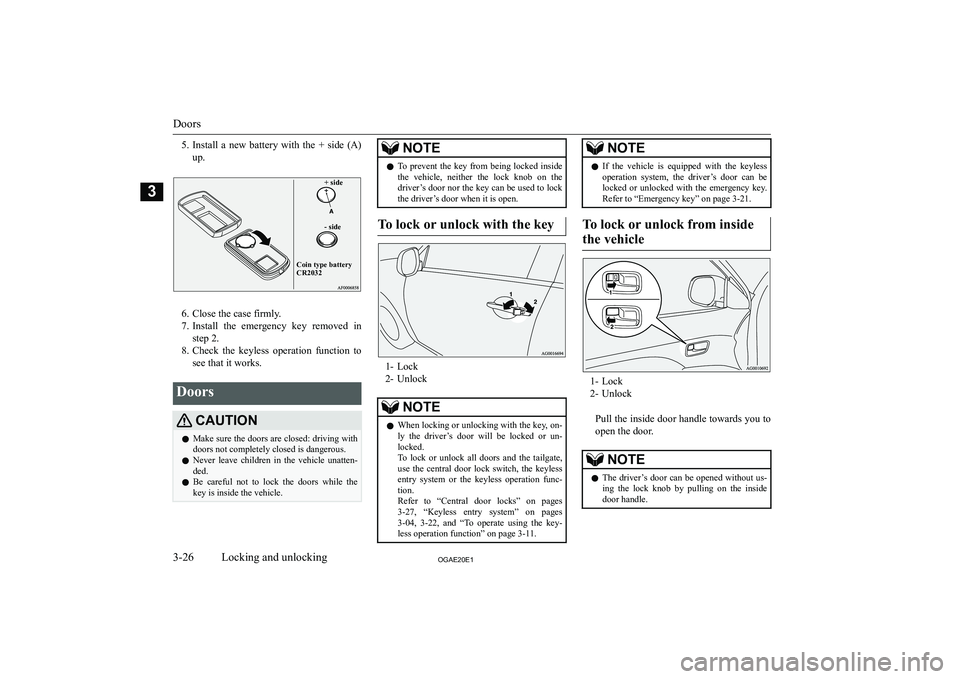

5.Install a new battery with the + side (A)
up.+ side- sideCoin type battery CR2032
6. Close the case firmly.
7. Install the emergency key removed in
step 2.
8. Check the keyless operation function to
see that it works.
DoorsCAUT,ONz Make sure the doors are closed: driving with
doors not completely closed is dangerous.
z Never leave children in the vehicle unatten-
ded.
z Be careful not to lock the doors while the
key is inside the vehicle.NOTEz To prevent the key from being locked inside
the vehicle, neither the lock knob on the driver

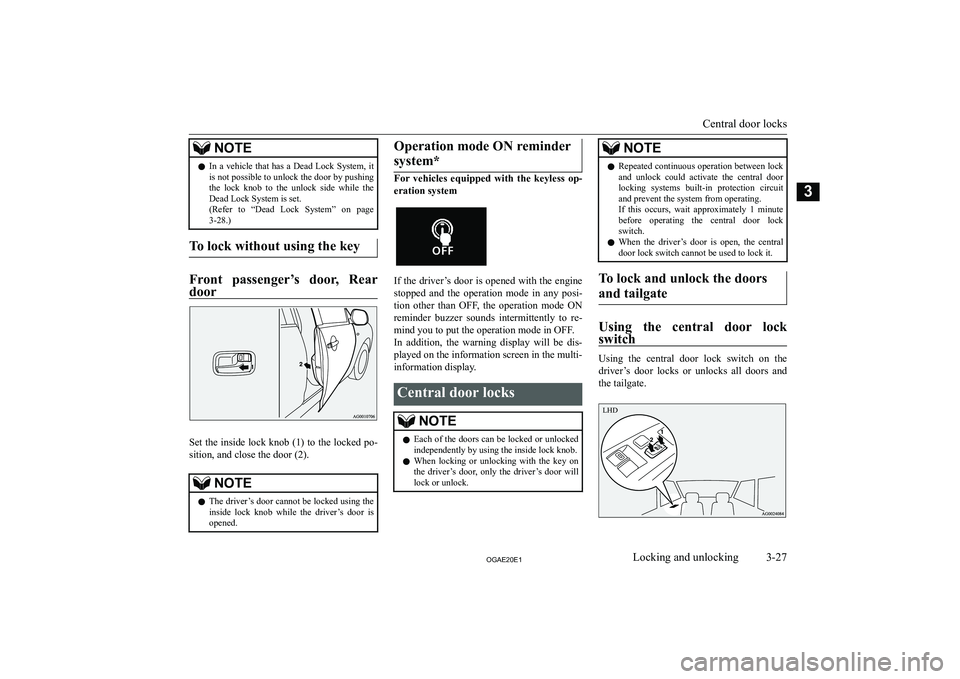

NOTEzIn a vehicle that has a Dead Lock System, it
is not possible to unlock the door by pushingthe lock knob to the unlock side while the Dead Lock System is set.
(Refer to “Dead Lock System” on page
3-28.)
To lock without using the key
Front passenger

1- Lock
2- Unlock

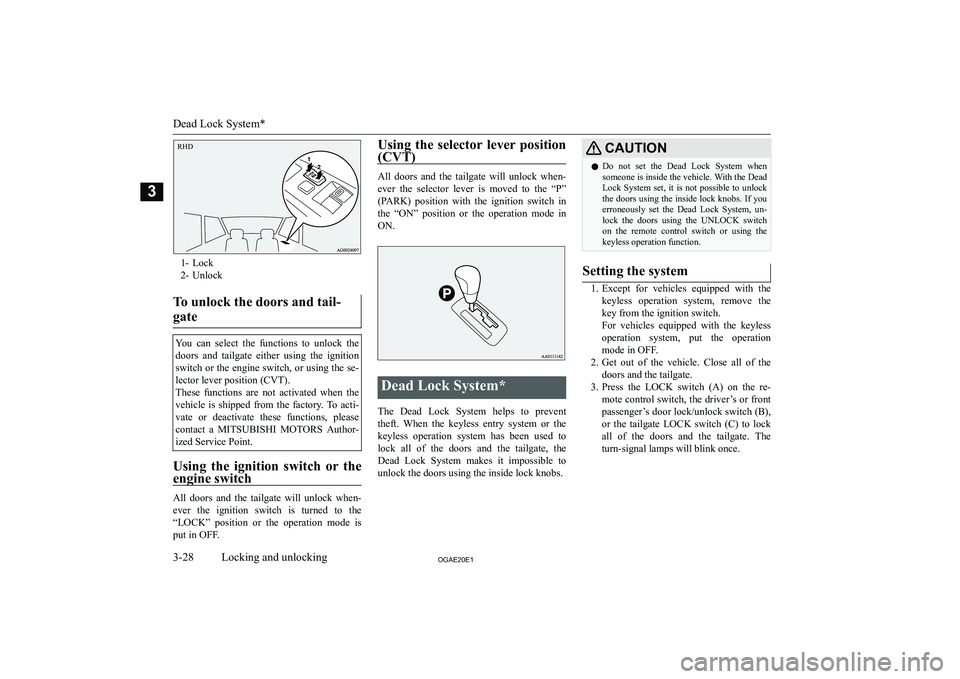

To unlock the doors and tail-
gateYou can select the functions to unlock the doors and tailgate either using the ignition switch or the engine switch, or using the se-lector lever position (CVT).
These functions are not activated when the vehicle is shipped from the factory. To acti-
vate or deactivate these functions, please contact a MITSUBISHI MOTORS Author-
ized Service Point.
Using the ignition switch or the engine switch
All doors and the tailgate will unlock when-
ever the ignition switch is turned to the
“LOCK” position or the operation mode is
put in OFF.
Using the selector lever position
(CVT)
All doors and the tailgate will unlock when-
ever the selector lever is moved to the “P” (PARK) position with the ignition switch in
the “ON” position or the operation mode in
ON.
Dead Lock System*
The Dead Lock System helps to prevent theft. When the keyless entry system or the
keyless operation system has been used to lock all of the doors and the tailgate, the
Dead Lock System makes it impossible to
unlock the doors using the inside lock knobs.
CAUT,ONz Do not set the Dead Lock System when
someone is inside the vehicle. With the Dead
Lock System set, it is not possible to unlock the doors using the inside lock knobs. If you
erroneously set the Dead Lock System, un-
lock the doors using the UNLOCK switch on the remote control switch or using the
keyless operation function.Setting the system
1. Except for vehicles equipped with the
keyless operation system, remove the
key from the ignition switch.
For vehicles equipped with the keyless operation system, put the operation
mode in OFF.
2. Get out of the vehicle. Close all of the
doors and the tailgate.
3. Press the LOCK switch (A) on the re-
mote control switch, the driver

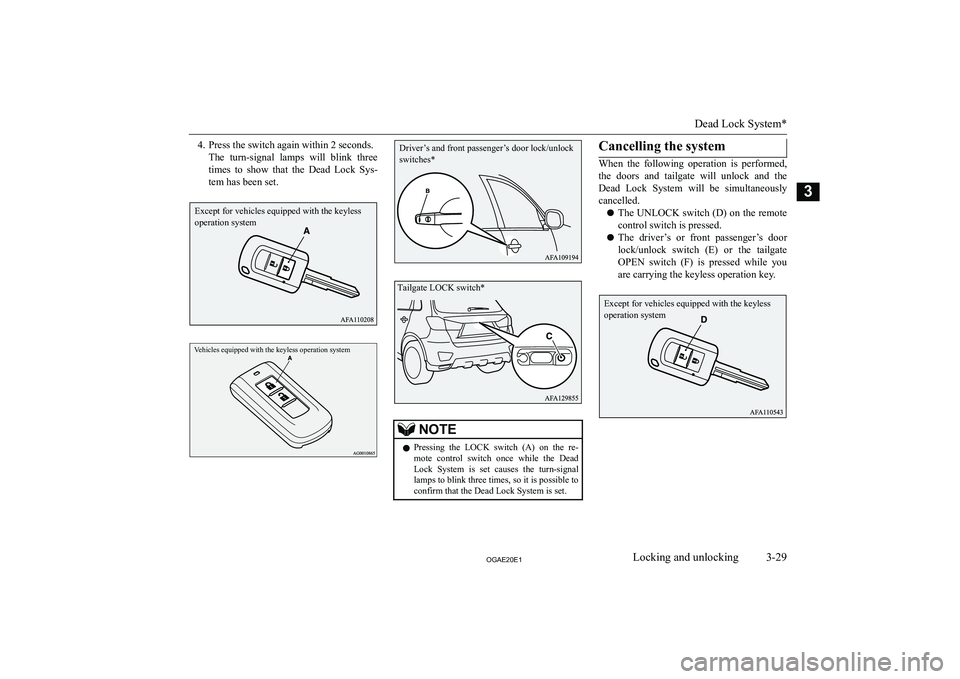

4. Press the switch again within 2 seconds.The turn-signal lamps will blink threetimes to show that the Dead Lock Sys-
tem has been set.Vehicles equipped with the keyless operation system
NOTEz Pressing the LOCK switch (A) on the re-
mote control switch once while the DeadLock System is set causes the turn-signal
lamps to blink three times, so it is possible to
confirm that the Dead Lock System is set.Cancelling the system
When the following operation is performed,
the doors and tailgate will unlock and the Dead Lock System will be simultaneously
cancelled.
z The UNLOCK switch (D) on the remote
control switch is pressed.
z The driver

Vehicles equipped with the keyless operation system
NOTEzIf neither a door nor the tailgate is opened
within 30 seconds of unlocking (except us-ing the tailgate OPEN switch), the doors and
tailgate are automatically relocked and the Dead Lock System is simultaneously set
again.
z Even when it is not possible to use the key-
less entry system or keyless operation func-
tion to unlock the doors, it is possible to use the key to unlock the driver
