2020 MITSUBISHI ASX Owner's Manual (in English)

ScreenCauseSolution (Reference)zThe Forward Collision Mitigation system
(FCM), Lane Departure Warning (LDW)and Automatic High-Beam (AHB) are
temporarily unavailable due to the high or low temperature of the sensor.z After the temperature of the sensor has
been in range, the system will automati-
cally return to operation.
Refer to “Forward Collision Mitigation system (FCM): System problem warning”
on page 6-55.
Refer to “Lane Departure Warning
(LDW): System problem warning” on page 6-71.
Refer to “Automatic High-Beam (AHB): System problem warning” on page 5-51.z The sensor is temporarily unavailable due
to conditions such as the adhesion of con- taminants to the sensor or windscreen.
This is not a malfunction.Refer to “Forward Collision Mitigation system (FCM): System problem warning” on page
6-55.
Refer to “Lane Departure Warning (LDW):
System problem warning” on page 6-71.
Refer to “Automatic High-Beam (AHB): Sys-
tem problem warning” on page 5-51.z There is a fault in the Automatic High-
Beam (AHB) system.z We recommend you to consult a
MITSUBISHI MOTORS Authorized
Service Point.
Refer to “System problem warning” on page 5-51.

Indication lamp, warning lamp, and information screen display list
5-392*$(20(1Instruments and controls5

Other interrupt displaysScreenSystem operation statusReferencezWhen starting the engine, you pressed the
engine switch without depressing the
clutch pedal (M/T).z On vehicles with
M/T, place the gearshift
lever in the “N” (Neutral) position, fully depress the clutch pedal, depress the brakepedal with the right foot. Then, press the
engine switch. Refer to “Starting and stopping the engine” on page 3-18.z When starting the engine, the selector lev-
er is in a position other than the “P”
(Park) or the “N” (Neutral) position, or you pressed the engine switch without de- pressing the brake pedal (CVT).z On vehicles with CVT, place the selector
lever in the “P” (PARK) position, depress
the brake pedal with the right foot. Then, press the engine switch. Refer to “Starting
and stopping the engine” on page 3-18.

The operation status of each system is displayed on the information screen. Refer to the appropriate page for the system for further details.
NOTEz When operating each system, confirm that the operation status of the system has changed on the information screen. However, the operation status of the
system may not be displayed immediately after the warning display appears even if the system is operated.ScreenSystem operation statusReferencez When “2WD” mode is selected with the
drive mode selectorz Refer to “Electronically controlled 4WD
system” on page 6-30.
Indication lamp, warning lamp, and information screen display list
5-402*$(20(1Instruments and controls5

ScreenSystem operation statusReferencezWhen “4WD AUTO” mode is selected
with the drive mode selectorz When “4WD LOCK” mode is selected
with the drive mode selectorz When the Active Stability Control (ASC)
is operatingz Refer to “Active Stability Control (ASC)”
on page 6-42.
Indication lamp, warning lamp, and information screen display list
5-412*$(20(1Instruments and controls5

ScreenSystem operation statusReferencezWhen the Forward Collision Mitigation
system (FCM) is activated or the timing
of an alarm is changed.Refer to “FCM and Radar sensing misacceler- ation Mitigation System (RMS) (Forward)
ON/OFF switch” on page 6-54.z When the Forward Collision Mitigation
system (FCM) is deactivated.
z When the Radar sensing misacceleration
Mitigation System (RMS) (Forward) is deactivated.Refer to “FCM and Radar sensing misacceler- ation Mitigation System (RMS) (Forward)
ON/OFF switch” on page 6-54.
Refer to “To turn on/off the RMS (Forward)” on page 6-63.

This informs you that a periodic inspection is due.
ScreenSolutionz We recommend you to have it checked. Refer to “Service reminder” on page
5-15 for fur-
ther details.
Indication lamp, warning lamp, and information screen display list
5-422*$(20(1Instruments and controls5

The setting for rest interval can be changed.ScreenSolutionStop the vehicle in a safe place, turn off the engine, and take a rest. Use this display as rough guide for taking rests during a long drive.
The interval from the start of your trip until this message is displayed can be set. Refer to “Changing the function settings (when the ignition switch or the operation mode is
ON)” on page 5-17.
The display and buzzer alert the driver when the set time is reached. If you continue to drive without having a rest, the buzzer sounds approximately every 5 minutes to encourage you to
take a rest.
z In the following cases, the time driven is reset and the display returns to the previous dis-
play screen. After this, when the set time is reached again, the buzzer and display encour-age you to take a rest.

High-beam indication lamp
This indication lamp illumi-
nates when the high-beam is
used.
Front fog lamp indication
lamp*
This lamp illuminates while
the front fog lamps are on.
Rear fog lamp indication lamp
This lamp illuminates while
the rear fog lamp is on.
Position lamp indication lamp
This indication lamp illumi-
nates while the position lamps are on.
Warning lampsBrake warning lamp
This lamp illuminates when
the ignition switch is turned to the “ON” position or the operation mode is put in ON,
and goes off after a few sec- onds.
Always make sure that the lamp goes off be-
fore driving.
With the ignition switch or the operation mode in ON, the brake warning lamp illumi-
nates under the following conditions:
z When the parking brake lever has been
engaged.
z When the brake fluid level in the reser-
voir falls to a low level.
z When the brake force distribution func-
tion is not operating correctly.
CAUT,ONz In the situations listed below, brake perform-
ance may be compromised or the vehicle may become unstable if brakes are applied
suddenly; consequently, avoid driving at
high speeds or applying the brakes suddenly. Furthermore, the vehicle should be brought
to a stop in a safe location and to have it checked.CAUT,ON

Although your vehicle will usually be driva-
ble and not need towing, we recommend you to have the system checked as soon as possi-
ble.
This lamp will also illuminate when the igni-
tion switch is turned “ON” or the operation
mode is put in ON, and goes off after the en- gine has started. If it does not go off after the engine has started, we recommend you to
have the vehicle checked.CAUT,ONz Prolonged driving with this lamp on may
cause further damage to the emission control
system. It could also affect fuel economy and drivability.
z If the lamp does not illuminate when the ig-
nition switch is turned to the “ON” position or the operation mode is put in ON, we rec-
ommend you to have the system checked.
z If the lamp illuminates while the engine is
running, avoid driving at high speeds and have the system inspected by a
MITSUBISHI MOTORS Authorized Serv-
ice Point as soon as possible.
Accelerator pedal and brake pedal response may be negatively influenced under these
conditions.NOTEz The engine electronic control module ac-
commodating the onboard diagnostic system has various fault data (especially about the
exhaust emission) stored.Charge warning lamp
This lamp illuminates when
the ignition switch is turned “ON” or the operation mode
is put in ON, and goes off af- ter the engine has started.
A warning is also displayed
on the multi-information display.
CAUT,ONz If it illuminates while the engine is running,
there is a problem in the charging system.
Immediately park your vehicle in a safe place and we recommend you to have it
checked.Information screen displayBrake warning displayThis warning is displayed if you drive with
the parking brake still applied. The warning
lamp in the instrument cluster only illumi-
nates when the parking brake is applied.CAUT,ONz If a vehicle is driven without releasing the
parking brake, the brake will be overheated,
resulting in ineffective braking and possible brake failure.
If this warning is displayed, release the park-
ing brake.
When the ignition switch is turned to the
“ON” position or the operation mode is put in
ON, if the brake fluid is low, this warning is displayed.
The warning lamp in the instrument cluster
also illuminates.
Information screen display
5-452*$(20(1Instruments and controls5

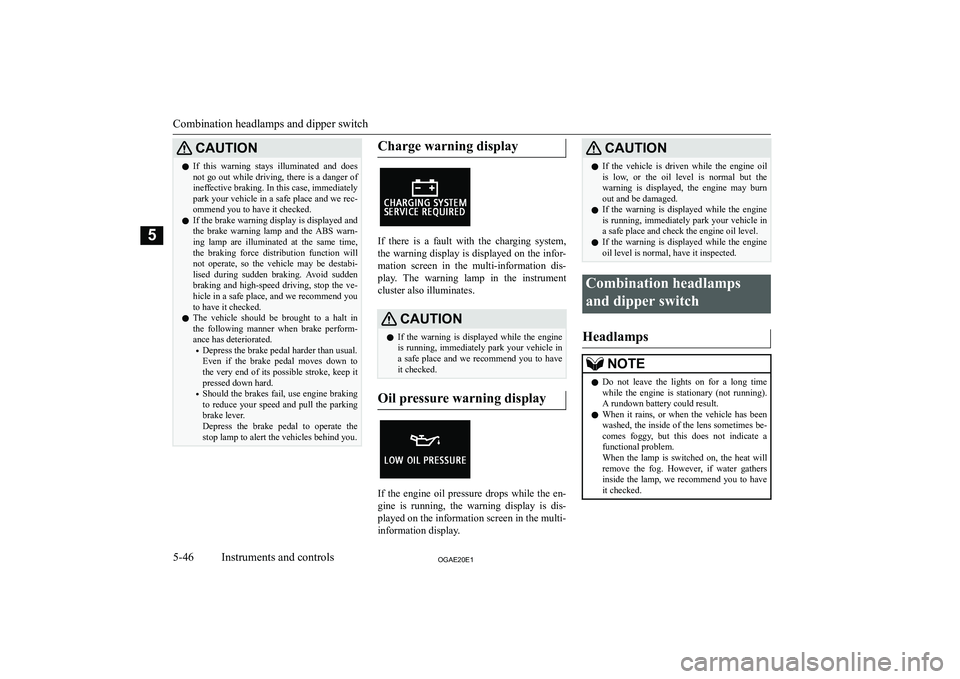

CAUT,ONzIf this warning stays illuminated and does
not go out while driving, there is a danger of ineffective braking. In this case, immediately
park your vehicle in a safe place and we rec-
ommend you to have it checked.
z If the brake warning display is displayed and
the brake warning lamp and the ABS warn-
ing lamp are illuminated at the same time, the braking force distribution function will
not operate, so the vehicle may be destabi-
lised during sudden braking. Avoid sudden braking and high-speed driving, stop the ve-
hicle in a safe place, and we recommend you
to have it checked.
z The vehicle should be brought to a halt in
the following manner when brake perform- ance has deteriorated.
