2020 MITSUBISHI ASX Owner's Manual (in English)

1- ()
The lamp illuminates regardless of whether the doors and tailgate are open
or closed.
2- (

Sunshade illumination*
The sunshade illumination turns on when the
ignition switch or the operation mode is in
ON or ACC.
NOTEz The sunshade illumination does not turn on
if the sunshade illumination dimming con-
trol switch is off.
Refer to “Sunshade illumination dimming
control switch” on page 7-73.
When the sunshade illumination is turned on,
it will go off about 15 seconds after the fol-
lowing operation is performed.
z When the key was used to start the en-
gine, the key is removed while the doors
and tailgate are closed.
z For vehicles equipped with the keyless
operation system, the operation mode is put in OFF while the engine is running and the doors and the tailgate are closed.NOTEz The time until the sunshade illumination
goes off can be adjusted. If it is adjusted, the time until the room & map lamps go off is also adjusted automatically at the same time.
For details, consult a MITSUBISHI
MOTORS Authorized Service Point.
The sunshade illumination also turns on
when a door or the tailgate is opened, and
goes off 15 seconds after the door or the tail-
gate is closed, even when the engine switch is
in the “LOCK” position or the operation mode is in OFF.
However, the sunshade illumination immedi- ately goes off in the following cases:
z When the central door lock function is
used to lock the vehicle.
z When the remote control switch of the
keyless entry system or the keyless oper- ation system is used to lock the vehicle.
z If the vehicle is equipped with the key-
less operation system, when the keyless operation function is used to lock the ve-hicle.
NOTEz The sunshade illumination does not turn on
if the sunshade illumination dimming con-
trol switch is off.
z The time until the sunshade illumination
goes off can be adjusted. If it is adjusted, the time until the room & map lamps go off is
also adjusted automatically at the same time.
For details, consult a MITSUBISHI
MOTORS Authorized Service Point.Centre console down lamp
When the lamps are illuminated with the
lamp switch in the
, , or “AUTO” posi-
tion, the centre console down lamp illumi-
nates.
Interior lamps
7-742*$(20(1For pleasant driving7

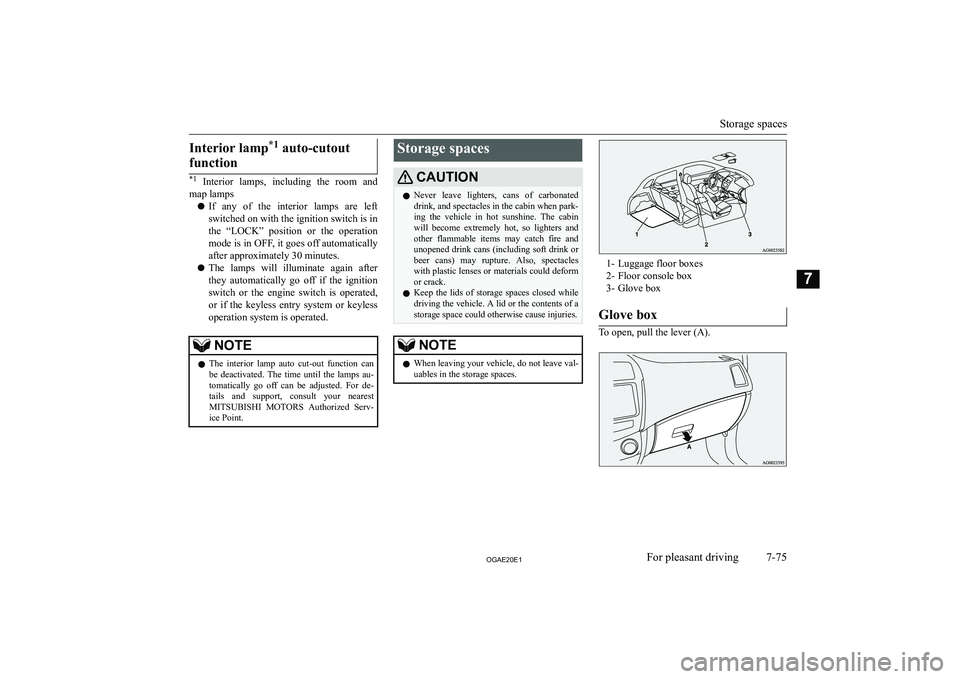

Interior lamp*1
auto-cutout
function
*1 Interior lamps, including the room and
map lamps
z If any of the interior lamps are left
switched on with the ignition switch is in
the “LOCK” position or the operation
mode is in OFF, it goes off automatically after approximately 30 minutes.
z The lamps will illuminate again after
they automatically go off if the ignitionswitch or the engine switch is operated,
or if the keyless entry system or keyless operation system is operated.
NOTEz The interior lamp auto cut-out function can
be deactivated. The time until the lamps au- tomatically go off can be adjusted. For de-
tails and support, consult your nearest MITSUBISHI MOTORS Authorized Serv-
ice Point.Storage spacesCAUT,ONz Never leave lighters, cans of carbonated
drink, and spectacles in the cabin when park-
ing the vehicle in hot sunshine. The cabin will become extremely hot, so lighters and
other flammable items may catch fire and unopened drink cans (including soft drink or beer cans) may rupture. Also, spectacles
with plastic lenses or materials could deform
or crack.
z Keep the lids of storage spaces closed while
driving the vehicle. A lid or the contents of a
storage space could otherwise cause injuries.NOTEz When leaving your vehicle, do not leave val-
uables in the storage spaces.
1- Luggage floor boxes
2- Floor console box
3- Glove box
Glove box
To open, pull the lever (A).
Storage spaces
7-752*$(20(1For pleasant driving7

NOTEzWhen the lamps are illuminated with the
lamp switch in the “”, “”, or “AUTO”
position, the glove box lamp illuminates.
To use the warming and cooling
function*
The glove box can be used to keep its con-
tents (e.g. drink bottles) warm or cool with the warm or cold air from the air condition-
ing. 1. Turn the dial in the glove box to the
“
” position.
Turn the dial to the “
” position when
not using the warming and cooling func- tion.
2. Turn the air conditioning temperature
control dial (A) to the desired tempera- ture.
3. Turn the air conditioning blower speed
selection dial (B) to the desired air flow.Manual air conditioning
For detailed information on how to use
the air conditioning, refer to “Air condi- tioning” on page 7-03.
NOTEz The glove box has the same temperature as
the air that comes out of the air conditioningventilators, so it is not possible to greatly heat or cool the contents.
For efficient warming or cooling, select the
“
” mode.
Refer to “Mode selection dial” on page 7-03.
z When placing drinks in the glove box, read
the precautions on the container first.
z Do not place in the glove box chocolate,
sweets, or other items which are susceptible
to temperature changes or which may rot.
Pen holder
There is a pen holder inside the glove box.
Storage spaces
7-762*$(20(1For pleasant driving7 Automatic air conditioning

NOTEzThere is a limit to the size of pens that can
be stored in the holder. Forcibly inserting large pens could damage the holder.
Card holder
There is a card holder inside the glove box.
Floor console box
To open the console box, lift the release lever
(A) and raise the lid.
The floor console box can also be used as an
armrest.
The tissue holder and pen holder are located on the underside of the floor console box lid.
B- Tissue holder
C- Pen holder
D- Tray
Luggage floor box*
The box for storing articles is located inside the luggage compartment.
Storage spaces
7-772*$(20(1For pleasant driving7 LHD RHD

To use the box, raise the luggage floor board.Cup holder:ARN,NGzDo not spray water or spill beverages in-
side the vehicle. If the switches, wires or electrical components become wet, they
could malfunction or cause a vehicle fire. If you accidentally spill a beverage, wipe
up as much liquid as possible and imme- diately consult a MITSUBISHI MOTORS
Authorized Service Point.CAUT,ONz Do not drink beverages while driving. This
is distracting and could cause an accident.For the front seat
The cup holders are located in front of the
floor console box.
For the rear seat*
In order to use the cup holder, allow the arm-
rest (A) to drop down.
Refer to “Armrest” on page 4-06.
Bottle holder:ARN,NGz Do not spray water or spill beverages in-
side the vehicle. If the switches, wires or
electrical components become wet, they could malfunction or cause a vehicle fire.If you accidentally spill a beverage, wipe
up as much liquid as possible and imme- diately consult a MITSUBISHI MOTORS
Authorized Service Point.CAUT,ONz Do not drink beverages while driving. This
is distracting and could cause an accident.
z Drinks could be spilled by the vibration and
jolts while driving. If the spilt drink is very
hot, you could be burnt.
There are bottle holders located on the front
doors.
Cup holder
7-782*$(20(1For pleasant driving7

NOTEzTightly close the cap on drink bottles before
storing them.
z Some bottles may be too big or the wrong
shape to fit in the holder.Rear shelf panel*CAUT,ONz Do not place luggage or other items on the
rear shelf panel. Any items on the rear shelf
panel would obstruct your rearward view, and they could fly forward and cause inju-
ries or other mishap in the event of hard
braking.
To install
1. Insert the concave portion (A) on the un-
derside of the rear shelf panel into theinside protruding portion (B) of the tail-
gate.
CAUT,ONz Lightly push the rear shelf panel to make
sure that the concave portion (A) is set firm-ly in the protruding portion (B) of the tail- gate. If the rear shelf panel is not securely
locked in place, it could unhook while driv- ing and cause injuries.
2. Hang the strap (C) of the rear shelf panel
on the hook (D).
To remove
Follow this procedure in reverse to remove.
Assist grips
The assist grips (located above the doors on
the headliner) are not designed to support
body weight. They are intended for use only while seated in the vehicle.
CAUT,ONz Do not use the assist grips when getting into
or out of the vehicle. The assist grips could
detach causing you to fall.
Rear shelf panel*
7-792*$(20(1For pleasant driving7

Coat hook
There is a coat hook on the rear seat assist
grip of the driver
