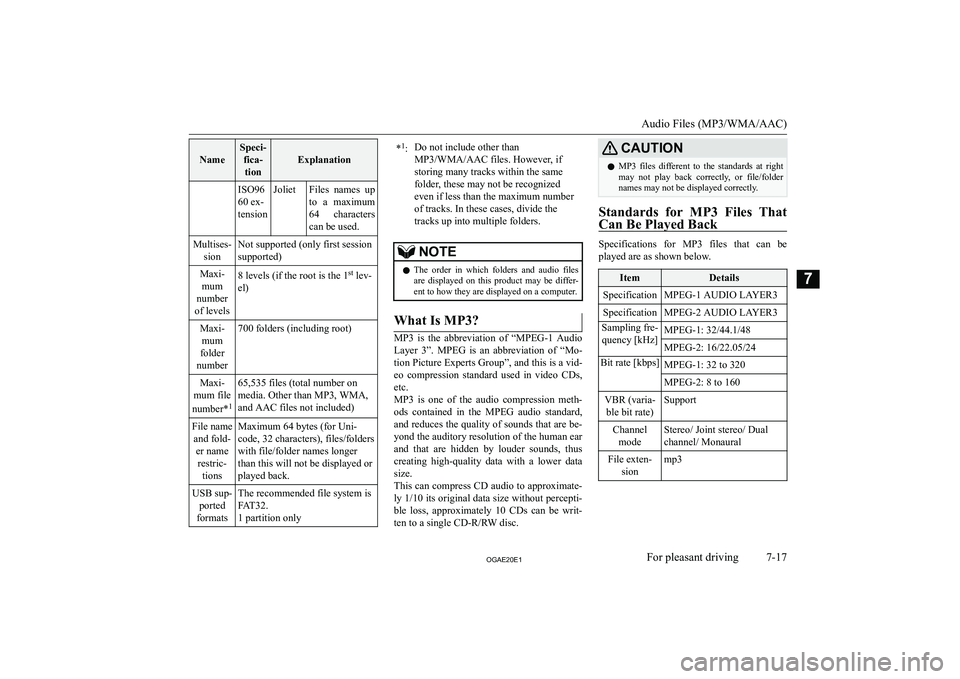

2020 MITSUBISHI ASX Owner's Manual (in English)

Name
Speci-fica-tion
Explanation
ISO96
60 ex-
tensionJolietFiles names up
to a maximum 64 characters
can be used.Multises- sionNot supported (only first session
supported)Maxi- mum
number
of levels8 levels (if the root is the 1 st
lev-
el)Maxi- mum
folder
number700 folders (including root)Maxi-
mum file
number* 165,535 files (total number on
media. Other than MP3, WMA,
and AAC files not included)File name and fold- er namerestric- tionsMaximum 64 bytes (for Uni-
code, 32 characters), files/folders
with file/folder names longer
than this will not be displayed or
played back.USB sup- ported
formatsThe recommended file system is
FAT32.
1 partition only* 1
:Do not include other than
MP3/WMA/AAC files. However, if
storing many tracks within the same
folder, these may not be recognized
even if less than the maximum number
of tracks. In these cases, divide the
tracks up into multiple folders.NOTEz The order in which folders and audio files
are displayed on this product may be differ-ent to how they are displayed on a computer.What Is MP3"
MP3 is the abbreviation of “MPEG-1 Audio
Layer 3”. MPEG is an abbreviation of “Mo-
tion Picture Experts Group”, and this is a vid- eo compression standard used in video CDs,
etc.
MP3 is one of the audio compression meth-
ods contained in the MPEG audio standard, and reduces the quality of sounds that are be-
yond the auditory resolution of the human ear and that are hidden by louder sounds, thus
creating high-quality data with a lower data
size.
This can compress CD audio to approximate-
ly 1/10 its original data size without percepti- ble loss, approximately 10 CDs can be writ-
ten to a single CD-R/RW disc.
CAUT,ONz MP3 files different to the standards at right
may not play back correctly, or file/folder names may not be displayed correctly.
Standards for MP3 Files That
Can Be Played Back
Specifications for MP3 files that can be
played are as shown below.
ItemDetailsSpecificationMPEG-1 AUDIO LAYER3SpecificationMPEG-2 AUDIO LAYER3Sampling fre- quency [kHz@MPEG-1: 32/44.1/48MPEG-2: 16/22.05/24Bit rate [kbps@MPEG-1: 32 to 320MPEG-2: 8 to 160VBR (varia- ble bit rate)SupportChannel modeStereo/ Joint stereo/ Dual
channel/ MonauralFile exten- sionmp3
Audio Files (MP3/WMA/AAC)
7-172*$(20(1For pleasant driving7

ItemDetailsSupported taginformationID3 tag Ver. 1.0, Ver. 1.1,
Ver. 2.2, Ver. 2.3, Ver. 2.4
(ISO-8859-1, UTF-16 (Uni-
code)), Titles, Artist name,
Album nameMaximum number of characters
that can be
indicated on the display64 charactersWhat Is WMA"
WMA is the abbreviation of Windows MediaAudio, and this is an audio compression for-
mat from Microsoft. This is a compression format that has a higher compression ratio
than MP3.
NOTEz Microsoft, Windows Media, and Windows
are registered trademarks of Microsoft Cor-
poration (USA) and in other countries.CAUT,ONz WMA supports digital rights management
(DRM). This product cannot play back WMA files protected using this system.CAUT,ONz WMA files different to the standards at right
may not play back correctly, or file/folder
names may not be displayed correctly.
z “Pro”, “Lossless”, and “Voice” are not sup-
ported.
Standards for WMA Files That
Can Be Played Back
Specifications for WMA files that can be
played are as shown below.
ItemDetailsSpecificationWindows Media Audio Ver-
sion7.0/8.0/9.0Sampling fre- quency [kHz@32/44.1/48Bit rate [kbps@48 to 320VBR
(variable bit rate)SupportChannelmodeStereo/MonauralFile exten- sionwmaSupported taginformationWMA tags
Title name, Artist name, Al-
bum nameItemDetailsMaximum number of characters
that can be
indicated on the display64 charactersWhat is AAC"
AAC is the abbreviation of Advanced Audio
Coding, and this is an audio compression
standard used in “MPEG-2” and “MPEG-4”. This features 1.4x the compression of MP3,
with comparable audio quality.
CAUT,ONz AAC supports digital rights management
(DRM). This product cannot play back AAC
files protected using this system.
z AAC files different to the standards at right
may not play back correctly, or file/folder names may not be displayed correctly.
Standards for AAC Files That
Can Be Played Back
Specifications for AAC files that can be
played are as shown below.
Audio Files (MP3/WMA/AAC)
7-182*$(20(1For pleasant driving7

ItemDetailsSpecificationAdvanced Audio
Coding
MPEG4/AAC-LC
MPEG2/AAC-LCSampling
frequency [kHz@MPEG48/11.025/12/16/22.05
/24/32/44.1/48MPEG28/11.025/12/16/22.05
/24/32/44.1/48Bit rate [kbps@MPEG48 to 320MPEG28 to 320VBR (variable bit rate)SupportChannel modeStereo/MonauralFile extensionm4aSupported tag infor-mationAAC tags or ID3
tags
Title, Artist name,
Album nameMaximum number of
characters that can be indicated on the dis- play64 charactersImportant Points on Safety
for the Customer
This product features a number of pictorial indications as well as points concerning han-
dling so that you can use the product correct-
ly and in a safe manner, as well as prevent in-
jury or damage to yourself, other users, or
property.:ARN,NGz The driver should not pay close attention
to the display while driving.
This may prevent the driver looking
where they are going, and cause an acci- dent.
z The driver should not perform complica-
ted operations while driving.
Performing complicated operations while driving may prevent the driver looking
where they are going, and cause an acci-
dent.
Therefore stop the vehicle in a safe loca- tion before performing such operations.
z Do not use during malfunctions, such as
when no sound is audible.
This may lead to accident, fire, or electric
shock.
z Ensure water or other foreign objects do
not enter the product.
This may lead to smoking, fire, electric
shock, or malfunction.:ARN,NGz Do not insert foreign objects into the disc
slot.
This may lead to fire, electric shock, or malfunction.
z In the event of abnormalities occurring
when foreign objects or water enter the
product, resulting in smoke or a strange smell, immediately stop using the product, and consult a MITSUBISHI MOTORS
Authorized Service Point.
Continuing to use the product may result in accident, fire, or electric shock.
z Do not disassemble or modify the prod-
uct.
This may lead to malfunction, fire, or
electric shock.
z During thunderstorms, do not touch the
antenna or the front panel.
This may lead to electrical shock from lightning.CAUT,ONz Do not block ventilation holes or heat sinks
on the product.
Blocking ventilation holes or heat sinks may prevent heat from escaping from within theproduct, leading to fire or malfunction.
Important Points on Safety for the Customer
7-192*$(20(1For pleasant driving7

CAUT,ONzDo not turn the volume up to the extent that
you cannot hear sounds from outside the ve-
hicle while driving.
Driving without being able to hear sounds from outside the vehicle may result in an ac-
cident.
z Do not insert your hand or fingers into the
disc slot.
This may result in injury.Operation KeysTurn the Power ON/ OFF
1. Press the PWR/VOL key.
Turn the power on, and resume playback
from the previous status.
2. Press the PWR/VOL key. Turn the power OFF.
NOTEz Hold down the steering MODE key to also
turn the audio function ON/OFF.Adjust Volume
1. Turn the PWR/VOL key to adjust the
volume.
Turn the PWR/VOL key clockwise to in-
crease, and counter- clockwise to de-
crease the volume.
NOTEz The maximum value for volume is 45, and
the minimum is 0.
z The initial setting for volume is “17”.Insert/Eject Discs
1.
Insert the disc into the disc slot with the
label surface up.
Push the disc in a certain amount, and
the product will pull the disc in, and playback will start.
2. Press the
key.
This will eject the disc from the product,
so remove the disc.
CAUT,ONz When replacing discs, first ensure that the
vehicle is stopped in an area in which stop-ping is permitted.
z Do not insert your hand, fingers, or foreign
objects into the disc slot. This may lead to injury, smoking, or fire.
Operation Keys
7-202*$(20(1For pleasant driving7 Disc slot
Disc *Label side

CAUT,ONz8 cm CDs are not supported.
Operation Keys
7-212*$(20(1For pleasant driving7

Explanation of Buttons
This explains names and functions of each part.
1- key
Use to eject a disc.
2- 3
key/4 key
For audio, rewind/fast forward.
For radio, use as preset keys 3 and 4.
3- 2RDM key For audio, play random playback; for ra-
dio, use as preset key 2.
4- 1RPT key For audio, play repeat playback; for ra-dio, use as preset key 1.
5- RADIO key Switch the radio and the band.
6- PWR/VOL key
Adjust the volume, and turn the power
ON/OFF.
7- MEDIA key Switch between CD and other sources.
8- DISP key Switch the content of the display.
9- PTY/SCAN key For audio, play scan playback; for radio,
search PTY.
10- TP key Receive traffic messages.
11- Disc slot12- PAGE key
Display indicator page advance.
13- 5
key
Play/Pause Bluetooth

16- MENU keySwitch to Menu mode.17-/SEL key
Adjust audio quality and select items.
For radio, manually select stations.*:Requires a separately-purchased Bluetooth

/SEL key
(counter-
clockwise)Reduces the frequency being
received./SEL key
(clockwise)Increases the frequency be-
ing received. key
(hold down)Release the button to start
seek station selection, and
when a station is received,
scanning stops. key
(hold down)
Preset Memory
Register the broadcast station in advance, and
select this at a later time.
1. Tune in to the frequency to register.
2. Hold down any of the keys from the
1RPT key to the 6
key.

A “Beep” sounds, and the preset key is registered.
NOTEz The preset memory can register a maximum
of 6 stations for each band (FM1, FM2,
FM3).
z If a preset key that already has a station reg-
istered is selected, then this is overwritten with the new preset.NOTEz Pressing the preset key will select the previ-
ously registered frequency.
Auto Memory (Auto Store)
The top 6 stations with a strong signal can be
automatically registered in order with preset keys.
Hold down the RADIO key.

After completion of auto store operations, the product will receive the station registered in
the preset key [1@.
CAUT,ONz Please be aware that the formerly-registered
frequency in the memory will be overwrit- ten.NOTEz Using auto store for FM1 and FM2 switches
to FM3.
PTY Search
Select PTY (program content), and automati-
cally scan for stations.
1. During FM reception, press the PTY/
SCAN key.
This switches to the PTY selection
mode.
2. Turn the
/SEL key to select PTY.
The PTY (program content) indicator
will flash, and station selection will au- tomatically start. When a station is re-
ceived, the station name is displayed.
NOTEz This receives the station detected first.
z 10 seconds after reception, PTY search
mode will be cancelled.Listen to DAB*
This explains how to listen to DAB.
To listen to DAB
1. Press the RADIO key to switch the
band.
Switch between DAB1, DAB2, and DAB3 bands.
The selected band is indicated on the
display.
Listen to DAB*
