2020 MITSUBISHI ASX Owner's Manual (in English)

zAfter the engine restarts automatically
and the vehicle remains stationary.
z Mode selection dial is set to the demister
position (see illustration below).
z When the air conditioning is operated in
AUTO mode where the temperature con-
trol dial is set to the max. hot or the max. cool position (for vehicles with automat-
ic air conditioning).
Other than the conditions mentioned above,
the engine may not stop automatically. For details, refer to “Auto Stop & Go (AS&G)
system” on page 6-15.
Event Data Recording
This vehicle is equipped with an event data recorder (EDR).
The main purpose of an EDR is to record, in
certain crash or near crash-like situations, such as an airbag deployment or hitting a
road obstacle, data that will assist in under- standing how a vehicle

2*$(20(1

Keys.................................................................................................... 3-02Electronic immobilizer (Anti-theft starting system)........................... 3-03
Keyless entry system*.........................................................................3-04
Keyless operation system*.................................................................. 3-08
Doors................................................................................................... 3-26
Central door locks............................................................................... 3-27
Dead Lock System*............................................................................ 3-28
“Child-protection” rear doors..............................................................3-31
Tailgate................................................................................................ 3-31
Inside tailgate release.......................................................................... 3-32
Security alarm system*....................................................................... 3-33
Electric window control...................................................................... 3-40
Sunshade*........................................................................................... 3-42Lockingandunlocking
2*$(20(13

Keys
Type 1
The key fits all locks.
1- Keyless entry key (with electronic immobilizer)
2- Key number tag
Type 2
The emergency key fits all locks.
1- Keyless operation key (with electronic immobilizer and keyless
entry system function)
2- Emergency key
3- Key number tag
:ARN,NGz When taking a key on flights, do not press
any switches on the key while on the
plane. If a switch is pressed on the plane, the key emits electromagnetic waves,which could adversely affect the plane

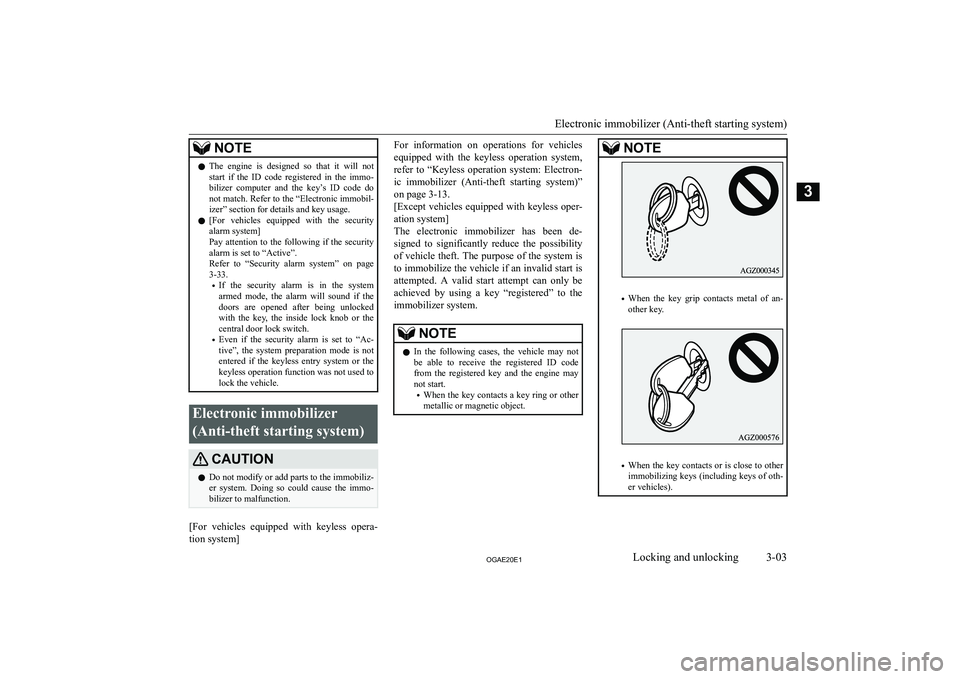

NOTEzThe engine is designed so that it will not
start if the ID code registered in the immo- bilizer computer and the key

NOTE
In cases like these, remove the object oradditional key from the vehicle key. Then
try again to start the engine. If the engine
does not start, we recommend you to con- tact your MITSUBISHI MOTORS Au-
thorized Service Point.
z If you lose one of them, contact a
MITSUBISHI MOTORS Authorized Serv-
ice Point as soon as possible. To obtain a re- placement or extra spare key, take your vehi-
cle and all remaining keys to your MITSUBISHI MOTORS Authorized Serv-
ice Point. All the keys have to be re-regis- tered in the immobilizer computer unit. The
immobilizer can register up to 8 different
keys.
Keyless entry system*
Press the remote control switch, and all doors and the tailgate will be locked or unlocked as
desired. It is also possible to operate the out-
side rear-view mirrors (Vehicles equipped with the mirror retractor switch).
1- LOCK switch
2- UNLOCK switch
3- Indication lamp
To lock
Press the LOCK switch (1). All the doors and the tailgate will be locked. The turn-signal
lamps will blink once when the doors and the tailgate are locked.
NOTEz With a vehicle that has a Dead Lock System,
pressing the LOCK switch (1) two times in
succession causes the Dead Lock System to
be set. (Refer to “Setting the system” on page 3-28.)
To unlock
Press the UNLOCK switch (2). All the doors
and the tailgate will be unlocked. If the doors and tailgate are unlocked when the frontroom lamp switch is in the “DOOR” positionor the rear room lamp switch (except for ve-
hicles equipped with the sunshade) is in the
middle (

NOTEzExcept for vehicles equipped with a Dead
Lock System, the door and tailgate unlock function can be set so that only the driver

NOTEmately 30 seconds, the outside rear-view
mirrors will retract.
After pressing the UNLOCK switch to un- lock the doors and tailgate, if the UNLOCK
switch is pressed again twice in a row within approximately 30 seconds, the outside rear-view mirrors will extend again.
z The remote control switch will operate with-
in approximately 4 m from the vehicle.
However, the operating range of the remote control switch may change if the vehicle is
located near a power station, or radio/TV broadcasting station.
z If either of the following problems occurs,
the battery may be exhausted.
