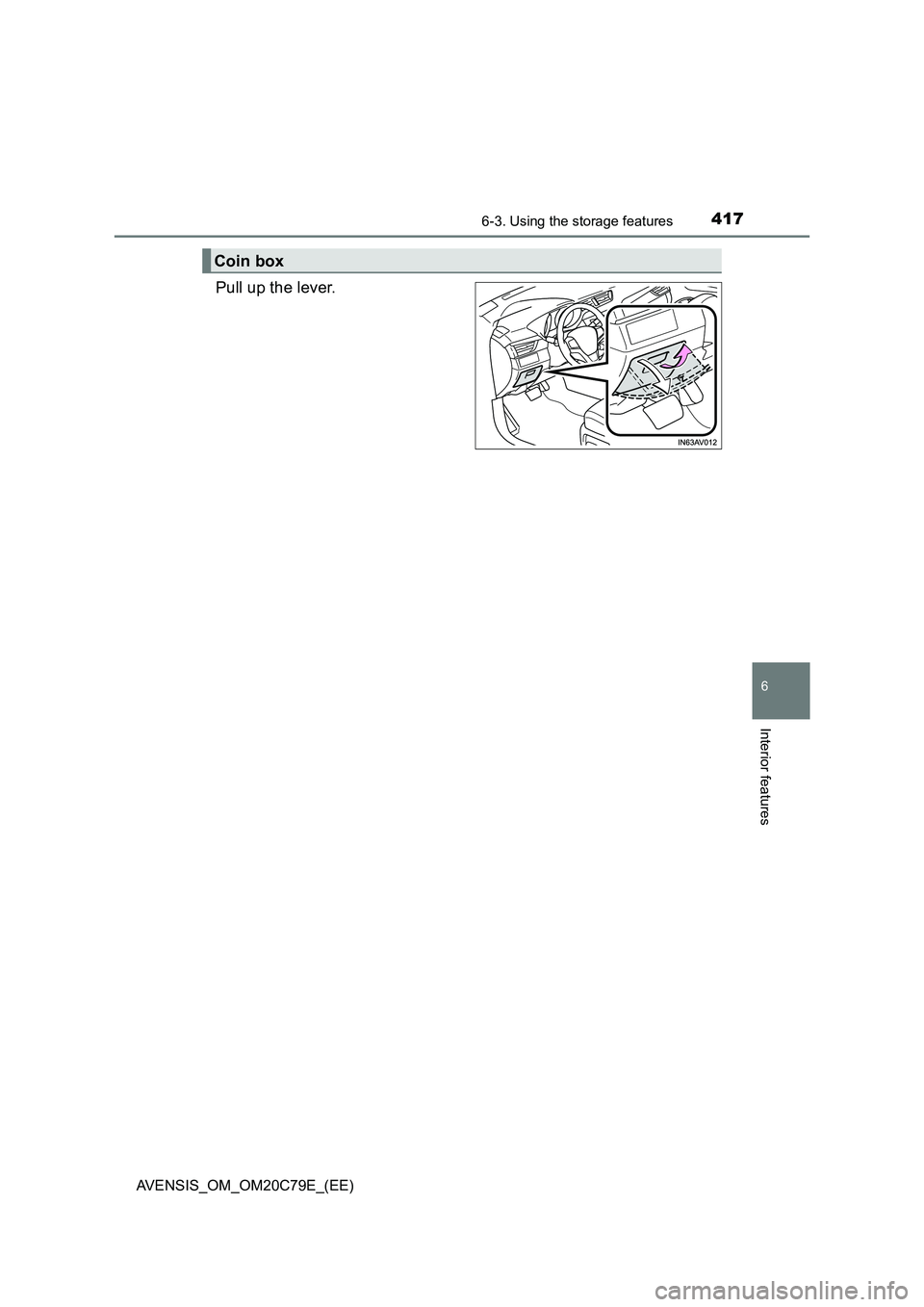

4176-3. Using the storage features
AVENSIS_OM_OM20C79E_(EE)
6
Interior features
Pull up the lever.
Coin box

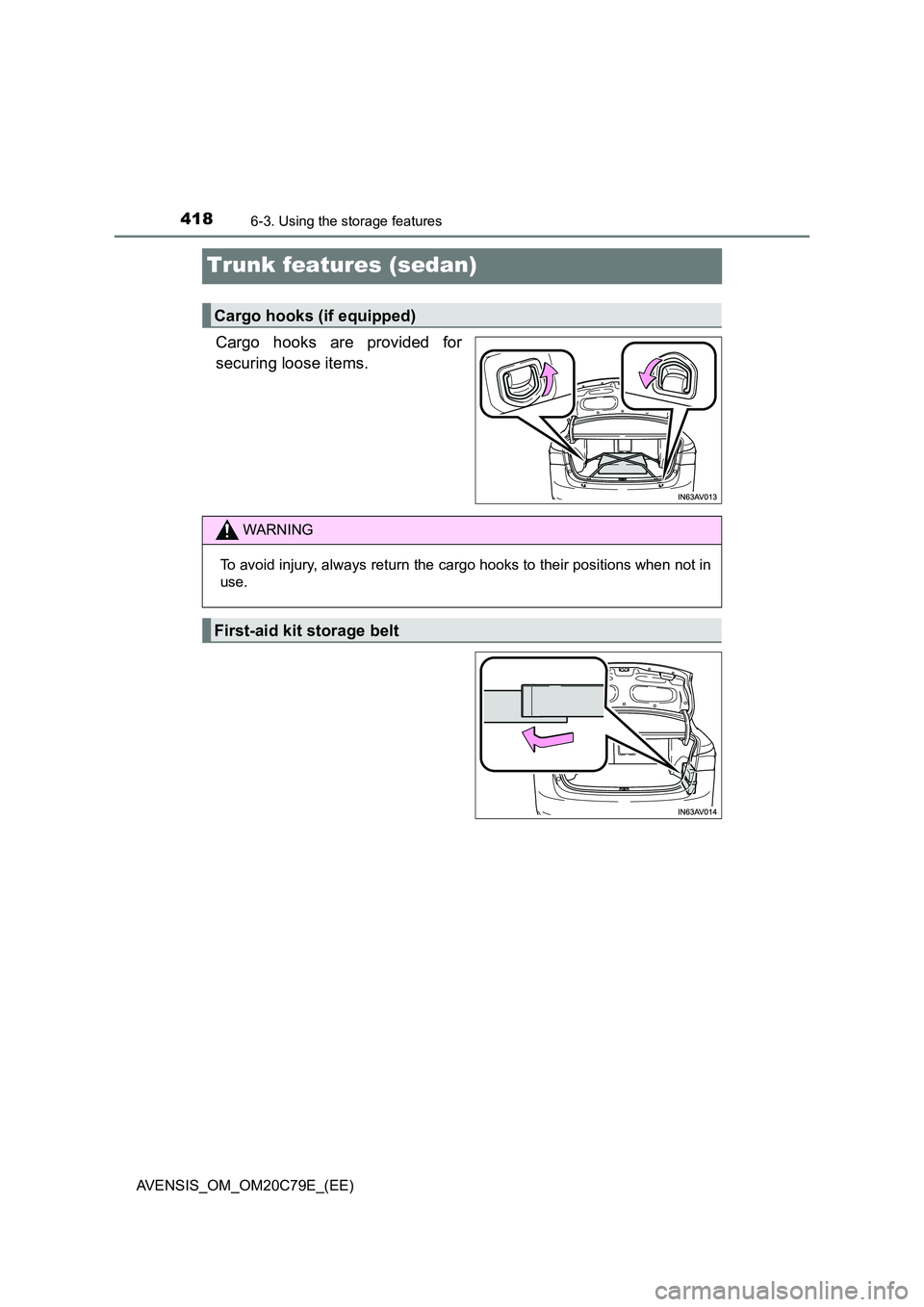

4186-3. Using the storage features
AVENSIS_OM_OM20C79E_(EE)
Trunk features (sedan)
Cargo hooks are provided for
securing loose items.
Cargo hooks (if equipped)
WARNING
To avoid injury, always return the cargo hooks to their positions when not in
use.
First-aid kit storage belt

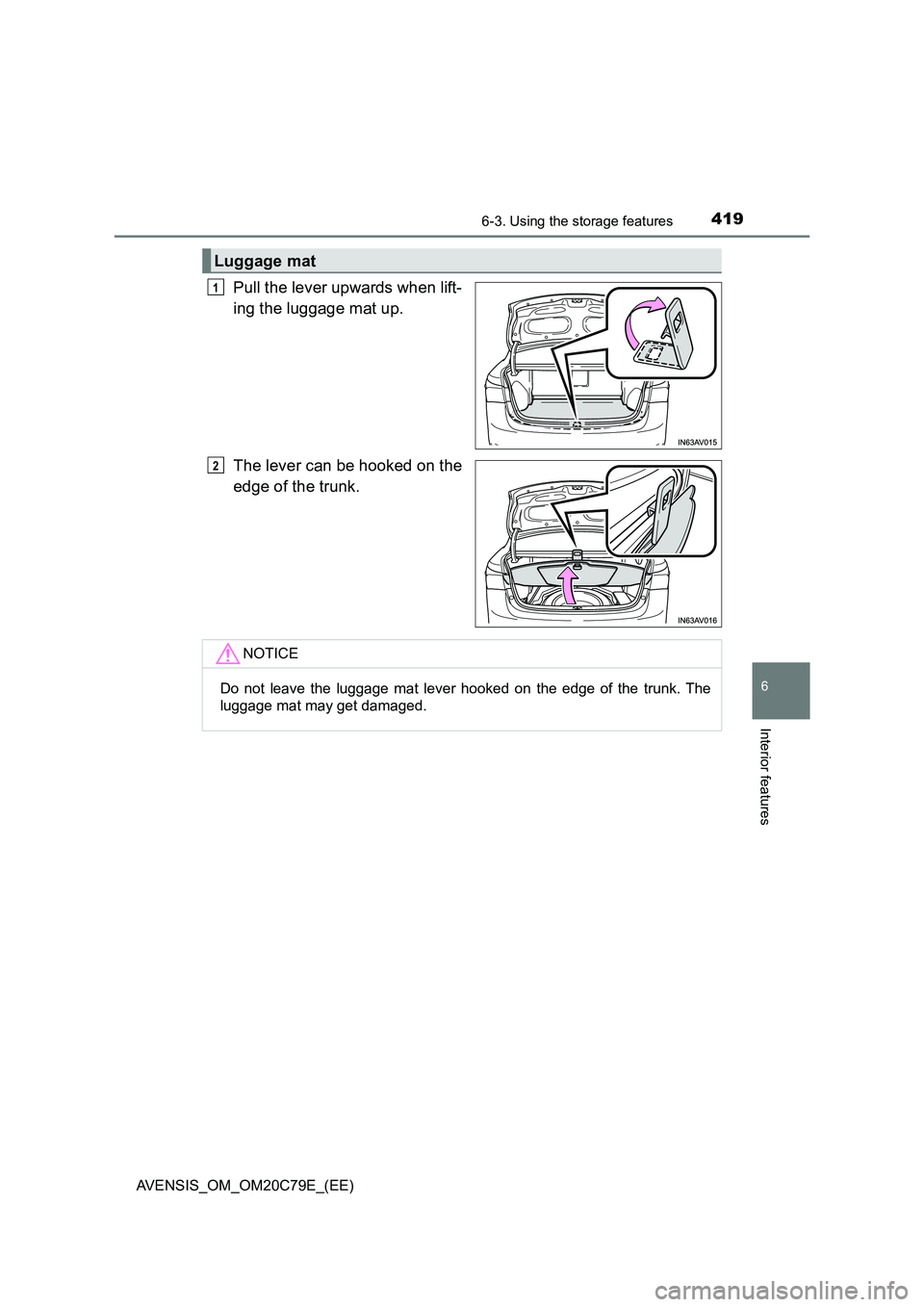

4196-3. Using the storage features
AVENSIS_OM_OM20C79E_(EE)
6
Interior features
Pull the lever upwards when lift-
ing the luggage mat up.
The lever can be hooked on the
edge of the trunk.
Luggage mat
1
2
NOTICE
Do not leave the luggage mat lever hooked on the edge of the trunk. The
luggage mat may get damaged.

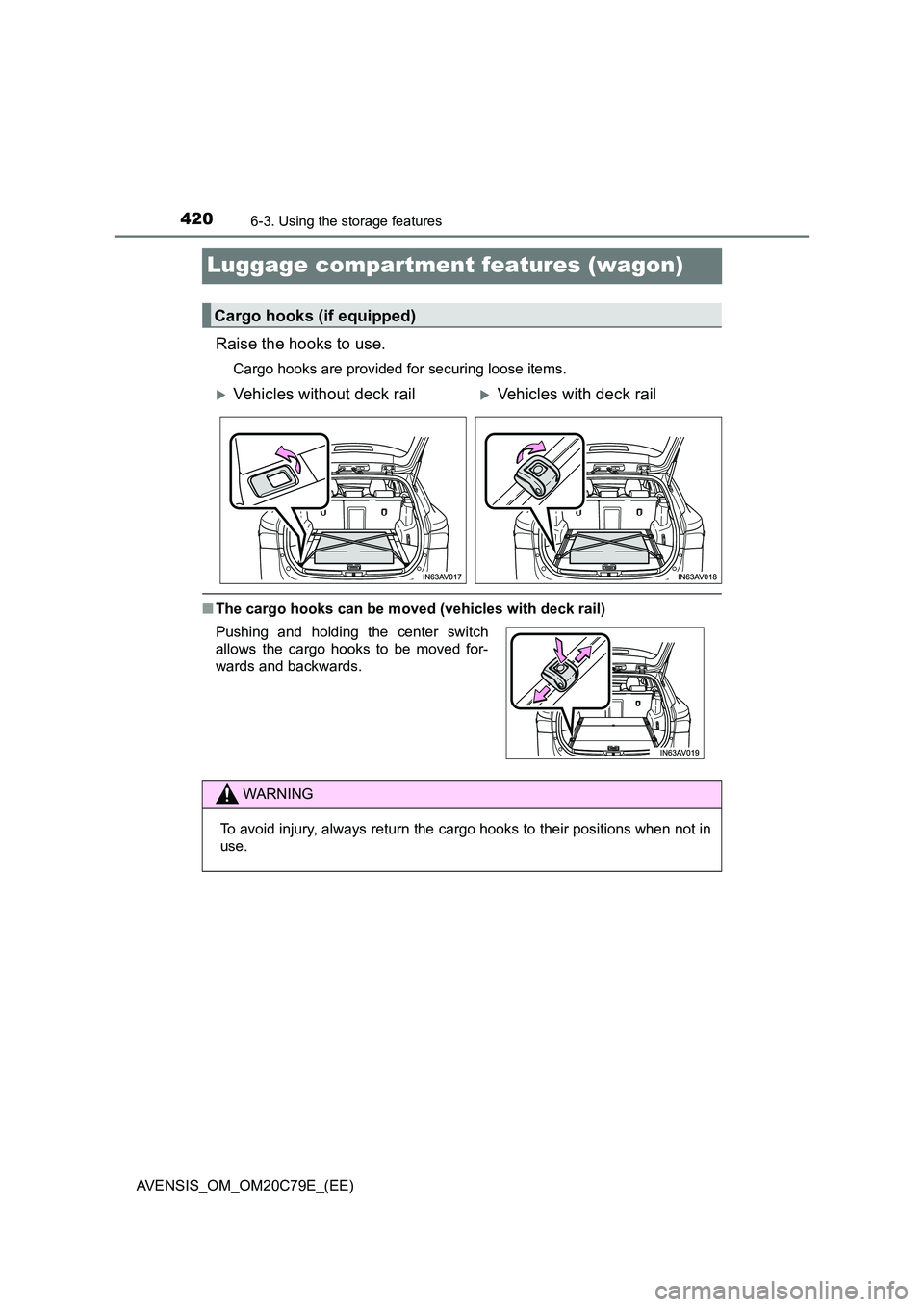

4206-3. Using the storage features
AVENSIS_OM_OM20C79E_(EE)
Luggage compartment features (wagon)
Raise the hooks to use.
Cargo hooks are provided for securing loose items.
■The cargo hooks can be moved (vehicles with deck rail)
Cargo hooks (if equipped)
Vehicles without deck railVehicles with deck rail
Pushing and holding the center switch
allows the cargo hooks to be moved for-
wards and backwards.
WARNING
To avoid injury, always return the cargo hooks to their positions when not in
use.

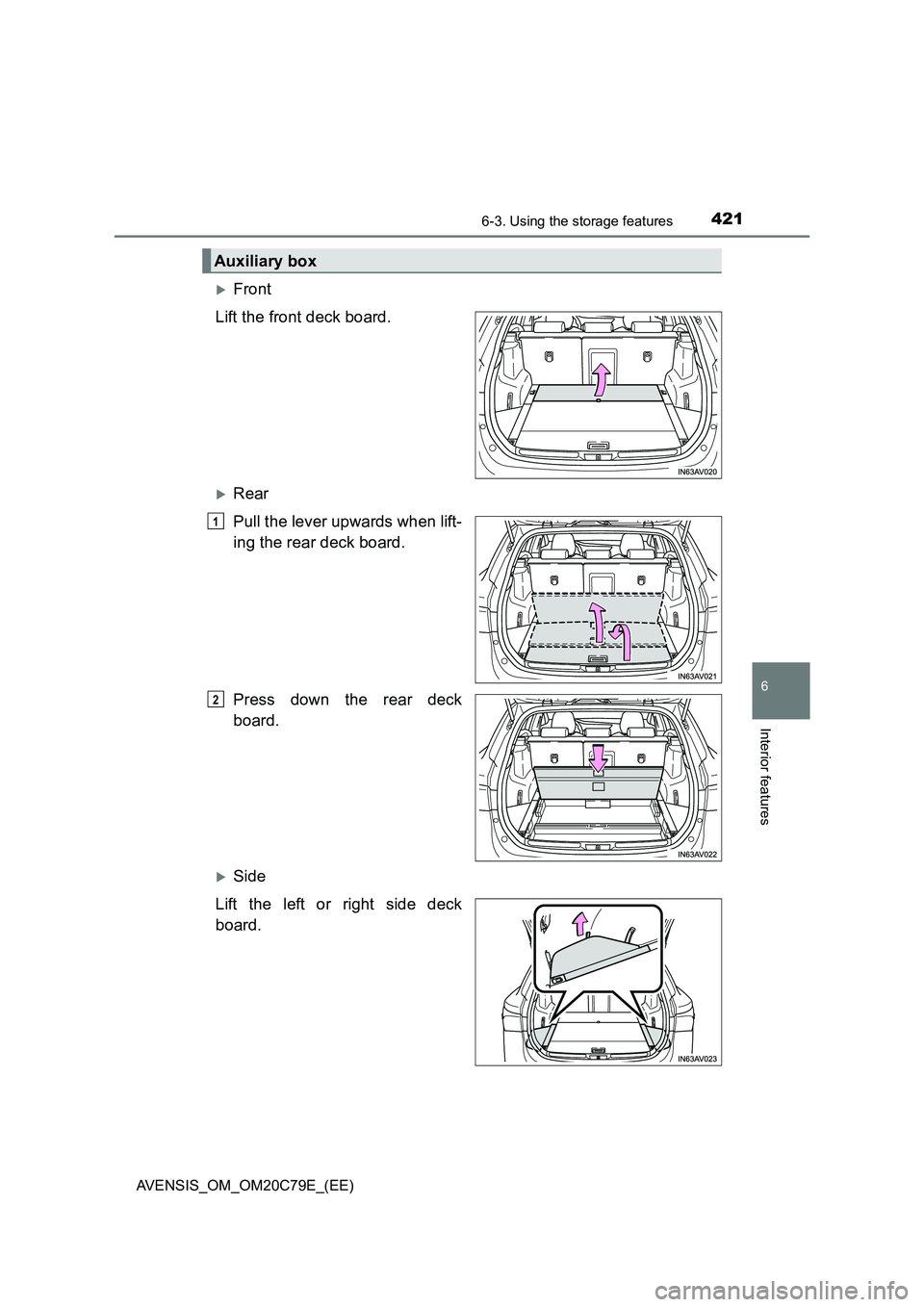

4216-3. Using the storage features
AVENSIS_OM_OM20C79E_(EE)
6
Interior features
Front
Lift the front deck board.
Rear
Pull the lever upwards when lift-
ing the rear deck board.
Press down the rear deck
board.
Side
Lift the left or right side deck
board.
Auxiliary box
1
2

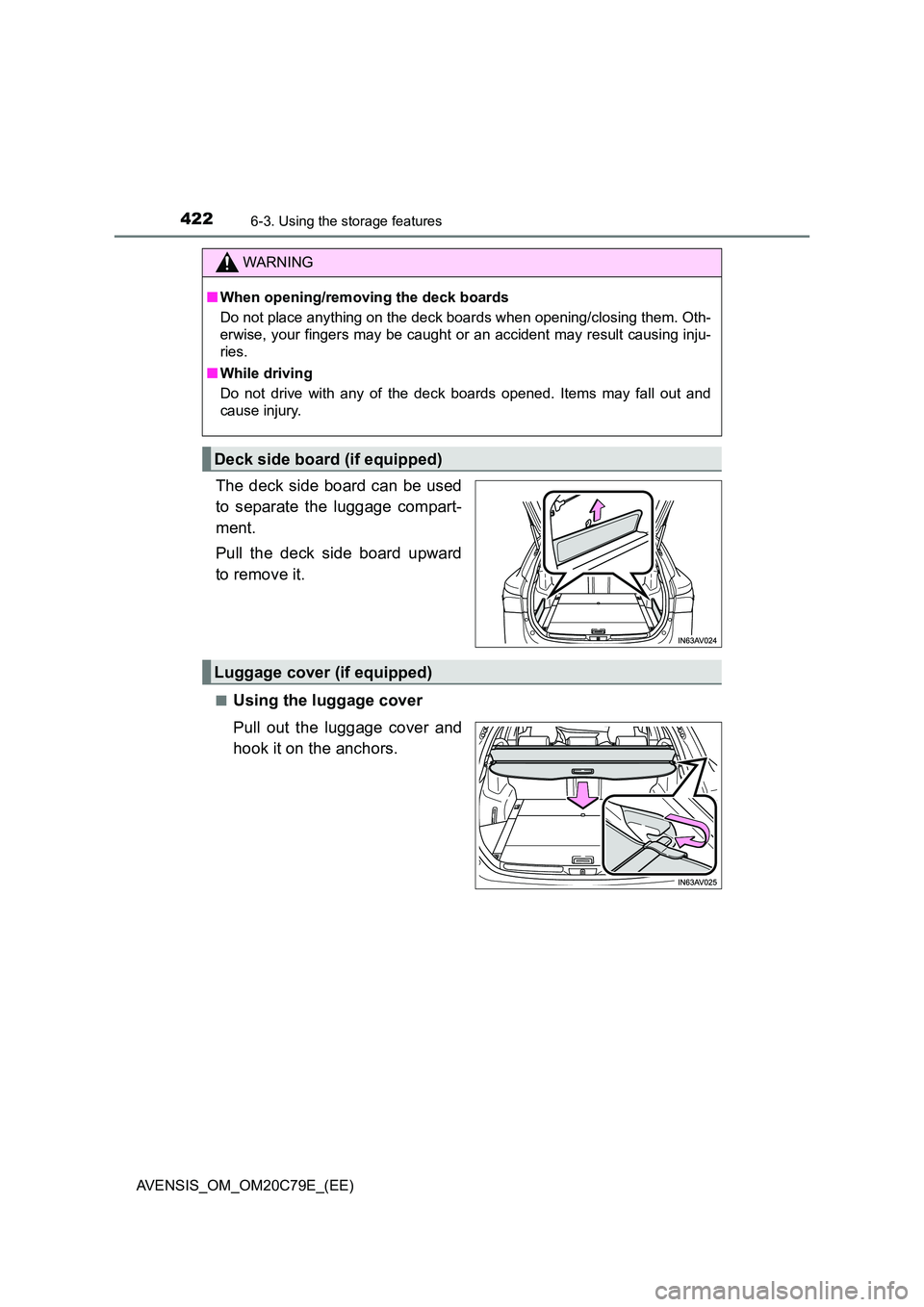

4226-3. Using the storage features
AVENSIS_OM_OM20C79E_(EE)
The deck side board can be used
to separate the luggage compart-
ment.
Pull the deck side board upward
to remove it.
■Using the luggage cover
Pull out the luggage cover and
hook it on the anchors.
WARNING
■ When opening/removing the deck boards
Do not place anything on the deck boards when opening/closing them. Oth-
erwise, your fingers may be caught or an accident may result causing inju-
ries.
■ While driving
Do not drive with any of the deck boards opened. Items may fall out and
cause injury.
Deck side board (if equipped)
Luggage cover (if equipped)

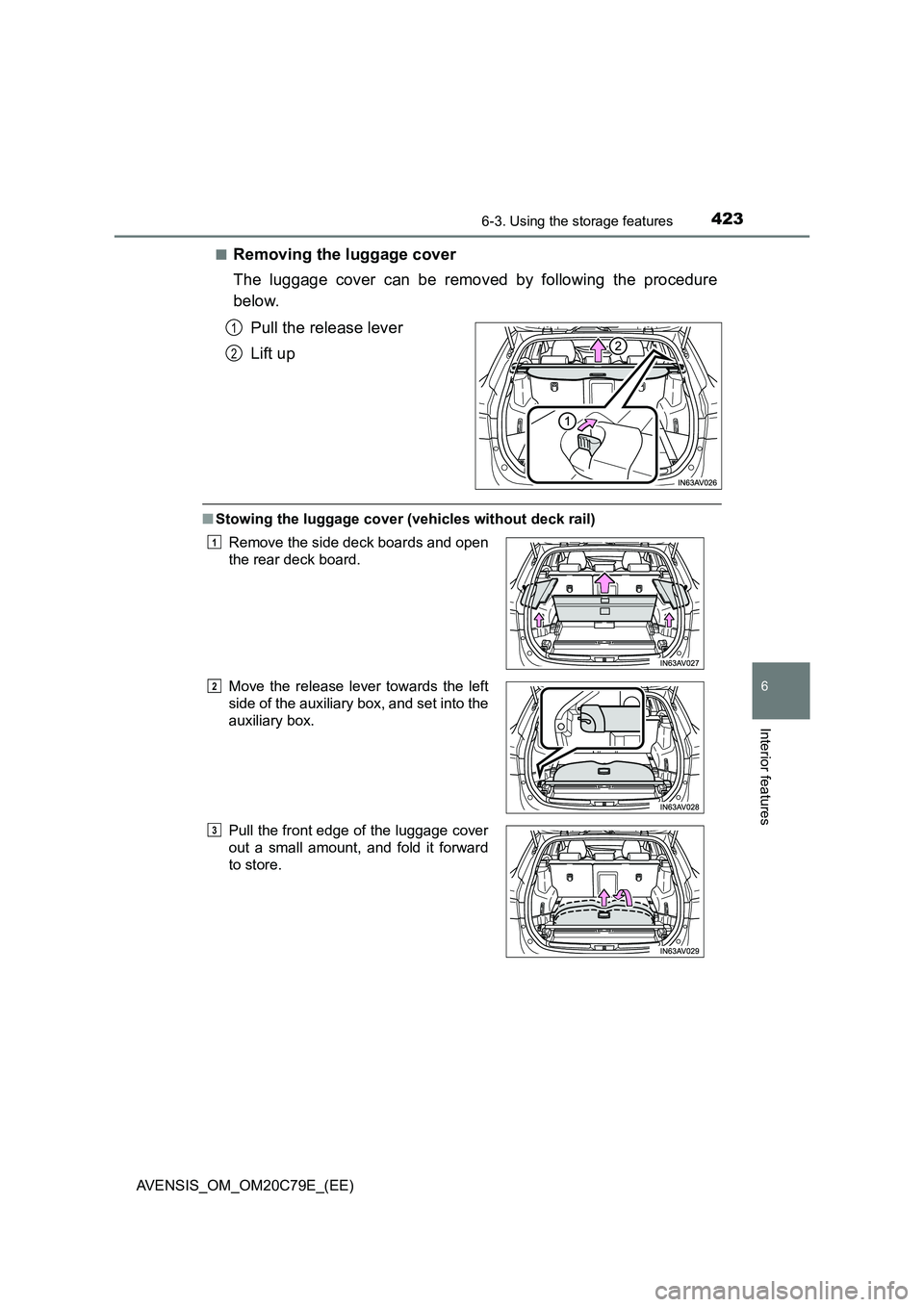

4236-3. Using the storage features
AVENSIS_OM_OM20C79E_(EE)
6
Interior features
■Removing the luggage cover
The luggage cover can be removed by following the procedure
below.
Pull the release lever
Lift up
■Stowing the luggage cover (vehicles without deck rail)
1
2
Remove the side deck boards and open
the rear deck board.
Move the release lever towards the left
side of the auxiliary box, and set into the
auxiliary box.
Pull the front edge of the luggage cover
out a small amount, and fold it forward
to store.1
2
3

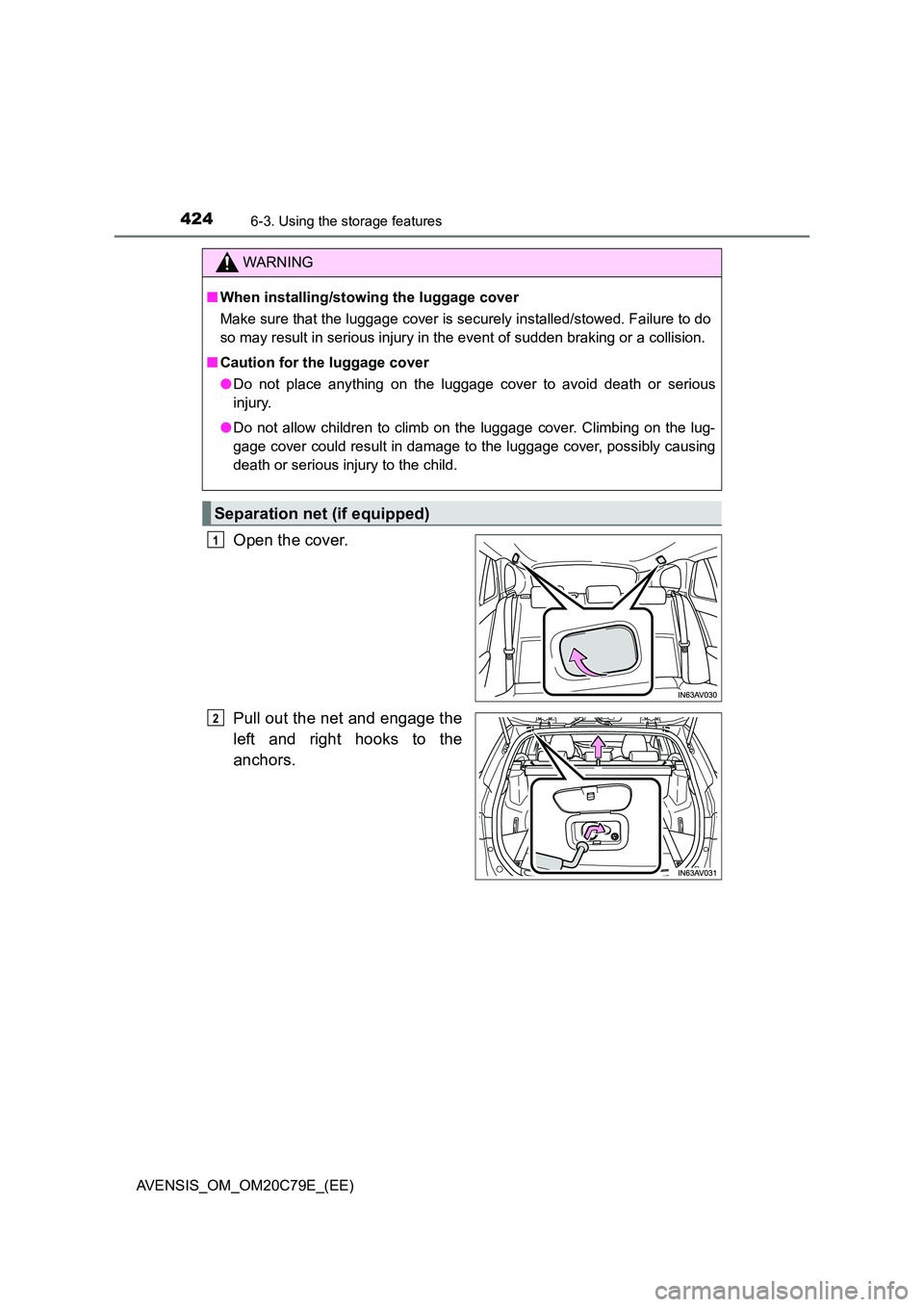

4246-3. Using the storage features
AVENSIS_OM_OM20C79E_(EE)
Open the cover.
Pull out the net and engage the
left and right hooks to the
anchors.
WARNING
■ When installing/stowing the luggage cover
Make sure that the luggage cover is securely installed/stowed. Failure to do
so may result in serious injury in the event of sudden braking or a collision.
■ Caution for the luggage cover
● Do not place anything on the luggage cover to avoid death or serious
injury.
● Do not allow children to climb on the luggage cover. Climbing on the lug-
gage cover could result in damage to the luggage cover, possibly causing
death or serious injury to the child.
Separation net (if equipped)
1
2
