5698-2. Steps to take in an emergency
AVENSIS_OM_OM20C79E_(EE)
8
When trouble arises

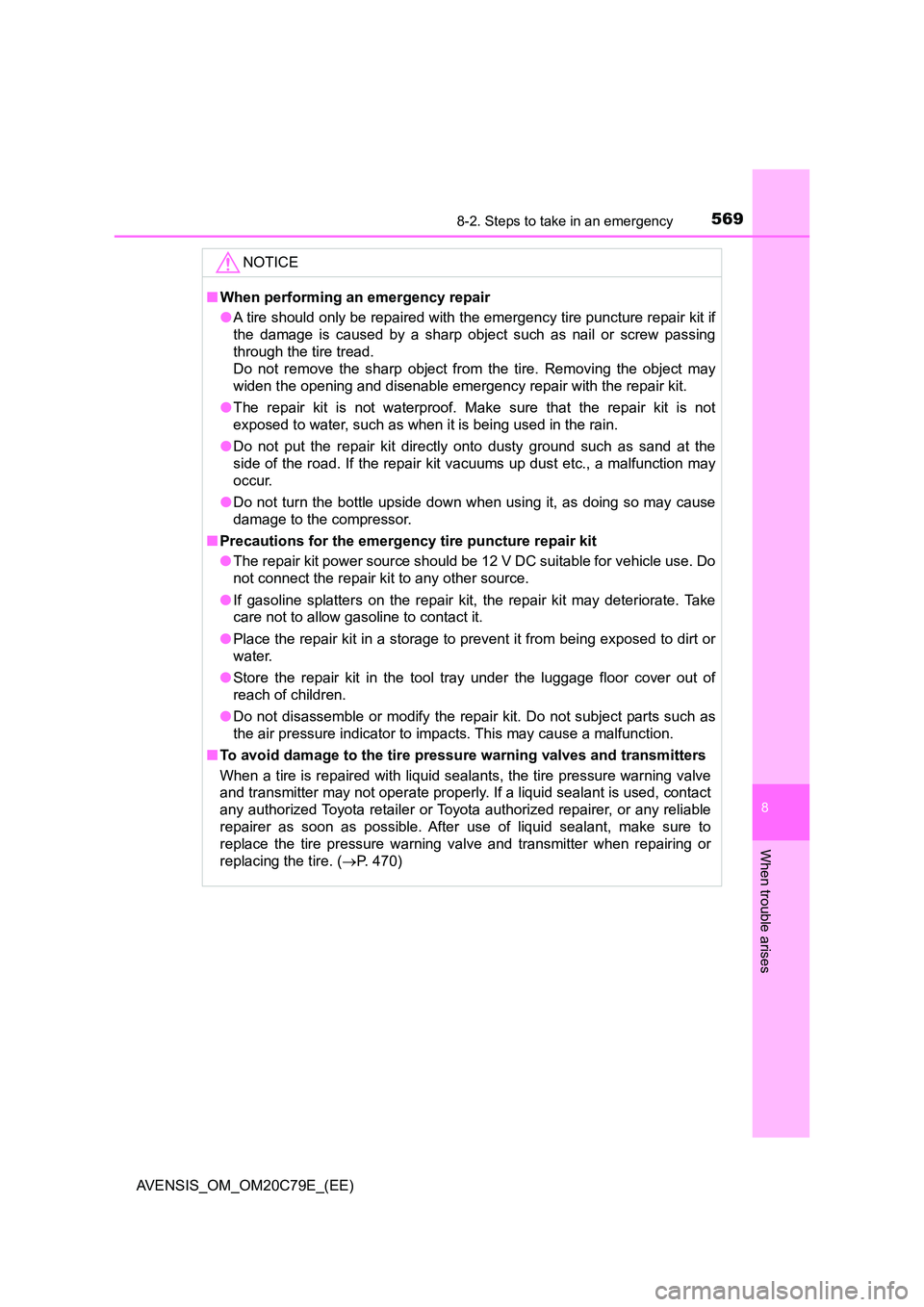

NOTICE
■When performing an emergency repair
● A tire should only be repaired with the emergency tire puncture repair kit if
the damage is caused by a sharp object such as nail or screw passing
through the tire tread.
Do not remove the sharp object from the tire. Removing the object may
widen the opening and disenable emergenc y repair with the repair kit.
● The repair kit is not waterproof. Make sure that the repair kit is not
exposed to water, such as when it is being used in the rain.
● Do not put the repair kit directly onto dusty ground such as sand at the
side of the road. If the repair kit vacuums up dust etc., a malfunction may
occur.
● Do not turn the bottle upside down when using it, as doing so may cause
damage to the compressor.
■ Precautions for the emergency tire puncture repair kit
● The repair kit power source should be 12 V DC suitable for vehicle use. Do
not connect the repair kit to any other source.
● If gasoline splatters on the repair kit, the repair kit may deteriorate. Take
care not to allow gasoline to contact it.
● Place the repair kit in a storage to prevent it from being exposed to dirt or
water.
● Store the repair kit in the tool tray under the luggage floor cover out of
reach of children.
● Do not disassemble or modify the repair kit. Do not subject parts such as
the air pressure indicator to impacts. This may cause a malfunction.
■ To avoid damage to the tire pressure warning valves and transmitters
When a tire is repaired with liquid sealants, the tire pressure warning valve
and transmitter may not operate properly. If a liquid sealant is used, contact
any authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer as soon as possible. After use of liquid sealant, make sure to
replace the tire pressure warning valve and transmitter when repairing or
replacing the tire. ( P. 470)

5708-2. Steps to take in an emergency
AVENSIS_OM_OM20C79E_(EE)

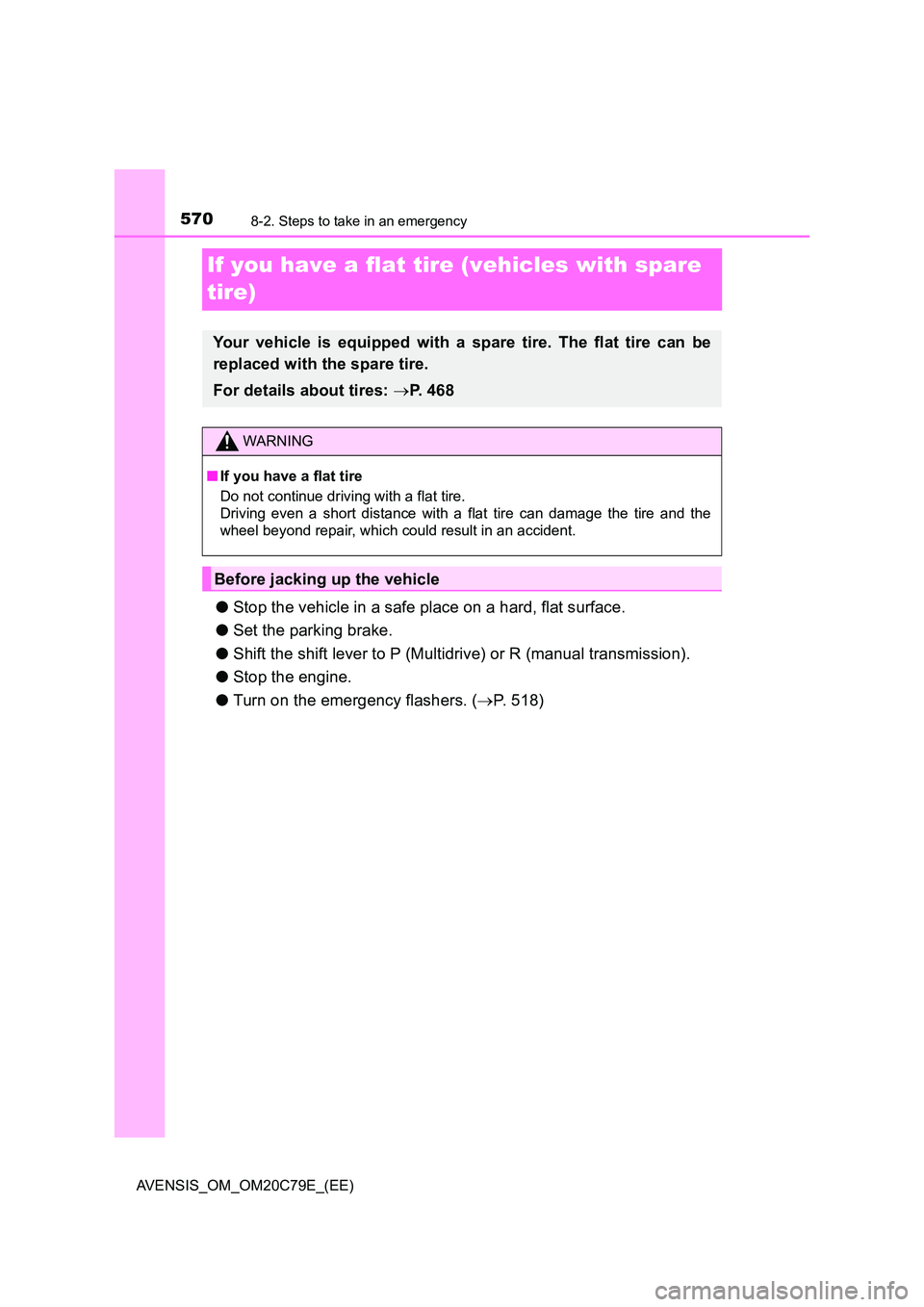

If you have a flat tire (vehicles with spare
tire)
● Stop the vehicle in a safe place on a hard, flat surface.
● Set the parking brake.
● Shift the shift lever to P (Multidrive) or R (manual transmission).
● Stop the engine.
● Turn on the emergency flashers. (P. 518)
Your vehicle is equipped with a spare tire. The flat tire can be
replaced with the spare tire.
For details about tires: P. 4 6 8
WARNING
■If you have a flat tire
Do not continue driving with a flat tire.
Driving even a short distance with a flat tire can damage the tire and the
wheel beyond repair, which could result in an accident.
Before jacking up the vehicle

5718-2. Steps to take in an emergency
AVENSIS_OM_OM20C79E_(EE)
8
When trouble arises
Vehicles with compact spare tire
Vehicles with full-size spare tire

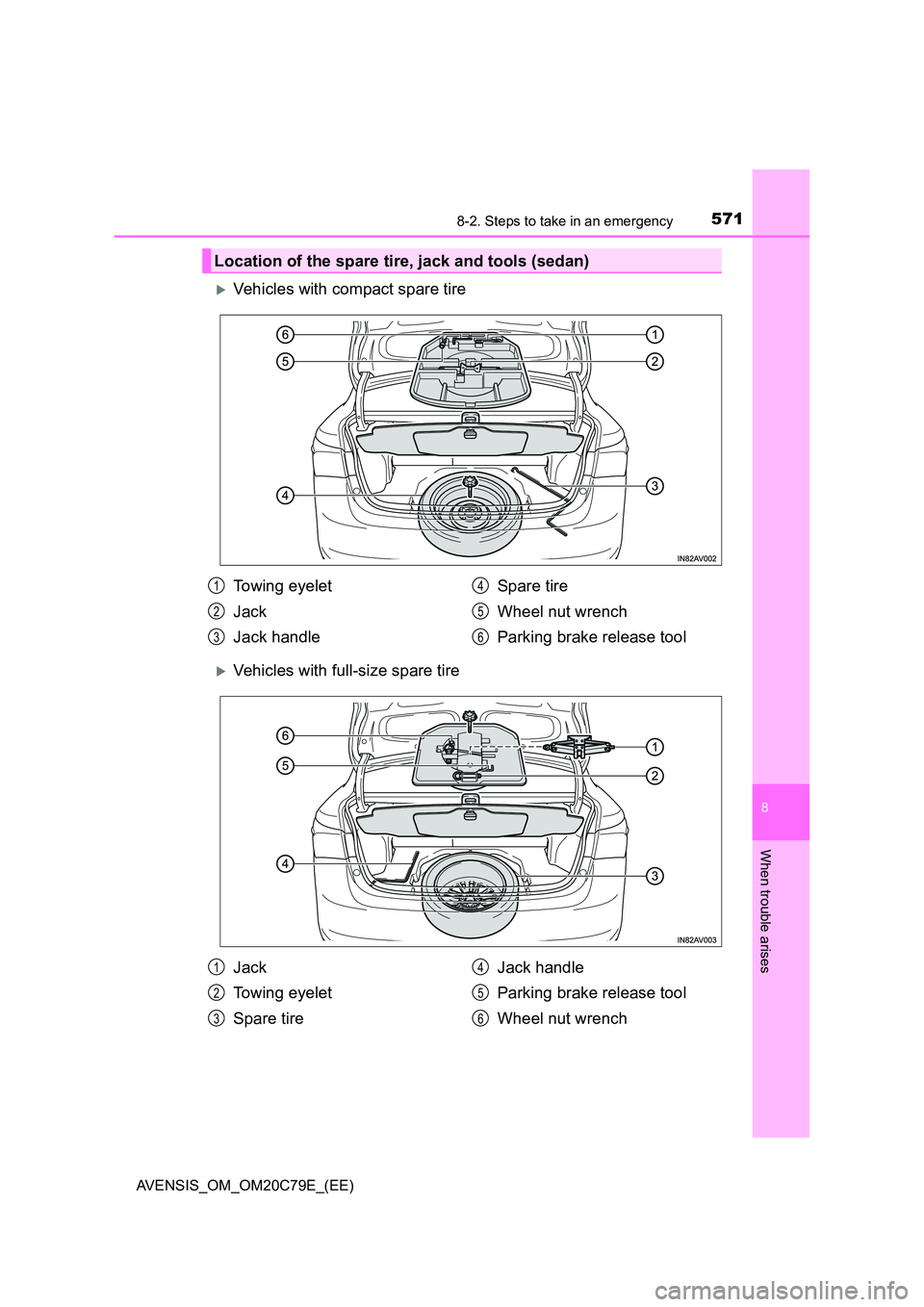

Location of the spare tire, jack and tools (sedan)
Towing eyelet
Jack
Jack handle
Spare tire
Wheel nut wrench
Parking brake release tool
1
2
3
4
5
6
Jack
Towing eyelet
Spare tire
Jack handle
Parking brake release tool
Wheel nut wrench
1
2
3
4
5
6

5728-2. Steps to take in an emergency
AVENSIS_OM_OM20C79E_(EE)
Vehicles with compact spare tire
Vehicles with full-size spare tire

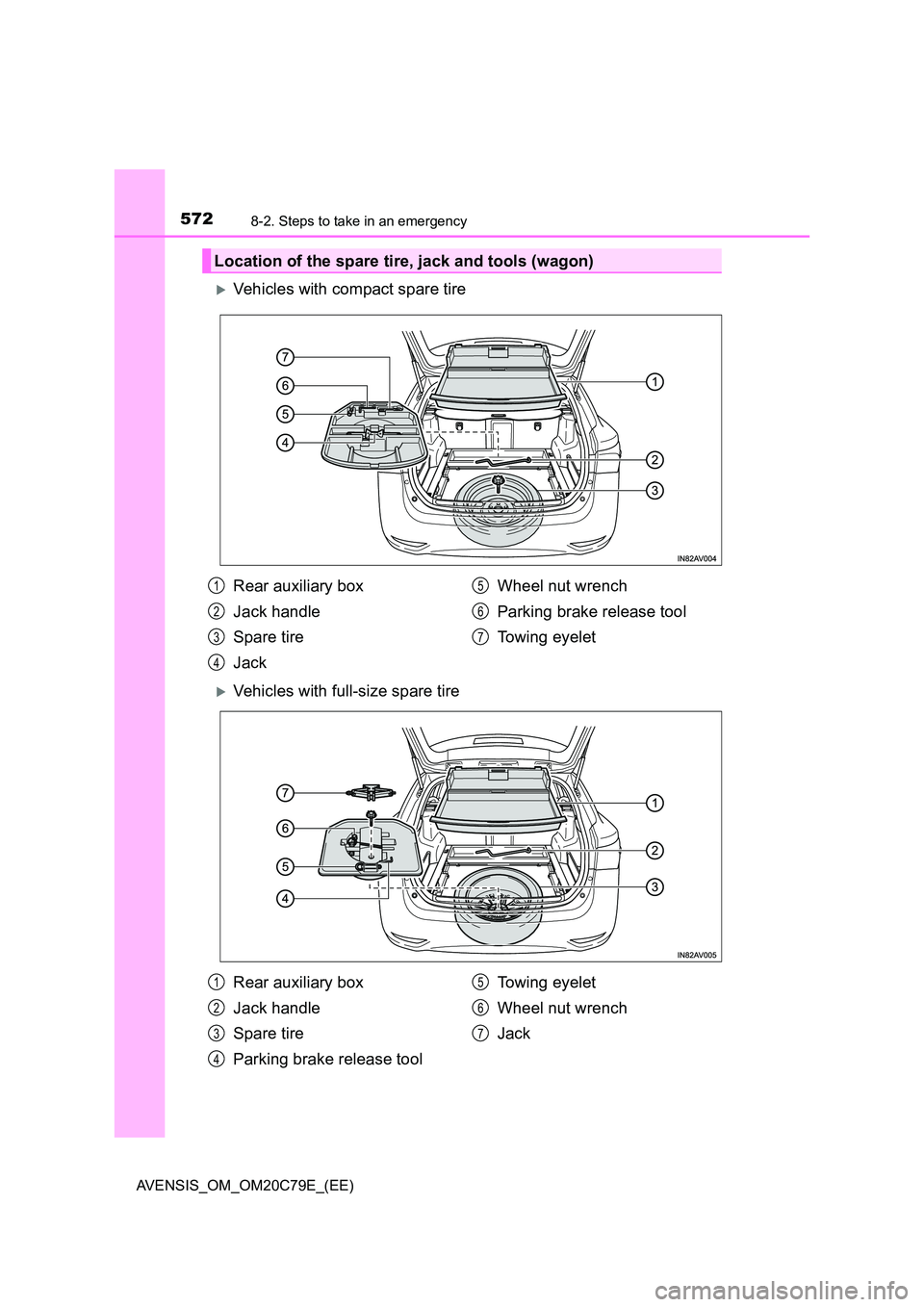

Location of the spare tire, jack and tools (wagon)
Rear auxiliary box
Jack handle
Spare tire
Jack
Wheel nut wrench
Parking brake release tool
Towing eyelet
1
2
3
4
5
6
7
Rear auxiliary box
Jack handle
Spare tire
Parking brake release tool
Towing eyelet
Wheel nut wrench
Jack
1
2
3
4
5
6
7

5738-2. Steps to take in an emergency
AVENSIS_OM_OM20C79E_(EE)
8
When trouble arises

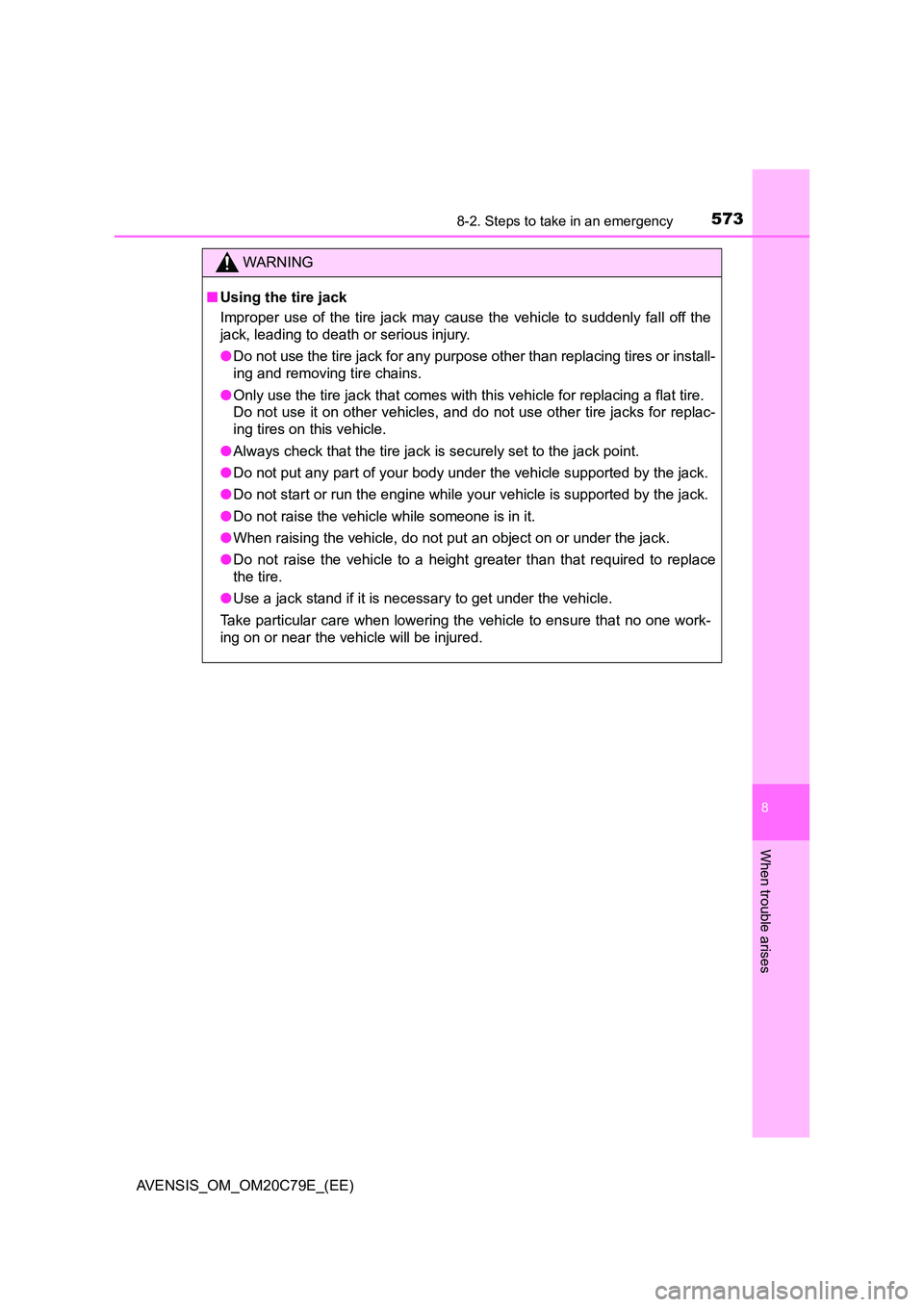

WARNING
■Using the tire jack
Improper use of the tire jack may cause the vehicle to suddenly fall off the
jack, leading to death or serious injury.
● Do not use the tire jack for any purpose other than replacing tires or install-
ing and removing tire chains.
● Only use the tire jack that comes with this vehicle for replacing a flat tire.
Do not use it on other vehicles, and do not use other tire jacks for replac-
ing tires on this vehicle.
● Always check that the tire jack is securely set to the jack point.
● Do not put any part of your body under the vehicle supported by the jack.
● Do not start or run the engine while your vehicle is supported by the jack.
● Do not raise the vehicle while someone is in it.
● When raising the vehicle, do not put an object on or under the jack.
● Do not raise the vehicle to a height greater than that required to replace
the tire.
● Use a jack stand if it is necessary to get under the vehicle.
Take particular care when lowering the vehicle to ensure that no one work-
ing on or near the vehicle will be injured.

5748-2. Steps to take in an emergency
AVENSIS_OM_OM20C79E_(EE)

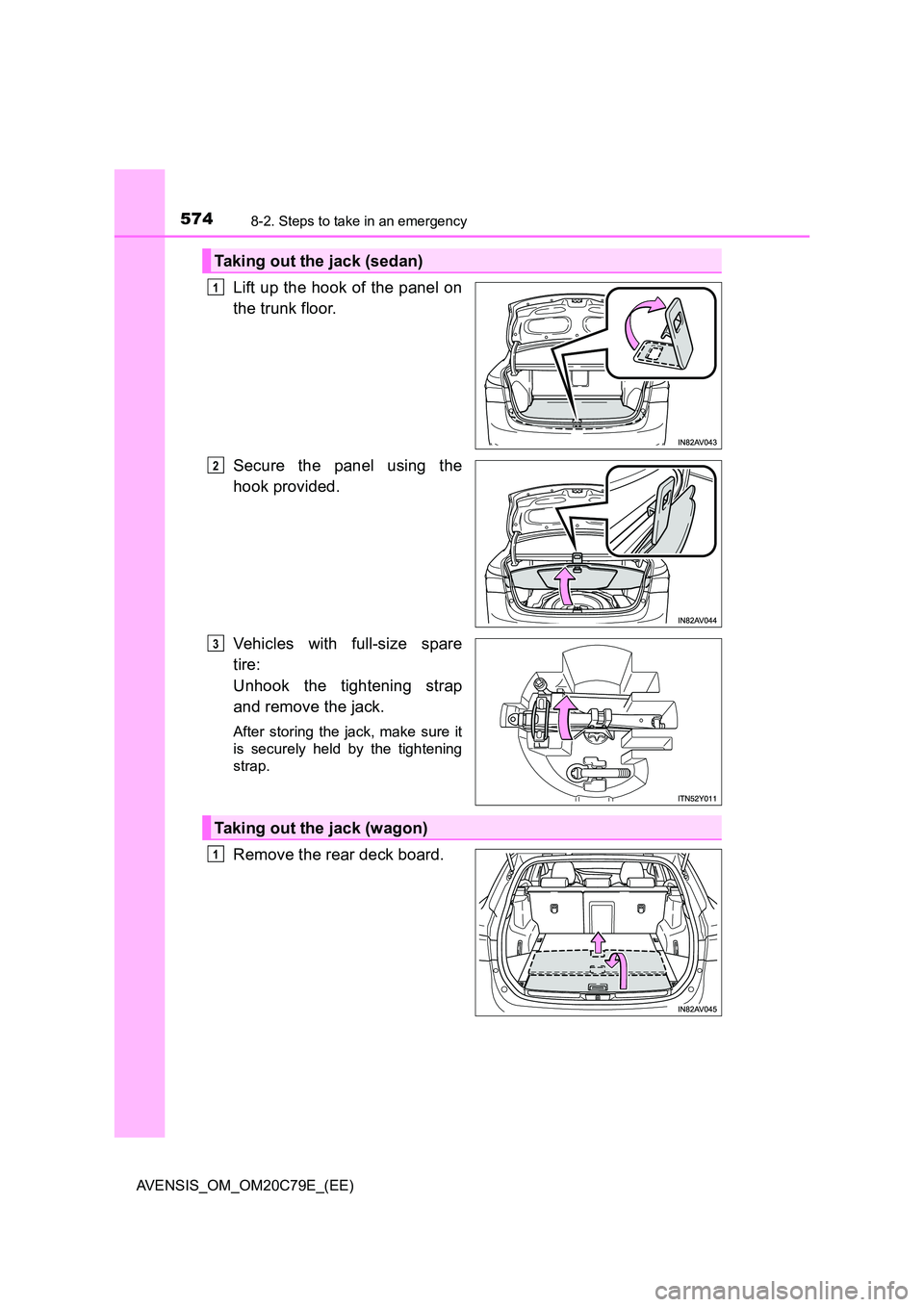

Lift up the hook of the panel on
the trunk floor.
Secure the panel using the
hook provided.
Vehicles with full-size spare
tire:
Unhook the tightening strap
and remove the jack.
After storing the jack, make sure it
is securely held by the tightening
strap.
Remove the rear deck board.
Taking out the jack (sedan)
1
2
3
Taking out the jack (wagon)
1

5758-2. Steps to take in an emergency
AVENSIS_OM_OM20C79E_(EE)
8
When trouble arises

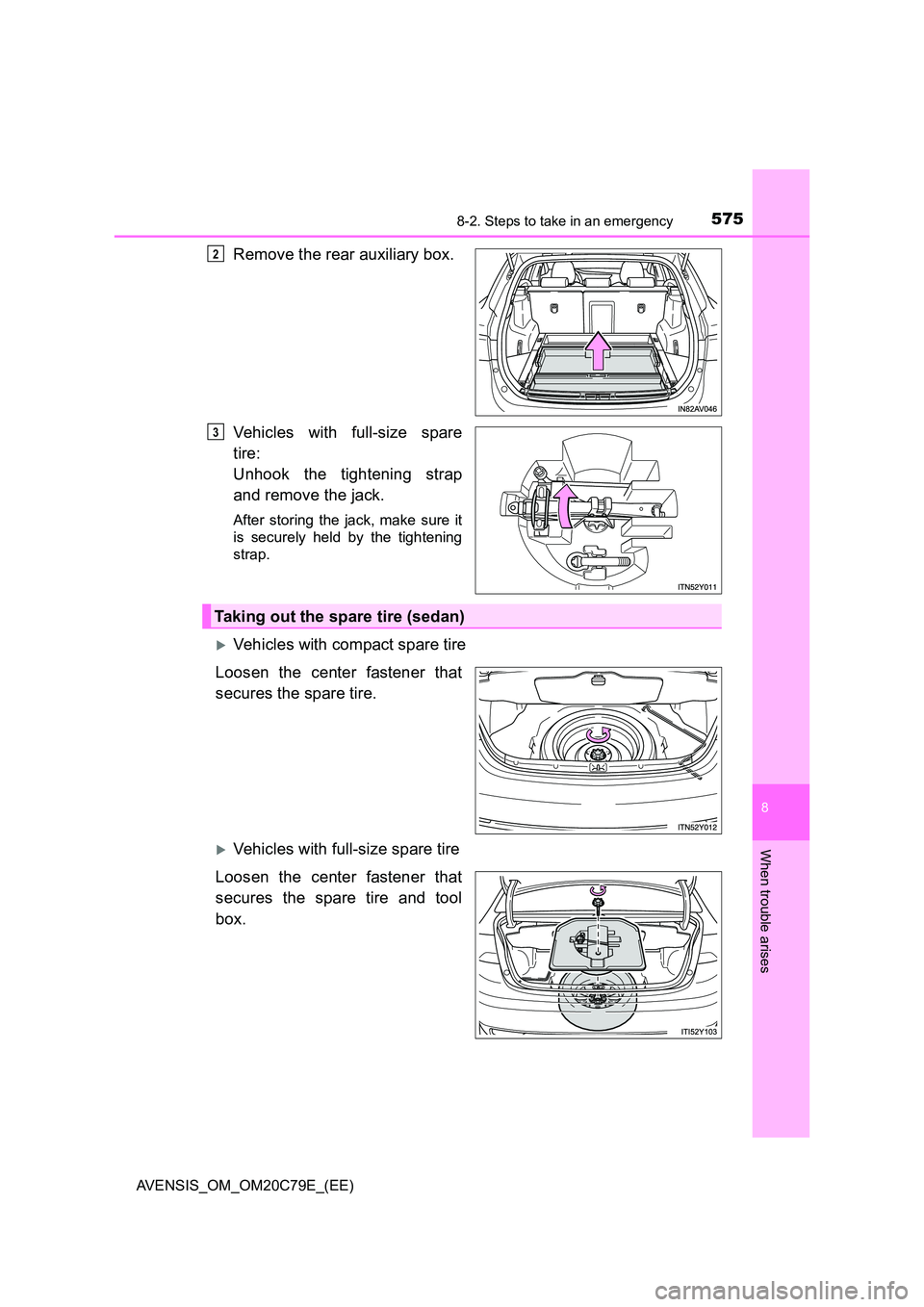

Remove the rear auxiliary box.
Vehicles with full-size spare
tire:
Unhook the tightening strap
and remove the jack.
After storing the jack, make sure it
is securely held by the tightening
strap.
Vehicles with compact spare tire
Loosen the center fastener that
secures the spare tire.
Vehicles with full-size spare tire
Loosen the center fastener that
secures the spare tire and tool
box.
2
3
Taking out the spare tire (sedan)

5768-2. Steps to take in an emergency
AVENSIS_OM_OM20C79E_(EE)
Vehicles with compact spare tire
Loosen the center fastener that
secures the spare tire.
Vehicles with full-size spare tire
Loosen the center fastener that
secures the spare tire and tool
box.

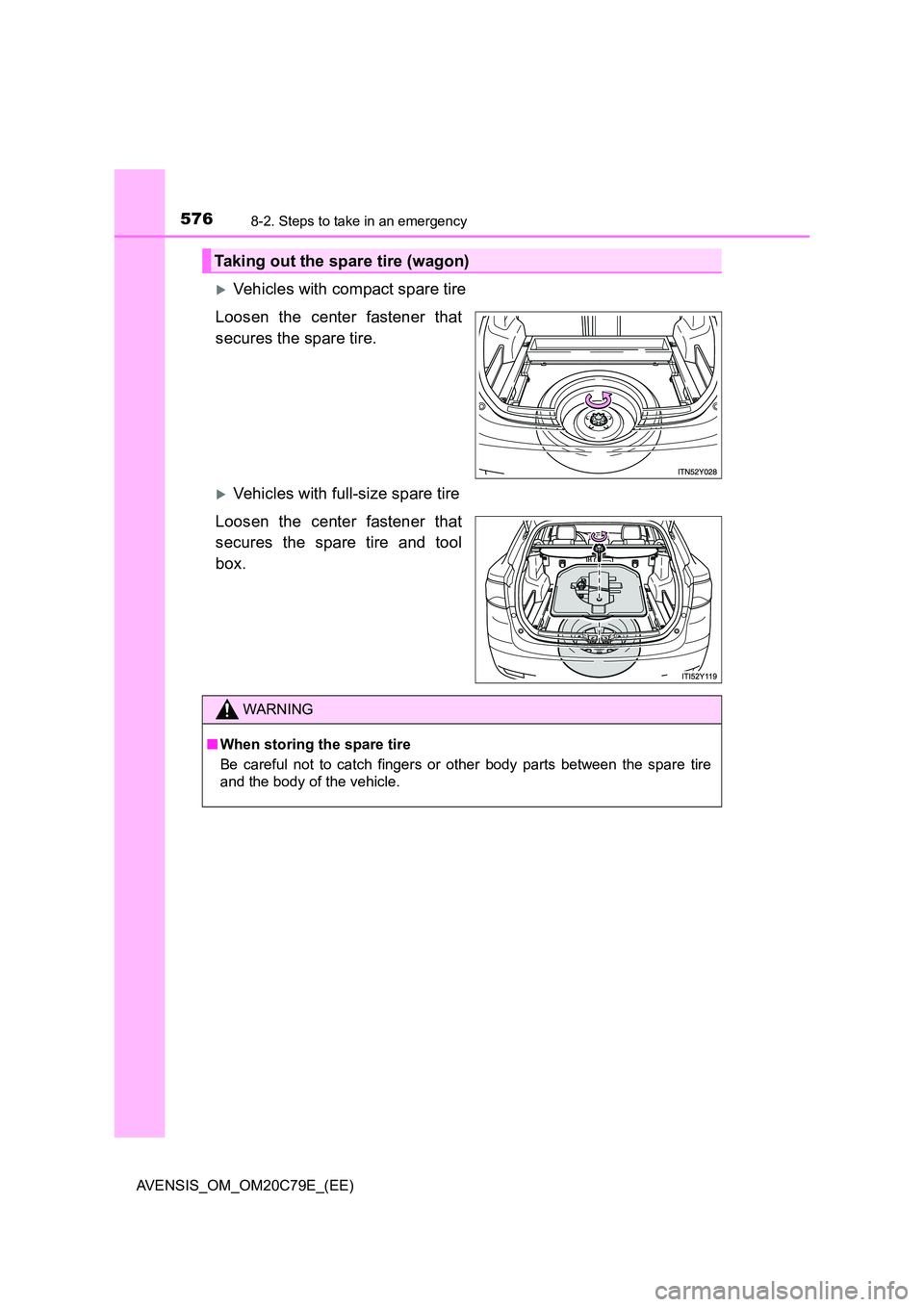

Taking out the spare tire (wagon)
WARNING
■ When storing the spare tire
Be careful not to catch fingers or other body parts between the spare tire
and the body of the vehicle.
