2018 TOYOTA AVENSIS Owners Manual

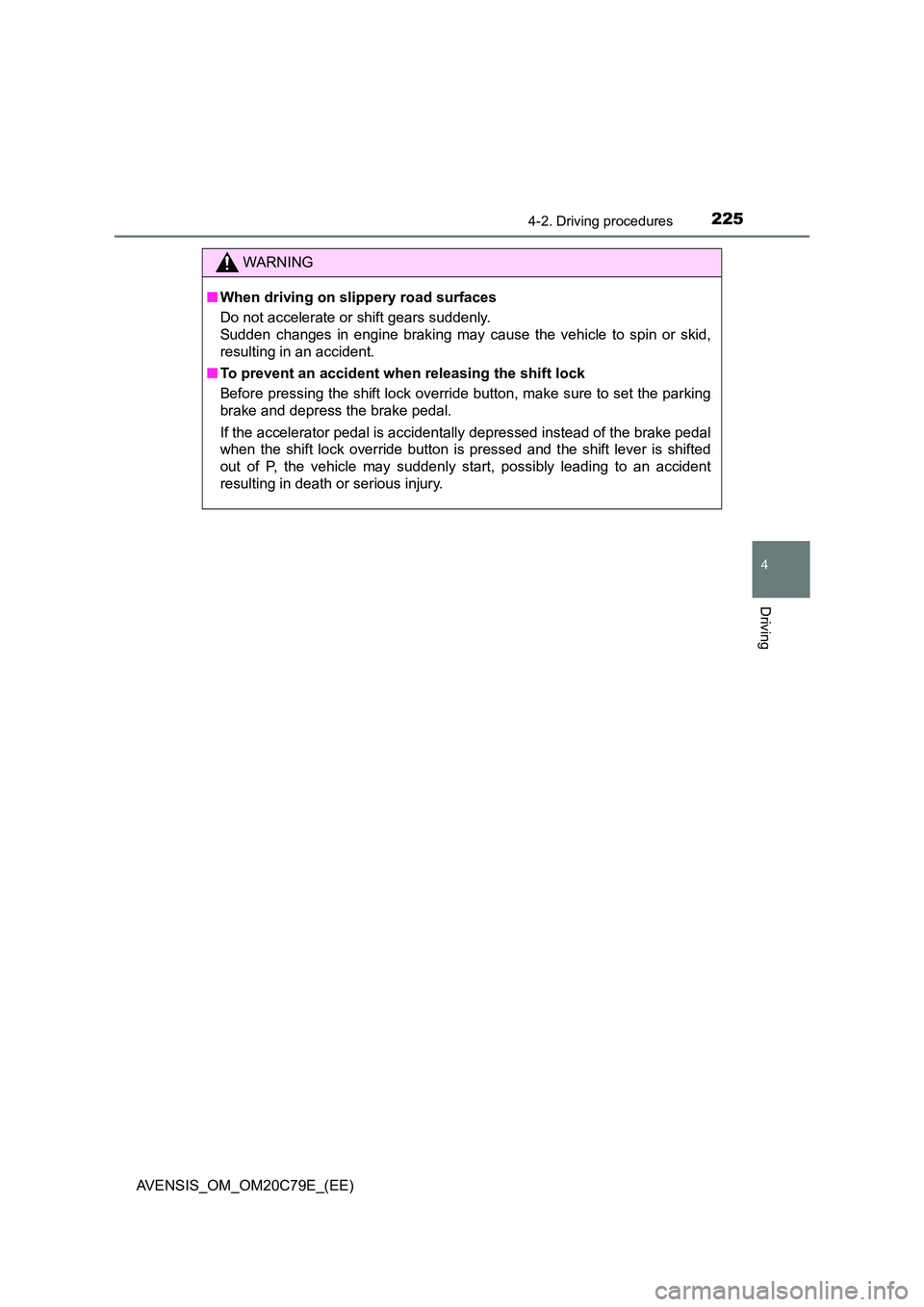

2254-2. Driving procedures
4
Driving
AVENSIS_OM_OM20C79E_(EE)
WARNING
■When driving on slippery road surfaces
Do not accelerate or shift gears suddenly.
Sudden changes in engine braking may cause the vehicle to spin or skid,
resulting in an accident.
■ To prevent an accident when releasing the shift lock
Before pressing the shift lock override button, make sure to set the parking
brake and depress the brake pedal.
If the accelerator pedal is accidentally depressed instead of the brake pedal
when the shift lock override button is pressed and the shift lever is shifted
out of P, the vehicle may suddenly start, possibly leading to an accident
resulting in death or serious injury.

2264-2. Driving procedures
AVENSIS_OM_OM20C79E_(EE)
Manual transmission
Fully depress the clutch pedal
before operating the shift lever,
and then release it slowly.
Shift the shift lever to the R posi-
tion while lifting up the ring sec-
tion.
The Gear Shift Indicator display is a guide to help the driver achieve
improved fuel economy and reduced exhaust emissions within limits
of engine performance.
Upshifting
Downshifting
: If equipped
Shifting the shift lever
Shifting the shift lever to R
Gear Shift Indicator
1
2

2274-2. Driving procedures
4
Driving
AVENSIS_OM_OM20C79E_(EE)
■Gear Shift Indicator display
The Gear Shift Indicator may not be displayed when your foot is placed on
the clutch pedal.
■Maximum downshifting speeds
Observe the following maximum downshifting speeds in the following table to
prevent over-revving the engine.
Gasoline engine
km/h (mph)
Diesel engine
km/h (mph)
Shift positionMaximum speed
1ZR-FAE engine2ZR-FAE engine
148 (30)53 (33)
289 (55)98 (61)
3130 (81)143 (89)
4175 (109)193 (120)
Shift positionMaximum speed
1WW engine2WW engine
143 (27)40 (25)
286 (53)81 (50)
3136 (85)127 (79)
4193 (120)180 (112)

2284-2. Driving procedures
AVENSIS_OM_OM20C79E_(EE)
WARNING
■Gear Shift Indicator display
For safety, the driver should not look only at the display. Refer to the display
when it is safe to do so while considering actual traffic and road conditions.
Failure to do so may lead to an accident.
NOTICE
■ To prevent damage to the transmission
● Do not lift up the ring section except when shifting the lever to R.
● Shift the shift lever to R only when the vehicle is stationary.
●Do not shift the shift lever to R without
depressing the clutch pedal.

229
4
4-2. Driving procedures
Driving
AVENSIS_OM_OM20C79E_(EE)
Turn signal lever
Right turn
Lane change to the right (move
the lever partway and release
it)
The right hand signals will flash 3
times.
Lane change to the left (move
the lever partway and release
it)
The left hand signals will flash 3
times.
Left turn
■ Turn signals can be operated when
The engine switch is in the “ON” position (vehicles without smart entry & start
system) or IGNITION ON mode (vehicles with smart entry & start system).
■ If the indicators flash faster than usual
Check that a light bulb in the front or rear turn signal lights has not burned
out.
■ If the turn signals stop flashing before a lane change has been per-
formed
Operate the lever again.
■ Customization
The number of times the turn signals flash during a lane change can be
changed. (Customizable feature P. 629)
Operating instructions
1
2
3
4

2304-2. Driving procedures
AVENSIS_OM_OM20C79E_(EE)
Parking brake
Sets the parking brake
During application: The parking
brake indicator light will flash
Once applied: The parking brake
indicator light will on
Press and hold the parking brake
switch if an emergency occurs and
it is necessary to operate the park-
ing brake while driving.
Releases the parking brake
Operate the parking brake switch
while depressing the brake pedal.
Make sure that the parking brake
indicator light turn off.
■Parking the vehicle
P. 187
■Parking brake operation
●When the engine switch is not in the “ON” position (vehicles without smart
entry & start system) or IGNITION ON mode (vehicles with smart entry &
start system), the parking brake cannot be released using the parking brake
switch.
●Vehicles with Stop & Start system: When the engine is stopped by the Stop
& Start system, the parking brake will not be released even though the park-
ing brake switch is operated, but the engine will restart. The parking brake
can be released after the engine has been started, either by keeping the
parking brake switch pulled throughout the engine restart, or by pulling the
switch once again after the engine has restarted and “PARKING BRAKE
INOPERABLE”/“Parking brake inoperable.” on the multi-information display
has disappeared.
■Automatic release function (vehicles with manual transmission)
The parking brake is automatically released during starting the vehicle, thus
making starting off easier.
Operating instructions
1
2

2314-2. Driving procedures
4
Driving
AVENSIS_OM_OM20C79E_(EE)■Automatic apply function (vehicles with manual transmission)
To prevent the parking brake from being left accidentally unapplied, the park-
ing brake will be applied automatically under the following conditions:
●The vehicle is stopped.
●The engine switch is turned to the “ACC” position (vehicles without smart
entry & start system) or off (vehicles with smart entry & start system).
■Automatic apply mode (vehicles with manual transmission)
Automatic apply function (mode) is initially set to ON, but it can be switched
between ON and OFF as the situation demands.
●Switching automatic apply mode from ON to OFF:
Stop the vehicle in a horizontal condition and switch the engine switch to
the “ON” position (vehicles without smart entry & start system) or IGNI-
TION ON mode (vehicles with smart entry & start system).
●Switching automatic apply mode from OFF to ON:
Stop the vehicle in a horizontal condition and switch the engine switch to
the “ON” position (vehicles without smart entry & start system) or IGNI-
TION ON mode (vehicles with smart entry & start system).
Push and hold the parking brake switch for 5 seconds or more
The Auto P-off indicator light will go off.
●Temporary cancelation of the automatic apply function is available for spe-
cific circumstances (car wash, towing vehicle, etc.).
To temporarily cancel the automatic apply function of the parking brake, pull
the parking brake switch at the same time as you are switching off the vehi-
cle.
When switch is being pulled for 5 seconds or more, automatic apply mode
changes from ON to OFF.
■Parking brake operation sound
When the parking brake operates, a motor sound (whirring sound) may be
heard. This does not indicate a malfunction.Pull and hold the parking brake switch
for 5 seconds or more
The Auto P-off indicator light will illu-
minate.
1
2
1
2

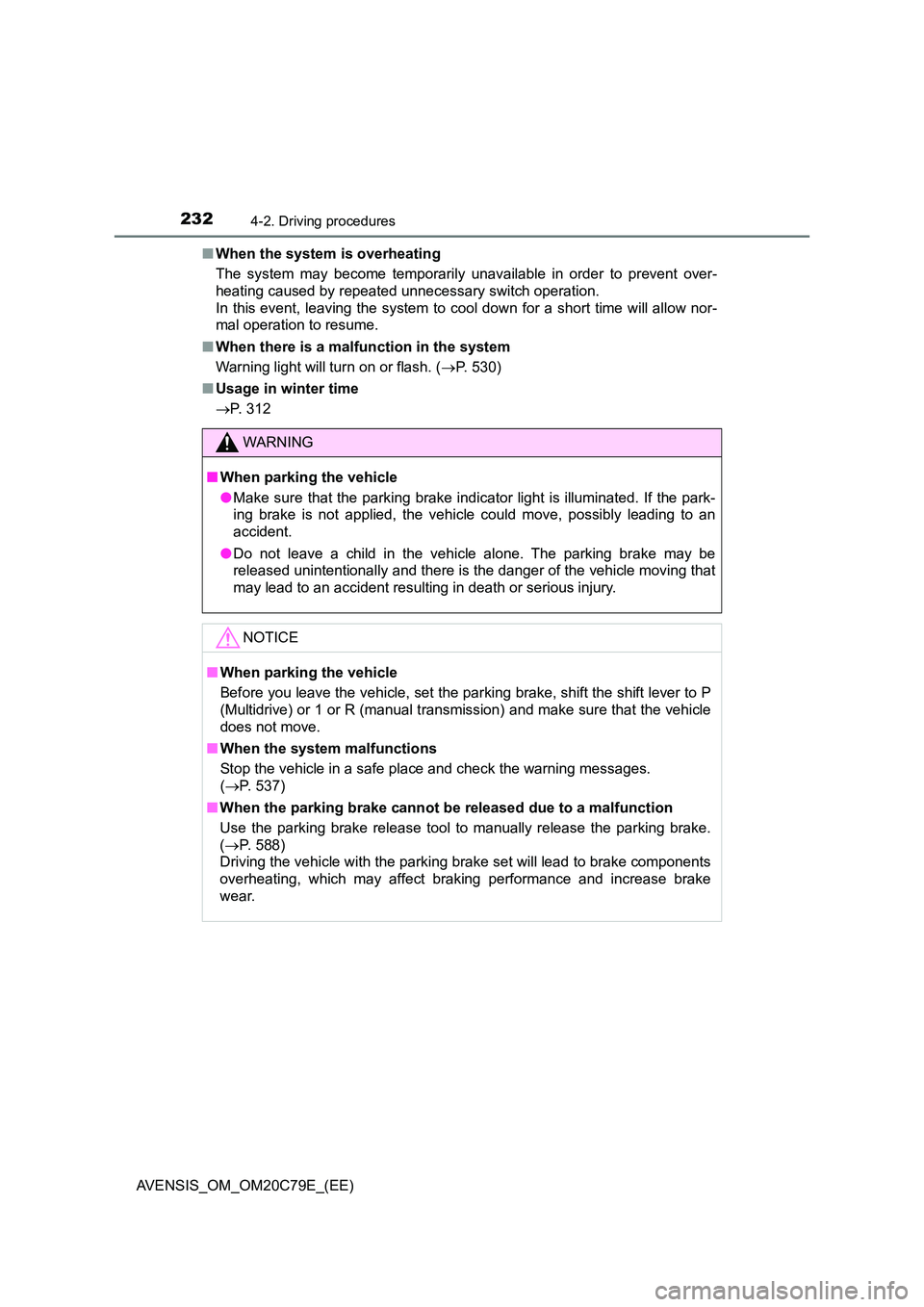

2324-2. Driving procedures
AVENSIS_OM_OM20C79E_(EE)
■ When the system is overheating
The system may become temporarily unavailable in order to prevent over-
heating caused by repeated unnecessary switch operation.
In this event, leaving the system to cool down for a short time will allow nor-
mal operation to resume.
■ When there is a malfunction in the system
Warning light will turn on or flash. ( P. 530)
■ Usage in winter time
 P. 312
WARNING
■When parking the vehicle
● Make sure that the parking brake indicator light is illuminated. If the park-
ing brake is not applied, the vehicle could move, possibly leading to an
accident.
● Do not leave a child in the vehicle alone. The parking brake may be
released unintentionally and there is the danger of the vehicle moving that
may lead to an accident resulting in death or serious injury.
NOTICE
■ When parking the vehicle
Before you leave the vehicle, set the parking brake, shift the shift lever to P
(Multidrive) or 1 or R (manual transmi ssion) and make sure that the vehicle
does not move.
■ When the system malfunctions
Stop the vehicle in a safe place and check the warning messages.
( P. 5 3 7 )
■ When the parking brake cannot be released due to a malfunction
Use the parking brake release tool to manually release the parking brake.
( P. 5 8 8 )
Driving the vehicle with the parking brake set will lead to brake components
overheating, which may affect braking performance and increase brake
wear.
