2018 TOYOTA AVENSIS Owners Manual

1613-2. Opening, closing and locking the doors
3
Operation of each component
AVENSIS_OM_OM20C79E_(EE)

1623-2. Opening, closing and locking the doors
AVENSIS_OM_OM20C79E_(EE)

1633-2. Opening, closing and locking the doors
3
Operation of each component
AVENSIS_OM_OM20C79E_(EE)

1643-2. Opening, closing and locking the doors
AVENSIS_OM_OM20C79E_(EE)

1653-2. Opening, closing and locking the doors
3
Operation of each component
AVENSIS_OM_OM20C79E_(EE)
WARNING
■Caution regarding interference with electronic devices
● People with implantable cardiac pacemakers, cardiac resynchronization
therapy-pacemakers or implantable card ioverter defibrillators should main-
tain a reasonable distance between themselves and the smart entry &
start system antennas. ( P. 149)
The radio waves may affect the operation of such devices. If necessary,
the entry function can be disabled. Ask any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer for details, such as the
frequency of radio waves and timing of the emitted radio waves. Then,
consult your doctor to see if you should disable the entry function.
● Users of any electrical medical device other than implantable cardiac
pacemakers, cardiac resynchronizati on therapy-pacemakers or implanta-
ble cardioverter defibrillators should consult the manufacturer of the
device for information about its operation under the influence of radio
waves.
Radio waves could have unexpected effects on the operation of such
medical devices.
Ask any authorized Toyota retailer or To yota authorized repairer, or any reli-
able repairer for details for disabling the entry function.

1663-3. Adjusting the seats
AVENSIS_OM_OM20C79E_(EE)

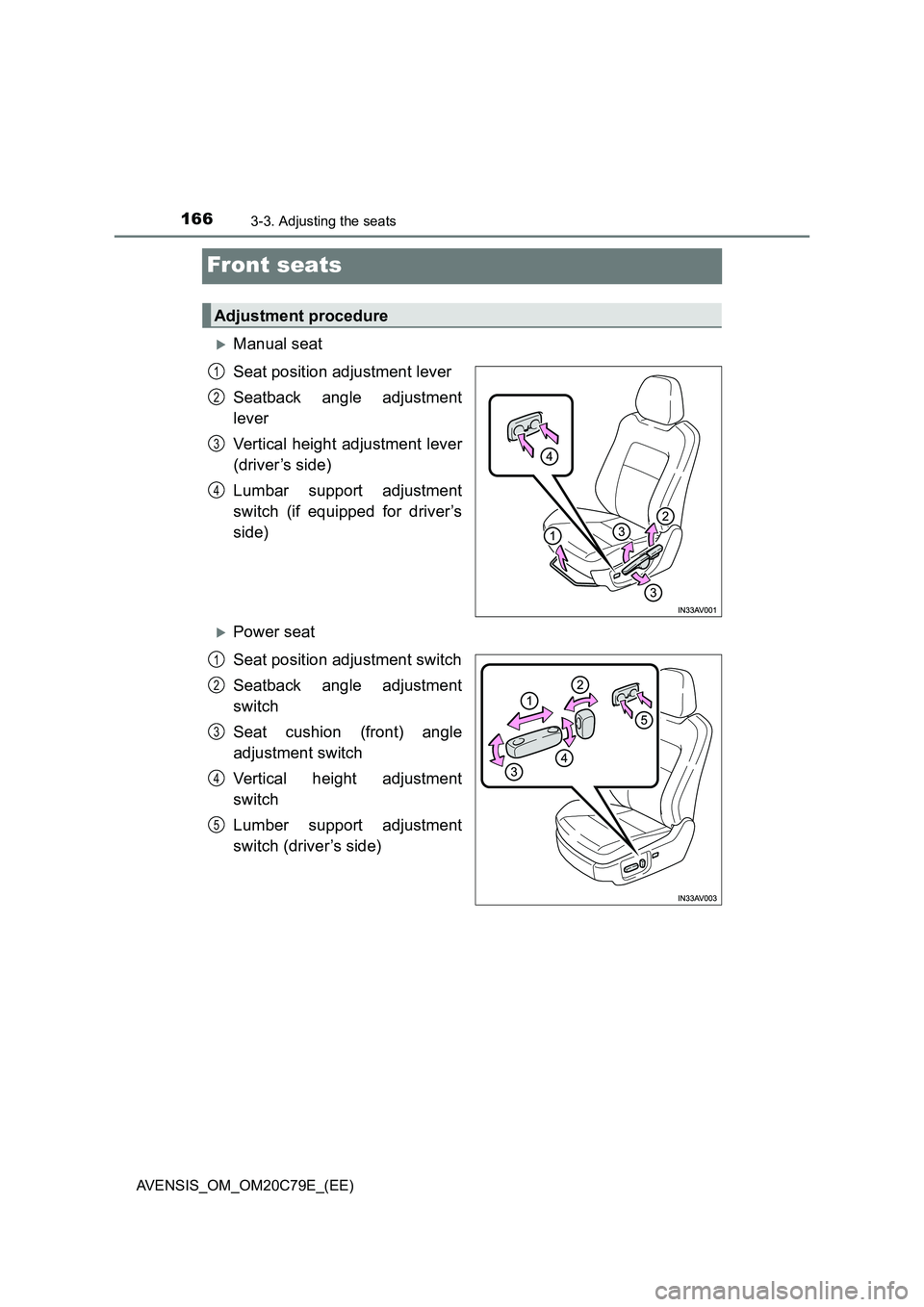

Front seats
Manual seat
Seat position adjustment lever
Seatback angle adjustment
lever
Vertical height adjustment lever
(driver’s side)
Lumbar support adjustment
switch (if equipped for driver’s
side)
Power seat
Seat position adjustment switch
Seatback angle adjustment
switch
Seat cushion (front) angle
adjustment switch
Vertical height adjustment
switch
Lumber support adjustment
switch (driver’s side)
Adjustment procedure
1
2
3
4
1
2
3
4
5

1673-3. Adjusting the seats
3
Operation of each component
AVENSIS_OM_OM20C79E_(EE)

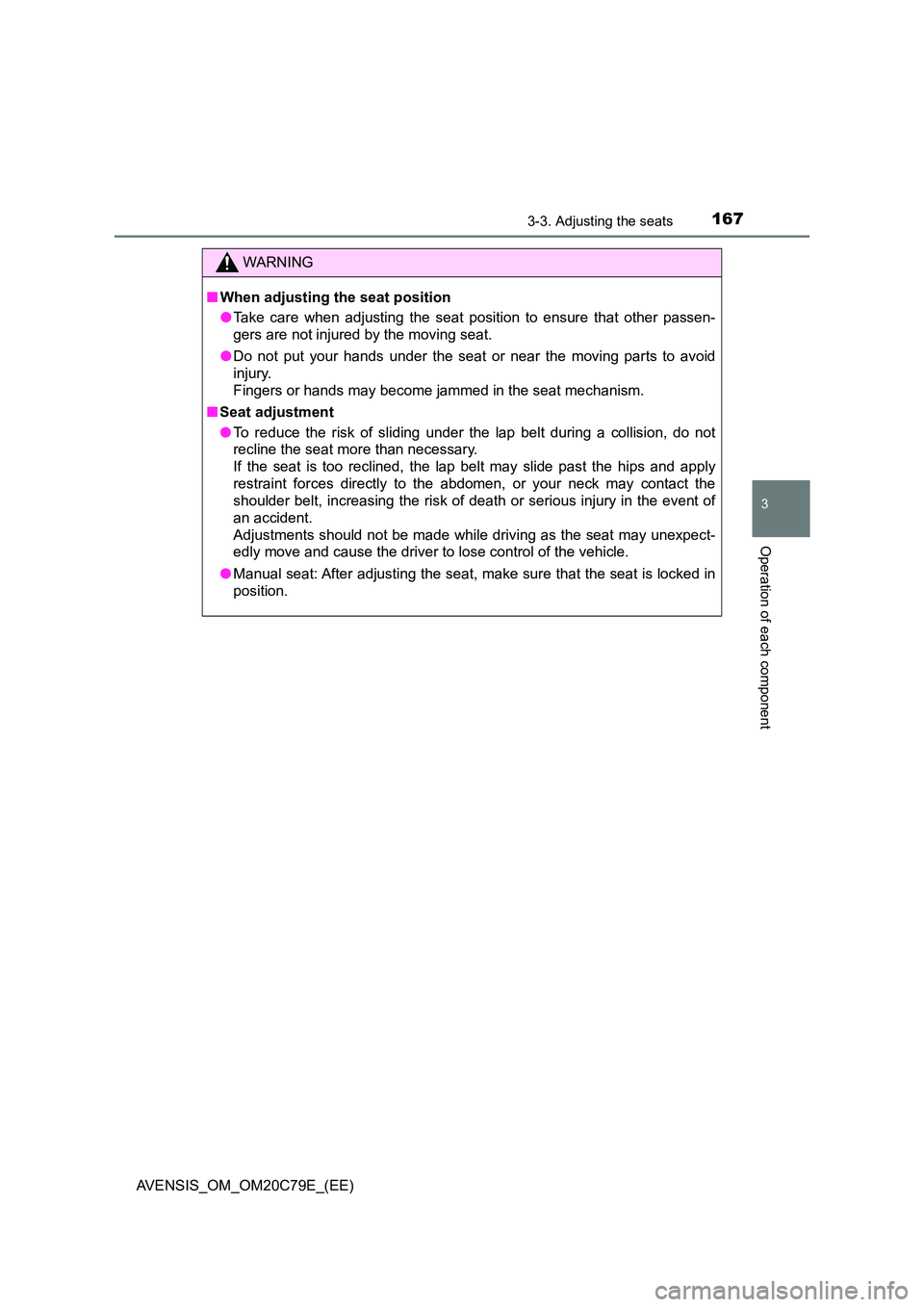

WARNING
■When adjusting the seat position
● Take care when adjusting the seat position to ensure that other passen-
gers are not injured by the moving seat.
● Do not put your hands under the seat or near the moving parts to avoid
injury.
Fingers or hands may become jammed in the seat mechanism.
■ Seat adjustment
● To reduce the risk of sliding under the lap belt during a collision, do not
recline the seat more than necessary.
If the seat is too reclined, the lap belt may slide past the hips and apply
restraint forces directly to the abdomen, or your neck may contact the
shoulder belt, increasing the risk of death or serious injury in the event of
an accident.
Adjustments should not be made while driving as the seat may unexpect-
edly move and cause the driver to lose control of the vehicle.
● Manual seat: After adjusting the seat, make sure that the seat is locked in
position.

1683-3. Adjusting the seats
AVENSIS_OM_OM20C79E_(EE)

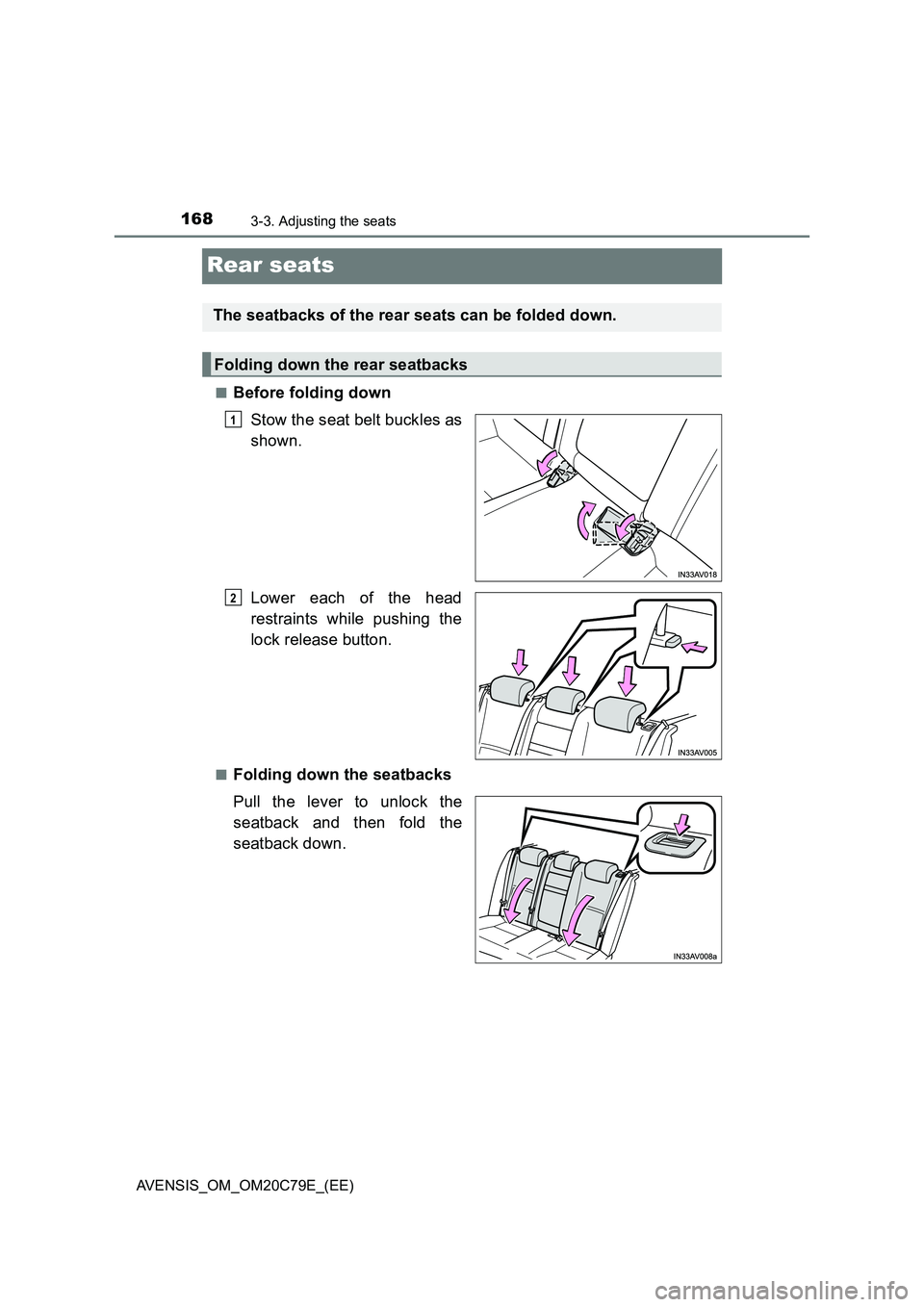

Rear seats
■Before folding down
Stow the seat belt buckles as
shown.
Lower each of the head
restraints while pushing the
lock release button.
■Folding down the seatbacks
Pull the lever to unlock the
seatback and then fold the
seatback down.
The seatbacks of the rear seats can be folded down.
Folding down the rear seatbacks
1
2
