4977-3. Do-it-yourself maintenance
AVENSIS_OM_OM20C79E_(EE)
7
Maintenance and care

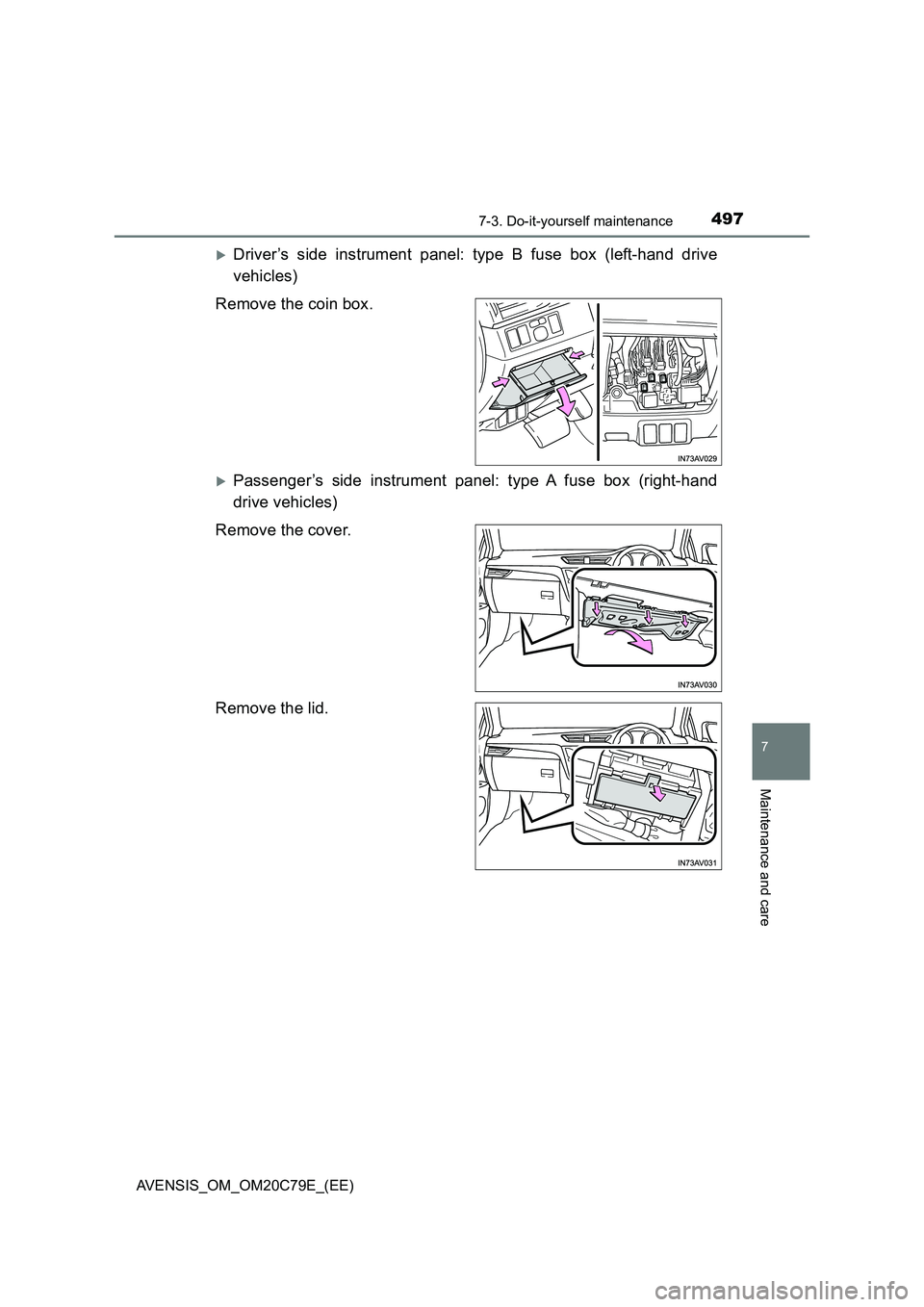

Driver’s side instrument panel: type B fuse box (left-hand drive
vehicles)
Remove the coin box.
Passenger’s side instrument panel: type A fuse box (right-hand
drive vehicles)
Remove the cover.
Remove the lid.

4987-3. Do-it-yourself maintenance
AVENSIS_OM_OM20C79E_(EE)
Passenger’s side instrument panel: type B fuse box (right-hand
drive vehicles)
Open the glove box. Slide off the
damper.
Push in each side of the glove box
to disconnect the claws.
Remove the fuse with the pull-
out tool.
3

4997-3. Do-it-yourself maintenance
AVENSIS_OM_OM20C79E_(EE)
7
Maintenance and care

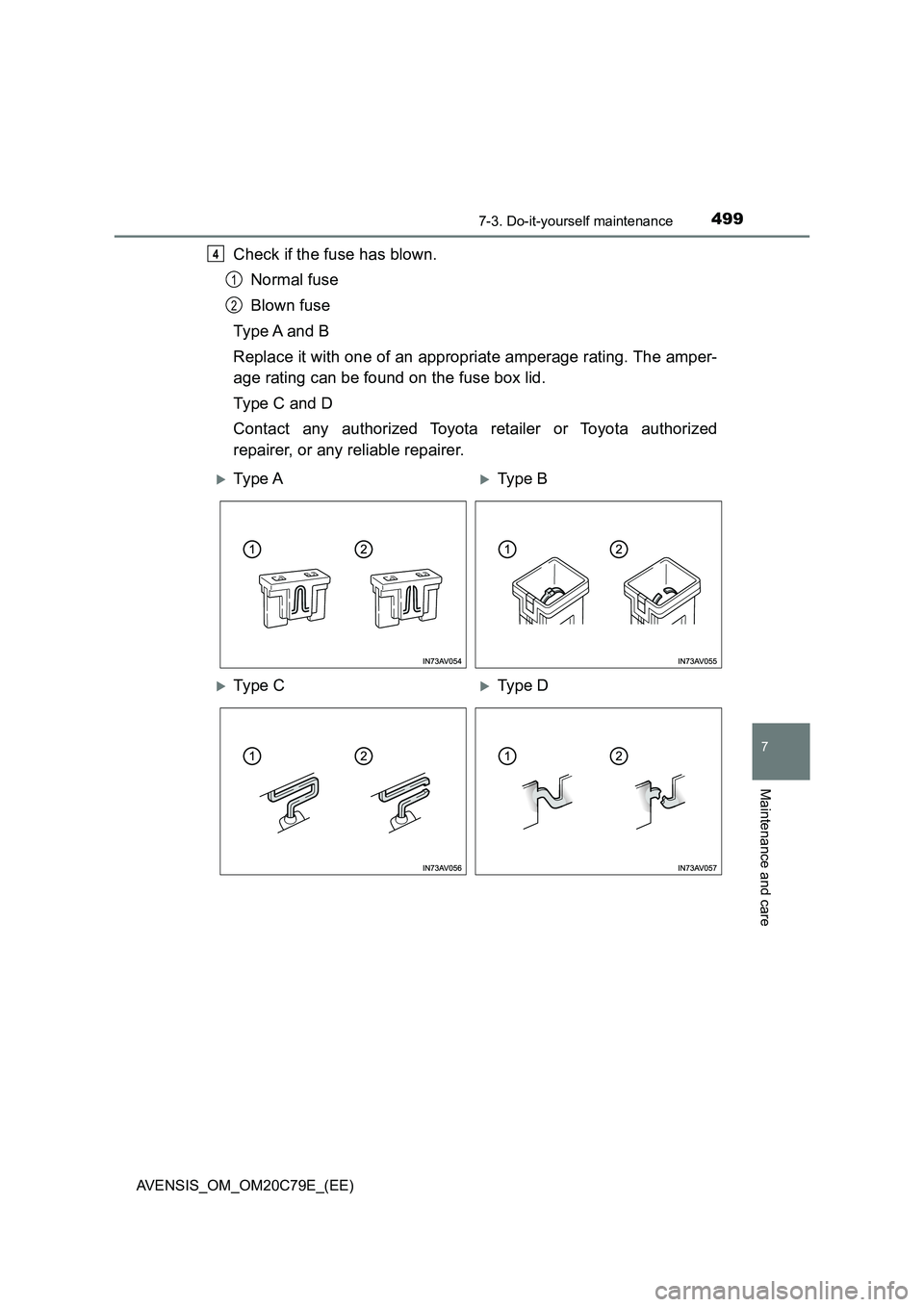

Check if the fuse has blown.
Normal fuse
Blown fuse
Type A and B
Replace it with one of an appropriate amperage rating. The amper-
age rating can be found on the fuse box lid.
Type C and D
Contact any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer.4
1
2
Ty pe AType B
Ty pe CType D

5007-3. Do-it-yourself maintenance
AVENSIS_OM_OM20C79E_(EE)
■After a fuse is replaced
● If the lights do not turn on even after the fuse has been replaced, a bulb may
need replacement. ( P. 501)
● If the replaced fuse blows again, have the vehicle inspected by any autho-
rized Toyota retailer or Toyota authorized repairer, or any reliable repairer.
■ If there is an overload in the circuits
The fuses are designed to blow, protecting the wiring harness from damage.
WARNING
■ To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failing to do so may cause damage to the vehicle, and possibly a fire or
injury.
● Never use a fuse of a higher amperage rating than indicated, or use any
other object in place of a fuse.
● Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
● Do not modify the fuse or the fuse box.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by any
authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer, as soon as possible.

5017-3. Do-it-yourself maintenance
AVENSIS_OM_OM20C79E_(EE)
7
Maintenance and care
Light bulbs
Check the wattage of the light bulb to be replaced. (P. 625)
P. 4 5 5
■Front
You may replace the following bulbs by yourself. The difficulty
level of replacement varies depending on the bulb. As there is a
danger that components may be damaged, we recommend that
replacement is carried out by any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer.
Preparing for light bulb replacement
Removing the engine compartment cover
Bulb locations
Headlights (halogen headlights)
Front fog light (if equipped)
Cornering/fog light (if equipped)Front turn signal light
Side turn signal light1
2
3
4

5027-3. Do-it-yourself maintenance

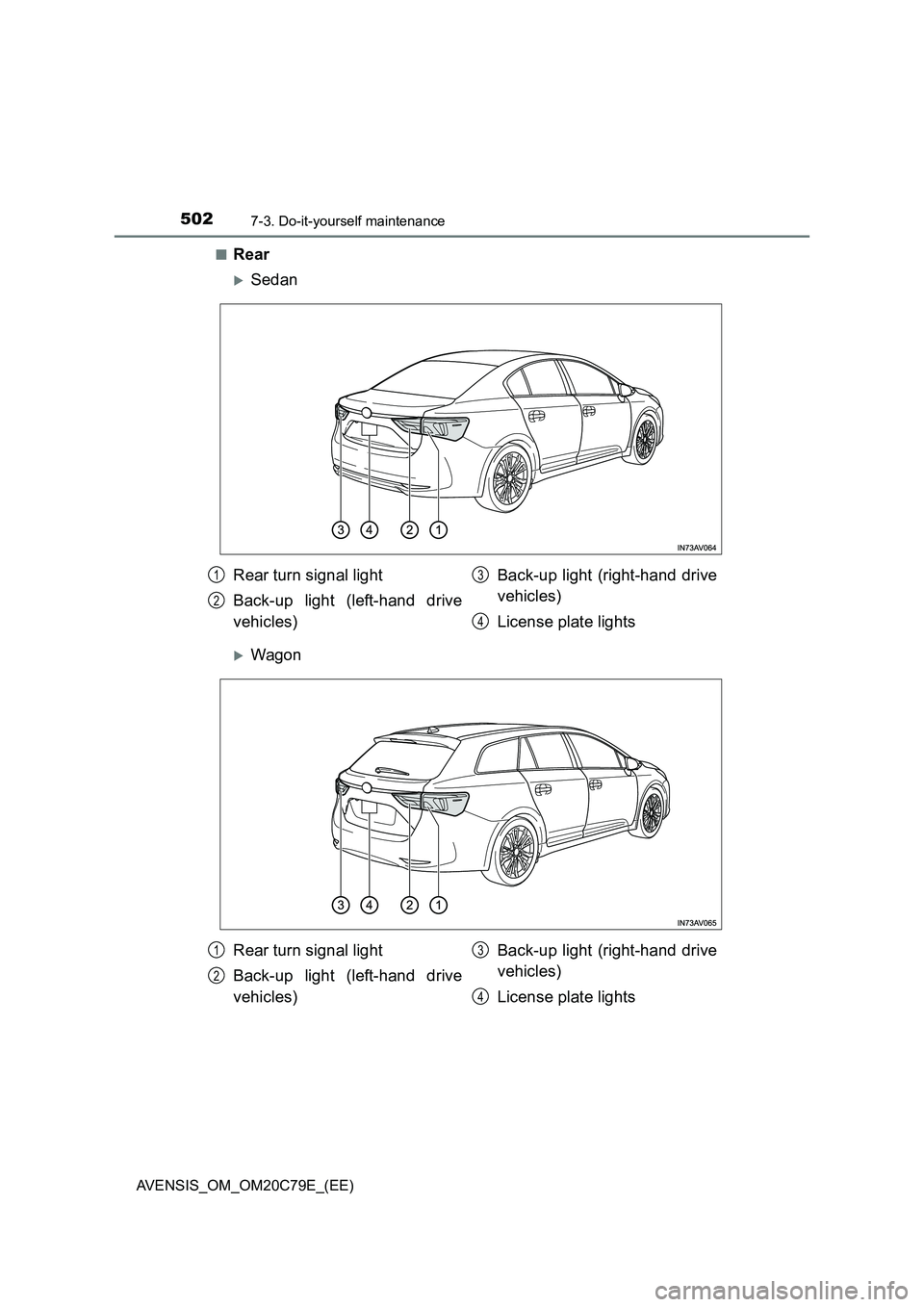

AVENSIS_OM_OM20C79E_(EE)■
Rear
Sedan
Wagon
Rear turn signal light
Back-up light (left-hand drive
vehicles)Back-up light (right-hand drive
vehicles)
License plate lights1
2
3
4
Rear turn signal light
Back-up light (left-hand drive
vehicles)Back-up light (right-hand drive
vehicles)
License plate lights1
2
3
4

5037-3. Do-it-yourself maintenance
AVENSIS_OM_OM20C79E_(EE)
7
Maintenance and care
■Headlights (halogen bulbs)
For the right side only:
Remove the securing clip
and turn and pull off the
washer fluid filler opener.
For the left side only:
Remove the securing clip
and the upper part of the air
cleaner duct (if it is remov-
able).
Turn the bulb base counter-
clockwise.
Unplug the connector while
pressing the lock release.
Replacing light bulbs
1
2
3

5047-3. Do-it-yourself maintenance
AVENSIS_OM_OM20C79E_(EE)
Replace the light bulb, set
the connector and install the
bulb base.
Align the 3 tabs on the light bulb
with the mounting, and insert.
Turn and secure the bulb
base.
Shake the bulb base gently to
check that it is not loose, turn
the headlight low beam on once
and visually confirm that no light
is leaking through the mounting.
For the right side only: Install
the washer fluid filler opener
and securing clip by conduct-
ing in reverse.
For the left side only: Install
the upper part of the air
cleaner duct and the secur-
ing clip by conducting in
reverse.
4
5
6
1
1
