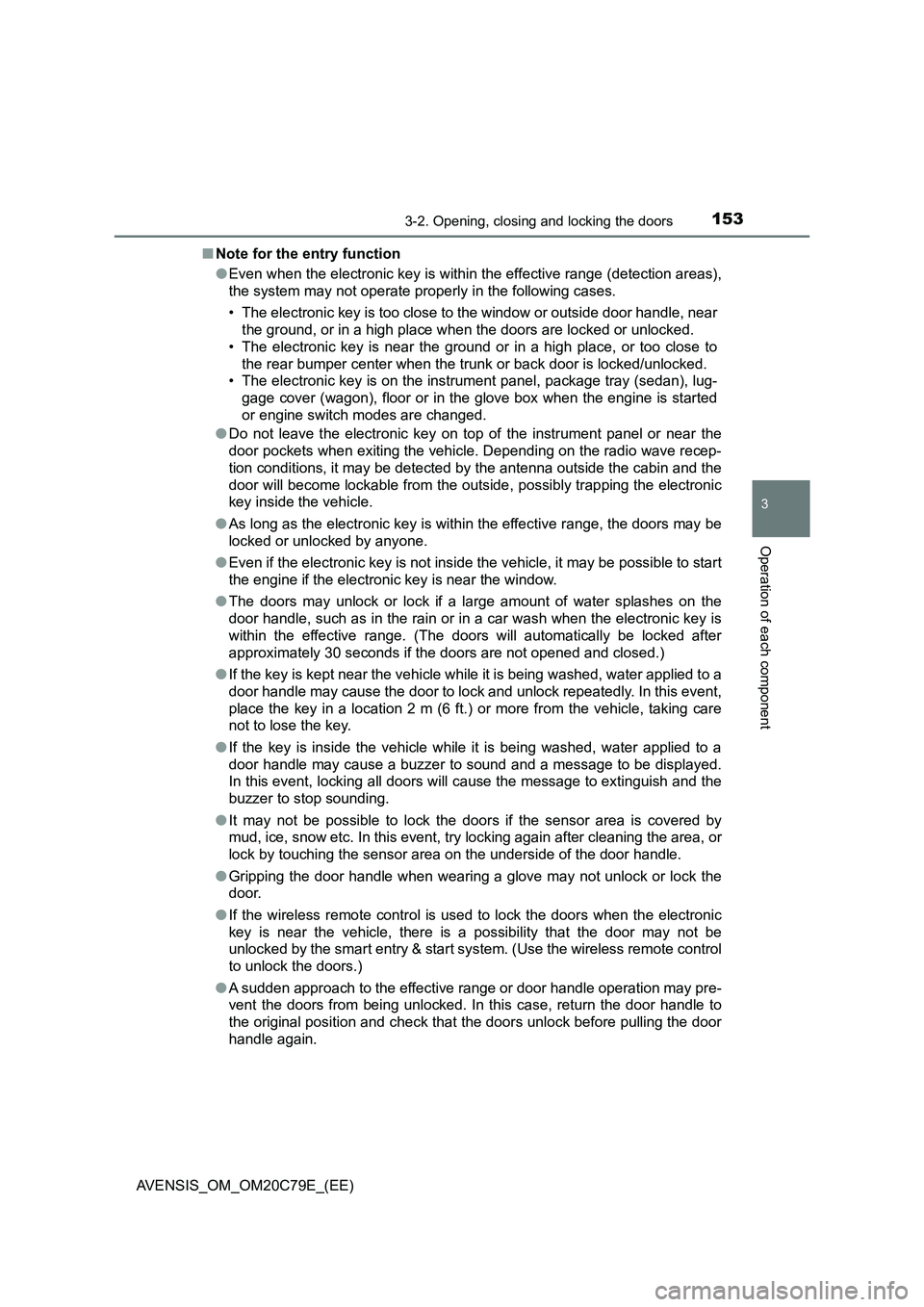

1533-2. Opening, closing and locking the doors
3
Operation of each component
AVENSIS_OM_OM20C79E_(EE)■Note for the entry function
●Even when the electronic key is within the effective range (detection areas),
the system may not operate properly in the following cases.
• The electronic key is too close to the window or outside door handle, near
the ground, or in a high place when the doors are locked or unlocked.
• The electronic key is near the ground or in a high place, or too close to
the rear bumper center when the trunk or back door is locked/unlocked.
• The electronic key is on the instrument panel, package tray (sedan), lug-
gage cover (wagon), floor or in the glove box when the engine is started
or engine switch modes are changed.
●Do not leave the electronic key on top of the instrument panel or near the
door pockets when exiting the vehicle. Depending on the radio wave recep-
tion conditions, it may be detected by the antenna outside the cabin and the
door will become lockable from the outside, possibly trapping the electronic
key inside the vehicle.
●As long as the electronic key is within the effective range, the doors may be
locked or unlocked by anyone.
●Even if the electronic key is not inside the vehicle, it may be possible to start
the engine if the electronic key is near the window.
●The doors may unlock or lock if a large amount of water splashes on the
door handle, such as in the rain or in a car wash when the electronic key is
within the effective range. (The doors will automatically be locked after
approximately 30 seconds if the doors are not opened and closed.)
●If the key is kept near the vehicle while it is being washed, water applied to a
door handle may cause the door to lock and unlock repeatedly. In this event,
place the key in a location 2 m (6 ft.) or more from the vehicle, taking care
not to lose the key.
●If the key is inside the vehicle while it is being washed, water applied to a
door handle may cause a buzzer to sound and a message to be displayed.
In this event, locking all doors will cause the message to extinguish and the
buzzer to stop sounding.
●It may not be possible to lock the doors if the sensor area is covered by
mud, ice, snow etc. In this event, try locking again after cleaning the area, or
lock by touching the sensor area on the underside of the door handle.
●Gripping the door handle when wearing a glove may not unlock or lock the
door.
●If the wireless remote control is used to lock the doors when the electronic
key is near the vehicle, there is a possibility that the door may not be
unlocked by the smart entry & start system. (Use the wireless remote control
to unlock the doors.)
●A sudden approach to the effective range or door handle operation may pre-
vent the doors from being unlocked. In this case, return the door handle to
the original position and check that the doors unlock before pulling the door
handle again.

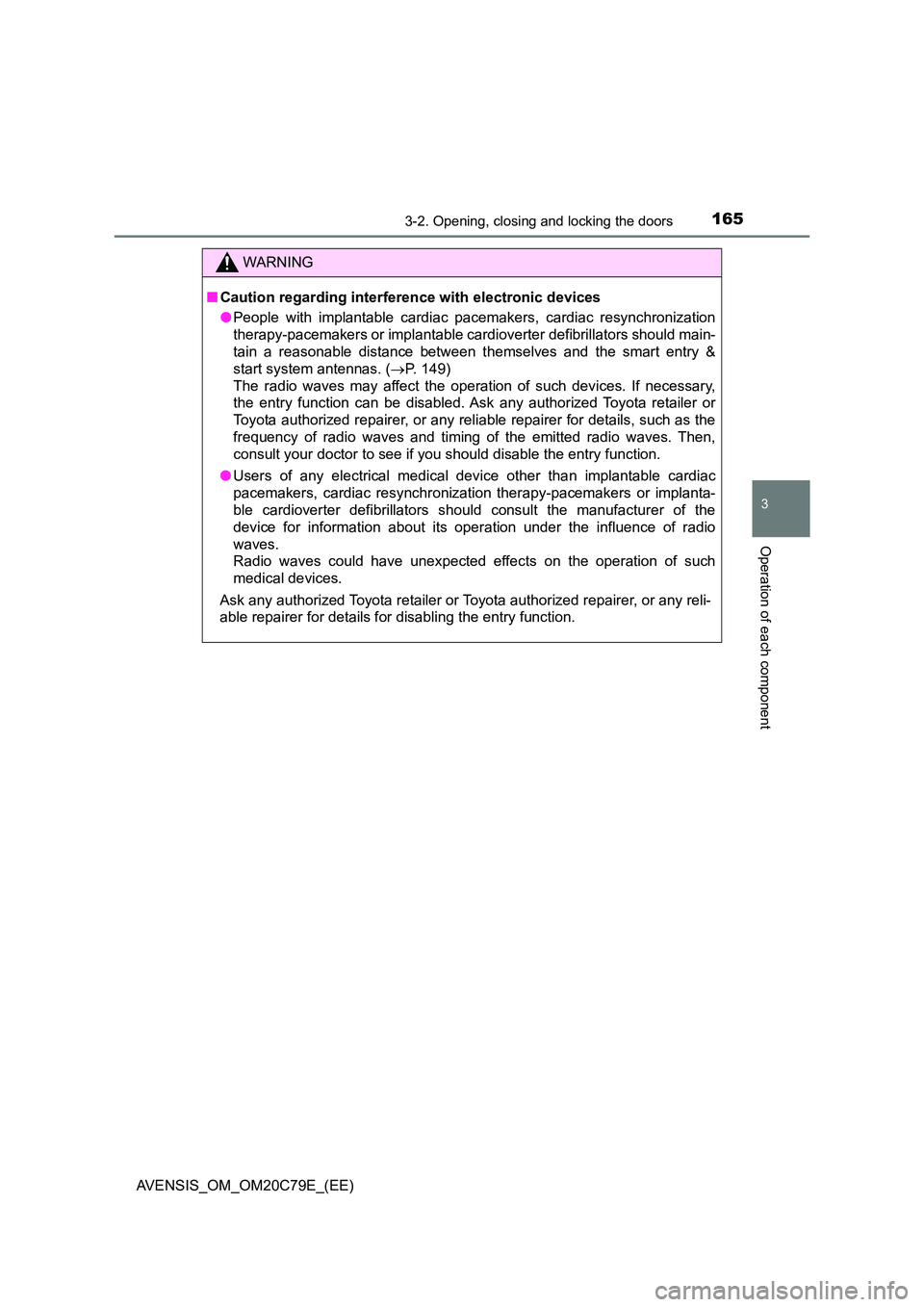

1653-2. Opening, closing and locking the doors
3
Operation of each component
AVENSIS_OM_OM20C79E_(EE)
WARNING
■Caution regarding interference with electronic devices
● People with implantable cardiac pacemakers, cardiac resynchronization
therapy-pacemakers or implantable card ioverter defibrillators should main-
tain a reasonable distance between themselves and the smart entry &
start system antennas. ( P. 149)
The radio waves may affect the operation of such devices. If necessary,
the entry function can be disabled. Ask any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer for details, such as the
frequency of radio waves and timing of the emitted radio waves. Then,
consult your doctor to see if you should disable the entry function.
● Users of any electrical medical device other than implantable cardiac
pacemakers, cardiac resynchronizati on therapy-pacemakers or implanta-
ble cardioverter defibrillators should consult the manufacturer of the
device for information about its operation under the influence of radio
waves.
Radio waves could have unexpected effects on the operation of such
medical devices.
Ask any authorized Toyota retailer or To yota authorized repairer, or any reli-
able repairer for details for disabling the entry function.

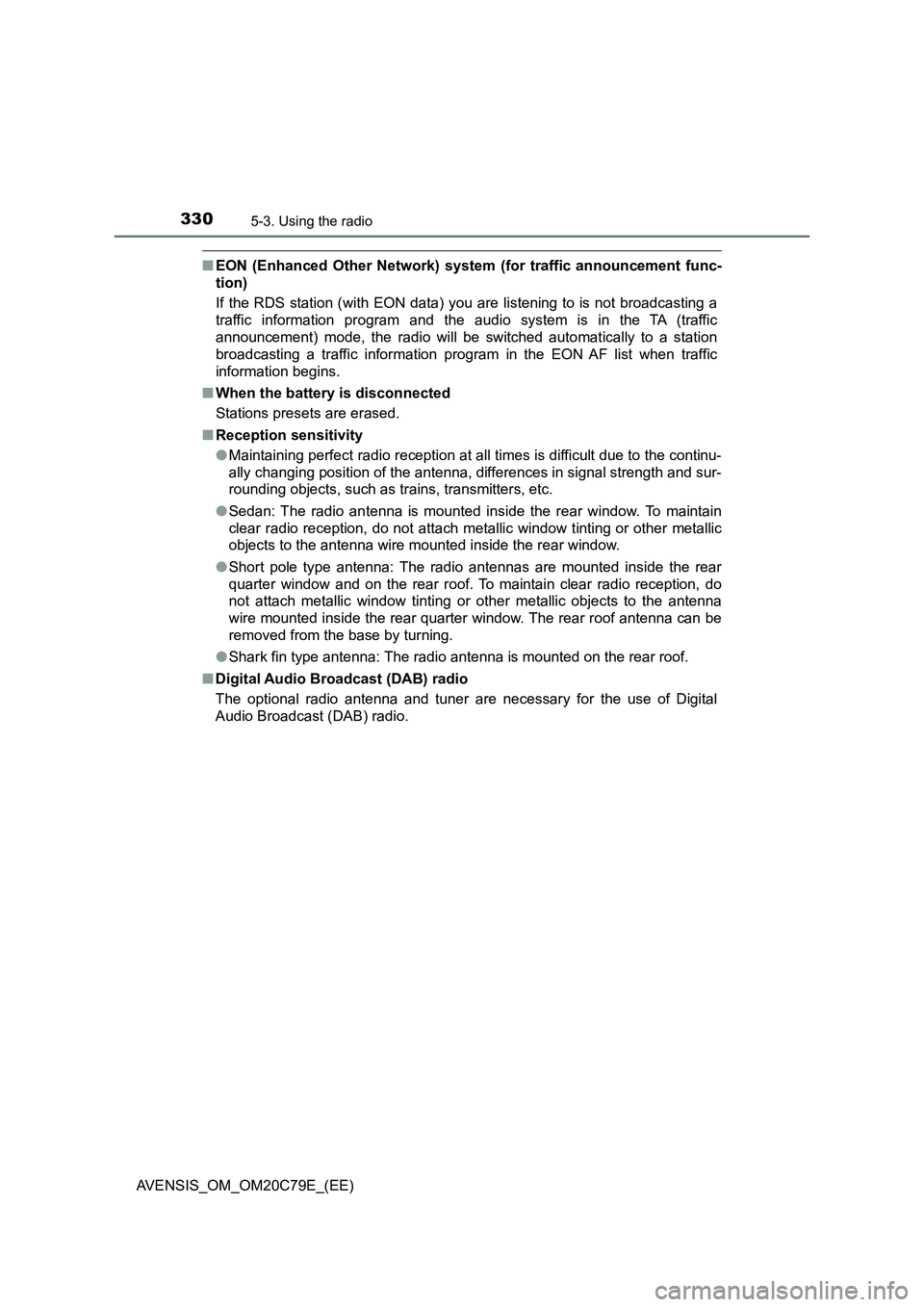

3305-3. Using the radio
AVENSIS_OM_OM20C79E_(EE)
■EON (Enhanced Other Network) system (for traffic announcement func-
tion)
If the RDS station (with EON data) you are listening to is not broadcasting a
traffic information program and the audio system is in the TA (traffic
announcement) mode, the radio will be switched automatically to a station
broadcasting a traffic information program in the EON AF list when traffic
information begins.
■When the battery is disconnected
Stations presets are erased.
■Reception sensitivity
●Maintaining perfect radio reception at all times is difficult due to the continu-
ally changing position of the antenna, differences in signal strength and sur-
rounding objects, such as trains, transmitters, etc.
●Sedan: The radio antenna is mounted inside the rear window. To maintain
clear radio reception, do not attach metallic window tinting or other metallic
objects to the antenna wire mounted inside the rear window.
●Short pole type antenna: The radio antennas are mounted inside the rear
quarter window and on the rear roof. To maintain clear radio reception, do
not attach metallic window tinting or other metallic objects to the antenna
wire mounted inside the rear quarter window. The rear roof antenna can be
removed from the base by turning.
●Shark fin type antenna: The radio antenna is mounted on the rear roof.
■Digital Audio Broadcast (DAB) radio
The optional radio antenna and tuner are necessary for the use of Digital
Audio Broadcast (DAB) radio.

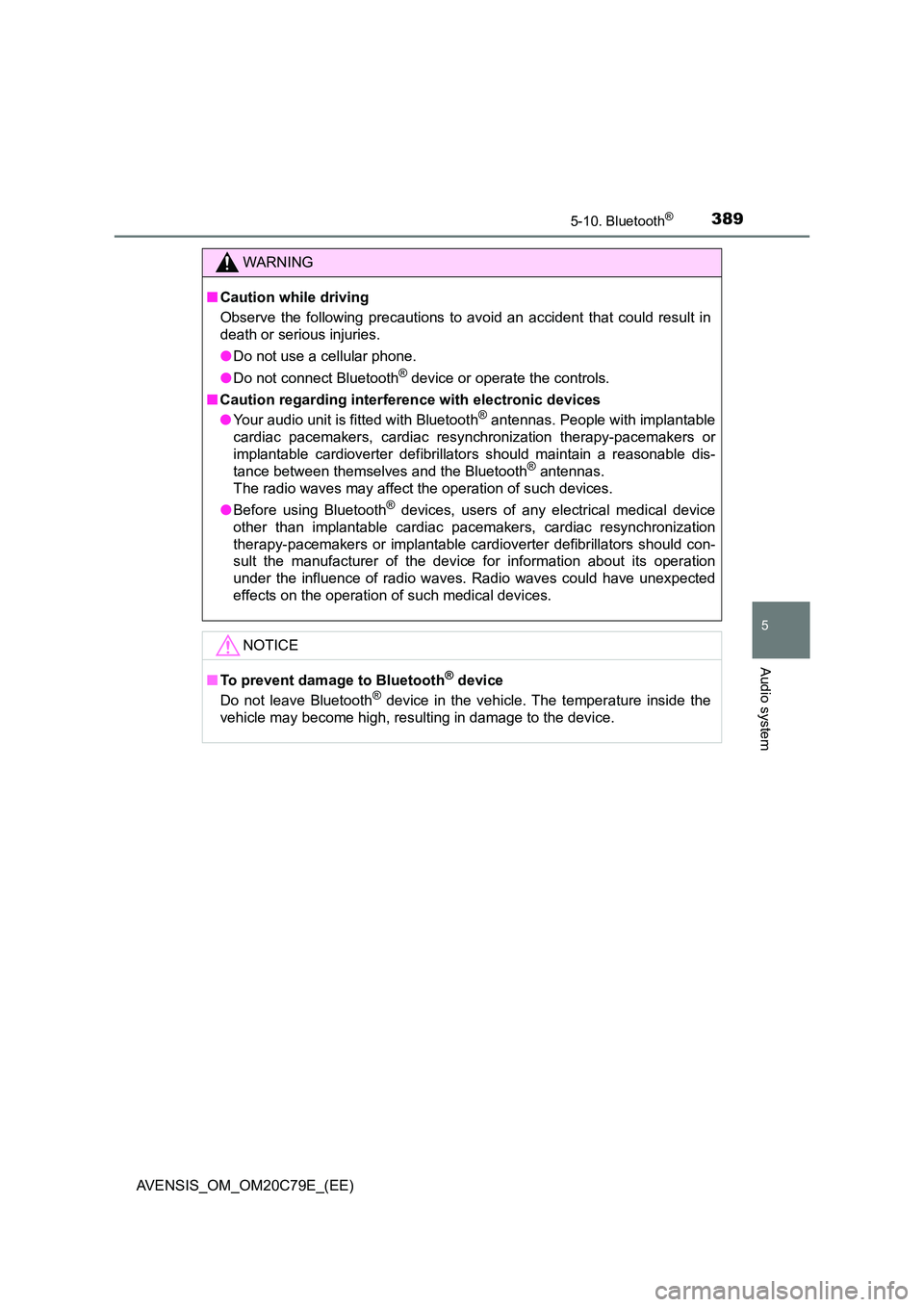

3895-10. Bluetooth®
5
Audio system
AVENSIS_OM_OM20C79E_(EE)
WARNING
■Caution while driving
Observe the following precautions to avoid an accident that could result in
death or serious injuries.
● Do not use a cellular phone.
● Do not connect Bluetooth® device or operate the controls.
■ Caution regarding interference with electronic devices
● Your audio unit is fitted with Bluetooth® antennas. People with implantable
cardiac pacemakers, cardiac resynchronization therapy-pacemakers or
implantable cardioverter defibrillators should maintain a reasonable dis-
tance between themselves and the Bluetooth® antennas.
The radio waves may affect the operation of such devices.
● Before using Bluetooth® devices, users of any electrical medical device
other than implantable cardiac pacemakers, cardiac resynchronization
therapy-pacemakers or implantable cardioverter defibrillators should con-
sult the manufacturer of the device for information about its operation
under the influence of radio waves. Radio waves could have unexpected
effects on the operation of such medical devices.
NOTICE
■ To prevent damage to Bluetooth® device
Do not leave Bluetooth® device in the vehicle. The temperature inside the
vehicle may become high, resulting in damage to the device.

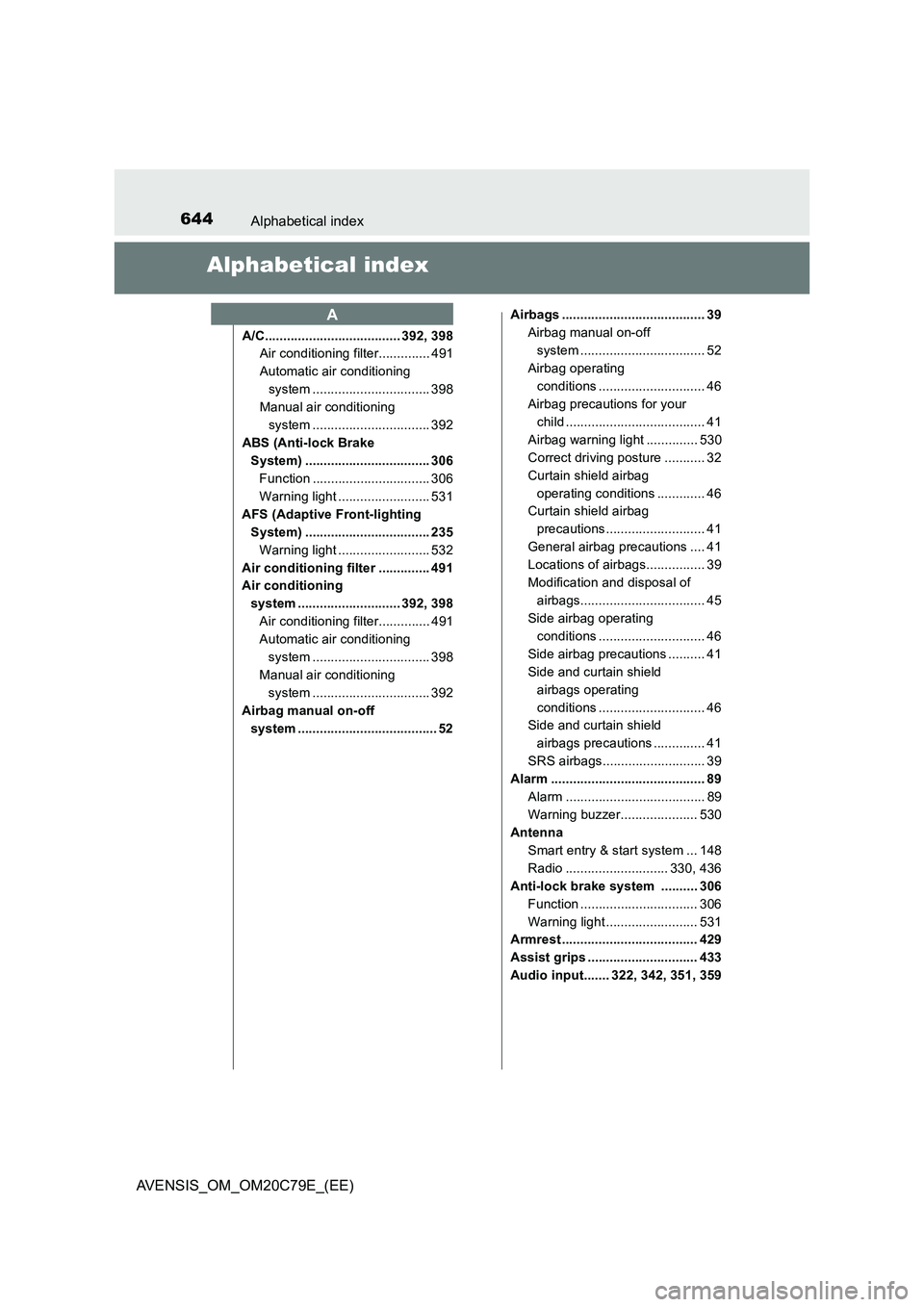

644Alphabetical index
AVENSIS_OM_OM20C79E_(EE)
Alphabetical index
A/C..................................... 392, 398
Air conditioning filter.............. 491
Automatic air conditioning
system ................................ 398
Manual air conditioning
system ................................ 392
ABS (Anti-lock Brake
System) .................................. 306
Function ................................ 306
Warning light ......................... 531
AFS (Adaptive Front-lighting
System) .................................. 235
Warning light ......................... 532
Air conditioning filter .............. 491
Air conditioning
system ............................ 392, 398
Air conditioning filter.............. 491
Automatic air conditioning
system ................................ 398
Manual air conditioning
system ................................ 392
Airbag manual on-off
system ...................................... 52Airbags ....................................... 39
Airbag manual on-off
system .................................. 52
Airbag operating
conditions ............................. 46
Airbag precautions for your
child ...................................... 41
Airbag warning light .............. 530
Correct driving posture ........... 32
Curtain shield airbag
operating conditions ............. 46
Curtain shield airbag
precautions........................... 41
General airbag precautions .... 41
Locations of airbags................ 39
Modification and disposal of
airbags.................................. 45
Side airbag operating
conditions ............................. 46
Side airbag precautions .......... 41
Side and curtain shield
airbags operating
conditions ............................. 46
Side and curtain shield
airbags precautions .............. 41
SRS airbags............................ 39
Alarm .......................................... 89
Alarm ...................................... 89
Warning buzzer..................... 530
Antenna
Smart entry & start system ... 148
Radio ............................ 330, 436
Anti-lock brake system .......... 306
Function ................................ 306
Warning light ......................... 531
Armrest ..................................... 429
Assist grips .............................. 433
Audio input....... 322, 342, 351, 359
A

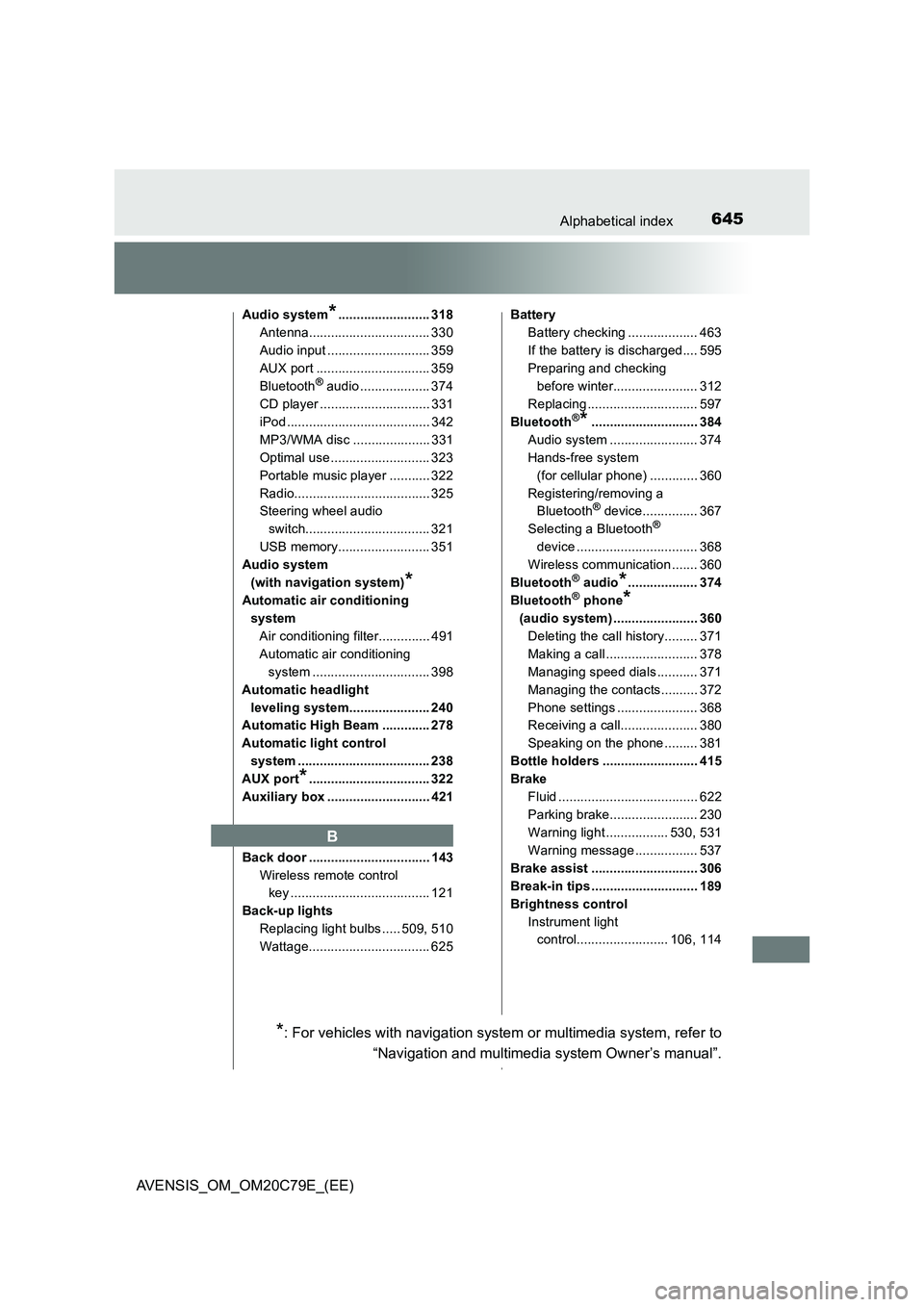

645Alphabetical index
AVENSIS_OM_OM20C79E_(EE)
Audio system*......................... 318
Antenna................................. 330
Audio input ............................ 359
AUX port ............................... 359
Bluetooth
® audio ................... 374
CD player .............................. 331
iPod ....................................... 342
MP3/WMA disc ..................... 331
Optimal use ........................... 323
Portable music player ........... 322
Radio..................................... 325
Steering wheel audio
switch.................................. 321
USB memory......................... 351
Audio system
(with navigation system)
*
Automatic air conditioning
system
Air conditioning filter.............. 491
Automatic air conditioning
system ................................ 398
Automatic headlight
leveling system...................... 240
Automatic High Beam ............. 278
Automatic light control
system .................................... 238
AUX port
*................................. 322
Auxiliary box ............................ 421
Back door ................................. 143
Wireless remote control
key ...................................... 121
Back-up lights
Replacing light bulbs ..... 509, 510
Wattage................................. 625Battery
Battery checking ................... 463
If the battery is discharged.... 595
Preparing and checking
before winter....................... 312
Replacing .............................. 597
Bluetooth
®*............................. 384
Audio system ........................ 374
Hands-free system
(for cellular phone) ............. 360
Registering/removing a
Bluetooth
® device............... 367
Selecting a Bluetooth®
device ................................. 368
Wireless communication ....... 360
Bluetooth
® audio*................... 374
Bluetooth® phone*
(audio system) ....................... 360
Deleting the call history......... 371
Making a call ......................... 378
Managing speed dials ........... 371
Managing the contacts.......... 372
Phone settings ...................... 368
Receiving a call..................... 380
Speaking on the phone ......... 381
Bottle holders .......................... 415
Brake
Fluid ...................................... 622
Parking brake........................ 230
Warning light ................. 530, 531
Warning message ................. 537
Brake assist ............................. 306
Break-in tips ............................. 189
Brightness control
Instrument light
control......................... 106, 114
B
*: For vehicles with navigation system or multimedia system, refer to
“Navigation and multimedia system Owner’s manual”.
