2018 TOYOTA AVENSIS wheel

3
1
8
6
5
4
3
2
AVENSIS_OM_OM20C79E_(EE)
9
7
3-4. Adjusting the steering
wheel and mirrors
Steering wheel ...................174
Inside rear view mirror .......176
Outside rear view
mirrors .............................179
3-5. Opening and closing the
windows
Power windows ..................182
4-1. Before driving
Driving the vehicle .............186
Cargo and luggage ............198
Trailer towing .....................200
4-2. Driving procedures
Engine (ignition) switch
(vehicles without smart
entry & start system)........209
Engine (ignition) switch
(vehicles with smart
entry & start system)........212
Multidrive ...........................219
Manual transmission ..........226
Turn signal lever ................229
Parking brake.....................230
4-3. Operating the lights and
wipers
Headlight switch ................ 233
Fog light switch ................. 241
Windshield wipers and
washer ............................ 243
Rear window wiper and
washer ............................ 247
4-4. Refueling
Opening the fuel
tank cap .......................... 248
4-5. Toyota Safety Sense
Toyota Safety Sense ......... 252
PCS (Pre-Crash Safety
system) ........................... 259
LDA (Lane Departure
Alert) ............................... 272
Automatic High Beam ....... 278
RSA (Road Sign Assist) .... 284
4-6. Using the driving support
systems
Cruise control .................... 289
Speed limiter ..................... 292
Stop & Start system .......... 295
Driving assist systems....... 306
4-7. Driving tips
Winter driving tips.............. 312
4Driving

TABLE OF CONTENTS4
AVENSIS_OM_OM20C79E_(EE)5-1. Basic Operations
Audio system types............318
Steering wheel audio
switches ...........................321
AUX port/USB port.............322
5-2. Using the audio system
Optimal use of the audio
system .............................323
5-3. Using the radio
Radio operation .................325
5-4. Playing an audio CD and
MP3/WMA discs
CD player operation ...........331
5-5. Using an external device
Listening to an iPod ...........342
Listening USB memory
device ..............................351
Using the AUX port ............359
5-6. Using Bluetooth
® devices
Bluetooth® audio/phone .....360
Using the steering
wheel switches ................366
Registering a Bluetooth
®
device ..............................367
5-7. “SETUP” menu
Using the “SETUP” menu
(“Bluetooth
*” menu) .........368
Using the “SETUP” menu
(“TEL” menu) ...................3715-8. Bluetooth
® Audio
Operating a Bluetooth®
enabled portable
player .............................. 374
5-9. Bluetooth
® Phone
Making a phone call .......... 378
Receiving a phone call ...... 380
Speaking on the phone ..... 381
5-10. Bluetooth
®
Bluetooth®......................... 383
6-1. Using the air conditioning
system and defogger
Manual air conditioning
system............................. 392
Automatic air conditioning
system............................. 398
Power heater ..................... 405
Seat heaters ...................... 407
6-2. Using the interior lights
Interior lights list ................ 409
• Personal/interior light
main switch ................... 410
• Personal/interior
lights ............................. 410
• Personal lights .............. 410
5Audio system
*: Bluetooth is a registered trademark of Bluetooth SIG, Inc.
6Interior features

5
1
8
6
5
4
3
2
AVENSIS_OM_OM20C79E_(EE)
9
7
6-3. Using the storage features
List of storage features ......412
• Glove box ......................413
• Console box ..................414
• Overhead console .........414
• Cup holders/bottle
holders ...........................415
• Coin box ........................417
Trunk features (sedan) ......418
Luggage compartment
features (wagon)..............420
6-4. Using the other interior
features
Other interior features ........427
• Sun visors ......................427
• Vanity mirror ..................427
• Power outlet ..................428
• Armrest ..........................429
• Trunk/luggage
compartment
storage extension ..........430
• Panoramic roof shade
(wagon) .........................431
• Coat hooks ....................433
• Assist grips ....................433
7-1. Maintenance and care
Cleaning and
protecting the
vehicle exterior ................ 436
Cleaning and
protecting the
vehicle interior ................. 440
7-2. Maintenance
Maintenance
requirements ................... 443
7-3. Do-it-yourself maintenance
Do-it-yourself service
precautions ..................... 446
Hood.................................. 450
Positioning a floor jack ...... 452
Engine compartment ......... 453
Tires .................................. 468
Tire inflation pressure........ 486
Wheels .............................. 488
Air conditioning filter .......... 491
Wireless remote control/
electronic key battery ...... 493
Checking and replacing
fuses ............................... 496
Light bulbs ......................... 501
7Maintenance and care

321-1. For safe use
AVENSIS_OM_OM20C79E_(EE)

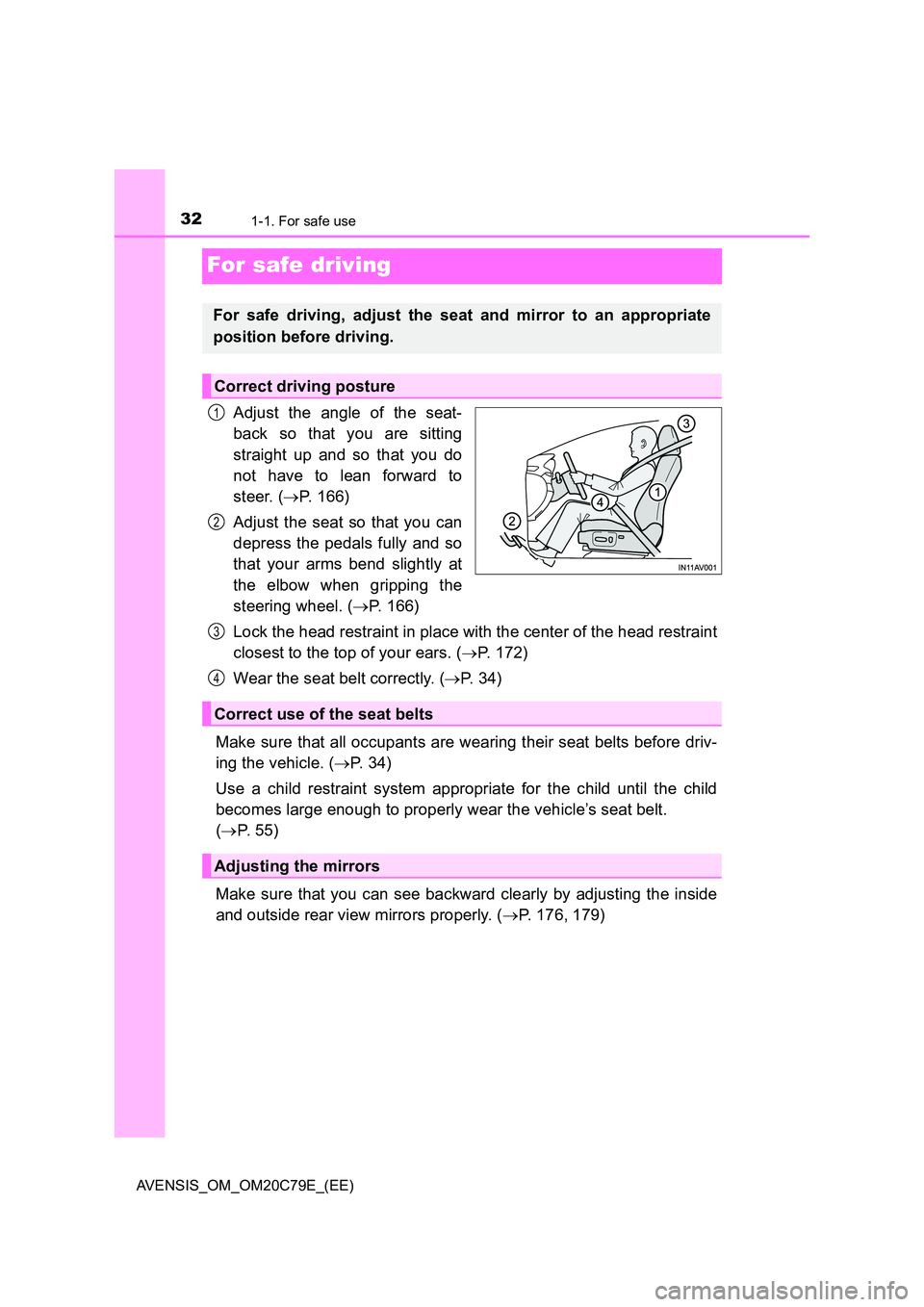

For safe driving
Adjust the angle of the seat-
back so that you are sitting
straight up and so that you do
not have to lean forward to
steer. ( P. 166)
Adjust the seat so that you can
depress the pedals fully and so
that your arms bend slightly at
the elbow when gripping the
steering wheel. ( P. 166)
Lock the head restraint in place with the center of the head restraint
closest to the top of your ears. ( P. 172)
Wear the seat belt correctly. ( P. 3 4 )
Make sure that all occupants are wearing their seat belts before driv-
ing the vehicle. ( P. 3 4 )
Use a child restraint system appropriate for the child until the child
becomes large enough to properly wear the vehicle’s seat belt.
( P. 5 5 )
Make sure that you can see backward clearly by adjusting the inside
and outside rear view mirrors properly. ( P. 176, 179)
For safe driving, adjust the seat and mirror to an appropriate
position before driving.
Correct driving posture
1
2
Correct use of the seat belts
Adjusting the mirrors
3
4

411-1. For safe use
1
AVENSIS_OM_OM20C79E_(EE)
For safety and security
The main SRS airbag system components are shown above. The
SRS airbag system is controlled by the airbag sensor assembly. As
the airbags deploy, a chemical reaction in the inflators quickly fills the
airbags with non-toxic gas to help restrain the motion of the occu-
pants.
WARNING
■ SRS airbag precautions
Observe the following precautions regarding the SRS airbags.
Failure to do so may cause death or serious injury.
● The driver and all passengers in the vehicle must wear their seat belts
properly.
The SRS airbags are supplemental devic es to be used with the seat belts.
● The SRS driver airbag deploys with considerable force, and can cause
death or serious injury especially if the driver is very close to the airbag.
Since the risk zone for the driver’s airbag is the first 50 - 75 mm (2 - 3 in.)
of inflation, placing yourself 250 mm ( 10 in.) from your driver airbag pro-
vides you with a clear margin of safety. This distance is measured from
the center of the steering wheel to your breastbone. If you sit less than
250 mm (10 in.) away now, you can change your driving position in sev-
eral ways:
• Move your seat to the rear as far as you can while still reaching the
pedals comfortably.
• Slightly recline the back of the seat. Although vehicle designs vary,
many drivers can achieve the 250 mm (10 in.) distance, even with the
driver seat all the way forward, simply by reclining the back of the seat
somewhat. If reclining the back of your seat makes it hard to see the
road, raise yourself by using a firm , non-slippery cushion, or raise the
seat if your vehicle has that feature.
• If your steering wheel is adjustable, tilt it downward. This points the air-
bag toward your chest instead of your head and neck.
The seat should be adjusted as recommended above, while still maintaining
control of the foot pedals, steering wheel, and your view of the instrument
panel controls.

431-1. For safe use
1
AVENSIS_OM_OM20C79E_(EE)
For safety and security
WARNING

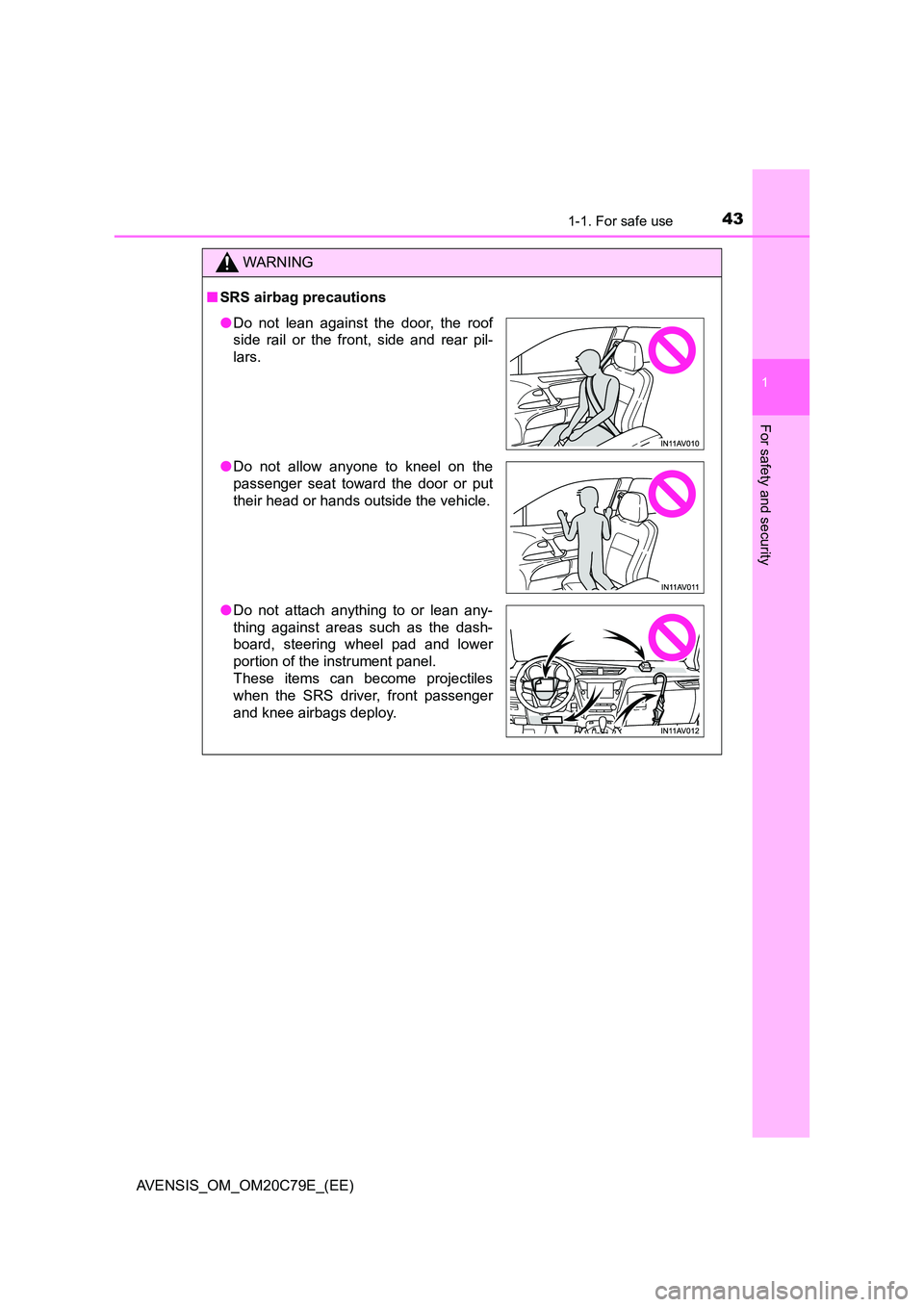

■SRS airbag precautions
●Do not lean against the door, the roof
side rail or the front, side and rear pil-
lars.
● Do not allow anyone to kneel on the
passenger seat toward the door or put
their head or hands outside the vehicle.
● Do not attach anything to or lean any-
thing against areas such as the dash-
board, steering wheel pad and lower
portion of the instrument panel.
These items can become projectiles
when the SRS driver, front passenger
and knee airbags deploy.

451-1. For safe use
1
AVENSIS_OM_OM20C79E_(EE)
For safety and security
WARNING

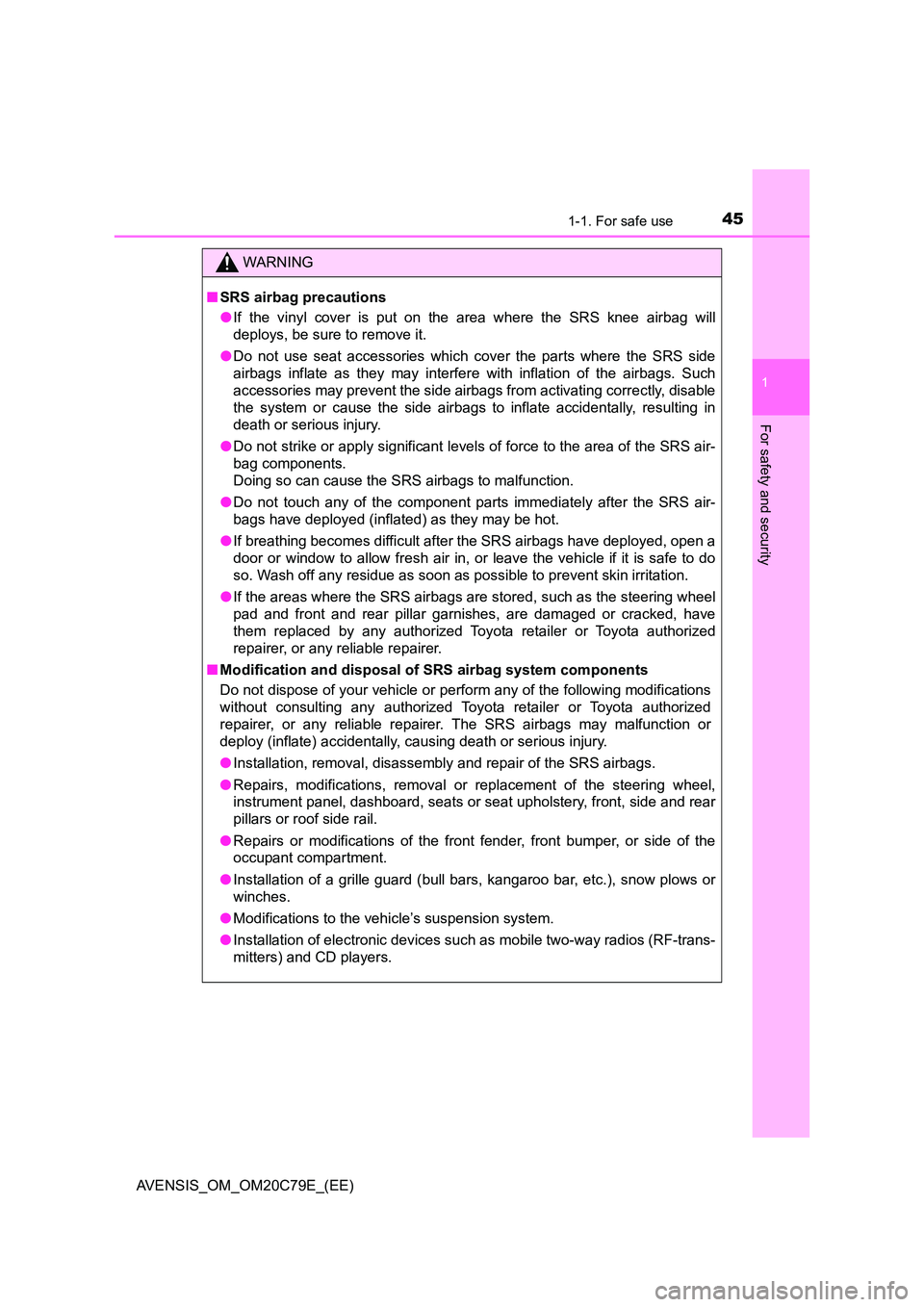

■SRS airbag precautions
● If the vinyl cover is put on the area where the SRS knee airbag will
deploys, be sure to remove it.
● Do not use seat accessories which cover the parts where the SRS side
airbags inflate as they may interfere with inflation of the airbags. Such
accessories may prevent the side airbags from activating correctly, disable
the system or cause the side airbags to inflate accidentally, resulting in
death or serious injury.
● Do not strike or apply significant levels of force to the area of the SRS air-
bag components.
Doing so can cause the SRS airbags to malfunction.
● Do not touch any of the component parts immediately after the SRS air-
bags have deployed (inflated) as they may be hot.
● If breathing becomes difficult after the SRS airbags have deployed, open a
door or window to allow fresh air in, or leave the vehicle if it is safe to do
so. Wash off any residue as soon as possible to prevent skin irritation.
● If the areas where the SRS airbags are stored, such as the steering wheel
pad and front and rear pillar garni shes, are damaged or cracked, have
them replaced by any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer.
■ Modification and disposal of SRS airbag system components
Do not dispose of your vehicle or perform any of the following modifications
without consulting any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer. The SRS airbags may malfunction or
deploy (inflate) accidentally, causing death or serious injury.
● Installation, removal, disassembly and repair of the SRS airbags.
● Repairs, modifications, removal or replacement of the steering wheel,
instrument panel, dashboard, seats or seat upholstery, front, side and rear
pillars or roof side rail.
● Repairs or modifications of the front fender, front bumper, or side of the
occupant compartment.
● Installation of a grille guard (bull bars, kangaroo bar, etc.), snow plows or
winches.
● Modifications to the vehicle’s suspension system.
● Installation of electronic devices such as mobile two-way radios (RF-trans-
mitters) and CD players.

461-1. For safe use
AVENSIS_OM_OM20C79E_(EE)

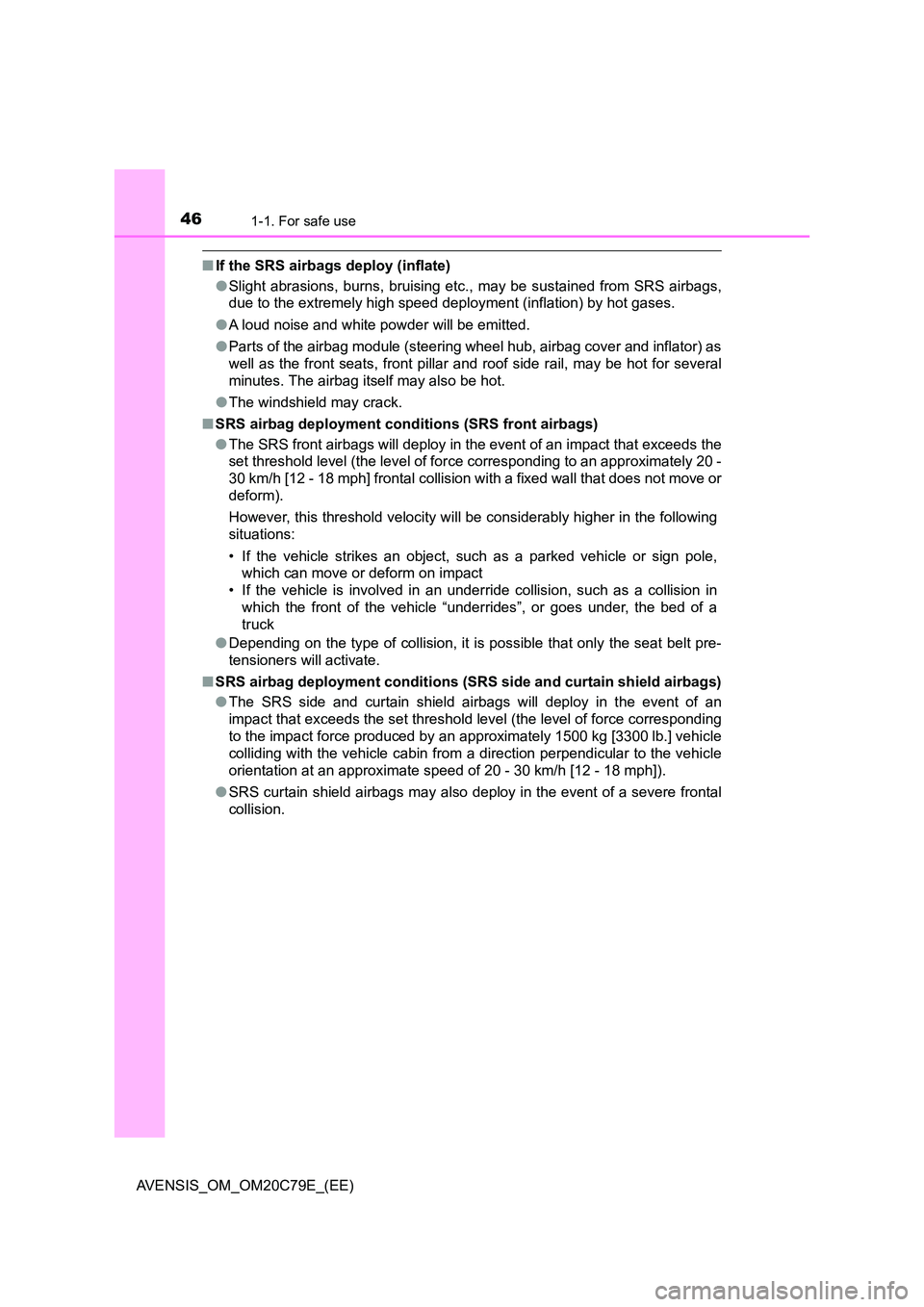

■If the SRS airbags deploy (inflate)
● Slight abrasions, burns, bruising etc., may be sustained from SRS airbags,
due to the extremely high speed deployment (inflation) by hot gases.
● A loud noise and white powder will be emitted.
● Parts of the airbag module (steering wheel hub, airbag cover and inflator) as
well as the front seats, front pillar and roof side rail, may be hot for several
minutes. The airbag itself may also be hot.
● The windshield may crack.
■ SRS airbag deployment conditions (SRS front airbags)
● The SRS front airbags will deploy in the event of an impact that exceeds the
set threshold level (the level of force corresponding to an approximately 20 -
30 km/h [12 - 18 mph] frontal collision with a fixed wall that does not move or
deform).
However, this threshold velocity will be considerably higher in the following
situations:
• If the vehicle strikes an object, such as a parked vehicle or sign pole,
which can move or deform on impact
• If the vehicle is involved in an underride collision, such as a collision in
which the front of the vehicle “underrides”, or goes under, the bed of a
truck
● Depending on the type of collision, it is possible that only the seat belt pre-
tensioners will activate.
■ SRS airbag deployment conditions (SRS side and curtain shield airbags)
● The SRS side and curtain shield airbags will deploy in the event of an
impact that exceeds the set threshold level (the level of force corresponding
to the impact force produced by an approximately 1500 kg [3300 lb.] vehicle
colliding with the vehicle cabin from a direction perpendicular to the vehicle
orientation at an approximate speed of 20 - 30 km/h [12 - 18 mph]).
● SRS curtain shield airbags may also deploy in the event of a severe frontal
collision.
