2018 TOYOTA AVENSIS Owners Manual

5057-3. Do-it-yourself maintenance
AVENSIS_OM_OM20C79E_(EE)
7
Maintenance and care

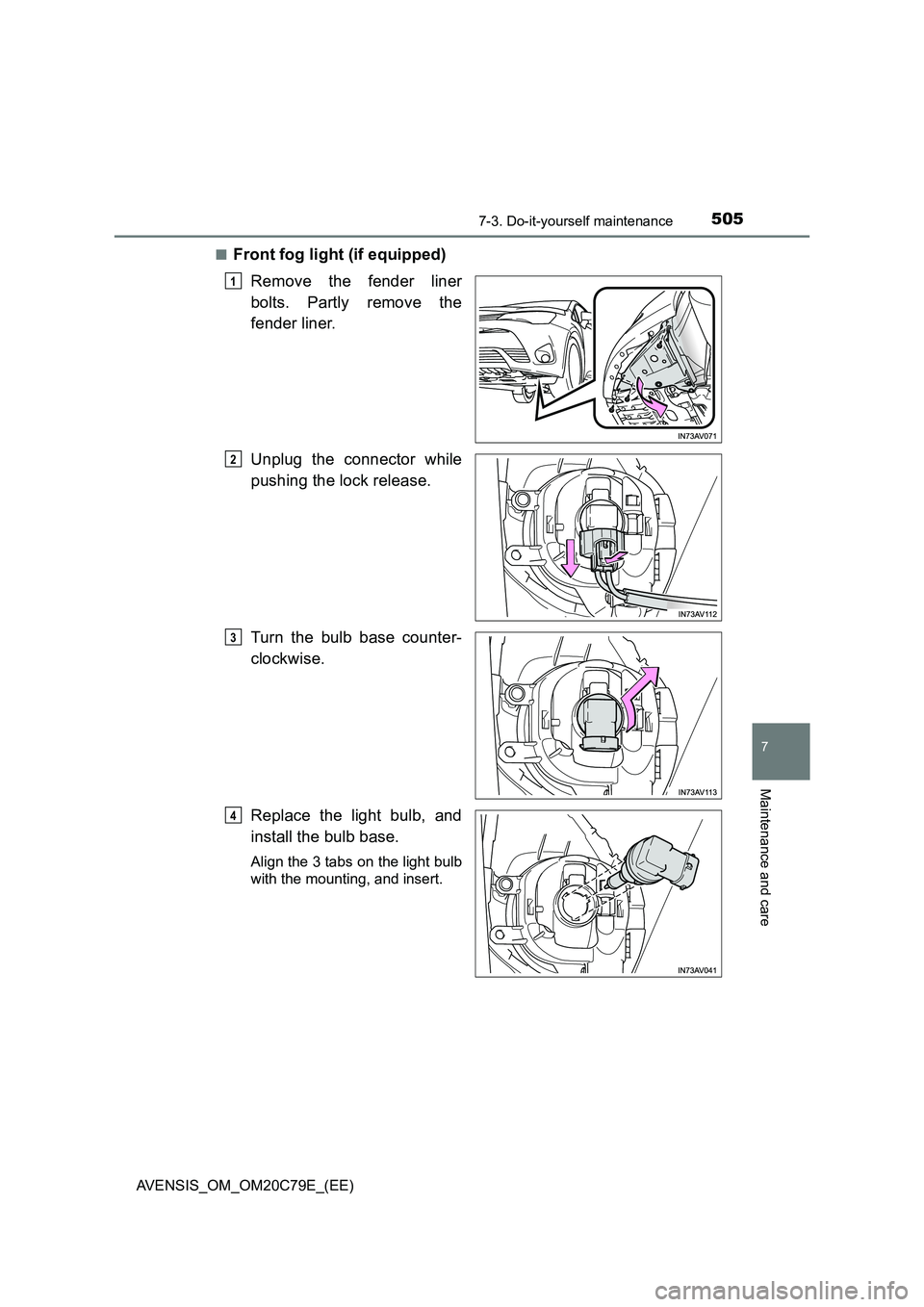

■Front fog light (if equipped)
Remove the fender liner
bolts. Partly remove the
fender liner.
Unplug the connector while
pushing the lock release.
Turn the bulb base counter-
clockwise.
Replace the light bulb, and
install the bulb base.
Align the 3 tabs on the light bulb
with the mounting, and insert.
1
2
3
4

5067-3. Do-it-yourself maintenance
AVENSIS_OM_OM20C79E_(EE)

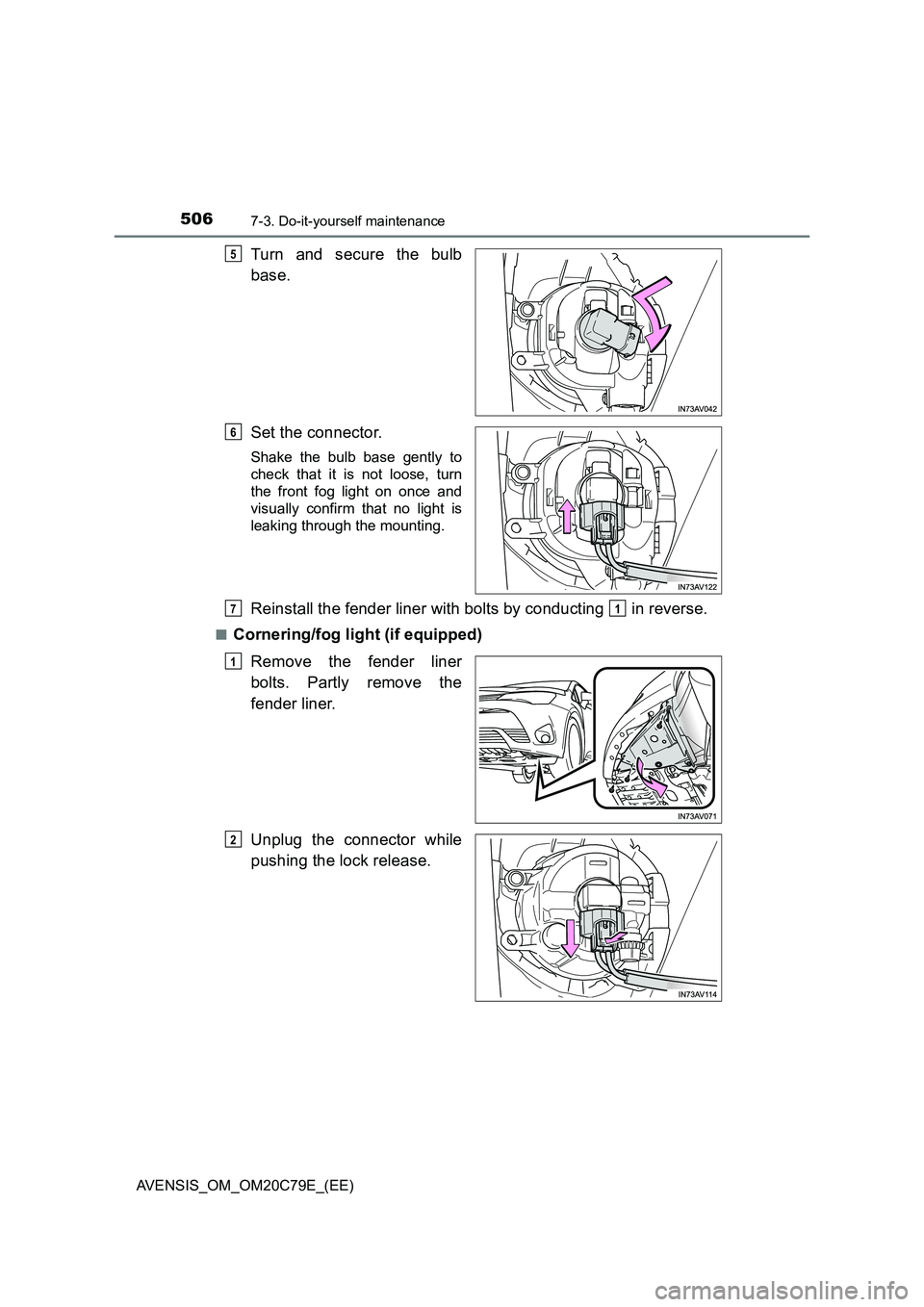

Turn and secure the bulb
base.
Set the connector.
Shake the bulb base gently to
check that it is not loose, turn
the front fog light on once and
visually confirm that no light is
leaking through the mounting.
Reinstall the fender liner with bolts by conducting in reverse.
■Cornering/fog light (if equipped)
Remove the fender liner
bolts. Partly remove the
fender liner.
Unplug the connector while
pushing the lock release.
5
6
71
1
2

5077-3. Do-it-yourself maintenance
AVENSIS_OM_OM20C79E_(EE)
7
Maintenance and care

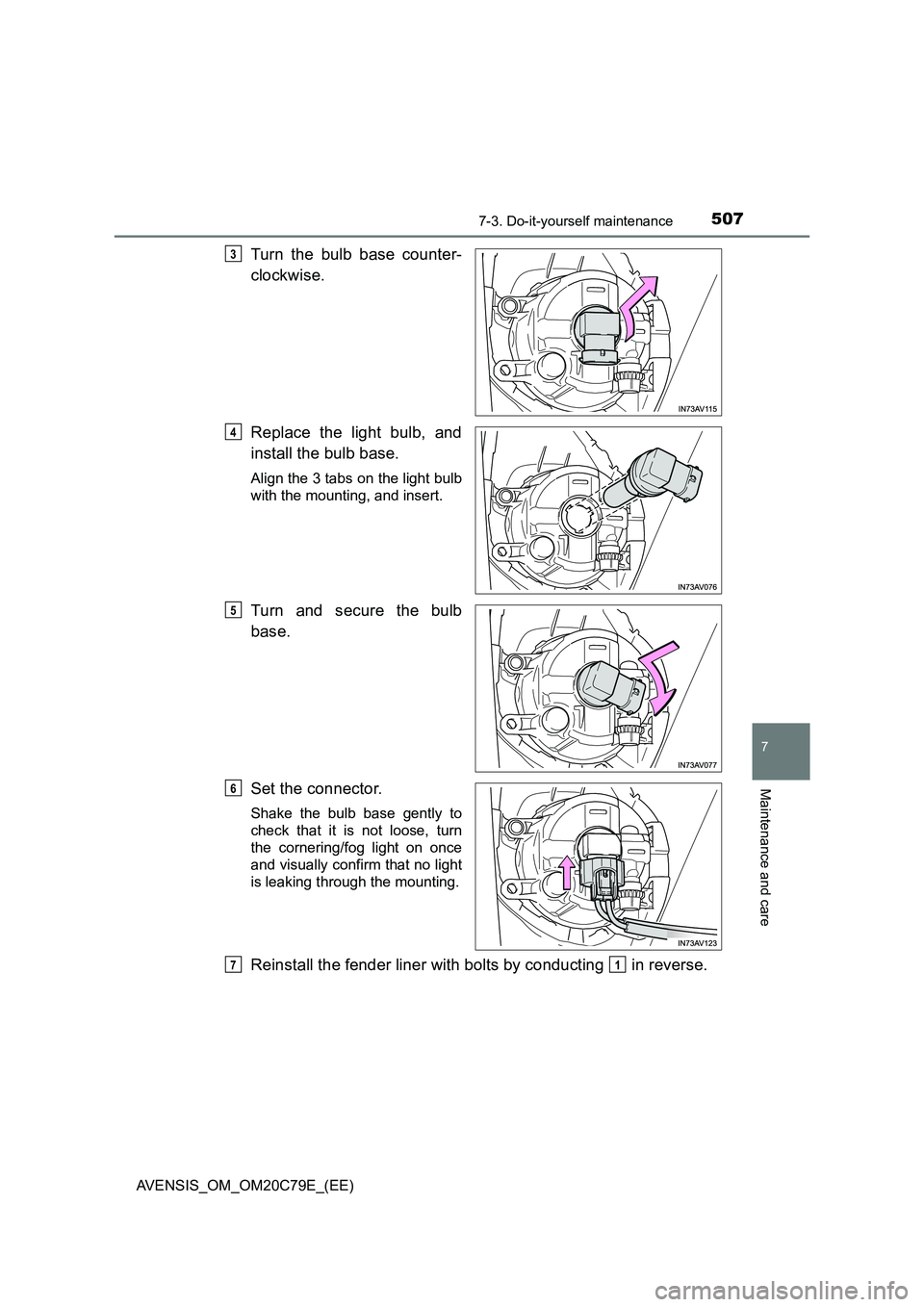

Turn the bulb base counter-
clockwise.
Replace the light bulb, and
install the bulb base.
Align the 3 tabs on the light bulb
with the mounting, and insert.
Turn and secure the bulb
base.
Set the connector.
Shake the bulb base gently to
check that it is not loose, turn
the cornering/fog light on once
and visually confirm that no light
is leaking through the mounting.
Reinstall the fender liner with bolts by conducting in reverse.
3
4
5
6
71

5087-3. Do-it-yourself maintenance
AVENSIS_OM_OM20C79E_(EE)■
Front turn signal light
For the left side only:
Remove the securing clip
and the upper part of the air
cleaner duct (if it is remov-
able).
Turn the bulb base counter-
clockwise.
Remove the light bulb.
When installing the bulb, reverse the steps and in reverse.
For the left side only: Install
the upper part of the air
cleaner duct and the secur-
ing clip by conducting in
reverse.
1
2
3
432
5
1

5097-3. Do-it-yourself maintenance
AVENSIS_OM_OM20C79E_(EE)
7
Maintenance and care

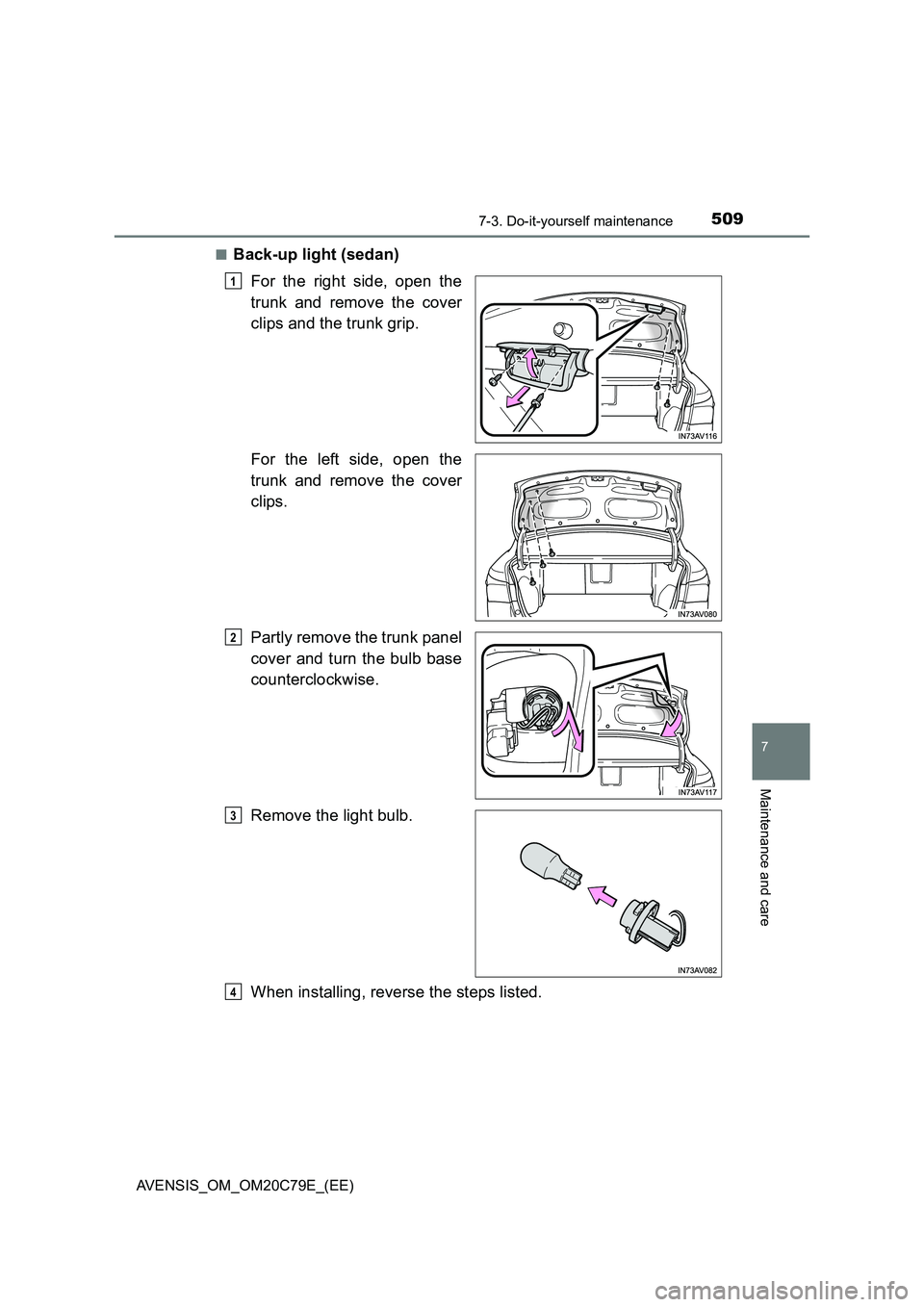

■Back-up light (sedan)
For the right side, open the
trunk and remove the cover
clips and the trunk grip.
For the left side, open the
trunk and remove the cover
clips.
Partly remove the trunk panel
cover and turn the bulb base
counterclockwise.
Remove the light bulb.
When installing, reverse the steps listed.
1
2
3
4

5107-3. Do-it-yourself maintenance
AVENSIS_OM_OM20C79E_(EE)■

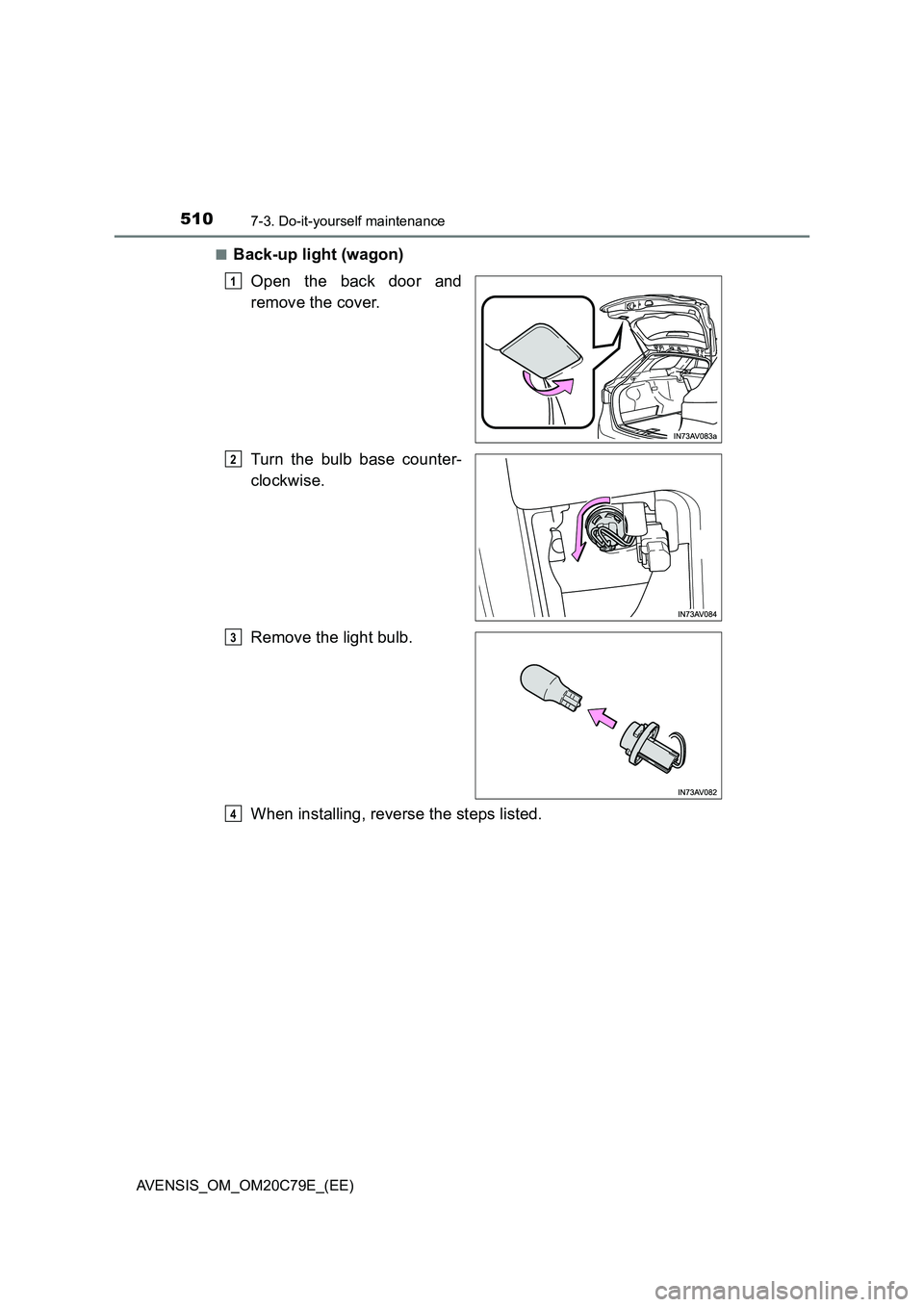

Back-up light (wagon)
Open the back door and
remove the cover.
Turn the bulb base counter-
clockwise.
Remove the light bulb.
When installing, reverse the steps listed.
1
2
3
4

5117-3. Do-it-yourself maintenance
AVENSIS_OM_OM20C79E_(EE)
7
Maintenance and care
■Rear turn signal light (sedan)
Open the trunk and remove
the cover.
Turn the bulb base counter-
clockwise.
Remove the light bulb.
When installing, reverse the steps listed.
1
2
3
4

5127-3. Do-it-yourself maintenance
AVENSIS_OM_OM20C79E_(EE)■
Rear turn signal light (wagon)
Open the back door and
remove the cover.
Turn the bulb bases counter-
clockwise.
Remove the light bulb.
When installing, reverse the steps listed.
1
2
3
4
