2018 TOYOTA AVENSIS Owners Manual

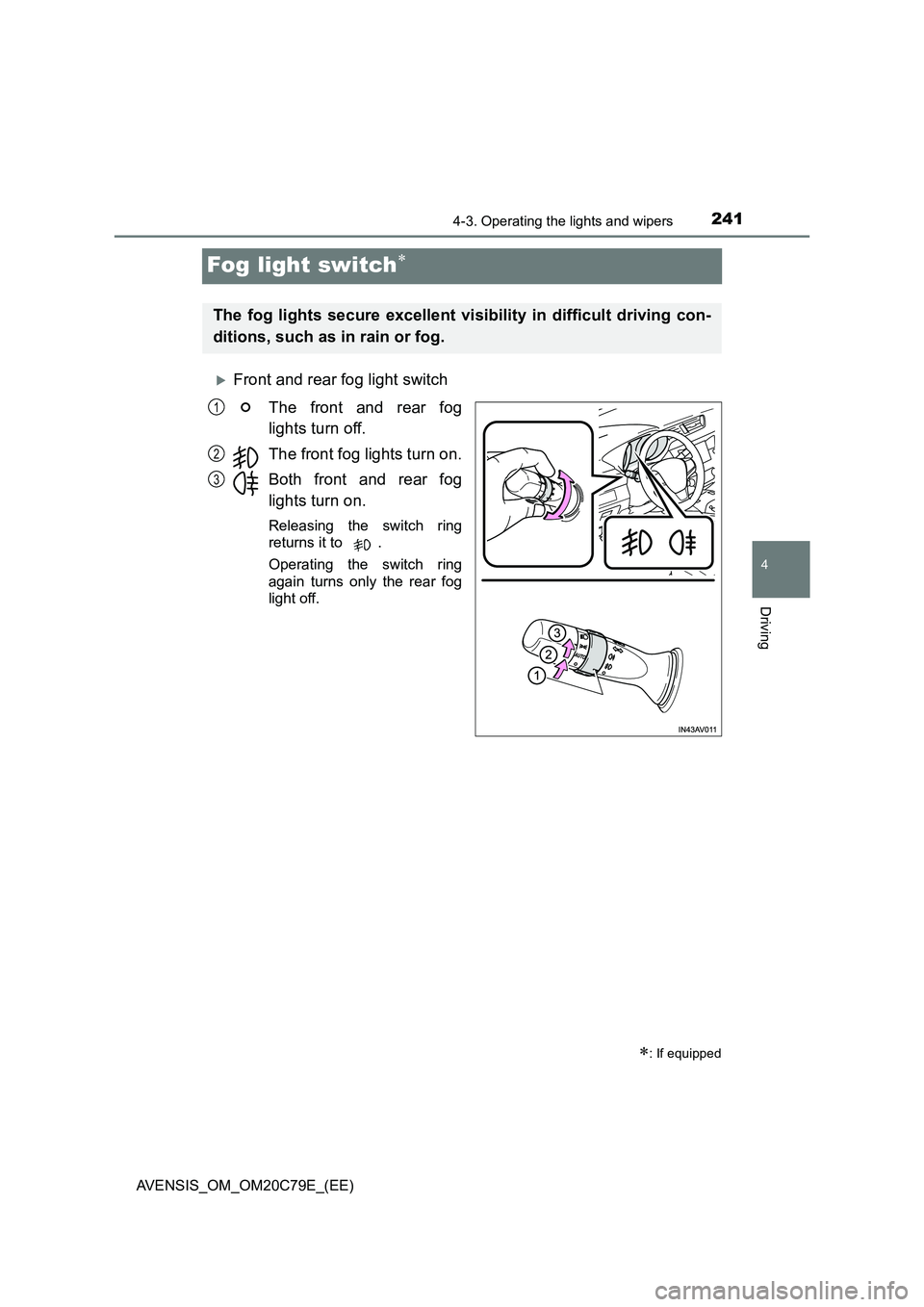

241
4
4-3. Operating the lights and wipers
Driving
AVENSIS_OM_OM20C79E_(EE)
Fog light switch
Front and rear fog light switch
The front and rear fog
lights turn off.
The front fog lights turn on.
Both front and rear fog
lights turn on.
Releasing the switch ring
returns it to .
Operating the switch ring
again turns only the rear fog
light off.
: If equipped
The fog lights secure excellent visibility in difficult driving con-
ditions, such as in rain or fog.
1
2
3

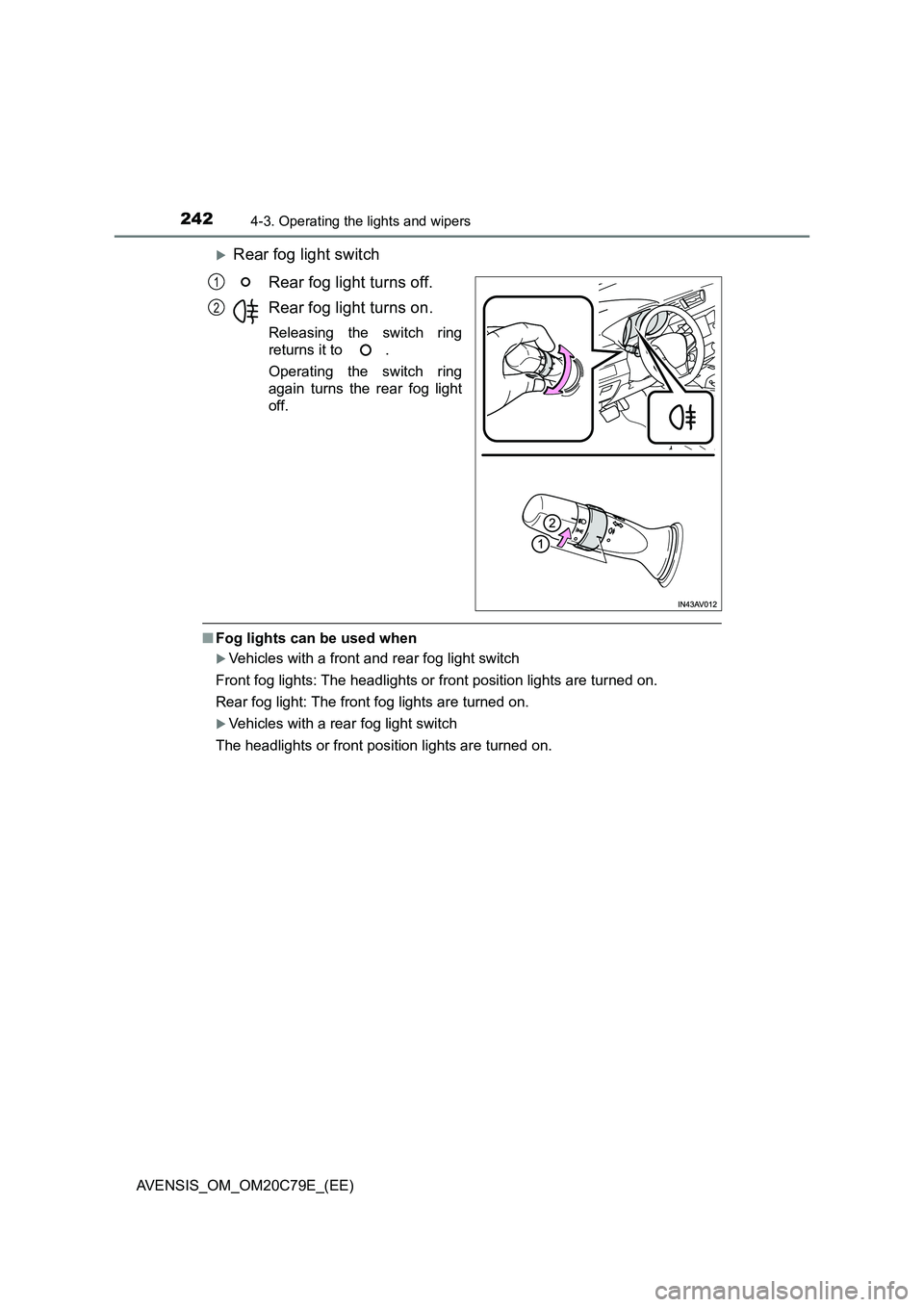

2424-3. Operating the lights and wipers
AVENSIS_OM_OM20C79E_(EE)
Rear fog light switch
Rear fog light turns off.
Rear fog light turns on.
Releasing the switch ring
returns it to .
Operating the switch ring
again turns the rear fog light
off.
■ Fog lights can be used when
Vehicles with a front and rear fog light switch
Front fog lights: The headlights or front position lights are turned on.
Rear fog light: The front fog lights are turned on.
Vehicles with a rear fog light switch
The headlights or front position lights are turned on.
1
2

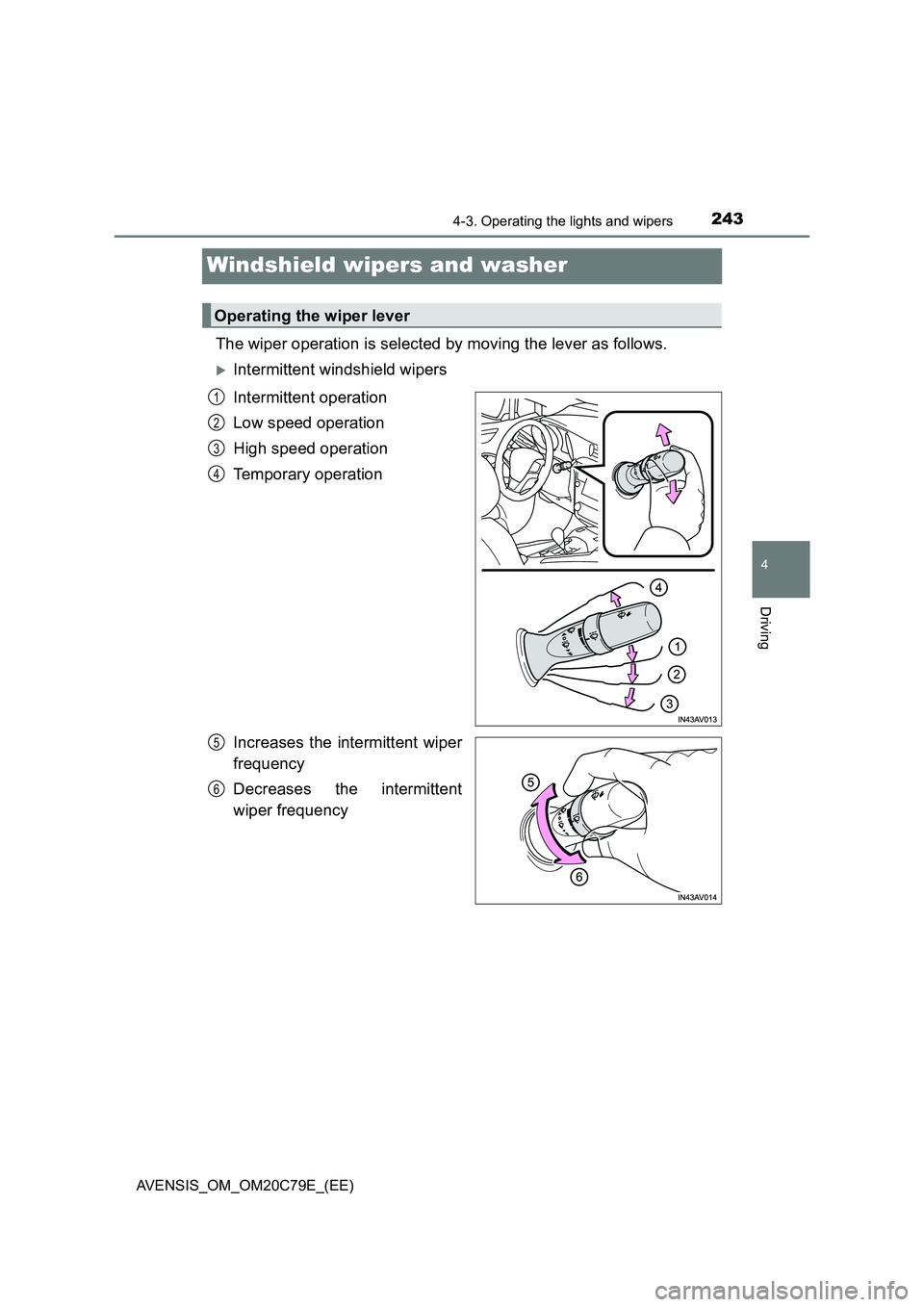

243
4
4-3. Operating the lights and wipers
Driving
AVENSIS_OM_OM20C79E_(EE)
Windshield wipers and washer
The wiper operation is selected by moving the lever as follows.
Intermittent windshield wipers
Intermittent operation
Low speed operation
High speed operation
Temporary operation
Increases the intermittent wiper
frequency
Decreases the intermittent
wiper frequency
Operating the wiper lever
1
2
3
4
5
6

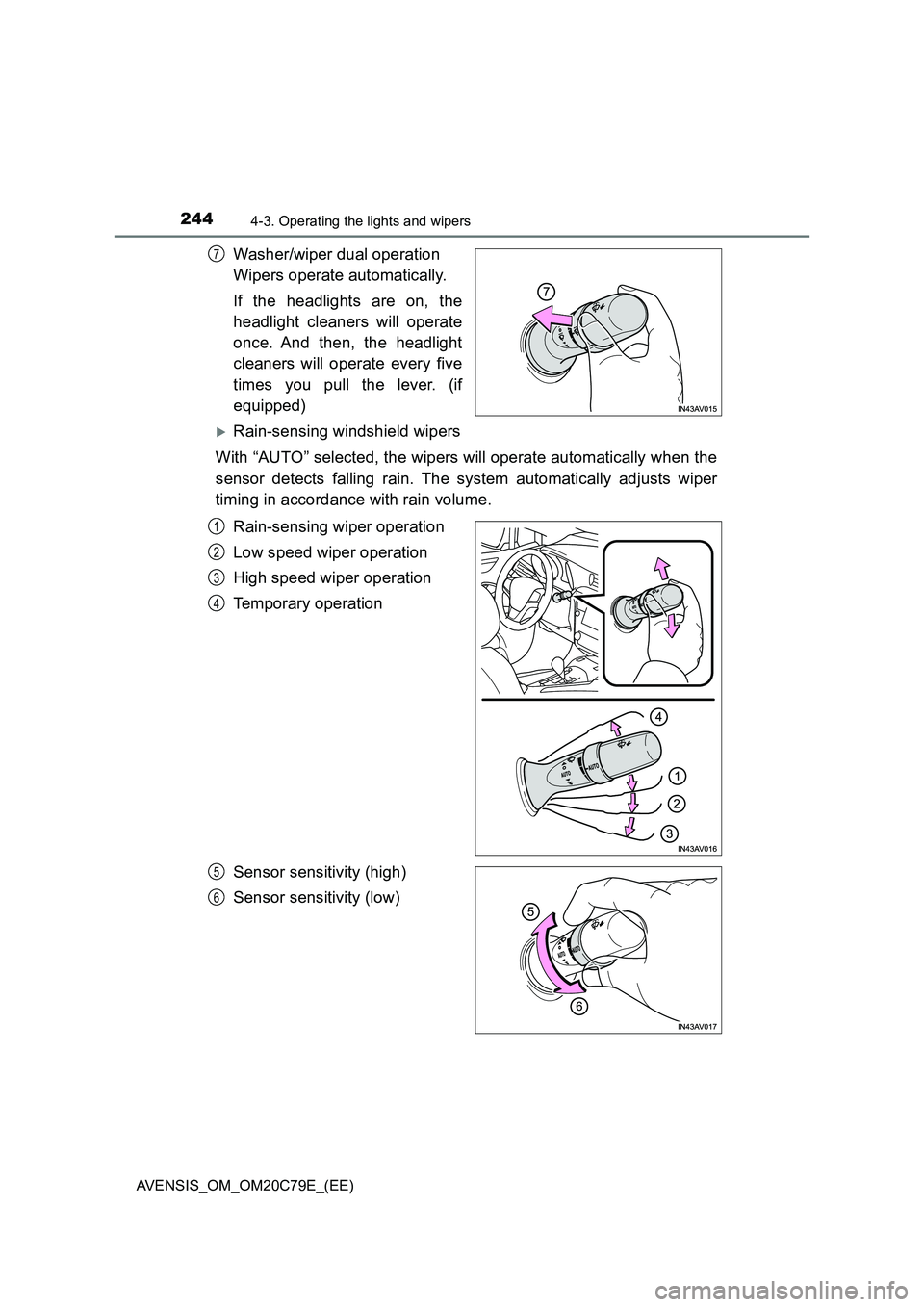

2444-3. Operating the lights and wipers
AVENSIS_OM_OM20C79E_(EE)
Washer/wiper dual operation
Wipers operate automatically.
If the headlights are on, the
headlight cleaners will operate
once. And then, the headlight
cleaners will operate every five
times you pull the lever. (if
equipped)
Rain-sensing windshield wipers
With “AUTO” selected, the wipers will operate automatically when the
sensor detects falling rain. The system automatically adjusts wiper
timing in accordance with rain volume.
Rain-sensing wiper operation
Low speed wiper operation
High speed wiper operation
Temporary operation
Sensor sensitivity (high)
Sensor sensitivity (low)
7
1
2
3
4
5
6

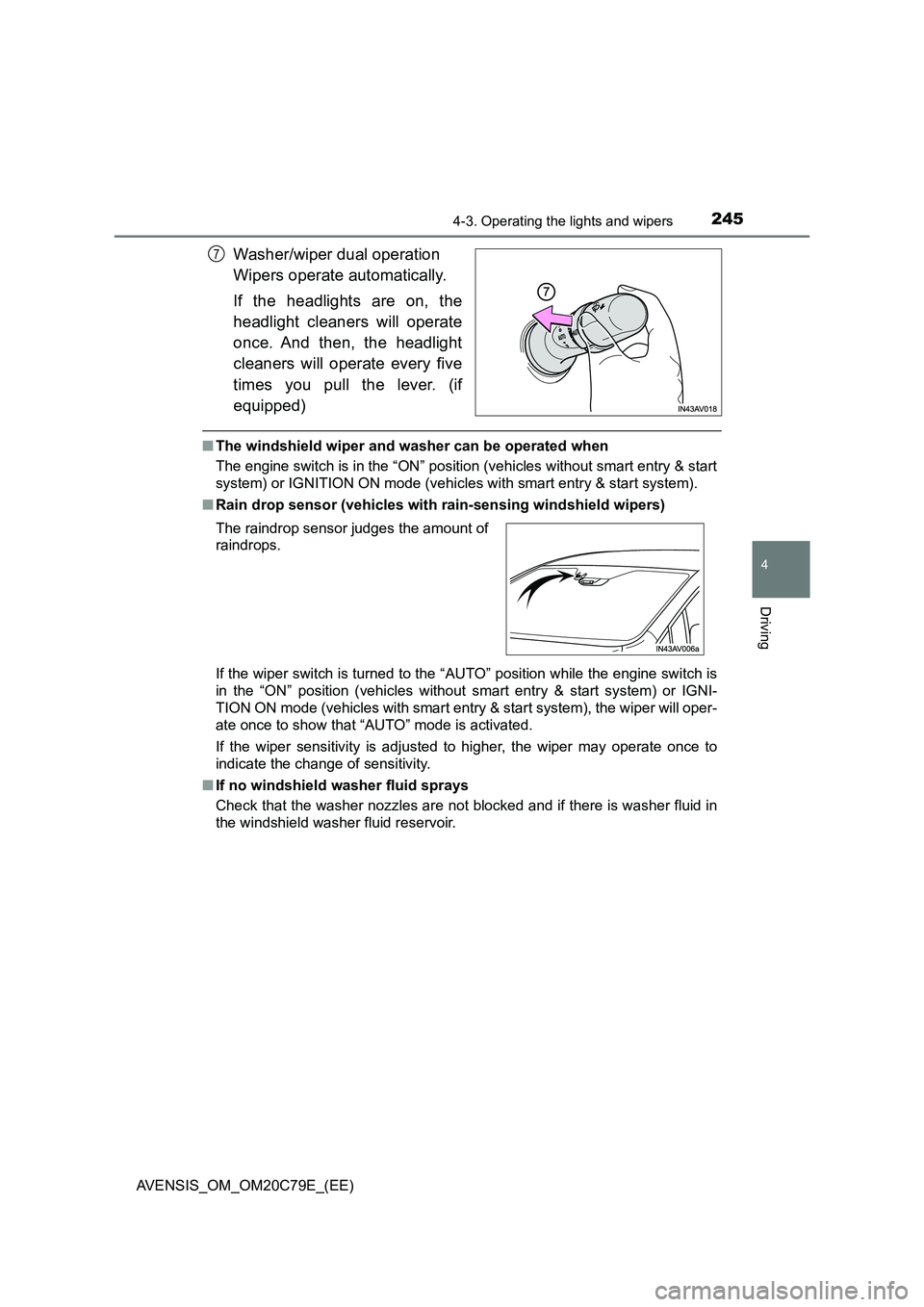

2454-3. Operating the lights and wipers
4
Driving
AVENSIS_OM_OM20C79E_(EE)
Washer/wiper dual operation
Wipers operate automatically.
If the headlights are on, the
headlight cleaners will operate
once. And then, the headlight
cleaners will operate every five
times you pull the lever. (if
equipped)
■The windshield wiper and washer can be operated when
The engine switch is in the “ON” position (vehicles without smart entry & start
system) or IGNITION ON mode (vehicles with smart entry & start system).
■Rain drop sensor (vehicles with rain-sensing windshield wipers)
If the wiper switch is turned to the “AUTO” position while the engine switch is
in the “ON” position (vehicles without smart entry & start system) or IGNI-
TION ON mode (vehicles with smart entry & start system), the wiper will oper-
ate once to show that “AUTO” mode is activated.
If the wiper sensitivity is adjusted to higher, the wiper may operate once to
indicate the change of sensitivity.
■If no windshield washer fluid sprays
Check that the washer nozzles are not blocked and if there is washer fluid in
the windshield washer fluid reservoir.
7
The raindrop sensor judges the amount of
raindrops.

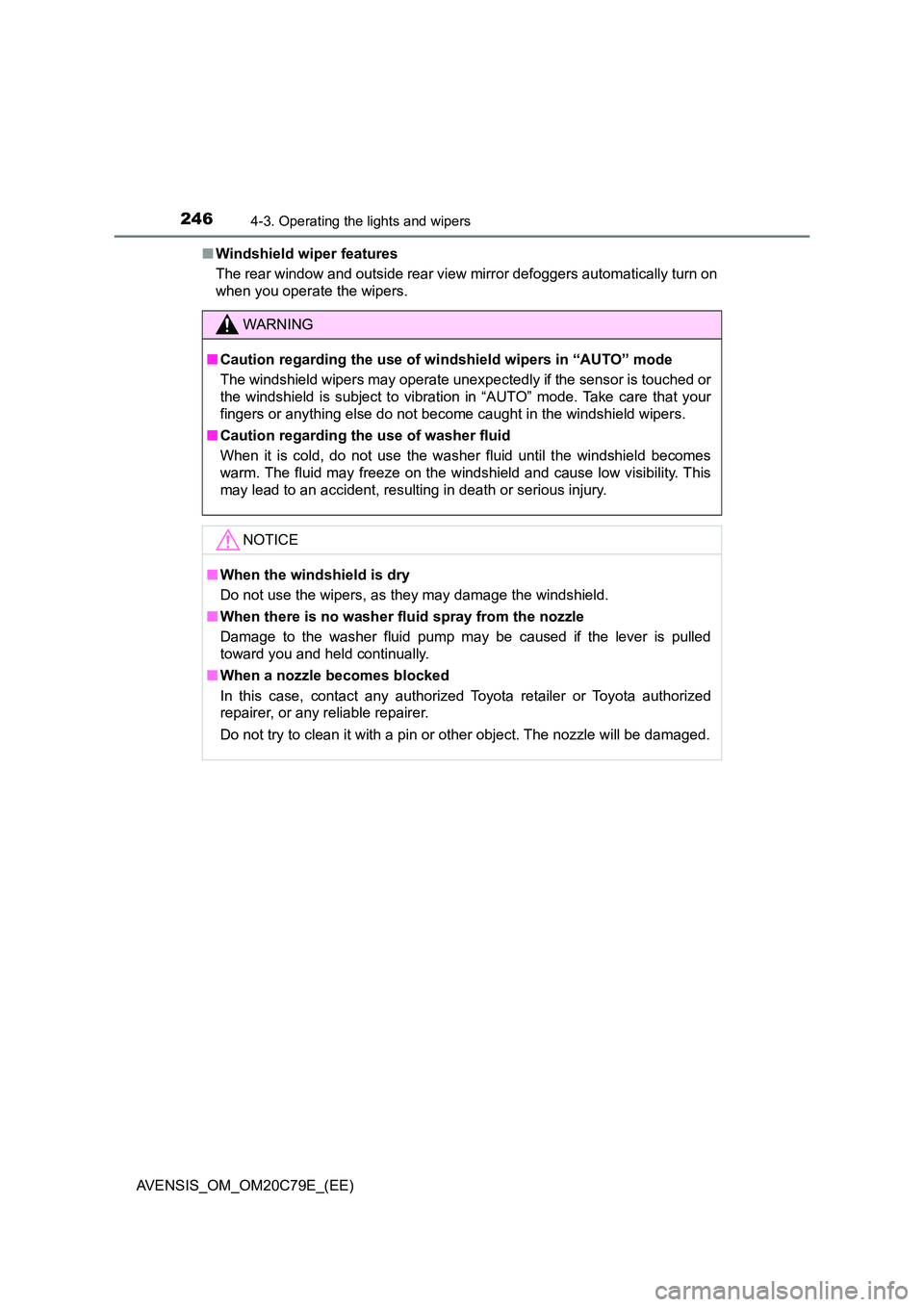

2464-3. Operating the lights and wipers
AVENSIS_OM_OM20C79E_(EE)
■ Windshield wiper features
The rear window and outside rear view mirror defoggers automatically turn on
when you operate the wipers.
WARNING
■ Caution regarding the use of windshield wipers in “AUTO” mode
The windshield wipers may operate unexpectedly if the sensor is touched or
the windshield is subject to vibration in “AUTO” mode. Take care that your
fingers or anything else do not become caught in the windshield wipers.
■ Caution regarding the use of washer fluid
When it is cold, do not use the washer fluid until the windshield becomes
warm. The fluid may freeze on the windshield and cause low visibility. This
may lead to an accident, resulting in death or serious injury.
NOTICE
■ When the windshield is dry
Do not use the wipers, as they may damage the windshield.
■ When there is no washer fluid spray from the nozzle
Damage to the washer fluid pump may be caused if the lever is pulled
toward you and held continually.
■ When a nozzle becomes blocked
In this case, contact any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer.
Do not try to clean it with a pin or other object. The nozzle will be damaged.

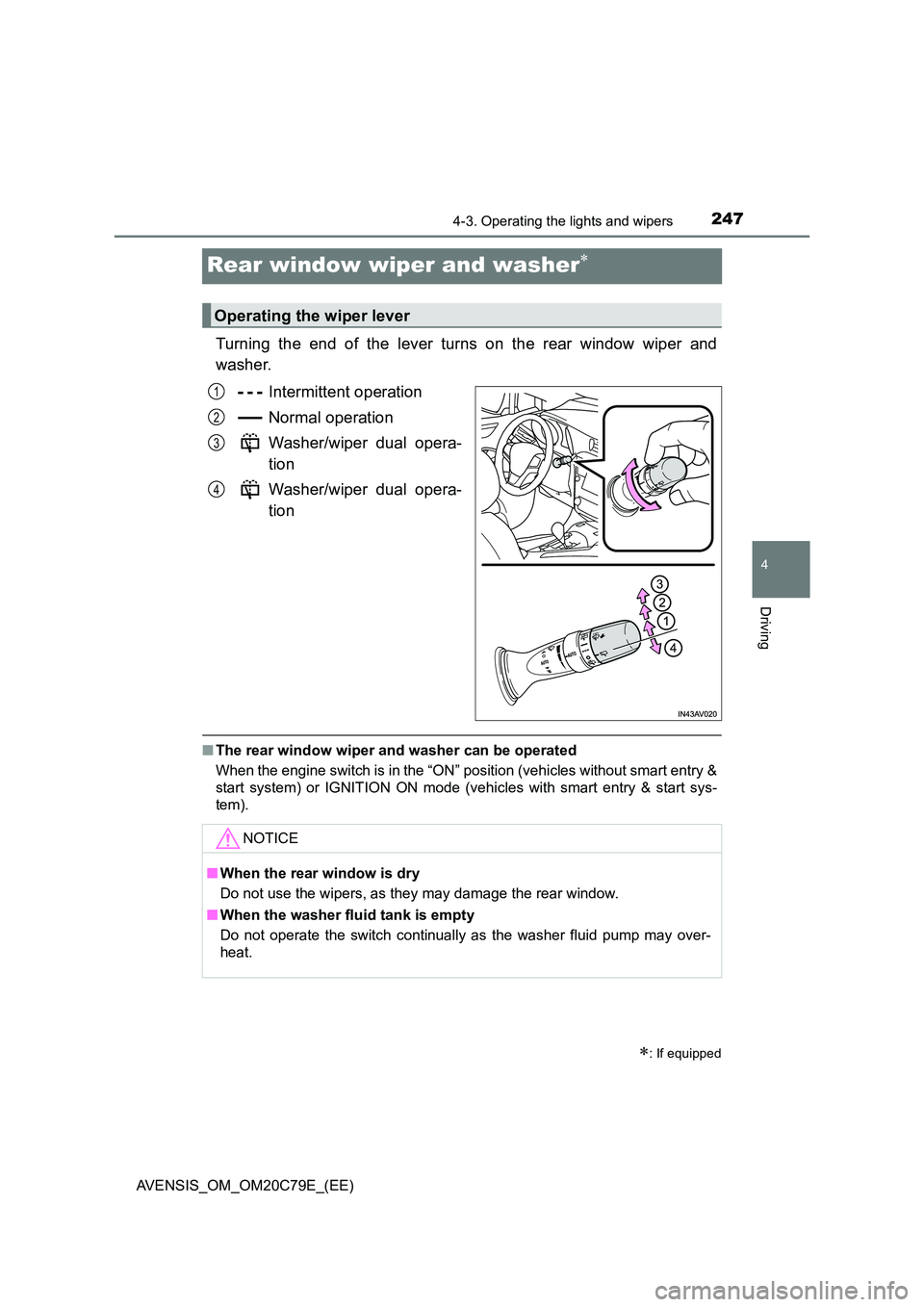

247
4
4-3. Operating the lights and wipers
Driving
AVENSIS_OM_OM20C79E_(EE)
Rear window wiper and washer
Turning the end of the lever turns on the rear window wiper and
washer.
Intermittent operation
Normal operation
Washer/wiper dual opera-
tion
Washer/wiper dual opera-
tion
■ The rear window wiper and washer can be operated
When the engine switch is in the “ON” position (vehicles without smart entry &
start system) or IGNITION ON mode (vehicles with smart entry & start sys-
tem).
: If equipped
Operating the wiper lever
1
2
3
4
NOTICE
■ When the rear window is dry
Do not use the wipers, as they may damage the rear window.
■ When the washer fluid tank is empty
Do not operate the switch continually as the washer fluid pump may over-
heat.

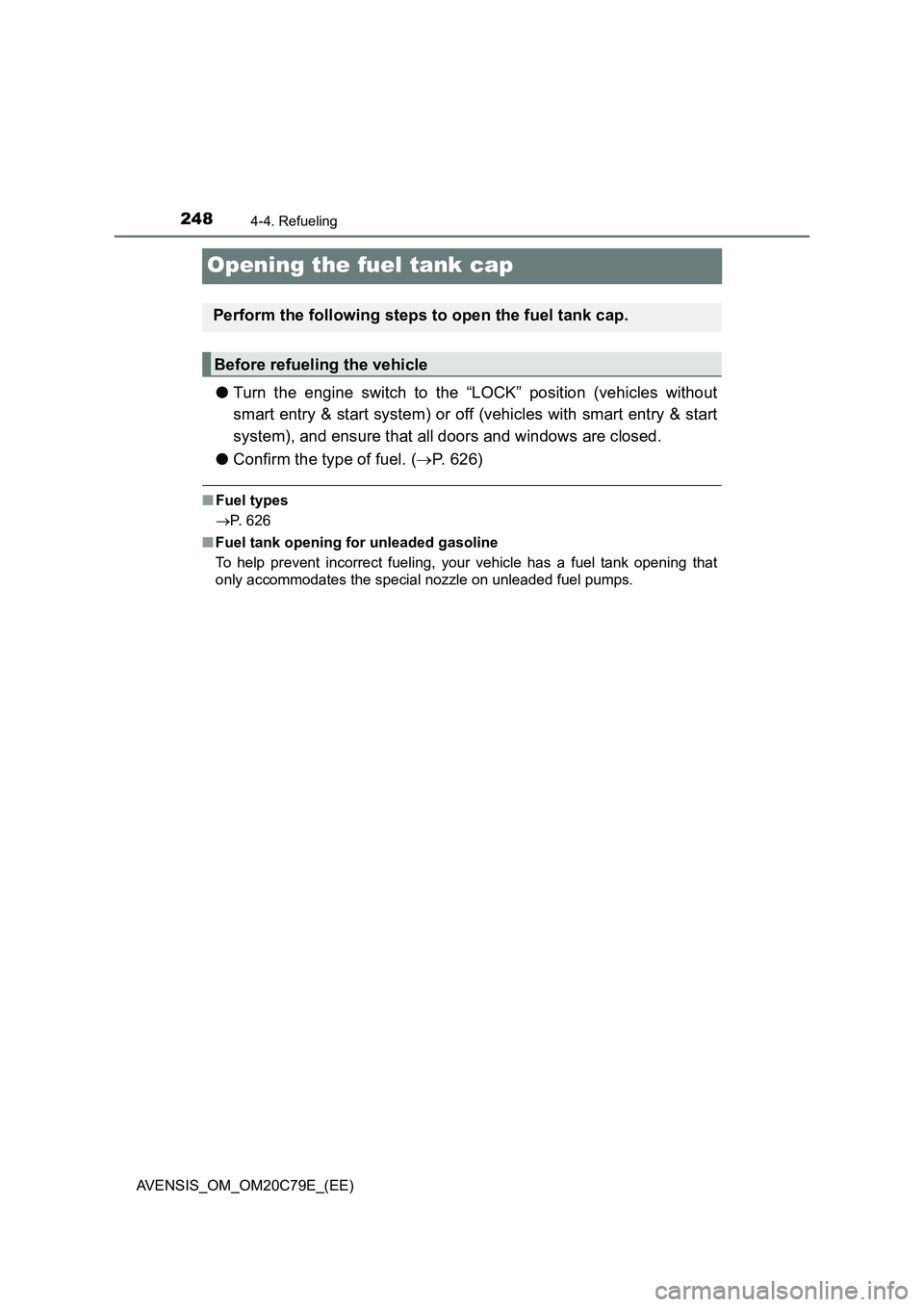

2484-4. Refueling
AVENSIS_OM_OM20C79E_(EE)
Opening the fuel tank cap
●Turn the engine switch to the “LOCK” position (vehicles without
smart entry & start system) or off (vehicles with smart entry & start
system), and ensure that all doors and windows are closed.
●Confirm the type of fuel. (P. 626)
■Fuel types
P. 626
■Fuel tank opening for unleaded gasoline
To help prevent incorrect fueling, your vehicle has a fuel tank opening that
only accommodates the special nozzle on unleaded fuel pumps.
Perform the following steps to open the fuel tank cap.
Before refueling the vehicle
