2018 TOYOTA AVENSIS Owners Manual

3695-7. “SETUP” menu
5
Audio system
AVENSIS_OM_OM20C79E_(EE)
Select “List audio” using the tune/scroll knob. (P. 364) The list of
registered portable players will be displayed.
●Connecting the registered portable player to the audio system
Select the name of the portable player to be connected using the
tune/scroll knob.
Select “Select” using the knob.
●Deleting the registered portable player
Select the name of the portable player to be deleted using the
tune/scroll knob.
Select “Delete” using the knob.
Press [YES].
Select “Passkey” using the tune/scroll knob. (P. 364)
Select a 4 to 8-digit passkey using the knob.
Input the number 1 digit at a time.
When the entire number to be registered as a passkey has been
input, press the knob again.
If the passkey to be registered has 8 digits, pressing the knob again is not
necessary.
If “BT power” is set to on, the registered device will be connected
automatically when the engine switch is turned to the “ACC” position
(vehicles without smart entry & start system) or ACCESSORY mode
(vehicles with smart entry & start system).
Select “BT power” using the tune/scroll knob. (P. 364)
Select “ON” or “OFF” using the knob.
Listing the registered portable players
Changing the passkey
Setting automatic connection of the device on or off
1
2
1
2
3
1
2
3
1
2

3705-7. “SETUP” menu
AVENSIS_OM_OM20C79E_(EE)
Select “Bluetooth* info” using the tune/scroll knob. (P. 364)
●Displaying the device name
Select “Device name” using the knob.
●Displaying the device address
Select “Device address” using the knob.
*: Bluetooth is a registered trademark of Bluetooth SIG, Inc.
If the “Display setting” is set to on, the portable player connection sta-
tus will be displayed when the engine switch is turned to the “ACC” or
“ON” position (vehicles without smart entry & start system), or
ACCESSORY or IGNITION ON mode (vehicles with smart entry &
start system).
Select “Display setting” using the tune/scroll knob. (P. 364)
Select “ON” or “OFF” using the knob.
Select “Reset” using the tune/scroll knob. (P. 364)
●Initializing the sound settings
Select “Sound Setting” using the knob and press [YES].
For details about sound settings: P. 323
●Initializing the device information
Select “Car Device Info” using the knob and press [YES].
Automatic connection of a portable device, automatic connection confirma-
tion display and the passkey will be initialized.
●Initializing the all settings
Select “All Initialize” using the knob and press [YES].
Displaying the device status
Setting the automatic connection confirmation display to on or off
Initialization
1
2

371
5
5-7. “SETUP” menu
Audio system
AVENSIS_OM_OM20C79E_(EE)

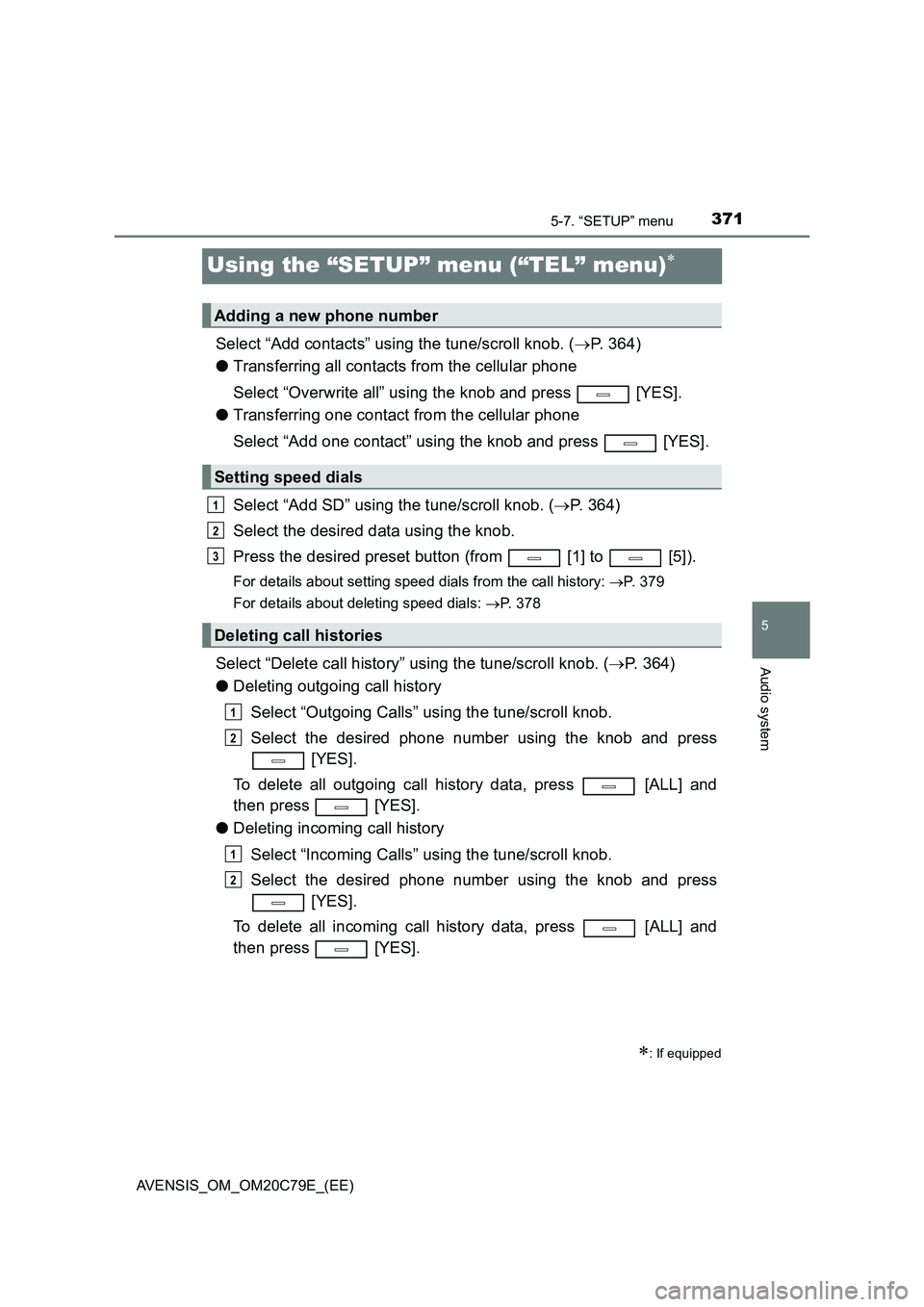

Using the “SETUP” menu (“TEL” menu)
Select “Add contacts” using the tune/scroll knob. (P. 364)
●Transferring all contacts from the cellular phone
Select “Overwrite all” using the knob and press [YES].
●Transferring one contact from the cellular phone
Select “Add one contact” using the knob and press [YES].
Select “Add SD” using the tune/scroll knob. (P. 364)
Select the desired data using the knob.
Press the desired preset button (from [1] to [5]).
For details about setting speed dials from the call history: P. 379
For details about deleting speed dials: P. 378
Select “Delete call history” using the tune/scroll knob. (P. 364)
●Deleting outgoing call history
Select “Outgoing Calls” using the tune/scroll knob.
Select the desired phone number using the knob and press
[YES].
To delete all outgoing call history data, press [ALL] and
then press [YES].
●Deleting incoming call history
Select “Incoming Calls” using the tune/scroll knob.
Select the desired phone number using the knob and press
[YES].
To delete all incoming call history data, press [ALL] and
then press [YES].
: If equipped
Adding a new phone number
Setting speed dials
Deleting call histories
1
2
3
1
2
1
2

3725-7. “SETUP” menu
AVENSIS_OM_OM20C79E_(EE)

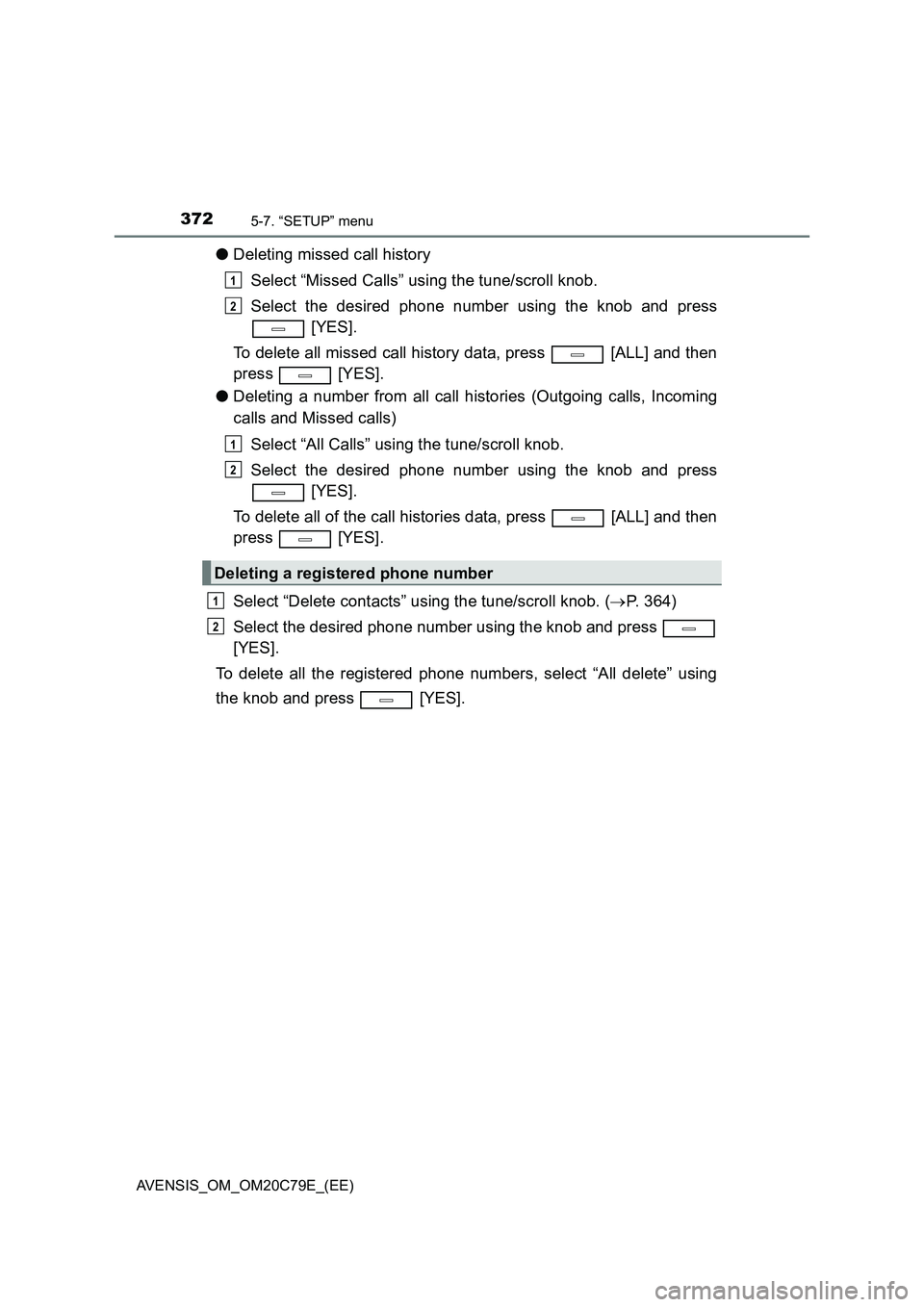

●Deleting missed call history
Select “Missed Calls” using the tune/scroll knob.
Select the desired phone number using the knob and press
[YES].
To delete all missed call history data, press [ALL] and then
press [YES].
●Deleting a number from all call histories (Outgoing calls, Incoming
calls and Missed calls)
Select “All Calls” using the tune/scroll knob.
Select the desired phone number using the knob and press
[YES].
To delete all of the call histories data, press [ALL] and then
press [YES].
Select “Delete contacts” using the tune/scroll knob. (P. 364)
Select the desired phone number using the knob and press
[YES].
To delete all the registered phone numbers, select “All delete” using
the knob and press [YES].
Deleting a registered phone number
1
2
1
2
1
2

3735-7. “SETUP” menu
5
Audio system
AVENSIS_OM_OM20C79E_(EE)

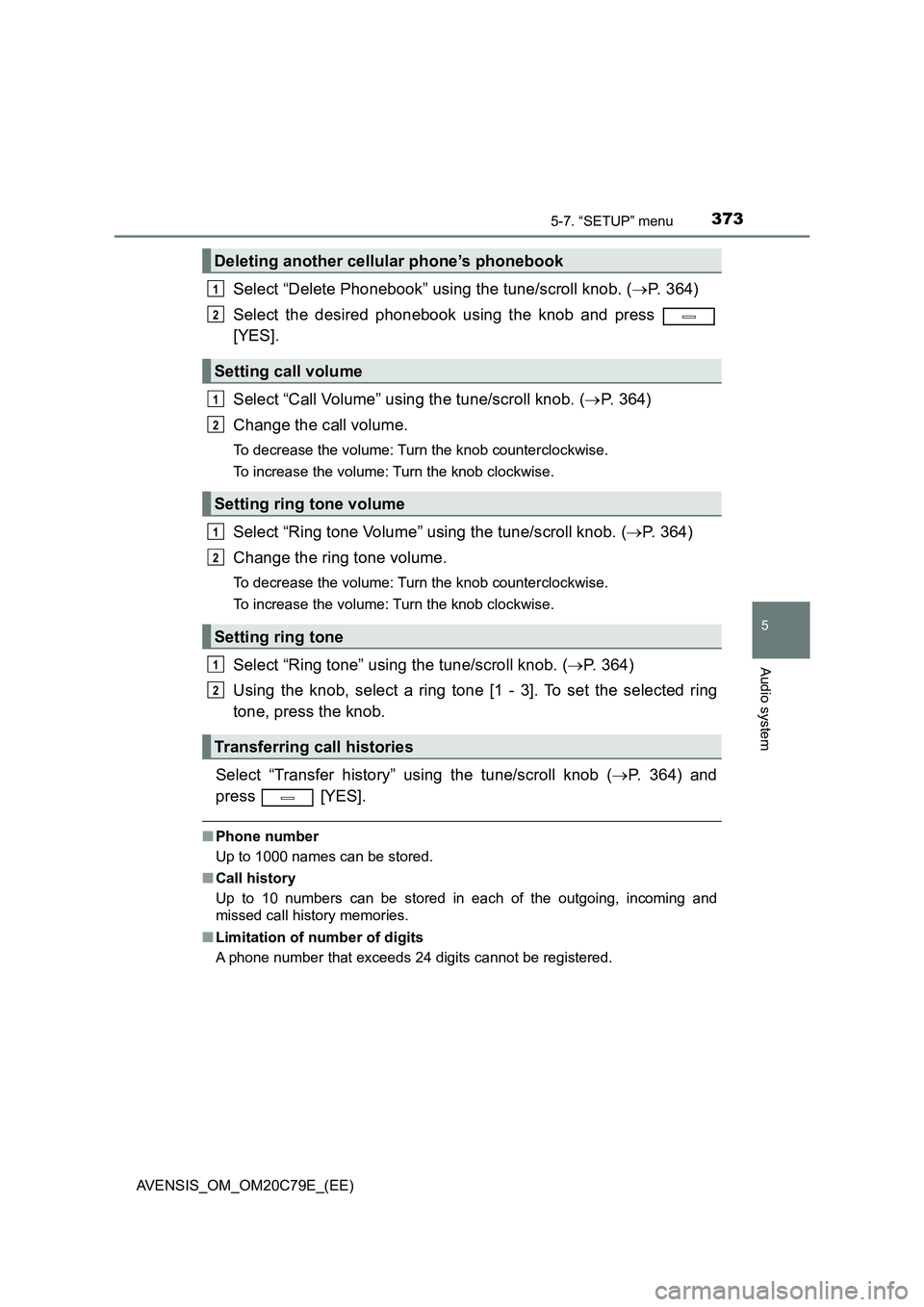

Select “Delete Phonebook” using the tune/scroll knob. (P. 364)
Select the desired phonebook using the knob and press
[YES].
Select “Call Volume” using the tune/scroll knob. (P. 364)
Change the call volume.
To decrease the volume: Turn the knob counterclockwise.
To increase the volume: Turn the knob clockwise.
Select “Ring tone Volume” using the tune/scroll knob. (P. 364)
Change the ring tone volume.
To decrease the volume: Turn the knob counterclockwise.
To increase the volume: Turn the knob clockwise.
Select “Ring tone” using the tune/scroll knob. (P. 364)
Using the knob, select a ring tone [1 - 3]. To set the selected ring
tone, press the knob.
Select “Transfer history” using the tune/scroll knob (P. 364) and
press [YES].
■Phone number
Up to 1000 names can be stored.
■Call history
Up to 10 numbers can be stored in each of the outgoing, incoming and
missed call history memories.
■Limitation of number of digits
A phone number that exceeds 24 digits cannot be registered.
Deleting another cellular phone’s phonebook
Setting call volume
Setting ring tone volume
Setting ring tone
Transferring call histories
1
2
1
2
1
2
1
2

3745-8. Bluetooth® Audio
AVENSIS_OM_OM20C79E_(EE)
Operating a Bluetooth® enabled portable
player

Ty pe A
: If equipped
Tune/scroll knob: Selecting a
track or displays text message
Back button
Random playback
Repeat play
PlaybackPlayback/pause
Selecting a track, fast-forward-
ing or rewinding
Power/volume knob: Adjusting
the volume or turning the
audio system on or off1
2
3
4
5
6
7
8

3755-8. Bluetooth® Audio
5
Audio system
AVENSIS_OM_OM20C79E_(EE)
Ty pe B
Tune/scroll knob: Selecting a
track
Displays text message
Random playback or back but-
ton
Repeat playPlayback
Playback/pause
Selecting a track, fast-forward-
ing or rewinding
Power/volume knob: Adjusting
the volume or turning the
audio system on or off1
2
3
4
5
6
7
8

3765-8. Bluetooth® Audio
AVENSIS_OM_OM20C79E_(EE)■
Selecting an album
Press [<] or [>] to select the desired album.
■Scanning the first track of all the album (type B only)
Press and hold the “SCAN” button until you hear a beep.
The first 10 seconds of the first track in each album will be played.
When the desired album is reached, press the button again.
■Selecting a track
Press “” or “” on the “SEEK TRACK” button to select the desired
track.
■Scanning the tracks in an album (type B only)
Press the “SCAN” button.
The first 10 seconds of each track will be played.
When the desired track is reached, press the button again.
Press and hold “” or “” on the “SEEK TRACK” button.
Pressing [RDM] changes modes in the following order:
Album randomAll track randomOff.
Pressing [RPT] changes modes in the following order:
Track repeatAlbum repeatOff.
Selecting and scanning an album
Selecting and scanning tracks
Fast-forwarding and rewinding tracks
Random playback
Repeat play
1
2
1
2
