2018 TOYOTA AVENSIS Owners Manual

9
AVENSIS_OM_OM20C79E_(EE)
The SRS airbag and seat belt pretensioner devices in your Toyota contain
explosive chemicals. If the vehicle is scrapped with the airbags and seat belt
pretensioners left as they are, this may cause an accident such as fire. Be
sure to have the systems of the SRS airbag and seat belt pretensioner
removed and disposed of by a qualified service shop or by any authorized
Toyota retailer or Toyota authorized r epairer, or any reliable repairer, before
you scrap your vehicle.
Scrapping of your Toyota
WARNING
■ General precautions while driving
Driving under the influence: Never drive your vehicle when under the influ-
ence of alcohol or drugs that have impair ed your ability to operate your vehi-
cle. Alcohol and certain drugs delay reaction time, impair judgment and
reduce coordination, which could lead to an accident that could result in
death or serious injury.
Defensive driving: Always drive defensively. Anticipate mistakes that other
drivers or pedestrians might make and be ready to avoid accidents.
Driver distraction: Always give your full attention to driving. Anything that
distracts the driver, such as adjusting controls, talking on a cellular phone or
reading can result in a collision with resulting death or serious injury to you,
your occupants or others.
■ General precaution regarding children’s safety
Never leave children unattended in the vehicle, and never allow children to
have or use the key.
Children may be able to start the vehicle or shift the vehicle into neutral.
There is also a danger that children may injure themselves by playing with
the windows, or other features of the vehicle. In addition, heat build-up or
extremely cold temperatures inside the vehicle can be fatal to children.

10
AVENSIS_OM_OM20C79E_(EE)
Reading this manual
WARNING:
Explains something that, if not obeyed, could cause death or
serious injury to people.
NOTICE:
Explains something that, if not obeyed, could cause damage to
or a malfunction in the vehicle or its equipment.
Indicates operating or working procedures. Follow the steps
in numerical order.
Indicates the action (push-
ing, turning, etc.) used to
operate switches and other
devices.
Indicates the outcome of an
operation (e.g. a lid opens).
Indicates the component or
position being explained.
Means “Do not”, “Do not do
this”, or “Do not let this hap-
pen”.
123

11
AVENSIS_OM_OM20C79E_(EE)
How to search
■Searching by name
• Alphabetical index ...... P. 644
■Searching by installation
position
• Pictorial index ............... P. 12
■Searching by symptom or
sound
• What to do if...
(Troubleshooting) ....... P. 640
■Searching by title
• Table of contents ............ P. 2

12Pictorial index
AVENSIS_OM_OM20C79E_(EE)
Pictorial index
■

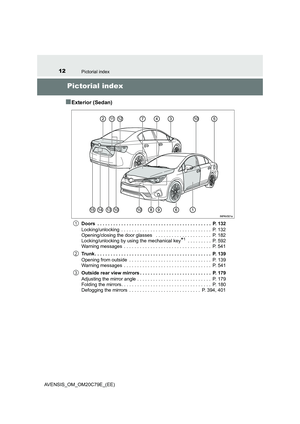

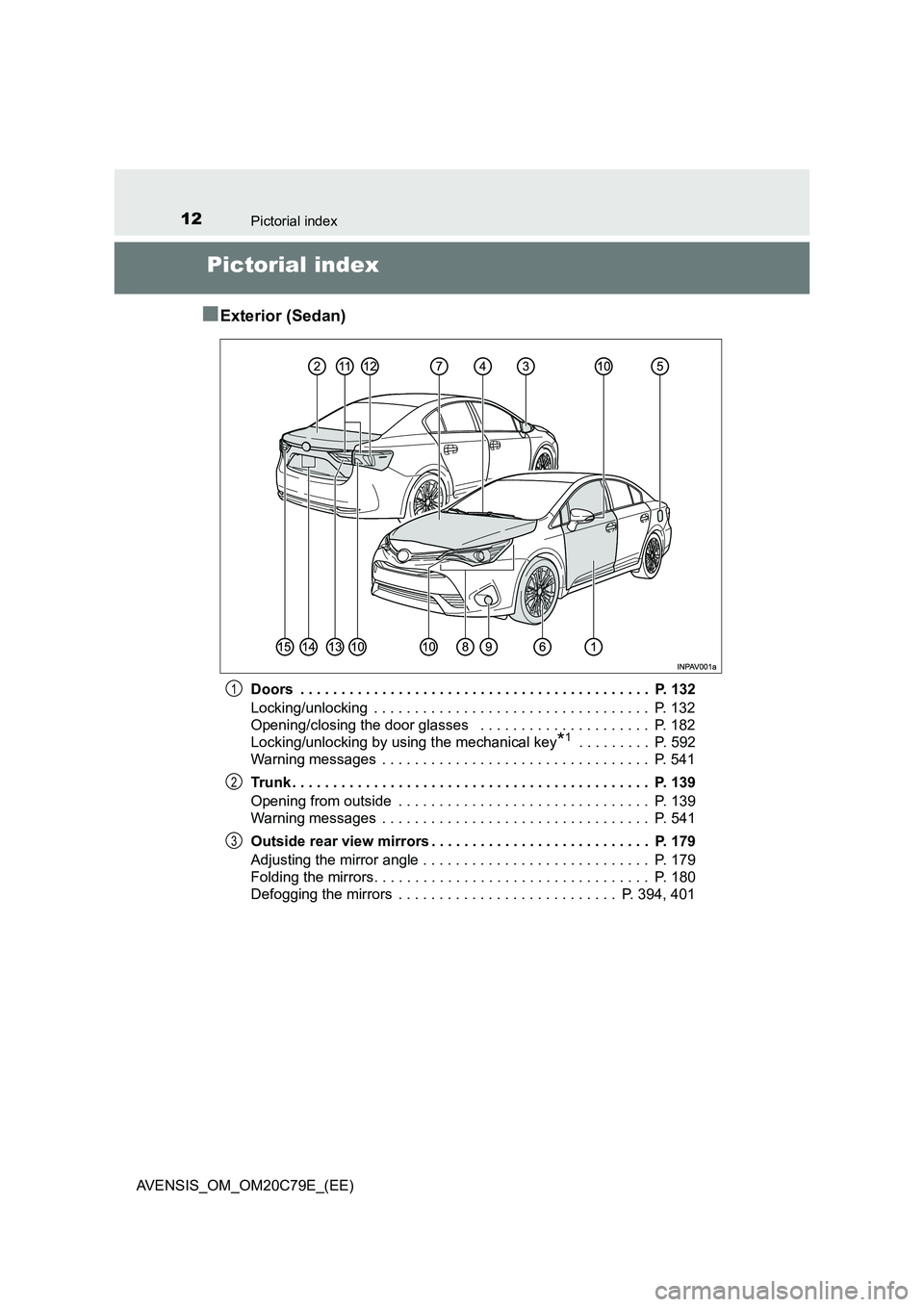

Exterior (Sedan)
Doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 132
Locking/unlocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 132
Opening/closing the door glasses . . . . . . . . . . . . . . . . . . . . . P. 182
Locking/unlocking by using the mechanical key
*1 . . . . . . . . . P. 592
Warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 541
Trunk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 139
Opening from outside . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 139
Warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 541
Outside rear view mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 179
Adjusting the mirror angle . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 179
Folding the mirrors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 180
Defogging the mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 394, 401
1
2
3

13Pictorial index
AVENSIS_OM_OM20C79E_(EE)Windshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 243
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . P. 312
To prevent freezing (windshield wiper de-icer)
*1. . . . . . . P. 394, 401
Precautions against car wash . . . . . . . . . . . . . . . . . . . . . . . . . P. 437
Fuel filler door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 248
Refueling method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 248
Fuel type/fuel tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 611
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 468
Tire size/inflation pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 623
Winter tires/tire chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 312
Checking/rotation/tire pressure warning system
*1 . . . . . . . . . P. 468
Coping with flat tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 570, 554
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 450
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 450
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 612
Coping with overheat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 600
Headlights/front position lights/daytime running
lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 233
Front fog lights
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 241
Cornering/fog light
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 237
Turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 229
Tail lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 233
Stop lights
Back-up lights
*2
Shifting the shift lever to R. . . . . . . . . . . . . . . . . . . . . . . . P. 219, 226
License plate lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 233
Rear fog light
*1, 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 241
4
5
6
7
Light bulbs of the exterior lights for driving
(Replacing method: P. 501, Watts: P. 625)
*1: If equipped
*2: They may be located on the opposite side depending on the target region.
8
9
10
11
12
13
14
15

14Pictorial index
AVENSIS_OM_OM20C79E_(EE)
■Exterior (Wagon)
Side doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 132
Locking/unlocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 132
Opening/closing the door glasses . . . . . . . . . . . . . . . . . . . . . P. 182
Locking/unlocking by using the mechanical key
*1 . . . . . . . . . P. 592
Warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 541
Back door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 143
Opening from outside . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 143
Warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 541
Outside rear view mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 179
Adjusting the mirror angle . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 179
Folding the mirrors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 180
Defogging the mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 394, 401
1
2
3

15Pictorial index
AVENSIS_OM_OM20C79E_(EE)Windshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 243
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . P. 312
To prevent freezing (windshield wiper de-icer)
*1. . . . . . . P. 394, 401
Precautions against car wash . . . . . . . . . . . . . . . . . . . . . . . . . P. 437
Fuel filler door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 248
Refueling method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 248
Fuel type/fuel tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 611
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 468
Tire size/inflation pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 623
Winter tires/tire chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 312
Checking/rotation/tire pressure warning system
*1 . . . . . . . . . P. 468
Coping with flat tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 570, 554
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 450
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 450
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 612
Coping with overheat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 600
Headlights/front position lights/daytime running
lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 233
Front fog lights
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 241
Cornering/fog light
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 237
Turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 229
Tail lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 233
Stop lights
Back-up lights
*2
Shifting the shift lever to R. . . . . . . . . . . . . . . . . . . . . . . . P. 219, 226
License plate lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 233
Rear fog light
*1, 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 241
4
5
6
7
Light bulbs of the exterior lights for driving
(Replacing method: P. 501, Watts: P. 625)
*1: If equipped
*2: They may be located on the opposite side depending on the target region.
8
9
10
11
12
13
14
15

16Pictorial index
AVENSIS_OM_OM20C79E_(EE)
■Instrument panel (Left-hand drive vehicles)
Engine switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 209, 212
Starting the engine/changing the modes . . . . . . . . . . . . . P. 209, 212
Emergency stop of the engine . . . . . . . . . . . . . . . . . . . . . . . . . P. 519
When the engine will not start . . . . . . . . . . . . . . . . . . . . . . . . . P. 586
Warning messages
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 537
Shift lever (Multidrive) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 219
Changing the shift position . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 219
Precautions against towing . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 521
When the shift lever does not move . . . . . . . . . . . . . . . . . . . . P. 224
Shift lever (manual transmission) . . . . . . . . . . . . . . . . . . . . P. 226
Changing the shift position . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 226
Precautions against towing . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 521
Meters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 104
Reading the meters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 104
Adjusting the instrument cluster light . . . . . . . . . . . . . . . . P. 106, 114
Warning lights/indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 98
When the warning lights come on . . . . . . . . . . . . . . . . . . . . . . P. 530
