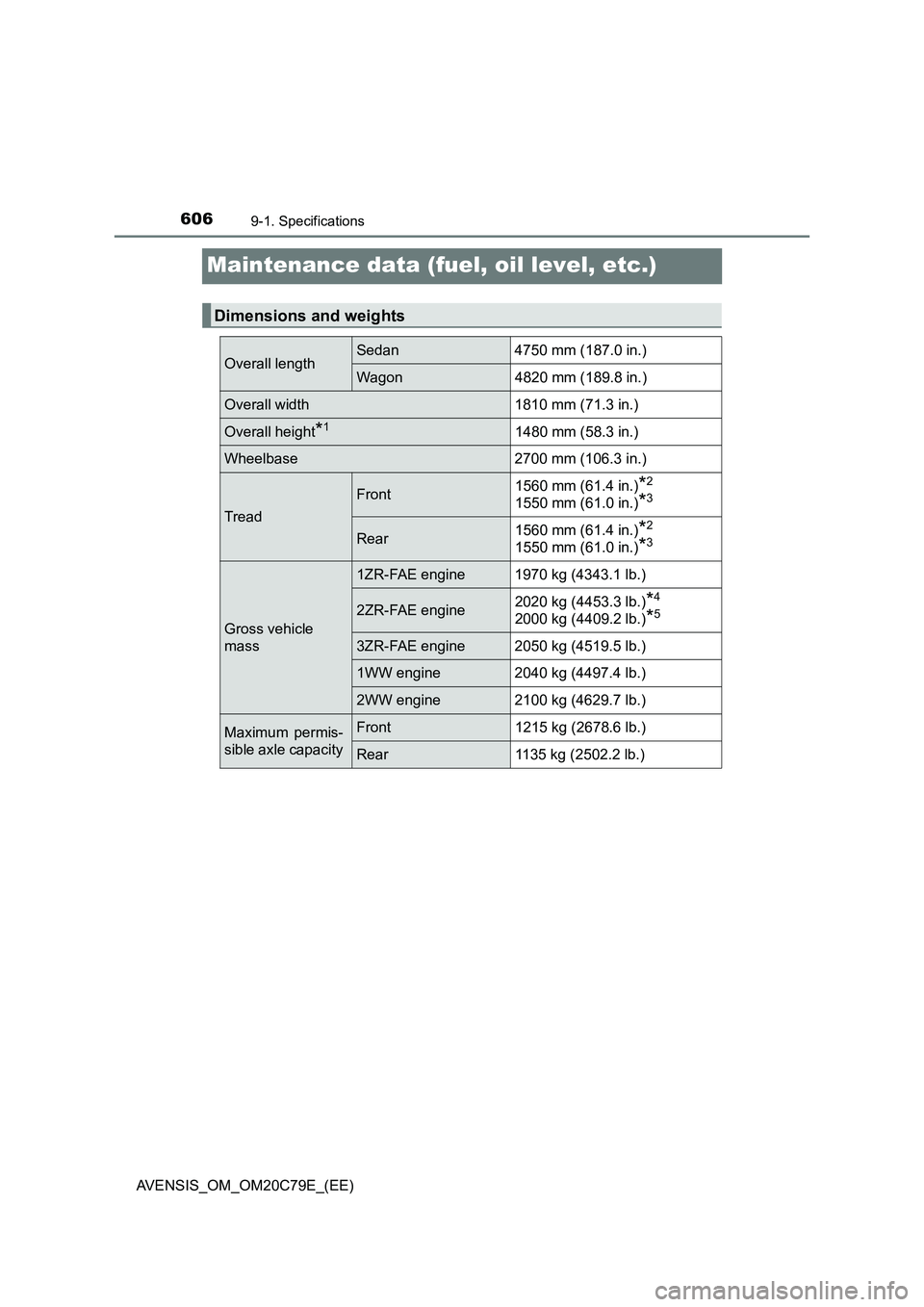

6069-1. Specifications
AVENSIS_OM_OM20C79E_(EE)
Maintenance data (fuel, oil level, etc.)
Dimensions and weights
Overall lengthSedan 4750 mm (187.0 in.)
Wagon 4820 mm (189.8 in.)
Overall width 1810 mm (71.3 in.)
Overall height*11480 mm (58.3 in.)
Wheelbase 2700 mm (106.3 in.)
Tread
Front1560 mm (61.4 in.)*2
1550 mm (61.0 in.)*3
Rear1560 mm (61.4 in.)*2
1550 mm (61.0 in.)*3
Gross vehicle
mass
1ZR-FAE engine 1970 kg (4343.1 lb.)
2ZR-FAE engine2020 kg (4453.3 lb.)*4
2000 kg (4409.2 lb.)*5
3ZR-FAE engine 2050 kg (4519.5 lb.)
1WW engine 2040 kg (4497.4 lb.)
2WW engine 2100 kg (4629.7 lb.)
Maximum permis-
sible axle capacityFront 1215 kg (2678.6 lb.)
Rear 1135 kg (2502.2 lb.)
