WARNING
Never operate the compressor above
300 kPa (3.1 kgf/ c m
2, 3 bar, 43.5 psi):
Operating the compressor above 300
kPa (3.1 kgf/cm
2, 3 bar, 43.5 psi) is
dangerous. When the inflation pressure
rises above 300 kPa (3.1 kgf/cm
2, 3 bar,
43.5 psi), heated air will be exhausted
from the back of the compressor and
you could be burned.
NOTE
•Check the tyre inflation pressure
label (driver's door frame) for the
correct tyre inflation pressure.
•Do not use the compressor for
longer than 10 minutes because
using the compressor for long
periods could damage it.
•If the tyre does not inflate, repair of
the tyre may not be possible. If the
tyre does not reach the correct
inflation pressure within a 10-minute
period, it probably has received
more extensive damage. When this
happens, the emergency flat tyre
repair kit cannot be used to repair
the tyre. Contact an expert repairer,
we recommend an Authorised Mazda
Repairer.
•If the tyre has been over-inflated,
loosen the screw cap on the
compressor and bleed some of the
air out.
16. When the tyre has been inflated to the proper inflation pressure, turn the
compressor switch off and remove the
compressor hose from the tyre valve.
17. Install the tyre valve cap.
18. Put the emergency flat tyre repair kit in the boot and continue driving.
CAUTION
Drive carefully to an expert repairer,
we recommend an Authorised
Mazda Repairer and keep the vehicle
speed below 80 km/h (50 mph).
 If the vehicle is driven 80 km/h (50
mph) or higher, the vehicle might
begin to vibrate.
NOTE
(With Tyre Pressure Monitoring
System)
If the tyre is not properly inflated, the
tyre pressure monitoring system
warning light will illuminate (page
4-42).
19. After driving the vehicle for 10 minutes or 5 km (3 miles), check the
tyre pressure with the tyre pressure
gauge equipped with the compressor. If
the tyre pressure ha s fallen below the
correct tyre pressure, inflate the tyre to
the correct pressure again following
the steps from number 14.
CAUTION
 If the tyre inflation pressure falls
below 130 kPa (1.3 kgf/cm
2 or bar,
18.9 psi), repair cannot be done with
the repair kit. Park the vehicle on a
level surface off the right-of-way and
contact an expert repairer, we
recommend an Authorised Mazda
Repairer.
If Trouble Arises
Flat Tyre
7-24
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

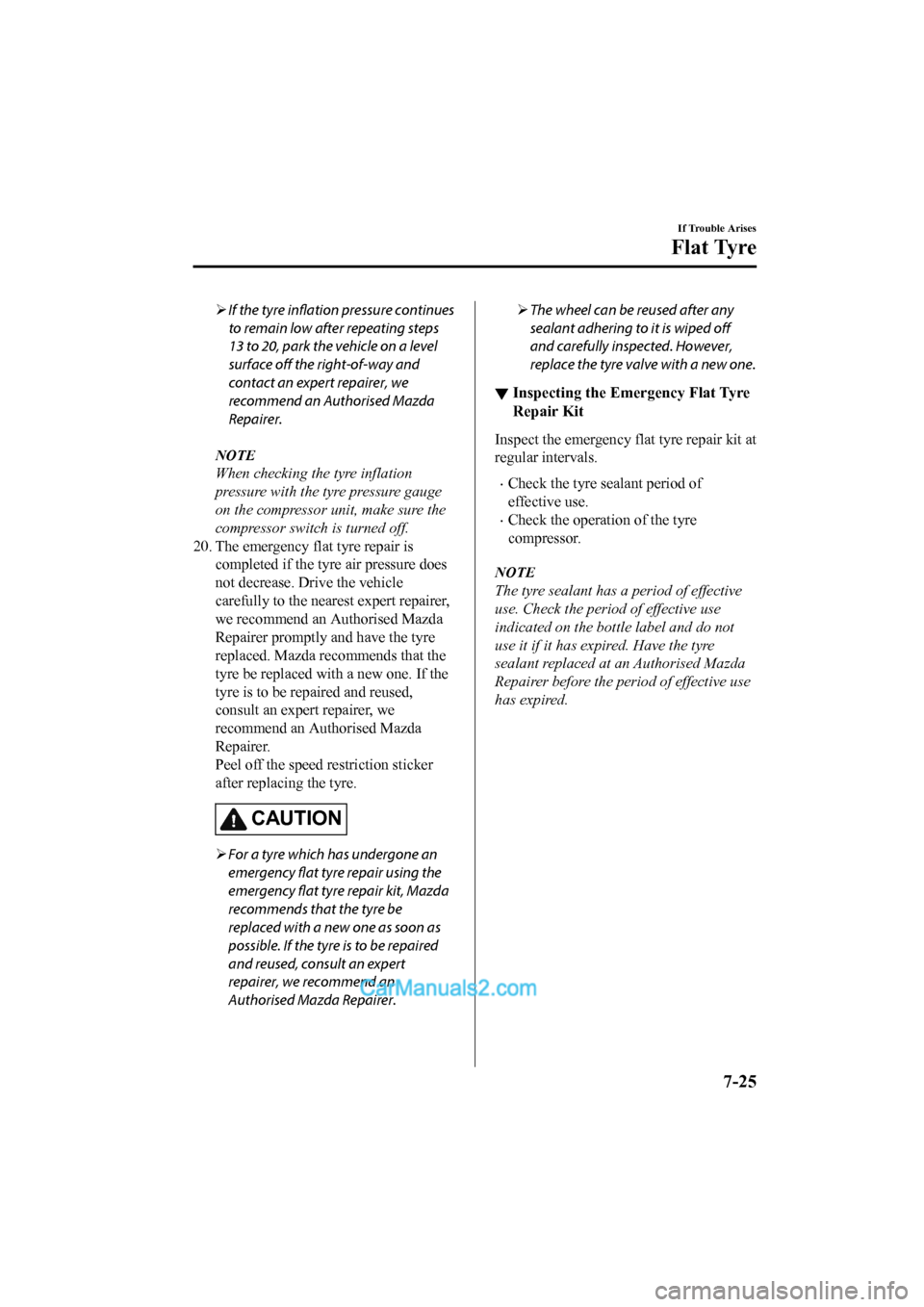

If the tyre
inflation pressure continues
to remain low after repeating steps
13 to 20, park the vehicle on a level
surface off the right-of-way and
contact an expert repairer, we
recommend an Authorised Mazda
Repairer.
NOTE
When checking the tyre inflation
pressure with the tyre pressure gauge
on the compressor unit, make sure the
compressor switch is turned off.
20. The emergency flat tyre repair is
completed if the tyre air pressure does
not decrease. Drive the vehicle
carefully to the nearest expert repairer,
we recommend an Authorised Mazda
Repairer promptly and have the tyre
replaced. Mazda recommends that the
tyre be replaced with a new one. If the
tyre is to be repaired and reused,
consult an expert repairer, we
recommend an Authorised Mazda
Repairer.
Peel off the speed restriction sticker
after replacing the tyre.
CAUTION
For a tyre which has undergone an
emergency flat tyre repair using the
emergency
flat tyre repair kit, Mazda
recommends that the tyre be
replaced with a new one as soon as
possible. If the tyre is to be repaired
and reused, consult an expert
repairer, we recommend an
Authorised Mazda Repairer.
 The wheel can be reused after any
sealant adhering to it is wiped off
and carefully inspected. However,
replace the tyre valve with a new one.
▼ Inspecting the Emergency Flat Tyre
Repair Kit
Inspect the emergency flat tyre repair kit at
regular intervals.
•Check the tyre sealant period of
effective use.
•Check the operation of the tyre
compressor.
NOTE
The tyre sealant has a period of effective
use. Check the period of effective use
indicated on the bottle label and do not
use it if it has expired. Have the tyre
sealant replaced at an Authorised Mazda
Repairer before the period of effective use
has expired.
If Trouble Arises
Flat Tyre
7-25
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

Changing a Flat Tyre(With Spare Tyre)
NOTE
If the following occurs while driving, it
could indicate a flat tyre.
•Steering becomes difficult.
•The vehicle begins to vibrate
excessively.
•The vehicle pulls in one direction.
If you have a flat tyre, drive slowly to a
level spot that is well off the road and out
of the way of traffic to change the tyre.
Stopping in traffic or on the shoulder of a
busy road is dangerous.
WA R N I N G
Be sure to follow the directions for
changing a tyre:
Changing a tyre is dangerous if not done
properly. The vehicle can slip off the jack
and seriously injure someone.
No person should place any portion of their
body under a vehicle that is supported by a
jack.
Never allow anyone inside a vehicle
supported by a jack:
Allowing someone to remain in a vehicle
supported by a jack is dangerous. The
occupant could cause the vehicle to fall
resulting in serious injury.
NOTE
Make sure the jack is well lubricated
before using it.
1. Park on a hard, level surface off the right-of-way and firml y set the parking
brake.
2. Put a vehicle with an automatic transaxle in Park (P), a manual
transaxle in Reverse (R) or 1, and turn
off the engine.
3. Turn on the hazard warning flasher.
4. Have everyone get out of the vehicle
and away from the vehicle and traffic.
5. Remove the jack, tool, and spare tyre
(page 7-15).
6. Block the wheel diagonally opposite the flat tyre. When blocking a wheel,
place a tyre block both in front and
behind the tyre.
NOTE
When blocking a tyre, use rocks or
wood blocks of sufficient size if
possible to hold the tyre in place.
If Trouble Arises
Flat Tyre
7-26
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

▼Removing a Flat Tyre
WA R N I N G
When jacking-up a vehicle, always shift the
shift lever to 1st or R (manual transaxle
vehicle) or shift the selector lever to P
(automatic transaxle vehicle), apply the
parking brake, and place wheel blocks in
the position diagonally opposed to the
jack:
Changing a
flat tyre without using wheel
blocks is dangerous because the vehicle
may move and fall off the jack even with
the shift lever in 1st or R, or the select lever
is in P, which could result in an accident.
1. If your vehicle is equipped with steel wheels, pry off the c entre cap with the
bevelled end of the jack lever.

CAUTION
Use the jack lever when removing the
centre cap. Using your hands to remove
it may cause an injury. In addition,
using a tool other than the jack lever
may cause damage to the wheel or the
centre cap.
2. Loosen the wheel nuts by turning them anticlockwise one turn each, but do not
remove any wheel nuts until the tyre
has been raised off the ground.

3. Place the jack on the ground.
4. Turn the jack screw in the directionshown in the figure and adjust the jack
head so that it is close to the jack-up
position.

Jack head
5. Place the jack under the jack-upposition closest to the tyre being
changed with the jack head squarely
under the jack-up point.

Jacking position
If Trouble Arises
Flat Tyre
7-27
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

6. Continue raising the jack headgradually by rotating the screw with
your hand until the jack head is
inserted into the jack-up position.

Tyre blocks
Jacking position
WARNING
Use only the front and rear jacking
positions recommended in this manual:
Attempting to jack the vehicle in
positions other than those
recommended in this manual is
dangerous. The vehicle could slip off
the jack and seriously injure or even kill
someone. Use only the front and rear
jacking positions recommended in this
manual.
Do not jack up the vehicle in a position
other than the designated jack-up
position or place any objects on or
under the jack:
Jacking up the vehicle in a position
other than the designated jack-up
position or placing objects on or under
the jack is dangerous as it could deform
the vehicle body or the vehicle could fall
off the jack resulting in an accident.
Use only the jack provided with your
Mazda:
Using a jack that is not designed for
your Mazda is dangerous. The vehicle
could slip off the jack and seriously
injure someone.
Never place objects under the jack:
Jacking the vehicle with an object
under the jack is dangerous. The jack
could slip and someone could be
seriously injured by the jack or the
falling vehicle.
7. Insert the jack l ever and attach the
wheel brace to tyre jack.

If Trouble Arises
Flat Tyre
7-28
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

8. Turn the jack handle clockwise andraise the vehicle high enough so that
the spare tyre can be installed. Before
removing the wheel nuts, make sure
your Mazda is firmly in position and
that it cannot slip or move.

WA R N I N G
Do not jack up the vehicle higher than
is necessary:
Jacking up the vehicle higher than is
necessary is dangerous as it could
destabilize the vehicle resulting in an
accident.
Do not start the engine or shake the
vehicle while it is jacked up:
Starting the engine or shaking the
vehicle while it is jacked up is
dangerous as it could cause the vehicle
to fall off the jack resulting in an
accident.
Never go under the vehicle while it is
jacked up:
Going under the vehicle while it is
jacked up is dangerous as it could result
in death or serious injury if the vehicle
were to fall off the jack.
9. Remove the wheel nuts by turning
them anticlockwise; then remove the
wheel and centre cap.
▼Mounting the Spare Tyre
1. Remove dirt and grime from the
mounting surfaces of the wheel and
hub, including the hub bolts, with a
cloth.

WA R N I N G
Make sure the mounting surfaces of the
wheel, hub and wheel nuts are clean
before changing or replacing tyres:
When changing or replacing a tyre, not
removing dirt and grime from the
mounting surfaces of the wheel, hub
and hub bolts is dangerous. The wheel
nuts could loosen while driving and
cause the tyre to come off, resulting in
an accident.
2. Mount the spare tyre.
If Trouble Arises
Flat Tyre
7-29
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

3. Install the wheel nuts with the bevellededge inward; tighten them by hand.

WARNING
Do not apply oil or grease to wheel nuts
and bolts and do not tighten the wheel
nuts beyond the recommended
tightening torque:
Applying oil or grease to wheel nuts
and bolts is dangerous. The wheel nuts
could loosen while driving and cause
the tyre to come off, resulting in an
accident. In addition, wheel nuts and
bolts could be damaged if tightened
more than necessary.
4. Turn the wheel brace anticlockwise and lower the vehicle.
5. Use the wheel brace to tighten the nuts in the order shown.

If you are unsure of how tight the nuts
should be, have them inspected at an
expert repairer, we recommend an
Authorised Mazda Repairer.
Nut tightening torque
N·m (kgf·m, ft·lbf) 108―147 (12―14,
80―108)
WARNING
Always securely and correctly tighten
the wheel nuts:
Improperly or loosely tightened wheel
nuts are dangerous. The wheel could
wobble or come off. This could result in
loss of vehicle control and cause a
serious accident.
Be sure to reinstall the same nuts you
removed or replace them with metric
nuts of the same configuration:
Because the wheel studs and wheel
nuts on your Mazda have metric
threads, using a non-metric nut is
dangerous. On a metric stud, it would
not secure the wheel and would
damage the stud, which could cause
the wheel to slip off and cause an
accident.
6. Remove the tyre blocks and store the tools and jack.
7. Store the damaged tyre in the luggage compartment.
8. Check the inflation pressure. Refer to Tyres on page 9-9.
9. Have the flat tyre repaired or replaced as soon as possible.
If Trouble Arises
Flat Tyre
7-30
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

WA R N I N G
Do not drive with any tyres that have
incorrect air pressure:
Driving on tyres with incorrect air pressure
is dangerous. Tyres with incorrect pressure
could affect handling and result in an
accident. When you check the regular tyres'
air pressure, check the spare tyre, too.
NOTE
To prevent the jack and tool from rattling,
store them properly.
If Trouble Arises
Flat Tyre
7-31
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2
