2017 MAZDA MODEL CX-5 Owner's Manual - RHD (UK, Australia) (in English)

NOTE
Changing the coolant should be done by
an expert repairer, we recommend an
Authorised Mazda Repairer.
Inspect the antifreeze protection and
coolant level in the coolant reservoir at
least once a year―at the beginning of the
winter season―and before travelling
where temperatures may drop below
freezing.

Inspect the condition and connections of
all cooling system and heater hoses.
Replace any that are swollen or
deteriorated.

The coolant should be at full in the
radiator and between the F and L marks on
the coolant reservoir when the engine is
cool.
SKYACTIV-G 2.0 and SKYACTIV-G
2.5

SKYACTIV-D 2.2

If it is at or near L, add enough coolant to
the coolant reservoir to provide freezing
and corrosion protection and to bring the
level to F.
Securely tighten the c oolant reservoir tank
cap after adding coolant.
CAUTION
 Radiator coolant will damage paint.
Rinse it
off quickly if spilled.
 If the “FL22” mark is shown on or near
the cooling system cap, use of FL-22 is
recommended when replacing engine
coolant. Using engine coolant other than
FL-22 may cause serious damage to the
engine and cooling system.

If the coolant reserv oir is empty or new
coolant is required frequently, consult an
expert repairer, we recommend an
Authorised Mazda Repairer.
Maintenance and Care
Owner Maintenance
6-30
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

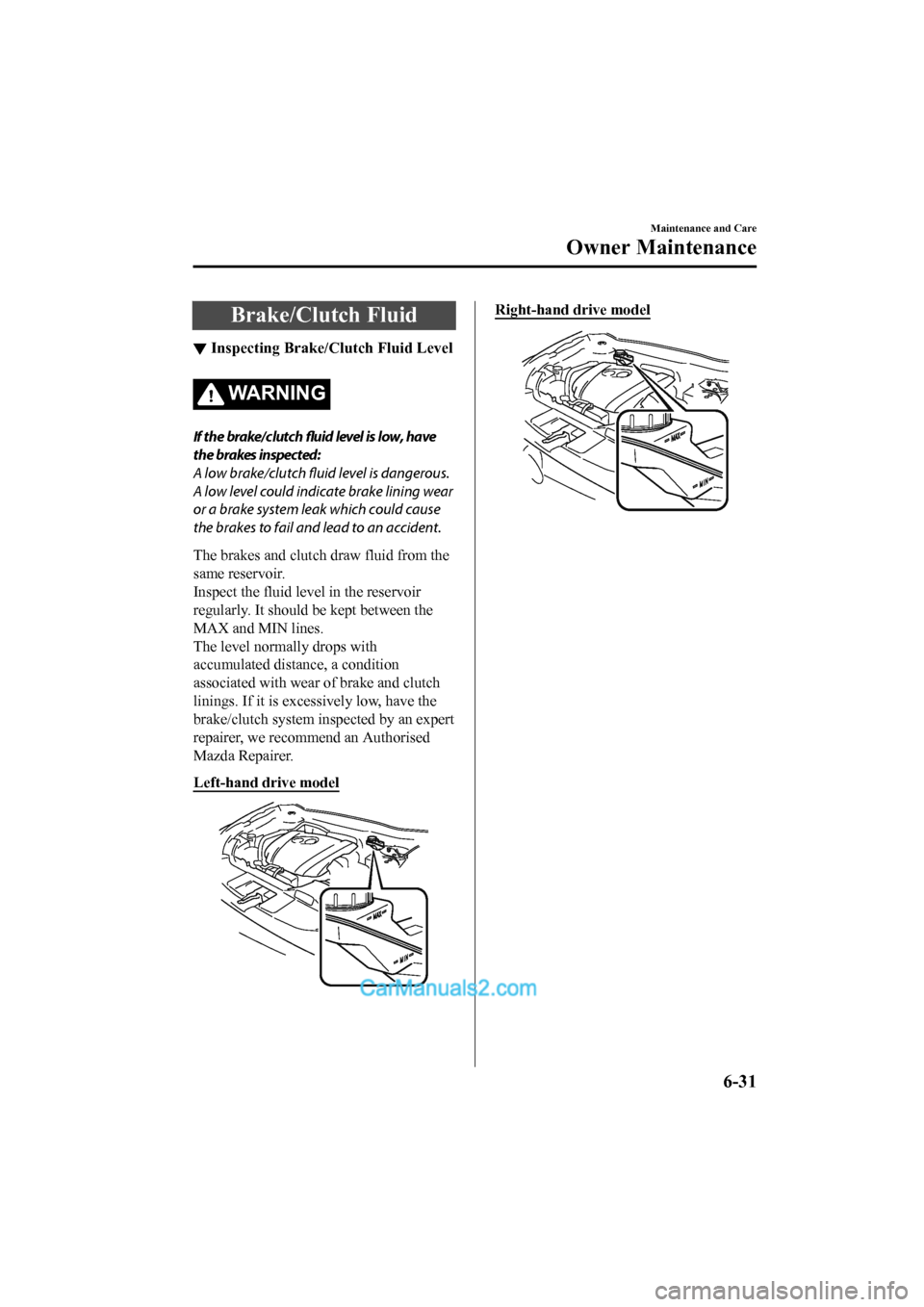

Brake/Clutch Fluid
▼Inspecting Brake/Clutch Fluid Level
WA R N I N G
If the brake/clutch fluid level is low, have
the brakes inspected:
A low brake/clutch
fluid level is dangerous.
A low level could indicate brake lining wear
or a brake system leak which could cause
the brakes to fail and lead to an accident.
The brakes and clutch draw fluid from the
same reservoir.
Inspect the fluid level in the reservoir
regularly. It should be kept between the
MAX and MIN lines.
The level normally drops with
accumulated distance, a condition
associated with wear of brake and clutch
linings. If it is excessively low, have the
brake/clutch system inspected by an expert
repairer, we recommend an Authorised
Mazda Repairer.
Left-hand drive model
Right-hand drive model
Maintenance and Care
Owner Maintenance
6-31
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

Window and HeadlightWasher Fluid
▼Inspecting Washer Fluid Level
WA R N I N G
Use only windscreen washer fluid or plain
water in the reservoir:
Using radiator antifreeze as washer
fluid is
dangerous. If sprayed on the windscreen, it
will dirty the windscreen, affect your
visibility, and could result in an accident.
Inspect fluid level in the washer fluid
reservoir; add fluid if necessary.

L F
The top of the float should be between F
and L.

Use plain water if washer fluid is
unavailable.
But use only washer fluid in cold weather
to prevent it from freezing.
NOTE
Front and rear washer fluid is supplied
from the same reservoir.
Body Lubrication
All moving points of the body, such as
door and bonnet hinges and locks, should
be lubricated each time the engine oil is
changed. Use a nonfreezing lubricant on
locks during cold weather.

Make sure the bonnet's secondary latch
keeps the bonnet from opening when the
primary latch is released.
Maintenance and Care
Owner Maintenance
6-32
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

Wiper Blades
CAUTION
Hot waxes applied by automatic car
washers have been known to
affect the
wiper's ability to clean windows.
 To prevent damage to the wiper blades,
do not use petrol, paraffin, paint thinner,
or other solvents on or near them.
 When the wiper lever is in the AUTO
position and the ignition is switched ON,
the wipers may move automatically in
the following cases:
 If the windscreen above the rain sensor
is touched.
 If the windscreen above the rain sensor
is wiped with a cloth.
 If the windscreen is struck with a hand
or other object.
 If the rain sensor is struck with a hand
or other object from inside the vehicle.
Be careful not to pinch hands or fingers
as it may cause injury, or damage the
wipers. When washing or servicing the
vehicle, make sure the wiper lever is in
the OFF position.
Contamination of either the windscreen or
the blades with foreign matter can reduce
wiper effectiveness. Common sources are
insects, tree sap, and hot wax treatments
used by some commercial car washes.

If the blades are not wiping properly, clean
the window and blades with a good
cleaner or mild detergent; then rinse
thoroughly with clean water. Repeat if
necessary.
▼ Replacing Windscreen Wiper Blades
When the wipers no longer clean well, the
blades are probably worn or cracked.
Replace them.
CAUTION

To prevent damage to the wiper arms
and other components, do not try to
sweep the wiper arm by hand.
 Do not bend the blade rubber
unnecessarily when replacing it.
Otherwise, the metal stiffener in the
blade may deform and the windscreen
wiper operation may be adversely
affected.
NOTE
When raising both windscreen wiper arms,
raise the driver's side wiper arm first.
When lowering the wiper arms, slowly
lower the wiper arm from the passenger's
side first while supporting it with your
hand. Forcefully lowering the wiper arms
could damage the wiper arm and blade,
and may scratch or crack the windscreen.
1. Raise the wiper arm.
CAUTION
To prevent damage to the windscreen
let the wiper arm down easily, do not
let it slap down on the windscreen.
Maintenance and Care
Owner Maintenance
6-33
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

2. Slide the blade component in thedirection of the arrow while pressing
the wiper arm tab to remove the blade
component from the wiper arm.

3. Pull the blade rubber in the direction ofthe arrow and slide it to a position
where the blade holder groove can be
checked.

Groove
4. Pull the end of the blade rubber fromthe blade holder groove in the direction
of the arrow and remove the blade
rubber from the blade holder.

Groove
Maintenance and Care
Owner Maintenance
6-34
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

5. Insert the end of the new blade rubberinto the groove of the blade holder
until it contacts the end of the blade
holder.

Groove
6. After pulling the blade rubber in thedirection of the arrow and sliding the
blade rubber to a position to check the
blade holder groove, slide the blade
rubber end in the opposite direction.

Groove
7. Make sure that the blade rubber iscorrectly installed to the blade holder.
8. Align the wiper arm tabs with the blade component grooves.

Tabs
Grooves
Maintenance and Care
Owner Maintenance
6-35
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

9. Align the blade component projectionwith the wiper arm notch.

Notch
Projection
10. Slide the blade component and install it to the wiper arm.

11. Slowly lower the wiper arm onto thewindscreen.
▼Replacing Rear Window Wiper
Blade
When the wiper no longer cleans well, the
blade is probably worn or cracked.
Replace it.
CAUTION
To prevent damage to the wiper arm and
other components, do not move the wiper
by hand.
1. Raise the wiper arm and rotate the
wiper blade to the right until it
unlocks, then remove the blade.

CAUTION
To prevent damage to the rear window,
do not let the wiper arm fall on it.
2. Pull down the blade rubber and slide it
out of the blade holder.

Maintenance and Care
Owner Maintenance
6-36
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

3. Remove the metal stiffeners from theblade rubber and in stall them in the
new blade.

CAUTION
Do not bend or discard the stiffeners.
You need to use them again.
4. Carefully insert th e new blade rubber.
Then install the blade assembly in the
reverse order of removal.

Maintenance and Care
Owner Maintenance
6-37
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2
