Child-Restraint Precautions
Mazda strongly urges the use of child-restraint systems for children small enough to use
them.
Mazda recommends use of a Mazda genuine child-restraint system or one that complies
with the UNECE
*1 44 regulation. If you would like to purchase a Mazda genuine
child-restraint system , please contact an Authorised Mazda Deal er.
Check your local and state or provincial laws for specific requ irements regarding the safety
of children riding in your vehicle.
*1 UNECE stands for United Nations Economic Commission for Europe.

Whatever child-restraint system y ou consider, please pick the appropriate one for the age
and size of the child, obey the law and follow the instructions that come with the individual
child-restraint system.

A child who has outgrown child-r estraint systems should sit in the rear and use seat belts.

The child-restraint system should be installed on the rear seat .
Statistics confirm that the rear seat is the best place for all children up to 12 years of age-the
more so with a supplementary restraint system (air bags).

A rear-facing child-restraint system should NEVER be used in the front passenger seat with
the air bag system activated. The front passenger's seat is als o the least preferred seat for
other child-restraint systems.

(With Front Passenger Occupa nt Classification System)
To reduce the chance of injuries caused by deployment of the fr ont passenger air bag, the
front passenger occupant classification sensor works as a part of the supplementary restraint
system. This system deactivates the front passenger front and side air bags and also the front
passenger seat belt pretensioner system when the front passenge r air bag deactivation OFF
indicator light illuminates.

When an infant or small child sits on the front passenger seat, the system shuts off the front
passenger front and side air bags and seat belt pretensioner sy stem, so make sure the front
passenger air bag deactivation OF F indicator light illuminates.

Even if the front passenger air bag is shut off, Mazda strongly recommends that children be
properly restrained and child-rest raint systems of all kinds are properly secured on the rear
seats which are the best place for children.

For more details, refer to "Front passenger occupant classification sensor" (page 2-58).
Essential Safety Equipment
Child Restraint
2-24
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

WA R N I N G
Use the correct size child-restraint system:
For effective protection in vehicle accidents and sudden stop s, a child must be properly
restrained using a seat belt or child-restraint system depending on age and size. If not, the
child could be seriously injured or even killed in an accident.
Follow the manufacturer's instructions and always keep the child-restraint system buckled
down:
An unsecured child-restraint system is dangerous . In a sudden stop or a collision it could move
causing serious injury or death to the child or other occupants. Make sure any child-restraint
system is properly secured in place accordin g to the child-restraint system manufacturer's
instructions. When not in use, remove it from the vehicle or fasten it with a seat belt, or latch it
down to BOTH ISOFIX anchors, and attach the corresponding tether anchor.
Always secure a child in a proper child-restraint system:
Holding a child in your arms while the vehicl e is moving is extremely dangerous. No matter
how strong the person may be, he or she cannot hold onto a child in a sudden stop or collision
and it could result in serious injury or death to the child or other occupants. Even in a
moderate accident, the child may be exposed to air bag forces that could result in serious
injury or death to the child, or the child may be slammed into an adult, causing injury to both
child and adult.
Extreme Hazard! Never use a rear-facing child-restraint system on the front passenger seat
with an air bag that could deploy:
NEVER use a rearward facing child restraint on a seat protected by an ACTIVE AIRBAG in front
of it, DEATH or SERIOUS INJURY to the CHILD can occur.
Vehicles with a front passenger air bag have th e following warning label. The warning label
reminds you not to put a rear-facing child-restraint system on the front passenger seat at any
time.

(Except Taiwan) (Taiwan)
Essential Safety Equipment
Child Restraint
2-25
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

Even in a moderate collision, the child-restraint system can be hit by a deploying air bag and
moved violently backward resulting in serious injury or death to the child.

(Taiwan, except front passenger seat, if equipped with the following label)
NEVER use a rearward facing child restraint on a seat protected by an ACTIVE AIRBAG in front
of it, DEATH or SERIOUS INJURY to the CHILD can occur.
Do not install a front-facing child-restraint system on the front passenger seat unless it is
unavoidable:
In a collision, the force of a deploying air bag co uld cause serious injury or death to the child. If
installing a front-facing child-restraint system on the front passenger seat is unavoidable,
move the front passenger seat as far back as possible and adjust the seat bottom (height
adjustable seat bottom) to the highest posi tion at which the seat belt fastening the
child-restraint system is securely tightened.
Seating a child in a child-restraint system on the front passenger seat is dangerous under
certain conditions (With Front Passenger Occupant Classification System):
Your vehicle is equipped with front passenger occupant classification sensor. Even with the
front passenger occupant classification sensor, if you must use the front passenger seat to
seat a child, using a child-restraint system on the front passenger seat under the following
conditions increases the danger of the front passenger air bag deploying and could result in
serious injury or death to the child.
Essential Safety Equipment
Child Restraint
2-26
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

The front passenger air bag deactivation OFF indicator light does not illuminate when
seating a child in the child-restraint system.
 Luggage or other items are placed on the seat with the child in the child-restraint system.
 A rear passenger or luggage pushing or pulling down on the front passenger seatback.
 Luggage or other items are placed on the seatback or hung on the head restraint.
 The seat is washed.
 Liquids are spilled on the seat.
 The front passenger seat is moved backward, pushing into luggage or other items placed
behind it.
 The front passenger seatback contacts the rear seat.
 Luggage or other items are placed between the front passenger seat and driver seat.
 An electric device is put on the front passenger's seat.
 An additional electrical device, such as a seat warmer is installed to the surface of the front
passenger seat.
The designated positions with seat belts on the rear seats are the safest places for children.
Always use seat belts and child restraints.
Do not allow a child or anyone to lean over or against the side window of a vehicle with side
and curtain air bags:
It is dangerous to allow anyone to lean over or against the side window, the area of the front
passenger seat, the front and rear window pillar s and the roof edge along both sides from
which the side and curtain air bags deploy, even if a child-restraint system is used. The impact
of inflation from a side or curtain air bag could cause serious injury or death to an out of
position child. Furthermore, le aning over or against the front door could block the side and
curtain air bags and eliminate th e advantages of supplementary protection. With the front air
bag and the additional side air bag that comes out of the front seat, the rear seat is always a
better location for children. Take special care not to allow a child to lean over or against the
side window, even if the child is seated in a child-restraint system.
Never use one seat belt on more than one person at a time:
Using one seat belt for more than one person at a time is dangerous. A seat belt used in this
way cannot spread the impact forces properly and the two passengers could be crushed
together and seriously injured or even killed. Ne ver use one belt for more than one person at a
time and always operate the vehicle wi th each occupant properly restrained.
Use the tether and tether anchor only for a child-restraint system:
Child-restraint system anchorages are design ed to withstand only those loads imposed by
correctly installed child-restraint systems. Und er no circumstances are they to be used for
adult seat belts, harnesses, or for attach ing other items or equipment to the vehicle.
Essential Safety Equipment
Child Restraint
2-27
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

Always remove the head restraint and install child-restraint system (except when installing a
booster seat):
Installing a child-restraint system without removing the head restraint is dangerous. The
child-restraint system cannot be installed correctly which may result in death or injury to the
child in a collision.
CAUTION
A seat belt or child-restraint system can become very hot in a closed vehicle during warm
weather. To avoid burning yourself or a child, check them before you or your child touches
them.
NOTE
Your Mazda is equipped with ISOFIX anchors for attachment of ISOFIX child-restraint
systems on the rear seats. When using these anchors to secure a child-restraint system, refer
to “Using ISOFIX Anchor” (page 2-39).
Essential Safety Equipment
Child Restraint
2-28
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

Child-Restraint System Installation
▼Categories of Child-Restraint Systems
NOTE
When purchasing, ask the manufacturer of the child-restraint system which type of
child-restraint system is appropriate for your child and vehicle.
(Europe and countries conformin
g to the UNECE 44 regulation)
Child-restraint systems are clas sified into the following 5 groups according to the UNECE
44 regulation.
Group Age Weight
0 Up to about 9 months old Up to 10 kg (up to 22 lb)
0
Up to about 2 years old Up to 13 kg (up to 29 lb)
1 About 8 months to 4 years old 9 kg ― 18 kg (20 lb ― 40 lb)
2 About 3 to 7 years old 15 kg ― 25 kg (33 lb ― 55 lb)
3 About 6 to 12 years old 22 kg ― 36 kg (48 lb ― 79 lb)
(Other countries)
Please comply with the legal regulations concerning the use of child-restraint systems in
your country.
▼ Child-Restraint System Types
(Europe and countries conforming to
the UNECE 44 regulation)
In this owner's manual, explanation of
child-restraint syste
ms secured with seat
belts is provided for the following three
types of popular child-restraint systems:
baby seat, child seat, junior seat.
NOTE
•Installation position is determined by
the type of child-restraint system.
Always read the manufacturer's
instructions and this owner's manual
carefully.
•Due to variations in the design of
child-restraint systems, vehicle seats
and seat belts, all child-restraint systems
may not fit all seating positions. Before
purchasing a child-restraint system, it
should be tested in the specific vehicle
seating position (or positions) where it
is intended to be used. If a previously
purchased child-restraint system does
not fit, you may need to purchase a
different one that will.
Essential Safety Equipment
Child Restraint
2-29
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

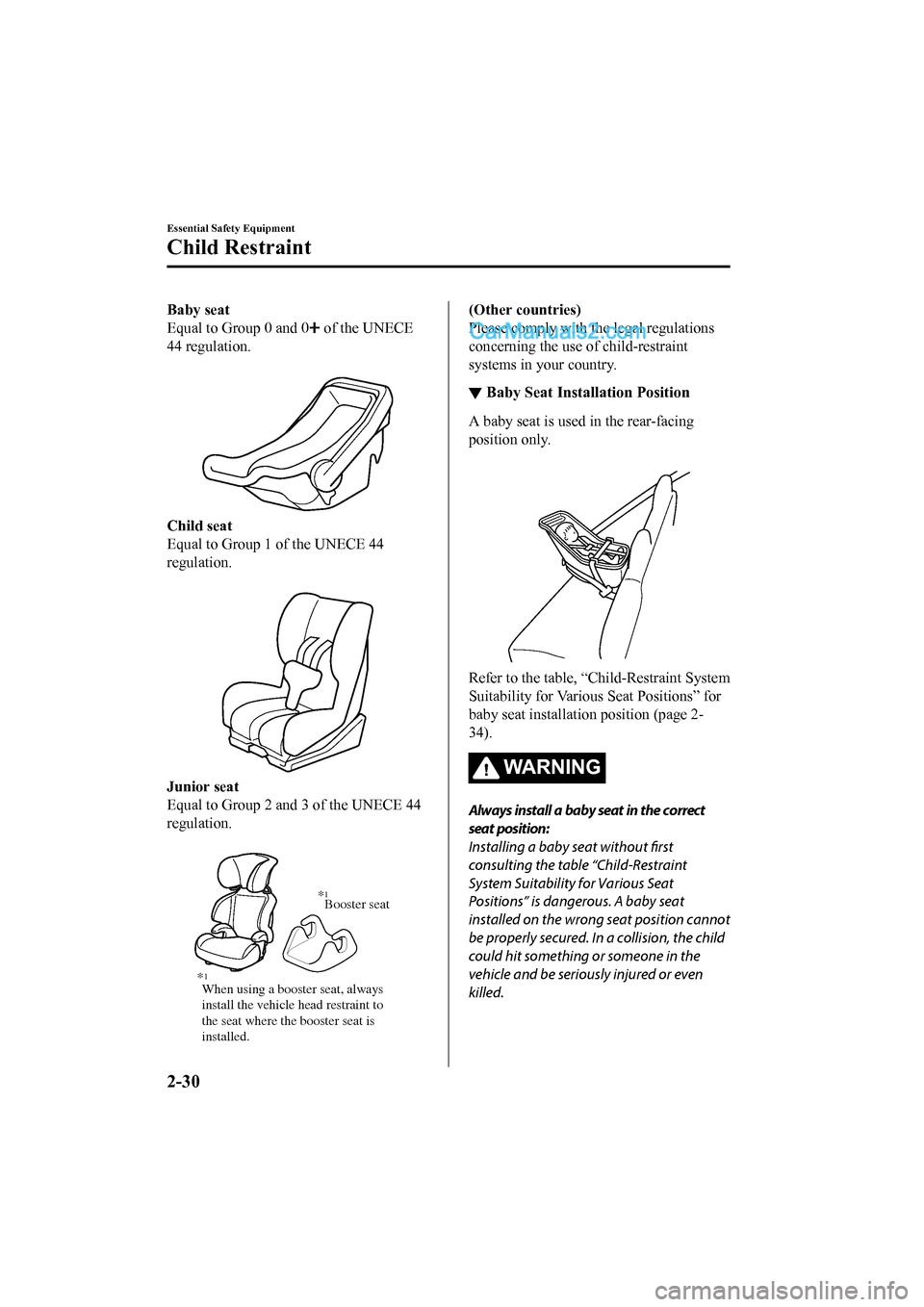

Baby seat
Equal to Group 0 and 0
of the UNECE
44 regulation.

Child seat
Equal to Group 1 of the UNECE 44
regulation.

Junior seat
Equal to Group 2 and 3 of the UNECE 44
regulation.

When using a booster seat, always
install the vehicle head restraint to
the seat where the booster seat is
installed. Booster seat
*
1
*1
(Other countries)
Please comply with th
e legal regulations
concerning the use o f child-restraint
systems in your country.
▼ Baby Seat Installation Position
A baby seat is used in the rear-facing
position only.

Refer to the table, “C
hild-Restraint System
Suitability for Various Seat Positions” for
baby seat installation position (page 2-
34).
WA R N I N G
Always install a baby seat in the correct
seat position:
Installing a baby seat without first
consulting the table “Child-Restraint
System Suitability for Various Seat
Positions” is dangerous. A baby seat
installed on the wrong seat position cannot
be properly secured. In a collision, the child
could hit something or someone in the
vehicle and be seriously injured or even
killed.
Essential Safety Equipment
Child Restraint
2-30
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

Never use a rear-facing child-restraint
system on the front passenger seat
protected by an air bag:
NEVER use a rearward facing child restraint
on a seat protected by an ACTIVE AIRBAG in
front of it, DEATH or SERIOUS INJURY to the
CHILD can occur.
The child-restraint system can be hit by the
deploying air bag and knocked out of
position. A child in the child-restraint
system could be seriously injured or killed.

▼Child Seat Installation Position
A child seat is used in front-facing and
rear-facing positions depending on the age
and size of the child. When installing,
follow the manufacturer's instructions in
accordance with the appropriate age and
size of the child as well as the directions
for installing the child-restraint system.
Refer to the table, “Child-Restraint System
Suitability for Various
Seat Positions” for
child seat installation position (page 2-
34).

Rear-facing type
WA R N I N G
Always install a rear-facing child seat in the
correct seat position:
Installing a rear-facing child seat without
first consulting the table “Child-Restraint
System Suitability for Various Seat
Positions” is dangerous. A rear-facing child
seat installed on the wrong seat position
cannot be properly secured. In a collision,
the child could hit something or someone
in the vehicle and be seriously injured or
even killed.
Never use a rear-facing child-restraint
system on the front passenger seat
protected by an air bag:
NEVER use a rearward facing child restraint
on a seat protected by an ACTIVE AIRBAG in
front of it, DEATH or SERIOUS INJURY to the
CHILD can occur.
The child-restraint system can be hit by the
deploying air bag and knocked out of
position. A child in the child-restraint
system could be seriously injured or killed.


Essential Safety Equipment
Child Restraint
2-31
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2
