2017 MAZDA MODEL CX-5 turn signal

Interior Equipment (View A)
ƒWiper and washer l ever......................................................................................... page 4-71
„ Audio control switches......................................... .................................................page 5-15
… INFO switch.................................................... .............................................page 4-28, 4-31
† Mazda Radar Cruise Control (MRCC) switches..................... ................page 4-140, 4-153
‡ Cruise control switches........................................ .............................................. page 4-207
ˆ Lighting control.....................................................................................................page 4-63
‰ Turn and lane-change signal.................................... ..............................................page 4-70
Š Door-lock knob................................................. .................................................... page 3-18
‹ Power window switches .......................................... .....................................page 3-40, 3-41
ΠPower window lock switch....................................... ................................... page 3-40, 3-41
 Outside mirror folding switch.................................. ............................................. page 3-36
Ž Door-lock switch................................................................................................... page 3-13
 Outside mirror switch............................................................................................ page 3-36
 Power liftgate switch.......................................... ................................................... page 3-21
‘ TCS OFF Switch................................................................................................... page 4-92
’ Lane-keep Assist System (LAS) & Lane Departure Warning System ( LDWS) OFF
switch.................................................................................................................. page 4 -171
“ i-stop OFF switch.................................................................................................. page 4-17
” Parking sensor switch.......................................... ............................................... page 4-231
Pictorial Index
Interior Overview (Right-Hand Drive Model)
The equipment and installatio n position varies by vehicle1-7
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

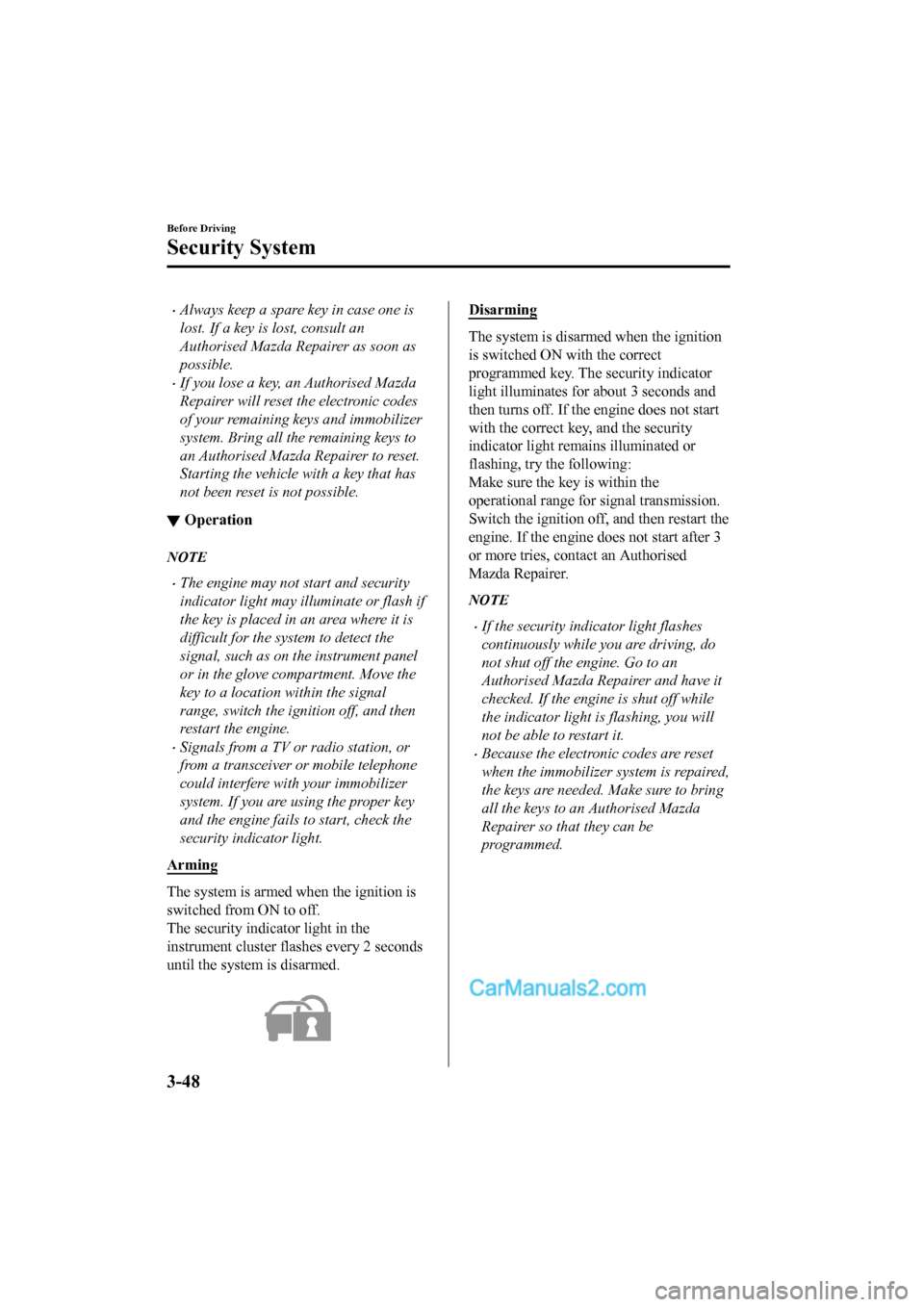

•Always keep a spare key in case one is
lost. If a key is lost, consult an
Authorised Mazda Repairer as soon as
possible.
•If you lose a key, an Authorised Mazda
Repairer will reset the electronic codes
of your remaining keys and immobilizer
system. Bring all the remaining keys to
an Authorised Mazda Repairer to reset.
Starting the vehicle with a key that has
not been reset is not possible.
▼Operation
NOTE
•The engine may not start and security
indicator light may illuminate or flash if
the key is placed in an area where it is
difficult for the system to detect the
signal, such as on the instrument panel
or in the glove comp
artment. Move the
key to a location within the signal
range, switch the ignition off, and then
restart the engine.
•Signals from a TV or radio station, or
from a transceiver or mobile telephone
could interfere with your immobilizer
system. If you are using the proper key
and the engine fails to start, check the
security indicator light.
Arming
The system is armed when the ignition is
switched from ON to off.
The security indica tor light in the
instrument cluster flashes every 2 seconds
until the system is disarmed.

Disarming
The system is disarmed when the ignition
is switched ON with the correct
programmed key. The security indicator
light illuminates for about 3 seconds and
then turns off. If the engine does not start
with the correct key, and the security
indicator light remains illuminated or
flashing, try the following:
Make sure the key is within the
operational range for signal transmission.
Switch the ignition off, and then restart the
engine. If the engine d oes not start after 3
or more tries, contact an Authorised
Mazda Repairer.
NOTE
•If the security indicator light flashes
continuously while you are driving, do
not shut off the engine. Go to an
Authorised Mazda Repairer and have it
checked. If the engine is shut off while
the indicator light is flashing, you will
not be able to restart it.
•Because the electronic codes are reset
when the immobilizer system is repaired,
the keys are needed. Make sure to bring
all the keys to an Authorised Mazda
Repairer so that they can be
programmed.
Before Driving
Security System
3-48
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

4When Driving
Information concerning safe driving and stopping.
Start/Stop Engine.............................. 4-4 Ignition Switch........ ..................... 4-4
Starting the Engine....................... 4-5
Turning the Engine Off............... 4-11
i-stop
*......................................... 4-12
Instrument Cluster and Display............
........................................................... 4-22 Meters and Gauges..................... 4-22
Multi-information Display
*........ 4-31
Active Driving Display
*............. 4-39
Warning/Indicator Lights............4-42
Manual Transaxle Operation......... 4-51 Manual Transaxle Shift
Pattern......................................... 4-51
Automatic Transaxle....................... 4-54 Automatic Transaxle
Controls...................................... 4-54
Shift-Lock System...................... 4-55
Transaxle Ranges........................4-56
Manual Shift Mode..................... 4-58
Driving Tips................................4-62
Switches and Controls..................... 4-63
Lighting Control......................... 4-63
Front Fog Lights
*....................... 4-68
Rear Fog Light
*.......................... 4-69
Turn and Lane-Change
Signals........................................ 4-70
Windscreen Wipers and
Washer........................................ 4-71
Rear Window Wiper and
Washer........................................ 4-75
Headlight Washer
*...................... 4-75
Rear Window Defogg er.............. 4-76
Horn............................................ 4-78
Hazard Warning Flasher............. 4-78
Brake................................................ 4-80 Brake System.............................. 4-80
AUTOHOLD.............................. 4-84
Emergency Stop Signal
System........................................ 4-88
Hill Launch Assist (HLA).......... 4-89
ABS/TCS/DSC................................. 4-90 Antilock Brake System
(ABS)..........................................4-90
Traction Control System
(TCS).......................................... 4-91
Dynamic Stability Control
(DSC)..........................................4-93
i-ELOOP.......................................... 4-94 i-ELOOP
*................................... 4-94
*Some models.4-1
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

Warning/Indicator Lights
Instrument Cluster varies depending on model and specifications.
Centre of Instrument panel
Warning/Indicator lights will appear in any of the highlighted areas
Type A
(With Multi-information Display)
(Without Multi-information Display)
Instrument Cluster
Type B
▼ Warning Indication/Warning Lights
These lights turn on or flash to notify the user of the system
operation status or a system
malfunction.
Signal Warning Page
Brake System Warning Light*17-43
When Driving
Instrument Cluster and Display
4-42
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

SignalWarning Page
ABS Warning Light*1
Electronic Brake
Force Distribu- tion System
Wa r n i n g 7-43
ABS warning 7-46
Charging System Warning Indication/Warning Light*17-43
Engine Oil Warning Light*17-43
(Red) High Engine Coolant Temperature
Warning Indication/Warning Light
*17-43
Power Steering Malfunction Indication/Malfunction Indicator Light*17-43
Master Warning Indication/Warning Light*17-46
Electric Parking Brake (EPB) Warning Indication/Warning Light*17-46
(Red)
*Brake Pedal Operation Demand Warning Light*1
Flashing
4-84
Buzzer & Flash- ing
7-46
Check Engine Light*17-46
*Automatic Transaxle Warning Indication/Warning Light*17-46
*4WD Warning Indication/Warning Light*17-46
Air Bag/Seat Belt Pretensioner System Warning Light*17-46
*Tyre Pressure Monitoring System Warning Light*1
Flashing
7-46
Turns on 7-53
(Amber/White)
*KEY Warning Indication Amber
7-46
White 7-53
When Driving
Instrument Cluster and Display
*Some models.4-43
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

SignalWarning Page
(Red)
*KEY Warning Light*1
Turns on
7-46
Flashing 7-53
(Amber)
*i-stop Warning Light*17-46
(Amber)*i-ELOOP Warning Indication 7-46
(Amber)
*High Beam Control System (HBC) W
arning Indication/Warning Light*17-46
*Adaptive LED Headlights (ALH) Warning Indication/Warning Light*17-46
*Blind Spot Monitoring (BSM) Warning Indication 7-46
(Amber)
*Driver Attention Alert (D
AA) Warning Indication 7-46
(Amber)
*Mazda Radar Cruise Control (MRCC) Warning
Indication7-46
*Mazda Radar Cruise Control with Stop & Go func
tion (MRCC with Stop
& Go function) Warning Indication 7-46
(Amber)
*Lane-keep Assist System (LAS) &
Lane Departure Warning System
(LDWS) Warning Indication 7-46
LED Headlight Warning Light*17-46
(Amber)
*Smart Brake Support/Sma
rt City Brake Support (SBS/SCBS) Warning In-
dication/Warning Light*17-53
Low Fuel Warning Indication/Warning Light 7-53
*120 km/h Warning Light*17-53
Seat Belt Warning Light (Front seat) 7-53
(Red)*Seat Belt Warning Light (Rear seat)7-53
*Low Washer Fluid Level Warning Indication/Warning Light
7-53
When Driving
Instrument Cluster and Display
4-44*Some models.
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

SignalWarning Page
*Door-Ajar Warning Indication 7-53
*Liftgate-Ajar Warning Indication7-53
*Door-Ajar Warning Light
7-53
*1 The light turns on when the i
gnition is switched on for an operation check, and turns off a few seconds later or
when the engine is started. If t he light does not turn on or remains turned on, have the vehicle inspected at an
expert repairer, we recommend an Authorised Mazda Repairer.

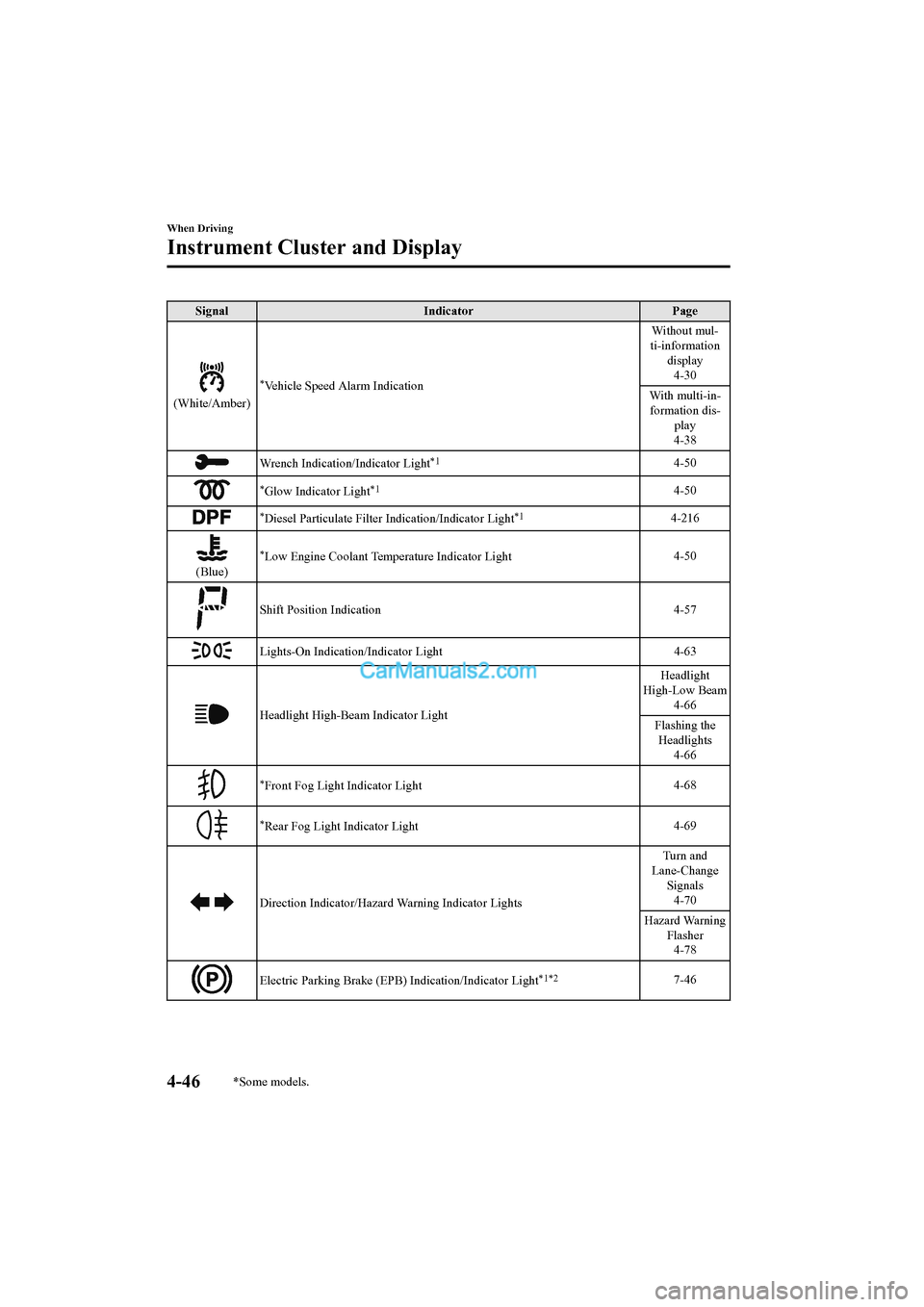

▼ Indication/Indicator Lights
These lights turn on or flash to
notify the user of the system operation status or a system
malfunction.
Signal Indicator Page
(Green)*Seat Belt Indicator Light (Rear seat) 2-21
*Front Passenger Air Bag Deactivation Indicator Light*12-58
(Green)
*KEY Indicator Light
4-5
(Green)
*i-stop Indicator Light4-19
(White)*i-ELOOP Indication4-94
Security Indicator Light*13-48
When Driving
Instrument Cluster and Display
*Some models.4-45
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

SignalIndicator Page
(White/Amber)
*Vehicle Speed Alarm Indication Without mul-
ti-information display
4-30
With multi-in- formation dis- play
4-38
Wrench Indication/Indicator Light*14-50
*Glow Indicator Light*14-50
*Diesel Particulate Filter Indication/Indicator Light*14-216
(Blue)
*Low Engine Coolant Temperature Indicator Light 4-50
Shift Position Indication
4-57
Lights-On Indication/Indicator Light 4-63
Headlight High-Beam Indicator LightHeadlight
High-Low Beam 4-66
Flashing the Headlights 4-66
*Front Fog Light Indicator Light 4-68
*Rear Fog Light Indicator Light4-69
Direction Indicator/Hazard Warning Indicator LightsTurn and
Lane-Change Signals4-70
Hazard Warning Flasher4-78
Electric Parking Brake (EPB ) Indication/Indicator Light*1*27-46
When Driving
Instrument Cluster and Display
4-46*Some models.
