Do not use the seat warmer even when
taking a short nap in the vehicle:
The seat may be heated excessively and
cause a low-temperature burn.
Do not place heavy objects with sharp
projections on the seat, or insert needles or
pins into it:
This could cause the seat to become
excessively heated and result in injury from
a minor burn.
CAUTION
Do not use organic solvents to clean the
seat. It may damage the seat surface and
the heater.
NOTE
•If the ignition is switched off while the
seat warmer is operating (High, Mid or
Low) and then switched ON again, the
seat warmer will automatically operate
at the temperature set before switching
off the ignition.
•Use the seat warmer when the engine is
running. Leaving the seat warmer on for
long periods with the engine not running
could cause the battery power to be
depleted.
•The temperature of the seat warmer
cannot be adjusted beyond High, Mid
and Low because the seat warmer is
controlled by a thermostat.
▼Driving Position Memory*
The desired driving position can be called
up after programming the position.
The following driving positions can be
programmed.
•Driver’s seat position (seat slide, height
adjustment, front edge of seat bottom,
seat recline)
Refer to Seat Operation on page 2-5.
•Active driving display (display position,
brightness level, display information)
Refer to Active Driving Display on page
4-39.
CAUTION
Do not place
fingers or hands around the
bottom of the seat while the seat memory
function is operating. The seat moves
automatically while the seat memory
function is operating and fingers or hands
could get pinched and injured.
SET button
1
2
The driving position can be programmed
or operated using the buttons on the side
of the seat or the key.
NOTE
•Lumbar support adjustment cannot be
programmed.
•Individual seat positions can be
programmed to the two available
programming buttons on the side of the
driver's seat, plus one seat position for
each registered key.
Essential Safety Equipment
Seats
*Some models.2-7
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

To use the auxiliary key, pull out the
auxiliary key from th e transmitter while
pressing the knob.
Knob
Keyless Entry System
This system uses the key buttons to
remotely lock and unlock the doors and
the liftgate, and opens/closes the liftgate.
The system can start the engine without
having to take the key out of your purse or
pocket.
Operating the theft-deterrent system is
also possible on theft-deterrent
system-equipped vehicles.

System malfunctions or warnings are
indicated by the following warning lights
or beeps.
For vehicles with the type A instrument
cluster, check the displayed message for
more information and, if necessary, have
the vehicle inspected at an expert repairer,
we recommend an Authorised Mazda
Repairer, according to the indication.
•KEY Warning Light (Red)
Refer to Warning/Indicator Lights on
page 4-42.
•Ignition Not Switched Off (STOP)
Warning Beep
Refer to Ignition Not Switched Off
(STOP) Warning Beep on page 7-64.
•Key Removed from Vehicle Warning
Beep
Refer to Key Removed from Vehicle
Warning Beep on page 7-64.
If you have a problem with the key,
consult an expert repairer, we recommend
an Authorised Mazda Repairer.

If your key is lost or stolen, consult an
Authorised Mazda Repairer as soon as
possible for a replacement and to make the
lost or stolen k ey inoperative.
Before Driving
Keys
3-3
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

CAUTION
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user's authority
to operate the equipment.
NOTE
•The keyless entry system operation may
vary due to local conditions.
•The keyless entry system is fully
operational (door/liftgate lock/unlock)
when the ignition is switched off. The
system does not operate if the ignition is
switched to any position other than off.
•If the key does not operate when
pressing a button or the operational
range becomes too small, the battery
may be weak. To install a new battery,
refer to Key Battery Replacement (page
6-41).
•Battery life is about one year. Replace
the battery with a new one if the KEY
indicator light (green) flashes in the
instrument cluster (for vehicles with a
type A instrument cluster (page 4-42),
messages are displayed in the
instrument cluster). Replacing the
battery about once a year is
recommended because the KEY warning
light/indicator light may not illuminate
or flash depending on the rate of battery
depletion.
•Additional keys can be obtained at an
Authorised Mazda Repairer. Up to 6
keys can be used with the keyless
functions per vehicle. Bring all keys to
an Authorised Mazda Repairer when
additional keys are required.
▼Tr a n s m i t t e r
Operation buttons
Operation indicator light
NOTE
•The headlights turn on/off by operating
the transmitter. Refer to Leaving Home
Light on page 4-67.
•(With theft-deterrent system)
The hazard warning lights flash when
the theft-deterrent system is armed or
turned off.
Refer to Theft-Deterrent System on page
3-49.
•(With the advanced keyless function
(European models))
The setting can be changed so that a
beep sound is heard for confirmation
when the doors and the liftgate are
locked/unlocked using the key.
(With the advanced keyless function
(Except European models))
A beep sound can be heard for
confirmation when the doors and the
liftgate are locked/unlocked using the
key. If you prefer, the beep sound can be
turned off.
Before Driving
Keys
3-4
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

The volume of the beep sound can also
be changed.
Refer to Personalisation Features on
page 9-12.
Use the following procedure to change the
setting.
1. Switch the ignition off and close all of the doors and the liftgate.
2. Open the driver's door.
3. Within 30 seconds of opening the
driver's door, press and hold the LOCK
button on the key for 5 seconds or
longer.
The beep sound activates at the
currently set volume. The setting
changes each time the LOCK button on
the key is pressed and the beep sound
activates at the set volume. (If the beep
sound has been set to not activate, it
will not activate.)
4. The setting change is completed by doing any one of the following:
•Switching the ign ition to ACC or
ON.
•Closing the driver's door.
•Opening the liftgate.
•Not operating the key for 10
seconds.
•Pressing any button except the
LOCK button on the key.
•Pressing a request switch.
The operation indicator light flashes when
the buttons are pressed.
Lock button
To lock the doors and th e liftgate, press the
lock button and the hazard warning lights
will flash once.
(With the advanced keyless function
(Except European models))
A beep sound will be heard once.
NOTE
•(European models)
The doors and the liftgate cannot be
locked by pressing the lock button while
any other door is open. The hazard
warning lights will also not flash.
(Except European models)
The doors and the liftgate cannot be
locked by pressing the lock button while
any other door or the liftgate is open.
The hazard warning lights will also not
flash.
•(With the i-stop function (European
models))
Removing the key from the vehicle,
closing all the doors and pressing the
LOCK button on the key while the i-stop
function is operating (engine is stopped)
will switch the igni tion OFF and lock all
the doors (Steering wheel also locks).
Refer to i-stop on page 4-12.
•Make sure all doors and the liftgate are
locked after pressing the button.
•(With double locking system)
Pressing the lock button twice within 3
seconds will activate the double locking
system.
Refer to Double Locking System on page
3-17.
•(With theft-deterrent system)
When the doors are locked by pressing
the lock button on the key while the
theft-deterrent system is armed, the
hazard warning lights will flash once to
indicate that the system is armed.
Before Driving
Keys
3-5
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

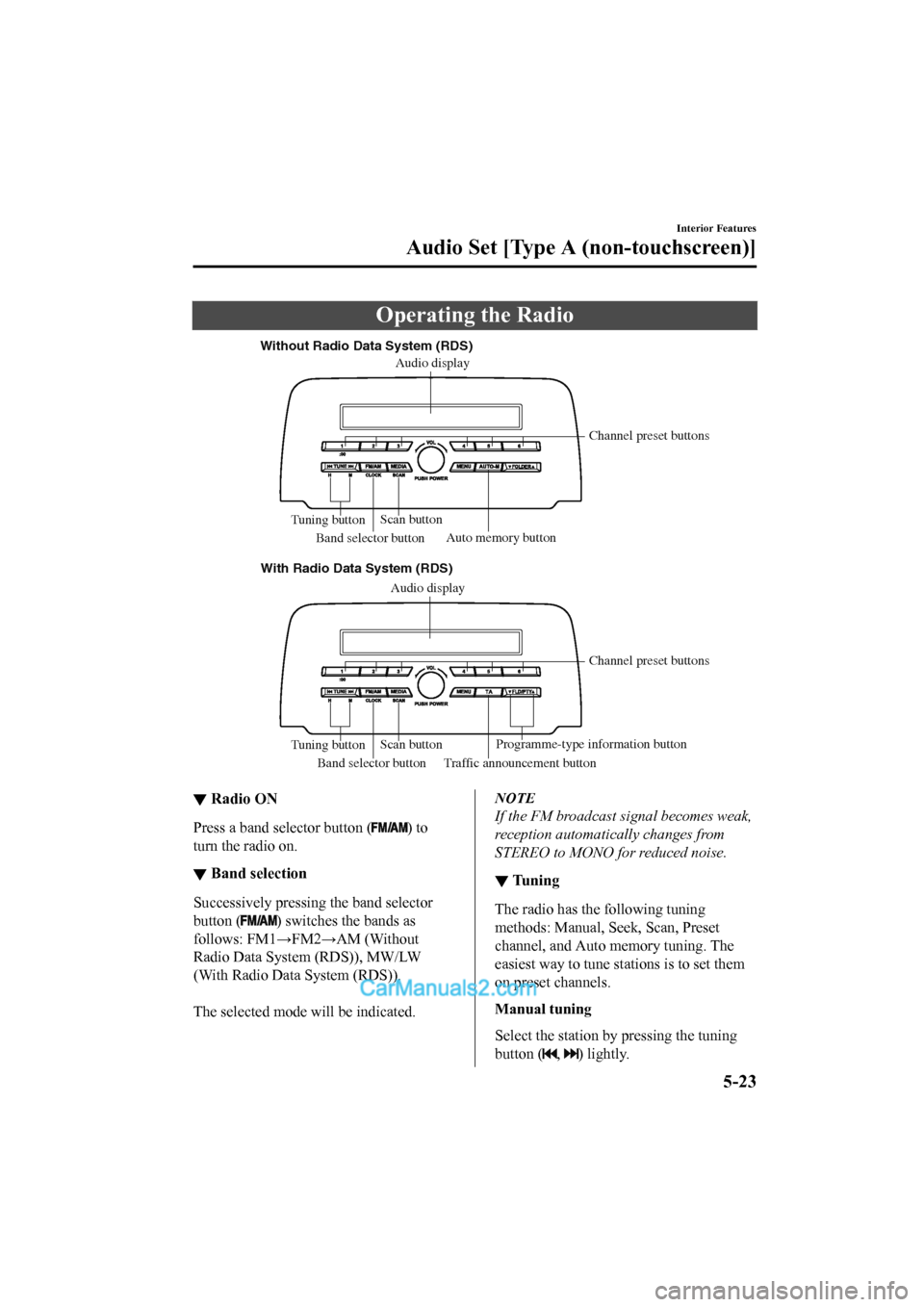

Operating the Radio

Without Radio Data System (RDS)With Radio Data System (RDS) Band selector button Traffic announcement button Channel preset buttons
Scan button
Tuning button Programme-type information button
Audio display
Auto memory button
Audio display
Band selector button Channel preset buttons
Scan button
Tuning button
▼ Radio ON
Press a band selector button () to
turn the radio on.
▼ Band selection
Successively pressing the band selector
button (
) switches the bands as
follows: FM1→FM2→AM (Without
Radio Data System (RDS)), MW/LW
(With Radio Data System (RDS)).

The selected mode will be indicated.
NOTE
If the FM broadcast signal becomes weak,
reception automatically changes from
STEREO to MONO for reduced noise.
▼ Tuning
The radio has the following tuning
methods: Manual, Seek, Scan, Preset
channel, and Auto memory tuning. The
easiest way to tune stations is to set them
on preset channels.
Manual tuning
Select the station by pressing the tuning
button (
, ) lightly.
Interior Features
Audio Set [Type A (non-touchscreen)]
5-23
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

▼Radio Data System (RDS)*
NOTE
The radio data system (RDS) does not
function if it is out of the system's service
coverage area.
Alternative frequency (AF)
AF functions on FM stations. Press the
menu button (
) and select the AF
mode to turn it on and “AF” will be
displayed. If the ra dio reception of the
current station weakens, the system
switches to an alternative station
automatically.

If you wish to continue a regional
programme, press the menu button
(
) and select the REG mode to turn
it on. “REG ON” is displayed. To cancel
it, press the audio control dial and select
the REG mode to turn it off. “REG OFF”
is displayed.
Traffic announcement (TA)
If the traffic announcement button (
) is
pressed, the unit switches to TA mode and
“TA” is displayed.

If a TA broadcast is r eceived while in the
TA mode, the TA broadcast intercedes
even while using other functions (FM, CD,
USB device, AUX, or BT audio), and
“Traffic Info” is displayed.
During a TA broadcast, press the traffic
announcement button (
) to end the
broadcast and return to the previous mode.
Programme-type information (PTY)
Some FM stations transmit
programme-type codes. This code enables
alternative stations transmitting the same
programme-type code to be found quickly.

Press the programme-type information
button (
,) while in FM mode. The
programme-type code and “PTY” will be
displayed during reception. If there is no
programme-type code, “None” will be
displayed.
(To choose a programme-type:)
1. Press the Programme-type information button (
,) when the
programme-type code is displayed.
2. Operate any one of the following:
•Press the pre-programmed channel
preset button (1 to 6).
•Press the Programme-type
information button (
,).
(To scan for programme-type
information:)
1. Press the Programme-type information button (
,) when the
programme-type code is displayed.
2. Press the Programme-type information
button (
,) until the beep sounds.
The unit will scan f or broadcasts, if
none are found, “Nothing” will be
displayed and the unit will return to the
previously tuned band.
(To store programme types in the
channel preset buttons:)
1. Press the Programme-type information button (
,) when the
programme-type code is displayed.
Interior Features
Audio Set [Type A (non-touchscreen)]
*Some models.5-25
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

Display Mode Function
LINK
CHANGE Link change
mode Changing link to Blue-
tooth
® audio device
PA I R D E -
LETE Pairing dele-
tion mode Deleting link to Blue-
tooth
® audio device
DEVICE
INFO Device infor-
mation dis-
play mode Displaying vehicle's
Bluetooth
® unit infor-
mation
3. Press the audio control dial to determine the mode.
▼Bluetooth® audio device pairing
(Bluetooth
® Audio)
Any Bluetooth® audio device must be
paired to the vehicle's Bluetooth
® unit
before it can be listened to over the
vehicle's speakers.
A maximum of seven devices including
Bluetooth
® audio devices and hands-free
mobile phones can be paired to one
vehicle.
NOTE
•If a Bluetooth® device has already been
paired to the vehicle as a hands-free
mobile phone, it does not need to be
paired again when using the device as a
Bluetooth
® audio device. Conversely, it
does not need to be paired again as a
hands-free mobile phone if it has
already been paired as a Bluetooth
®
audio device.
•Device registration can also be done
using voice recognition.
Concerning the operation of a Bluetooth®
audio device itself, refer to its instruction
manual.
Some Bluetooth
® audio devices have PIN
codes (four digits). Refer to the audio
device's instruction manual because the
pairing procedure differs depending on
whether it has a PIN code or not.
Pairing a Bluetooth
® audio device
which has a four-digit PIN code
1. Using the audio control dial, select the
pairing mode “PAIR DEVICE” in the
“BT SETUP” mode. (Refer to
“Bluetooth
® audio device set-up” for
details.)
2. Press the audio control dial to determine the mode.
After “ENTER PIN” is displayed on
the audio display for three seconds,
“PIN 0000” is displayed and the PIN
code can be input.
3. Input the PIN code of your Bluetooth
®
audio device by pressing channel
preset buttons 1 to 4 while “PIN 0000”
is displayed.
Press channel preset button 1 to input
the first digit, 2 for the second, 3 for
the third, and 4 fo r the forth. For
example, if the PIN code were “4213”,
press channel preset button 1 four
times (1, 2, 3, 4), button 2 twice (1, 2),
button 3 once (1), and button 4 three
times (1, 2, 3). I f the “PIN 0000”
display disappears before finishing the
PIN code input, repeat the procedure
from Step 1.
NOTE
Some devices accept only a particular
pairing code (Usually, “0000” or
“1234”).
Interior Features
Audio Set [Type A (non-touchscreen)]
5-46
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

Basic Operation Method
NOTE
The explanation of functions described in this manual may differ from the actual operation,
and the shapes of screens and buttons and the letters and characters displayed may also
differ from the actual appearance.
Additionally, depending on future software updates, the content may successively change
without notice.
Audio Set (Type B) has three different human interfaces.
•Commander switch
•Touch panel
•Voice recognition with steering switch and microphone
Refer to Voice Recogn ition on page 5-118.
▼Commander switch operation
NOTE
For safety reasons, some operations are disabled while the vehicle is being driven.
Volume dial operation
Volume dial
Press the volume dial to switch the audio MUTE on and off.
Turn the volume dial to adjust t
he volume. The volume increases by turning the dial
clockwise, and decreases by turning it anticlockwise.
Interior Features
Audio Set [Type B (touchscreen)]
5-71
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2
