2017 MAZDA MODEL CX-5 turn signal

NOTE
The timing in which the system switches the headlights changes under the following
conditions. If the system does not switch the headlights appropriately, manually switch
between high and low beams according to the visibility as well as road and traffic
conditions.
•When there are sources of light in the area such as street lamps, illuminated signboards,
and traffic signals.
•When there are reflective objects in the surrounding area such as reflective plates and
signs.
•When visibility is reduced under rain, snow and foggy conditions.
•When driving on roads with sharp turn or hilly terrain.
•When the headlights/rear lamps of vehicles in front of you or in the opposite lane are dim
or not illuminated.
•When there is insufficient darkness such as at dawn or dusk.
•When the luggage compartment is loaded with heavy objects or the rear passenger seats
are occupied.
•When visibility is reduced due to a vehicle in front of you spraying water from its tyres
onto your windscreen.
▼ To Operate the System
The HBC operates to sw
itch the headlights
automatically between high and low
beams after the ignition is switched ON
and the headlight switch is in the AUTO
and high beam position.
The HBC determines t hat it is dark based
on the brightness of the surrounding area.
At the same time, th e HBC indicator light
(green) in the instrument cluster
illuminates.

The HBC determines t hat it is dark based
on the brightness of the surrounding area.
NOTE
•When the vehicle speed is about 30 km/h
(19 mph) or more, the headlights
automatically switch to high beams
when there are no vehicles ahead or
approaching in the opposite direction.
When the vehicle speed is less than
about 20 km/h (12 mph), the HBC
switches the headlights to low beams.
•The low beams may not switch to high
beams when cornering.
•Operation of the HBC function can be
disabled. Refer to Personalisation
Features on page 9-12.
When Driving
i-ACTIVSENSE
4-110
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

Blind Spot Monitoring (BSM)*
The BSM is designed to assist the driver in checking the area to the rear of the vehicle on
both sides during lane changes by notifying the driver of the p resence of vehicles
approaching from the rear in an adjacent lane.
The BSM detects vehicles approaching from the rear while travel ling in the forward
direction at a speed of 30 km/h (19 mph) or faster and notifies the driver by turning on the
BSM warning indicator light and displaying the vehicle detectio n screen (vehicles with
multi-information display and active driving display).
If the direction indicator lever is operated to signal a turn in the direction in which the BSM
warning indicator light is illumi nated while the approaching vehicle is detected, the BSM
notifies the driver of possible danger by turning on the BSM wa rning indicator light, and by
activating the warning sound and the warning screen indicator display (vehicles with
multi-information display and active driving display).
The detection area on this system covers the driving lanes on b oth sides of the vehicle and
from the rear part of the front d oors to about 50 m (164 ft) behind the vehicle.
Detection areas
Your vehicle
WA R N I N G
Always check the surrounding area visually before making an actual lane change:
The system is only designed to assist you in checking for vehicles at your rear when making a
lane change. Due to certain limitations with
the operation of this system, the BSM warning
indicator light, the warning sound and the warning screen indicator display may not activate
or they might be delayed even though a vehicle is in an adjacent driving lane. Always make it
your responsibility as a driver to check the rear.
When Driving
i-ACTIVSENSE
*Some models.4-115
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

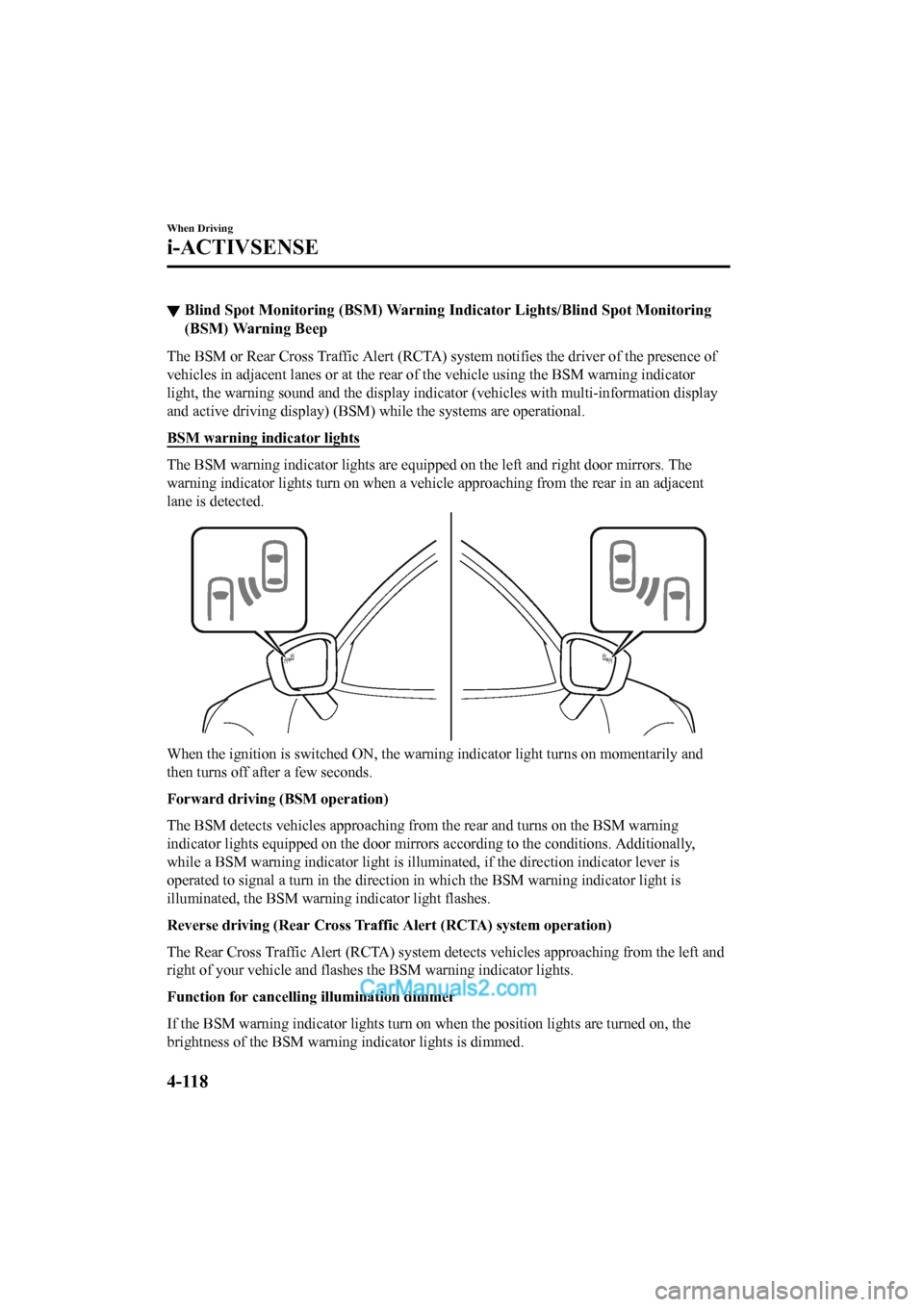

▼Blind Spot Monitoring (BSM) Warni
ng Indicator Lights/Blind Spot Monitoring
(BSM) Warning Beep
The BSM or Rear Cross Traffic Al ert (RCTA) system notifies the driver of the presence of
vehicles in adjacent lanes or at the rear of the vehicle using the BSM warning indicator
light, the warning sound and the display indicator (vehicles wi th multi-information display
and active driving display) (BSM) while the systems are operati onal.
BSM warning in dicator lights
The BSM warning indicator lights are equipped on the left and r ight door mirrors. The
warning indicator lights turn on when a vehicle approaching from the rear in an adjacent
lane is detected.
When the ignition is switched ON, the warning indicator light t urns on momentarily and
then turns off after a few seconds.
Forward driving (BSM operation)
The BSM detects vehicles approaching from the rear and turns on the BSM warning
indicator lights equipped on the door mirrors according to the conditions. Additionally,
while a BSM warning i ndicator light is illuminated, if the dire ction indicator lever is
operated to signal a turn in the direction in which the BSM war ning indicator light is
illuminated, the BSM warning indicator light flashes.
Reverse driving (Rear Cross Traf fic Alert (RCTA) system operation)
The Rear Cross Traffic Alert (RCTA) system detects vehicles app roaching from the left and
right of your vehicle and flashes the BSM warning indicator lig hts.
Function for cancelling illumination dimmer
If the BSM warning indicator lights turn on when the position l ights are turned on, the
brightness of the BSM warning indicator lights is dimmed.
When Driving
i-ACTIVSENSE
4-118
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

If the BSM warning indicator lights are difficult to see due to glare from surrounding
brightness when travelling on snow-covered roads or under foggy conditions, press the
dimmer cancellation button to cancel the dimmer and increase th e brightness of BSM
warning indicator light s when they turn on.
Refer to Instrument Panel Illumination on page 4-26.
Display indicato r (Vehicles with multi-i nformation display and active driving display)
The detected approaching vehicle and warning are displayed in t he multi-information
display and active driving display when the vehicle is moving f orward (BSM operational).
Multi-information DisplayActive Driving Display
Detection and warning indicator Detection and warning indicator
The detected direction is displayed with a detection indicator (white) when an approaching
vehicle is detected. In addition, if the direction indicator le ver is operated to signal a lane
change while the vehicle is detected, the display changes the c olour (amber) of the warning
indicator.
BSM warning beep
The BSM warning beep is activated simultaneously with the flash ing of a BSM warning
indicator light.
▼ Cancelling Operation of Blind Spot
Monitoring (BSM)
The BSM system can be set to inoperable.
Refer to Personalisation Features on page
9-12.
When the BSM is set to inoperable, the
BSM and Rear Cross Traffic Alert
(RCTA) systems are turned off and the
BSM OFF indicator light in the instrument
cluster turns on.
NOTE
When the ignition is
switched OFF, the
system status before it was turned off is
maintained. For exampl e, if the ignition is
switched OFF while the BSM and Rear
Cross Traffic Alert (RCTA) systems are
operational, the BSM and Rear Cross
Traffic Alert (RCTA) systems remain
operational the next time the ignition is
switched ON.
When Driving
i-ACTIVSENSE
4-119
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

•When replacing the tyres, consult an expert repairer, we recommend an Authorised Mazda
Repairer. Replacing the tyres could result in deviation of the guide lines which appear on
the display.
•If the vehicle's front, side, or rear has been involved in a collision, the alignment of the
rear view parking camera (location, installation angle) may have deviated. Always
consult an expert repairer, we recommend an Authorised Mazda Repairer to have the
vehicle inspected.
•If “No Video Signal Available” is indicated in the display, there could be a problem with
the camera. Have your vehicle inspected at an expert repairer, we recommend an
Authorised Mazda Repairer.
•(Predicted vehicle path assist lines display type)
If force is applied to the steering wheel, the guide lines may not display. Loosen your grip
on the steering wheel to allow the guide lines to display.
▼Rear View Parking Camera Location
Rear view parking camera
▼Switching to the Rear
View Monitor Display
Shift the shift lever (manual transaxle) or the selector lever (automatic transaxle) to reverse
(R) with the ignition switched ON to switch the display to the rear view monitor display.
NOTE
When the shift lever (manual transaxle) or the selector lever (automatic transaxle) is shifted
from reverse (R) to another shift lever (manual transaxle) or the selector lever (automatic
transaxle) position, the screen returns to the previous display.
When Driving
Rear View Monitor
4-218
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

Operating the Radio
Without Radio Data System (RDS)With Radio Data System (RDS) Band selector button Traffic announcement button Channel preset buttons
Scan button
Tuning button Programme-type information button
Audio display
Auto memory button
Audio display
Band selector button Channel preset buttons
Scan button
Tuning button
▼ Radio ON
Press a band selector button () to
turn the radio on.
▼ Band selection
Successively pressing the band selector
button (
) switches the bands as
follows: FM1→FM2→AM (Without
Radio Data System (RDS)), MW/LW
(With Radio Data System (RDS)).

The selected mode will be indicated.
NOTE
If the FM broadcast signal becomes weak,
reception automatically changes from
STEREO to MONO for reduced noise.
▼ Tuning
The radio has the following tuning
methods: Manual, Seek, Scan, Preset
channel, and Auto memory tuning. The
easiest way to tune stations is to set them
on preset channels.
Manual tuning
Select the station by pressing the tuning
button (
, ) lightly.
Interior Features
Audio Set [Type A (non-touchscreen)]
5-23
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

Weak signal noise
In suburban areas, broadcast signals
become weak because of distance from the
transmitter. Reception in such fringe areas
is characterised by sound breakup.
Strong signal noise
This occurs very close to a transmitter
tower. The bro adcast signals are extremely
strong, so the result is noise and sound
breakup at the radio receiver.
Station drift noise
When a vehicle reaches the area of two
strong stations broadcasting at similar
frequencies, the original station may be
temporarily lost and the second station
picked up. At this time there will be some
noise from this disturbance.
Station 2
88.3 MHz
Station 1
88.1 MHz
▼
Operating Tips for CD Player
Condensation phenomenon
Immediately after turning on the heater
when the vehicle is cold, the CD or optical
components (prism and lens) in the CD
player may become clouded with
condensation. At thi
s time, the CD will
eject immediately when placed in the unit.
A clouded CD can be corrected simply by
wiping it with a soft cloth. Clouded optical
components will clear naturally in about
an hour. Wait for normal operation to
return before attempting to use the unit.
Handling the CD player
The following precau tions should be
observed.
•Do not use deformed or cracked CDs.
The disc may not eject resulting in a
malfunction.
•Do not use non-conventional discs such
as heart-shaped, octagonal discs, etc.
The disc may not eject resulting in a
malfunction.
Interior Features
Appendix
5-132
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

CAUTION
Do not disassemble the Mazda ERA-GLONASS. Otherwise, it could become damaged and
may not function in an emergency.
 The Mazda ERA-GLONASS has a special built-in battery so that it can operate even if the
power supply from the vehicle is cut such as in an accident.
Heed the following cautions. If the Mazda ER A-GLONASS is not used correctly it may not
operate.
 The built-in battery is not a rechargeable ty pe battery. Do not attempt to recharge the
battery.
 If the built-in battery power is low due to natural discharge and the system determines
that there is a problem, the Mazda ER A-GLONASS cannot be used. If the system
determines that there is a problem, the indicator light (red) in the Mazda ERA-GLONASS
switch turns on to notify the driver. Have the vehicle inspected at an Authorised Mazda
Repairer. Refer to Indicator light/Beep sound on page 7-10.
NOTE
•The Mazda ERA-GLONASS can be used when the ignition is switched ON.
•There are two ways the Mazda ERA-GLONASS makes calls; automatically or manually.
•The Mazda ERA-GLONASS may not operate in the following cases: If the Mazda
ERA-GLONASS does not operate, make a call from another telephone such as the nearest
available public telephone.
•The vehicle is outside of a mobile phone network area
•The vehicle is in a weak radio wave transmission environment (such as inside tunnels,
underground parking areas, shadow of buildings, and mountain areas)
•The vehicle does not receive an impact of a certain level or more even if an accident has
occurred.
•An extremely serious collision occurs resulting in damage to the Mazda
ERA-GLONASS.
•The position information cannot be obtained when signals cannot be received from the
GPS and GLONASS satellites, however, voice calls are possible.
•When a voice call is made by the Mazda ERA-GLONASS, the audio system is muted so
that it does not interfere with the call.
•It may take some time for the call centre to respond after the Mazda ERA-GLONASS first
starts operating.
•If you are unable to respond to an operator's questions after the voice call begins, the
operator may proceed with emergency procedures at their own discretion.
•Even if it is difficult for you to hear the operator's voice, your voice may be heard by the
call centre. Continue explaining your circumstances.
If Trouble Arises
Mazda ERA-GLONASS (Russia)
7-5
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2
